ProForm - PERFORMANCE 900I

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100427 100139 100427 34 5/16" NUT Yes Model Compatibility List $1.56 / Each

2
102634 100111 102634 TS3 8" GRN WIRE F/R, POWER No Model Compatibility List $4.75 / Each

4,5,6
102973 109942 102973 96 3/8" THRUST WASHER No Model Compatibility List $5.09 / Each

2,12,13,14
114078 102521 114078 32 INCLINE MTR SPACER Yes Model Compatibility List $1.84 / Each

2,3,4,5,6,10
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6
116926 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
119425 100031 119425 33 3/8" HEX JAM NUT No Model Compatibility List $1.65 / Each

2
121576 100424 121576 98 SPRING NUT Yes Model Compatibility List $0.34 / Each

2
128457 100190 128457 # 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2
100073 132315 86 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6
133333 100032 133333 68 #8 HOOD CLIP No Model Compatibility List $0.65 / Each

2,9
013423 100258 013423 10 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

2
013607 100132 013607 14 #8 X 3/4" TRUSS HEAD SCRW No Model Compatibility List $0.22 / Each

2
136728 100137 136728 19 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
100142 014088 5 #10 STAR WASHER No Model Compatibility List $0.07 / Each

2
014149 100449 014149 11 5/16" STAR WASHER No Model Compatibility List $0.20 / Each

2
014157 100141 014157 24 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
144528 100689 144528 105 #8 X 9MM SCREW Yes Model Compatibility List $0.23 / Each

2
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
100264 146427 12 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
152478 100695 152478 30 M8 X 25MM WASHER Yes Model Compatibility List $0.75 / Each

2
016057 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

2
163045 100123 163045 13 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $1.30 / Each

2
100128 167049 9 #10 X 3/4" SCREW No Model Compatibility List $0.32 / Each

2
173169 100061 173169 104 GROMMET Yes Model Compatibility List $0.94 / Each

2
174801 102653 174801 2 1/2" X 1/2" SCREW No Model Compatibility List $0.52 / Each

2
179767 100134 179767 29 3/8"X1 3/4" BOLT INC TOP Yes Model Compatibility List $2.87 / Each

2
109927 181979 63 3/8" X 1 1/4" SCREW No Model Compatibility List $2.37 / Each

2
181980 106813 181980 62 3/8" X 1 1/2" BOLT Yes Model Compatibility List $4.59 / Each

2
186726 100201 186726 75 POWER SWITCH Yes Model Compatibility List $20.45 / Each

4,5,6
186819 100120 186819 95 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
188958 111553 188958 26 1/4" STAR WASHER No Model Compatibility List $0.11 / Each

2
189813 100113 189813 TS12 FILTER W/6" WIRE Yes Model Compatibility List $23.85 / Each

4,5,6
104524 197404 97 M5 WASHER No Model Compatibility List $1.20 / Each

2
198639 100147 198639 46 BELT GUIDE Yes Model Compatibility List $10.99 / Each

15
211260 100163 211260 TS6 INCLINE MOTOR WIRE HRNS 12 No Model Compatibility List $15.87 / Each

4,5,6,10,12,13,14
215822 100187 215822 58A 4 No Model Compatibility List $5.39 / Each

4,5,6,7
215823 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
219168 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $6.81 / Each

1,3,15
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
225696 103010 225696 35 1/4" X 1 1/4" BOLT No Model Compatibility List $1.03 / Each

2
100182 227199 77 UPRIGHT GROMMET No Model Compatibility List $1.55 / Each

2,3
100185 240351 48 ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6
243797 100292 243797 92 CONSOLE CLAMP No Model Compatibility List $3.74 / Each

9
100178 252433 91 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3
263241 113569 263241 45 WALKING BELT No Model Compatibility List $121.28 / Each

15
263724 111823 263724 61 IDLER ROLLER Yes Model Compatibility List $102.56 / Each

8
100143 265234 53 1/4" X 1 1/4" SCREW No Model Compatibility List $1.24 / Each

2
100117 268476 # DECAL, GROUNG WARNING No Model Compatibility List $0.91 / Each

7,3
276104 102549 276104 8 #8 X 5/8" SCREW Yes Model Compatibility List $0.32 / Each

2
286707 100162 286707 # INCLINE MOTOR SENSOR KIT No Model Compatibility List $50.13 / Each

10
291486 100133 291486 37 #8X5/8" DECKRAIL SCREW No Model Compatibility List $1.38 / Each

2,3,9
295758 102452 295758 20 5/16" MOTOR SCREW No Model Compatibility List $4.04 / Each

2
298474 102459 298474 59 RUBBER GROMMET No Model Compatibility List $7.02 / Each

2
298484 102454 298484 23 5/16" BOLT,FLASH TM11-200 Yes Model Compatibility List $1.61 / Each

2
100037 305284 43 LATCH WARNING DECAL No Model Compatibility List $1.50 / Each

7,3
307032 100180 307032 3 THICK BASE PAD Yes Model Compatibility List $9.36 / Each

3,12,13,14
314522 111850 314522 50 BASE PAD SPACER Yes Model Compatibility List $3.00 / Each

2,3,4,5,6,12,13,14
100140 315068 21 LIFT FRAME PIN No Model Compatibility List $6.00 / Each

3,10,12,13,14
315689 100209 315689 69 INCLINE MOTOR - AC Lift Motor Yes Model Compatibility List $131.26 / Each

10
111803 341768 7 3/8" X 2 1/4" SCREW No Model Compatibility List $4.36 / Each

2
111829 343447 71 FRAME SPACER No Model Compatibility List $4.80 / Each

2,3,4,5,6
346519 109924 346519 16 3/8" X 1 1/2" BOLT Yes Model Compatibility List $4.08 / Each

2
111831 347853 78 BELLY PAN No Model Compatibility List $73.80 / Each

1
347877 110968 347877 88 KEY Yes Model Compatibility List $25.29 / Each

9
348118 111089 348118 40 REAR FOOT Yes Model Compatibility List $10.49 / Each

9
348641 118794 348641 49 DRIVE ROLLER/PULLEY Yes Model Compatibility List $116.18 / Each

8,10
349102 111834 349102 81 UPRIGHT WIRE No Model Compatibility List $52.98 / Each

3,4,5,6
349793 143377 349793 65 MOTOR HOOD Yes Model Compatibility List $117.42 / Each

9
100211 349816 41 LATCH PLATE No Model Compatibility List $10.64 / Each

1
350350 111802 350350 6 1/4"-20X4.5" Button Head Screw Yes Model Compatibility List $5.75 / Each

2
127957 351349 54 DRIVE MOTOR No Model Compatibility List $380.82 / Each

10
356473 119163 356473 55 MOTOR BELT No Model Compatibility List $43.16 / Each

15
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6
358342 111826 358342 52 LATCH ASSEMBLY Yes Model Compatibility List $97.09 / Each

1
359082 117921 359082 39 PLATFORM CUSHION Yes Model Compatibility List $16.72 / Each

3
359093 113705 359093 66 CUSHION BOTTOM Yes Model Compatibility List $20.78 / Each

3
364027 102396 364027 15 1/4" X 2 1/2" BOLT Yes Model Compatibility List $2.01 / Each

2
365328 111847 365328 99 CONTROLLER CLAMP Yes Model Compatibility List $11.40 / Each

4,5,6,7,8
113675 365332 73 CONTROLLER PLATE No Model Compatibility List $24.54 / Each

7,8
109931 372033 22 3/8" X 1" SCREW No Model Compatibility List $4.07 / Each

2
109941 372092 102 3/8" BUSHING No Model Compatibility List $3.48 / Each

8
372093 111827 372093 67 ROLLER SPACER Yes Model Compatibility List $7.13 / Each

3
111809 372094 51 9/32" PLASTIC BUSHING No Model Compatibility List $3.60 / Each

8,9
372381 111828 372381 70 INCLINE FRAME Yes Model Compatibility List $110.09 / Each

3,10
146068 372384 90 RIGHT UPRIGHT No Model Compatibility List $129.09 / Each

3
158549 372385 89 LEFT UPRIGHT No Model Compatibility List $129.09 / Each

3
146064 372396 84 HANDRAIL No Model Compatibility List $43.17 / Each

9,3
146069 372475 93 PULSE CROSSBAR No Model Compatibility List $145.64 / Each

12,13,14
146056 372477 36 LEFT TRAY No Model Compatibility List $20.30 / Each

1
146054 372478 27 RIGHT TRAY No Model Compatibility List $20.30 / Each

1
372591 111811 372591 38 WHEEL No Model Compatibility List $5.27 / Each

8
146062 372681 79 LEFT HANDRAIL GRIP No Model Compatibility List $37.93 / Each

9,3,11
146066 372682 87 LEFT HANDRAIL COVER No Model Compatibility List $23.07 / Each

9,3
146055 372683 31 RIGHT HANDRAIL COVER No Model Compatibility List $23.07 / Each

9,3
146061 372684 74 RIGHT HANDRAIL GRIP No Model Compatibility List $37.93 / Each

9,3,11
372701 111849 372701 101 RIGHT INNER BASE COVER Yes Model Compatibility List $33.65 / Each

3,9
372702 111848 372702 100 LEFT INNER BASE COVER Yes Model Compatibility List $33.65 / Each

3,9
372703 111836 372703 83 RIGHT BASE COVER Yes Model Compatibility List $19.75 / Each

3,9
372704 111835 372704 82 LEFT BASE COVER Yes Model Compatibility List $19.75 / Each

3,9
158553 372785 # HARDWARE KIT, NOTE: No Model Compatibility List $103.32 / Each

1
111843 372843 94 BASE No Model Compatibility List $237.01 / Each

3
158546 372844 44 WALKING PLATFORM No Model Compatibility List $217.34 / Each

15
146053 374380 25 TABLET HOLDER No Model Compatibility List $83.05 / Each

1
145985 380157 28 5/16" X 2" SCRW, NOTE: OM No Model Compatibility List $4.40 / Each

1
109928 381122 17 3/8" X 1 3/4" BOLT Yes Model Compatibility List $2.18 / Each

2
388474 136228 388474 72 CONTROLLER No Model Compatibility List $208.65 / Each

7,8
159675 389282 42 LEFT FOOT RAIL No Model Compatibility List $93.94 / Each

9
159677 389283 60 RIGHT FOOT RAIL No Model Compatibility List $93.94 / Each

9

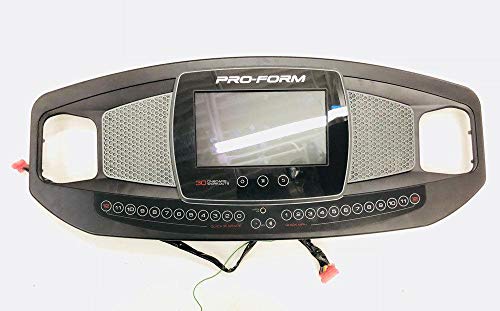

393463 159678 393463 80A CONSOLE No Model Compatibility List $658.90 / Each

7
159679 393464 80B CNSL REPROG THUMB DRIVE No Model Compatibility List $95.20 / Each

7,10
393577 118085 393577 57 LEFT REAR FOOT Yes Model Compatibility List $19.20 / Each

9
118084 393579 47 RIGHT REAR FOOT No Model Compatibility List $19.37 / Each

9
159682 394322 # LITPAC NOTE: No Model Compatibility List $112.35 / Each

4,5,6
159676 397500 58B 12" BLACK CNSL GRND WIRE No Model Compatibility List $6.49 / Each

7,4,5,6
159680 397503 85 PULSE BAR No Model Compatibility List $94.33 / Each

12,13,14
146060 397518 64 CONSOLE BASE No Model Compatibility List $142.30 / Each

7,3
159674 397947 18 CONSOLE FRAME No Model Compatibility List $100.17 / Each

7,3
159681 400128 # USER'S MANUAL, NOTE: No Model Compatibility List $16.50 / Each

1
045023 100191 045023 # 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

2
110986 ARC14 # WALL ARC FILTER No Model Compatibility List $38.49 / Each

1
031229a KV5-DWY-57F 031229a 031229 Power Cord Yes Model Compatibility List $32.99 / Each

5,6
124669 1000884 124669 # 1 Hardwired Power Cord (Used Yes Model Compatibility List $16.49 / Each

6
