ProForm - PRO 9000

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: PRO 9000

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Cover/trim
  • Wire/cables
  • Roller
  • Motor
  • Overlay/console
  • Frame Related
  • Rollers and Rotating Parts
  • Covers and Plastics
  • Sensors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100427 100139 100427 9 5/16" NUT Yes Model Compatibility List $1.56 / Each

2,40
102457 100553 34 1/2" NUT No Model Compatibility List $0.99 / Each

2
101896 101061 101896 TS11 4" WHITE WIRE, M/F No Model Compatibility List $4.88 / Each

4,5,6
102973 109942 102973 46 3/8" THRUST WASHER No Model Compatibility List $5.09 / Each

2,12,13,14
114078 102521 114078 67 INCLINE MTR SPACER Yes Model Compatibility List $1.84 / Each

2,3,4,5,6,10,1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
119425 100031 119425 35 3/8" HEX JAM NUT Yes Model Compatibility List $1.65 / Each

2
121576 100424 121576 21 SPRING NUT Yes Model Compatibility List $0.34 / Each

2
128263 102450 128263 17 #8 X 1 3/4" SCREW No Model Compatibility List $2.54 / Each

2
128457 100190 128457 # 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2,1
105930 129144 47 CABLE PULLEY WASHER No Model Compatibility List $2.69 / Each

2,8,4,5,6
132315 100073 132315 102 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
013300 100149 013300 10 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
133333 100032 133333 36 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

2,9,1,46
013423 100258 013423 13 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

2
013607 100132 013607 24 #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

2
136728 100137 136728 18 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
014149 100449 014149 8 5/16" STAR WASHER Yes Model Compatibility List $0.20 / Each

2
014157 100141 014157 49 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
152478 100695 152478 31 M8 X 25MM WASHER Yes Model Compatibility List $0.75 / Each

2
159986 100347 159986 15 TOP LIFT MOTOR BOLT No Model Compatibility List $7.03 / Each

2,10
016057 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
163045 100123 163045 25 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $1.30 / Each

2
167049 100128 167049 6 #10 X 3/4" SCREW No Model Compatibility List $0.32 / Each

2
173169 100061 173169 70 GROMMET Yes Model Compatibility List $0.94 / Each

2,1
109927 181979 20 3/8" X 1 1/4" SCREW No Model Compatibility List $2.37 / Each

2
184369 106040 184369 3 M4 X 16MM SCREW No Model Compatibility List $1.57 / Each

2
186726 100201 186726 71 POWER SWITCH Yes Model Compatibility List $20.45 / Each

4,5,6,1
186819 100120 186819 58 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
100444 189861 77 REAR ROLLER STAR WASHER No Model Compatibility List $0.12 / Each

2,8
102056 194646 104 M6 X 20MM BOLT No Model Compatibility List $0.66 / Each

2
198639 100147 198639 43 BELT GUIDE Yes Model Compatibility List $10.99 / Each

15,40
211260 100163 211260 TS6 INCLINE MOTOR WIRE HRNS 12 No Model Compatibility List $15.87 / Each

4,5,6,10,12,13,14
214773 100212 214773 TS4 6" GRN WIRE F/R, PWR GRND No Model Compatibility List $2.27 / Each

4,5,6
215822 100187 215822 103 4 No Model Compatibility List $5.39 / Each

4,5,6,7
215823 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
219168 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $6.81 / Each

1,3,15
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
100315 219896 # ACCESSORY KIT No Model Compatibility List $222.25 / Each

4,5,6,1
223662 109952 223662 59 IDLER ROLLER Yes Model Compatibility List $153.47 / Each

8,45
227199 100182 227199 86 UPRIGHT GROMMET No Model Compatibility List $1.55 / Each

2,3,1
230979 100227 230979 68 HOOD MOUNT Yes Model Compatibility List $3.84 / Each

2,9,1
100185 240351 53 ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
243797 100292 243797 108 CONSOLE CLAMP Yes Model Compatibility List $3.74 / Each

9,2
251086 108701 251086 69B POWER CORD Yes Model Compatibility List $44.97 / Each

4,5,6,1
100178 252433 85 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3,1
100117 268476 # DECAL, GROUNG WARNING No Model Compatibility List $0.91 / Each

7,3,1
286707 100162 286707 # INCLINE MOTOR SENSOR KIT No Model Compatibility List $50.13 / Each

10,47,4,1
291486 100133 291486 16 #8X5/8" DECKRAIL SCREW No Model Compatibility List $1.38 / Each

2,3,9
109922 295136 1 5/16" X 3/4" SCREW No Model Compatibility List $1.14 / Each

2,1
295758 102452 295758 19 5/16" MOTOR SCREW No Model Compatibility List $4.04 / Each

2
298474 102459 298474 27 RUBBER GROMMET No Model Compatibility List $7.02 / Each

2,40
298484 102454 298484 7 5/16" BOLT,FLASH TM11-200 Yes Model Compatibility List $1.61 / Each

2
298898 112032 298898 79 KEY/CLIP Yes Model Compatibility List $21.79 / Each

2,9,1
301345 102503 301345 101 BASE PAD Yes Model Compatibility List $2.19 / Each

3,12,13,14,46,40
100037 305284 38 LATCH WARNING DECAL No Model Compatibility List $1.50 / Each

7,3,1,40
311589 102969 311589 55 MOTOR BELT Yes Model Compatibility List $38.15 / Each

15
110137 316650 # 8" CABLE TIE, 50# No Model Compatibility List $0.38 / Each

2,4,5,6,1
405694 102471 405694 54 DRIVE MOTOR Yes Model Compatibility List $523.12 / Each

10
111118 330165 # DECAL,REWRK,OVRLY SHEET No Model Compatibility List $100.66 / Each

7,3,1
102525 331708 # CONSOLE BACK BUMPON No Model Compatibility List $0.46 / Each

7,4,5,6,1
341769 109929 341769 23 3/8" X 2 3/4" SCREW No Model Compatibility List $4.82 / Each

2
346519 109924 346519 14 3/8" X 1 1/2" BOLT Yes Model Compatibility List $4.08 / Each

2
109923 349213 4 5/16" X 2 1/4" BOLT Yes Model Compatibility List $3.18 / Each

2
351467 126890 351467 76 UPRIGHT CROSSBAR Yes Model Compatibility List $45.59 / Each

3,40
351687 126891 351687 97 TRAY No Model Compatibility List $42.69 / Each
Out Of Stock 		1
112047 351693 72 BELLY PAN No Model Compatibility List $72.25 / Each
Out Of Stock 		1
352008 111094 352008 66 INCLINE MOTOR Yes Model Compatibility List $139.75 / Each

10
352011 109946 352011 51 DRIVE ROLLER/PULLEY Yes Model Compatibility List $132.53 / Each

8,10,45
352039 140700 352039 40 WALKING BELT Yes Model Compatibility List $134.00 / Each

15
109940 355609 44 LEFT FRAME COVER No Model Compatibility List $58.70 / Each

9,3
109950 355610 57 RIGHT FRAME COVER No Model Compatibility List $58.70 / Each

9,3
156009 355615 62 MOTOR HOOD No Model Compatibility List $103.71 / Each

9
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
358589 109936 358589 39 WALKING PLATFORM No Model Compatibility List $207.84 / Each

15
358779 109953 358779 60 LEFT REAR CAP 315700 Yes Model Compatibility List $28.27 / Each

9,46
358780 109954 358780 61 RIGHT REAR CAP Yes Model Compatibility List $26.40 / Each

9,46
109974 360378 98 CONTROLLER CLAMP No Model Compatibility List $2.63 / Each

7,8,4,5,6,2
111117 361491 50 CONTROLLER BRACKET No Model Compatibility List $14.17 / Each

7,2,8,3,4,5,6,40
364027 102396 364027 12 1/4" X 2 1/2" BOLT Yes Model Compatibility List $2.01 / Each

2
364361 103644 364361 88 CHEST HEART RATE MONITOR Yes Model Compatibility List $126.56 / Each

12,13,14,47,1
111119 367244 # DECAL,REWORK SHEET No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,1
109931 372033 28 3/8" X 1" SCREW No Model Compatibility List $4.07 / Each

2
109941 372092 45 3/8" BUSHING No Model Compatibility List $3.48 / Each

8,2
372106 109956 372106 63 INCLINE FRAME SPACER No Model Compatibility List $1.69 / Each

2,3,4,5,6,10,40
109957 372107 64 FRAME SPACER No Model Compatibility List $2.21 / Each

2,3,4,5,6,40
109982 372108 87 1/2" BUSHING No Model Compatibility List $2.46 / Each

8,2
109930 372109 26 1/2" X 2.25" BOLT, NOTE: No Model Compatibility List $2.83 / Each

2
109958 372310 65 INCLINE FRAME No Model Compatibility List $162.36 / Each
Out Of Stock 		3,10
372664 115894 372664 100 TABLET HOLDER Yes Model Compatibility List $87.44 / Each

1
145985 380157 2 5/16" X 2" SCRW, NOTE: OM No Model Compatibility List $4.40 / Each

1,2
380930 109935 380930 37 CUSHION Yes Model Compatibility List $24.53 / Each

3
109928 381122 22 3/8" X 1 3/4" BOLT Yes Model Compatibility List $2.18 / Each

2
109978 382172 92 REAR WHEEL No Model Compatibility List $5.34 / Each

8,45
109967 382237 93 BASE No Model Compatibility List $385.73 / Each

3
382318 109976 382318 90 RIGHT UPRIGHT COVER Yes Model Compatibility List $80.91 / Each

9,3,46
382319 109975 382319 89 LEFT UPRIGHT COVER Yes Model Compatibility List $80.91 / Each

9,3,46
383788 111132 383788 83 UPRIGHT WIRE Yes Model Compatibility List $65.19 / Each

3,4,5,6
384499 156086 384499 105 PULSE BAR Yes Model Compatibility List $110.86 / Each

12,13,14
412928 156087 412928 106 FAN GRILL Yes Model Compatibility List $102.11 / Each

8,9
156088 384864 107 FAN HOUSING No Model Compatibility List $35.20 / Each

8
384876 156069 384876 30 CONSOLE BASE Yes Model Compatibility List $119.66 / Each

7,3
384877 156082 384877 94 LEFT TRAY Yes Model Compatibility List $32.47 / Each

1
384878 156070 384878 32 RIGHT TRAY Yes Model Compatibility List $29.17 / Each

1
384880 156077 384880 80 PULSE CROSSBAR Yes Model Compatibility List $131.37 / Each

12,13,14
141248 384946 78 LATCH CROSSBAR No Model Compatibility List $81.69 / Each

1
384949 156075 384949 74 HANDRAIL Yes Model Compatibility List $68.46 / Each

9,3
156071 384952 33 CONSOLE FRAME No Model Compatibility List $85.38 / Each

7,3
385111 156074 385111 73 LEFT HANDRAIL TOP COVER Yes Model Compatibility List $31.12 / Each

3,9
385112 156076 385112 75 LEFT HANDRAIL BTTM CVR Yes Model Compatibility List $24.99 / Each

3,9
385113 156079 385113 81 RIGHT HANDRAIL BTTM CVR Yes Model Compatibility List $31.12 / Each

3,9
385114 156078 385114 82 RIGHT HANDRAIL TOP COVER Yes Model Compatibility List $24.99 / Each

3,9
156083 385138 95 FAN No Model Compatibility List $56.21 / Each

8
156091 385222 # HARDWARE KIT;NOTE No Model Compatibility List $67.68 / Each
Out Of Stock 		1
156081 385246 91 LEFT UPRIGHT No Model Compatibility List $206.62 / Each

3
156080 385247 84 RIGHT UPRIGHT No Model Compatibility List $206.62 / Each

3
156411 385549 42 RIGHT FOOT RAIL No Model Compatibility List $94.14 / Each

9
156072 385602 41 LEFT FOOT RAIL No Model Compatibility List $94.33 / Each

9
156068 387927 29 5/16" X 1 1/4" SCREW No Model Compatibility List $1.10 / Each

2
156085 387928 99 1/4" X 5/8" SCREW No Model Compatibility List $0.46 / Each

2
388199 109949 388199 56 STORAGE LATCH Yes Model Compatibility List $106.59 / Each

1,40
391855 111462 391855 48 CONTROLLER No Model Compatibility List $219.65 / Each

7
156420 393466 96B CNSL REPROG THUMB DRIVE No Model Compatibility List $95.20 / Each

7,10
156414 393576 # TECH SHEET No Model Compatibility List $0.00 / Each
Out Of Stock 		1
156426 401179 # LITPAC NOTE: No Model Compatibility List $161.12 / Each

4,5,6
156424 401187 # USER'S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock 		1

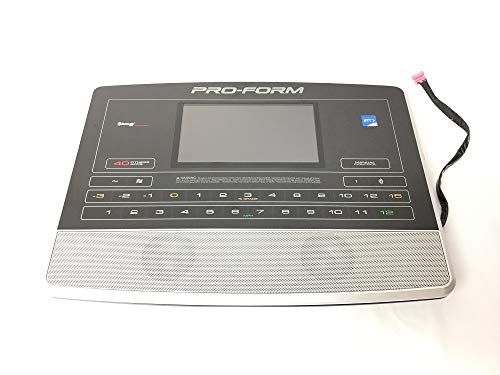

401423 156423 401423 96A CONSOLE (RESET CNSL) No Model Compatibility List $704.00 / Each

4,5,6,7
156425 404981 # USER'S MANUAL,FCA No Model Compatibility List $0.00 / Each
Out Of Stock 		1
045023 100191 045023 # 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

2,1
ARC14 110986 ARC14 # WALL ARC FILTER No Model Compatibility List $38.49 / Each

1
100314 CIFMC9996 # LUBE KIT, CANADA, 4 TUBES No Model Compatibility List $0.00 / Each
Out Of Stock 		15,3,15,1
425087 1027029 425087 0 1 MOTOR HOOD No Model Compatibility List $66.36 / Each
Out Of Stock 		18
328330 1003183 328330 0 1 Motor Drive Yes Model Compatibility List $499.00 / Each

28
013576 1004209 013576 0 1 Screw #8 X 1/2" Yes Model Compatibility List $11.99 / Each

1
013322 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

1
133945 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2023. All Rights Reserved.
