ProForm - SPORT 4.0

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: SPORT 4.0

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Cover/trim
  • Wire/cables
  • Roller
  • Pulley
  • Frame Related
  • Rollers and Rotating Parts
  • Covers and Plastics
  • Sensors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100427 100139 100427 20 5/16" NUT Yes Model Compatibility List $1.56 / Each

2,40
101630 100126 101630 6 5/16" STAR WASHER No Model Compatibility List $0.16 / Each

2
102973 109942 102973 81 3/8" THRUST WASHER No Model Compatibility List $5.09 / Each

2,12,13,14
114011 102281 114011 TS4 4 Yes Model Compatibility List $4.87 / Each

4,5,6
114078 102521 114078 82 INCLINE MTR SPACER Yes Model Compatibility List $1.84 / Each

2,3,4,5,6,10,1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
116926 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
119425 100031 119425 16 3/8" HEX JAM NUT Yes Model Compatibility List $1.65 / Each

2
012142 101429 012142 85 M6 LOCKNUT No Model Compatibility List $1.98 / Each

2
012149 100136 012149 10 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
126146 100112 126146 TS3 4" BLU WIRE F/F, DR MOTOR Yes Model Compatibility List $7.00 / Each

4,5,6
128457 100190 128457 # 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2,1
132315 100073 132315 44 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
013300 100149 013300 34 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
133333 100032 133333 13 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

2,9,1,46
013556 100125 013556 5 5/16" X 3/4" SCREW No Model Compatibility List $1.14 / Each

2
013607 100132 013607 14 #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

2
136728 100137 136728 18 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
139090 100151 139090 75 WHEEL Yes Model Compatibility List $6.51 / Each

8,45
100142 014088 23 #10 STAR WASHER No Model Compatibility List $0.07 / Each

2
014157 100141 014157 22 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
016057 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
163045 100123 163045 3 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $1.30 / Each

2
167049 100128 167049 8 #10 X 3/4" SCREW No Model Compatibility List $0.32 / Each

2
173169 100061 173169 53 GROMMET Yes Model Compatibility List $0.94 / Each

2,1
174320 100135 174320 32 3/8"-16X1 1/2" HEX BOLT Yes Model Compatibility List $4.29 / Each

2
179767 100134 179767 15 3/8"X1 3/4" BOLT INC TOP Yes Model Compatibility List $2.87 / Each

2
184369 106040 184369 67 M4 X 16MM SCREW No Model Compatibility List $1.57 / Each

2
186726 100201 186726 55 POWER SWITCH Yes Model Compatibility List $20.45 / Each

4,5,6,1
186819 100120 186819 1 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
100129 195683 9 3/8" X 2 1/2" BOLT No Model Compatibility List $3.67 / Each

2
112925 198084 TS5 6" RED WIRE, M/F No Model Compatibility List $3.07 / Each

4,5,6
198639 100147 198639 30 BELT GUIDE Yes Model Compatibility List $10.99 / Each

15,40
208603 100072 208603 62 KEY/CLIP Yes Model Compatibility List $17.98 / Each

2,9,1
112036 209008 56 ACCESS DOOR No Model Compatibility List $1.22 / Each

4,5,6
211260 100163 211260 TS9 INCLINE MOTOR WIRE HRNS 12 No Model Compatibility List $15.87 / Each

4,5,6,10,12,13,14
213894 100024 213894 47 FOOT RAIL FLAT WASHER No Model Compatibility List $1.09 / Each

2,9,46
215822 100187 215822 78 4 No Model Compatibility List $5.39 / Each

4,5,6,7
215823 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
219168 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $6.81 / Each

1,3,15
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
227199 100182 227199 73 UPRIGHT GROMMET No Model Compatibility List $1.55 / Each

2,3,1
100175 239057 33 ROUND HANDRAIL CAP No Model Compatibility List $0.69 / Each

9,3
100185 240351 # ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
112126 254359 69 CAUTION DECAL, OM HAS No Model Compatibility List $9.46 / Each

7,3,1
112131 256841 29 WARNING DECAL,ENG/SPNSH No Model Compatibility List $21.18 / Each

7,3,1
260687 100158 260687 45 DRIVE MOTOR BELT Yes Model Compatibility List $60.18 / Each

10,15
100213 263228 TS6 8" GRN WIRE F/R, CNTRLR No Model Compatibility List $3.60 / Each

7,4,5,6
265234 100143 265234 25 1/4" X 1 1/4" SCREW No Model Compatibility List $1.24 / Each

2
100117 268476 # DECAL, GROUNG WARNING No Model Compatibility List $0.91 / Each

7,3,1
270359 100155 270359 40 WALKING BELT Part #40 Yes Model Compatibility List $121.52 / Each

15
276105 100121 276105 86 M4 X 8MM PULSE GND SCREW Part #80 on drawing No Model Compatibility List $1.79 / Each

2,12,13,14
278652 100122 278652 2 3/8" X 3 1/4" SCREW Part #2 On Drawing No Model Compatibility List $14.24 / Each

2
291486 100133 291486 24 #8X5/8" DECKRAIL SCREW No Model Compatibility List $1.38 / Each

2,3,9
295756 100014 295756 17 1/4" MOTOR SCREW No Model Compatibility List $0.99 / Each

2
156804 302602 42 IDLER ROLLER No Model Compatibility List $112.12 / Each

8
100179 306715 70 BASE CAP No Model Compatibility List $1.11 / Each

9,3,46
307031 100181 307031 72 THIN BASE PAD,1/4" THK No Model Compatibility List $3.63 / Each

3,12,13,14,46
307032 100180 307032 71 THICK BASE PAD Yes Model Compatibility List $9.36 / Each

3,12,13,14,46,40
100170 315023 59 LEFT HANDRAIL No Model Compatibility List $32.28 / Each

9,3
100174 315058 64 RIGHT HANDRAIL No Model Compatibility List $32.28 / Each

9,3
100172 315065 61 CONSOLE CROSSBAR No Model Compatibility List $61.27 / Each

7
315067 100164 315067 50 LIFT FRAME BUSHING No Model Compatibility List $15.96 / Each

3,8,10,40
100140 315068 77 LIFT FRAME PIN No Model Compatibility List $6.00 / Each

3,10,12,13,14,2
113381 315069 65 DUMBBELL No Model Compatibility List $17.09 / Each

1
315689 100209 315689 49 INCLINE MOTOR - AC Lift Motor Yes Model Compatibility List $131.26 / Each

10
315783 100127 315783 7 5/16"-18 X 3" BUTTON HEAD SCREW Yes Model Compatibility List $3.44 / Each

2
316431 117805 316431 52 BELLY PAN Part #52 On Diagram No Model Compatibility List $132.25 / Each

1
316433 113457 316433 46 RIGHT REAR FOOT Yes Model Compatibility List $21.42 / Each

9
316434 113456 316434 43 LEFT REAR FOOT No Model Compatibility List $21.42 / Each

9
319894 100130 319894 11 M6 X 55MM SCREW No Model Compatibility List $4.80 / Each

2

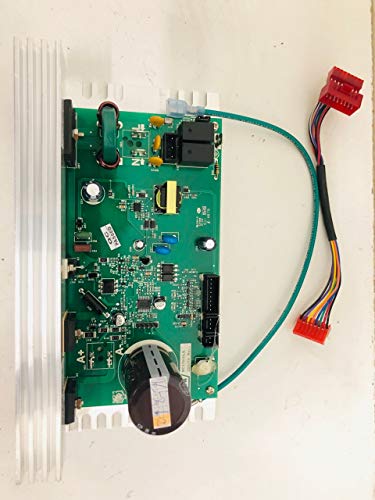

405826 117766 405826 36 CONTROLLER No Model Compatibility List $287.90 / Each

7,8
405697 117790 405697 35 DRIVE MOTOR Yes Model Compatibility List $215.50 / Each

10
113465 348221 60 HANDRAIL CAP No Model Compatibility List $5.51 / Each

9,3
100211 349816 # LATCH PLATE No Model Compatibility List $10.64 / Each

1,40
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
358339 100198 358339 68 LATCH PIN ASSEMBLY Yes Model Compatibility List $46.42 / Each

12,13,14
364361 103644 364361 # CHEST HEART RATE MONITOR Yes Model Compatibility List $126.56 / Each

12,13,14,47,1
100153 365327 37 CONTROLLER PLATE No Model Compatibility List $18.74 / Each

7,8
365328 111847 365328 83 CONTROLLER CLAMP Yes Model Compatibility List $11.40 / Each

4,5,6,7,8,2
109931 372033 12 3/8" X 1" SCREW No Model Compatibility List $4.07 / Each

2
109941 372092 80 3/8" BUSHING No Model Compatibility List $3.48 / Each

8,2
372093 111827 372093 26 ROLLER SPACER Yes Model Compatibility List $7.13 / Each

3,40
111809 372094 84 9/32" PLASTIC BUSHING No Model Compatibility List $3.60 / Each

8,9,1,2
379928 145109 379928 31 DRIVE ROLLER/PULLEY No Model Compatibility List $104.32 / Each

8,10,45
145257 380931 51 LIFT FRAME No Model Compatibility List $66.52 / Each

3,10,40
156812 386987 79 TABLET HOLDER No Model Compatibility List $24.90 / Each

1
156817 387017 # HARDWARE KIT, NOTE: No Model Compatibility List $38.90 / Each

1
156811 387284 76 RIGHT UPRIGHT No Model Compatibility List $106.58 / Each

3
156810 387285 74 BASE No Model Compatibility List $131.42 / Each

3
156809 387286 66 LEFT UPRIGHT No Model Compatibility List $106.58 / Each

3
156805 387287 48 MOTOR HOOD No Model Compatibility List $79.35 / Each

9
156801 387288 28 PLATFORM CUSHION No Model Compatibility List $18.59 / Each

3
156803 387289 41 RIGHT FOOT RAIL No Model Compatibility List $48.04 / Each

9
156800 387290 27 LEFT FOOT RAIL No Model Compatibility List $48.04 / Each

9

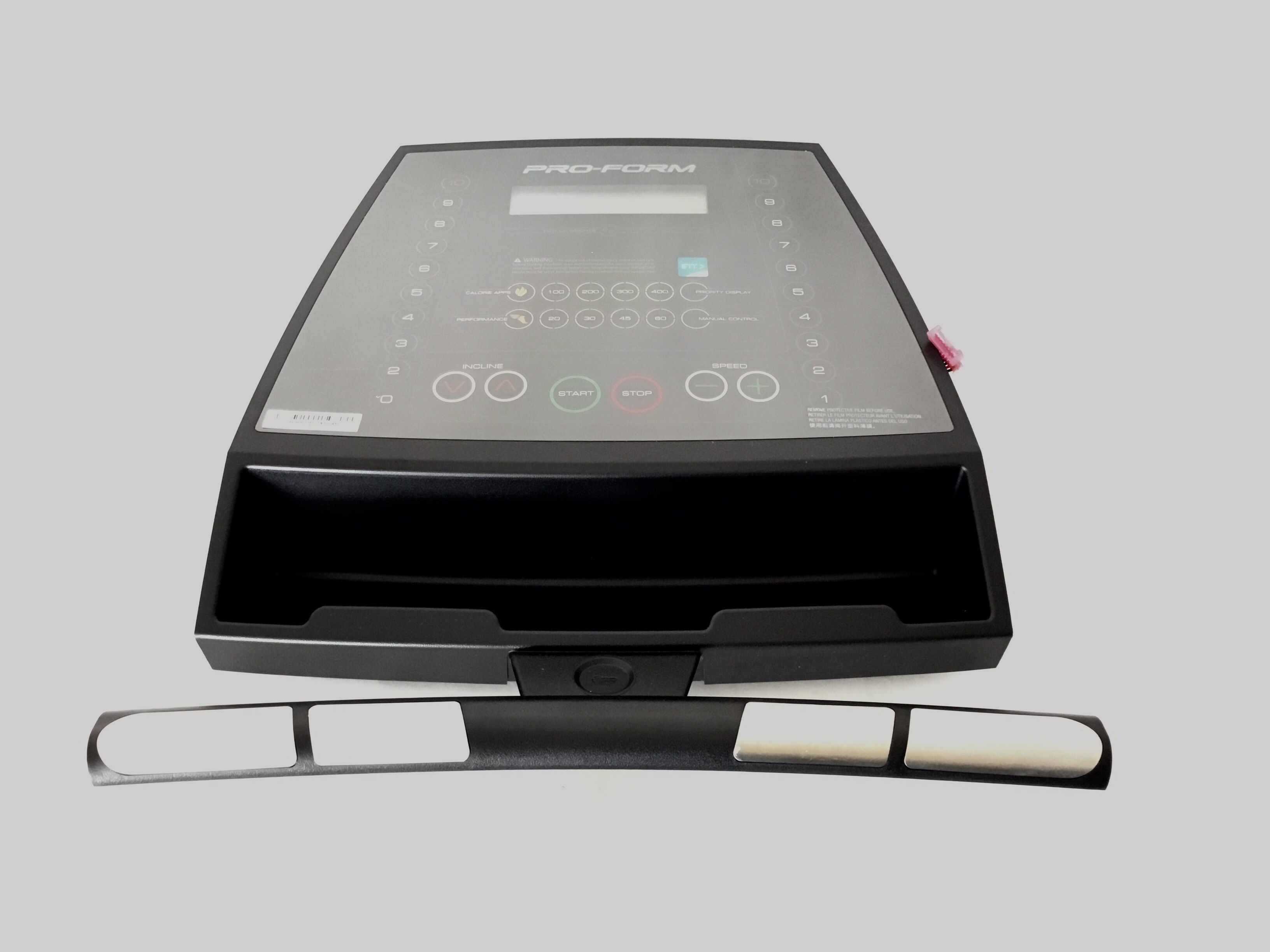

387291 156806 387291 57 CONSOLE etpf34616 No Model Compatibility List $253.66 / Each

7
156802 387292 39 WALKING PLATFORM No Model Compatibility List $177.10 / Each

15
156807 387296 58 CONSOLE BASE No Model Compatibility List $91.11 / Each

7,3
156808 388848 63 UPRIGHT WIRE No Model Compatibility List $69.96 / Each

3,4,5,6
156826 397573 # USER'S MANUAL, ENGLISH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
156829 397584 # LITPAC NOTE: No Model Compatibility List $87.17 / Each

4,5,6
156827 397585 # USER'S MANUAL, SPANISH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
156828 402261 # USER'S MANUAL,SPG No Model Compatibility List $0.00 / Each
Out Of Stock 		1
156830 403155 # USER'S MANUAL,SP6 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
045023 100191 045023 # 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

2,1
013576 1004209 013576 0 1 Screw #8 X 1/2" Yes Model Compatibility List $11.99 / Each

1
013322 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

1
328342 1010519 328342 0 1 DC Drive Motor Yes Model Compatibility List $219.00 / Each

1
013500 1010869 013500 0 1 Front Platform Bolt No Model Compatibility List $13.99 / Each

1
307032 1010914 307032 0 1 Thick Base Foot Yes Model Compatibility List $14.99 / Each

1
133945 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

1
