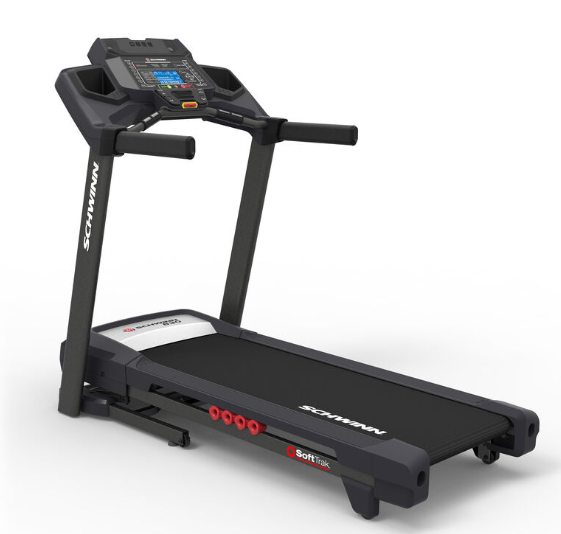

Repair Parts for schwinn SCH 830 TREADMILL 94283
| Brand | schwinn |
|---|---|
| Type | Folding Treadmill |
| Category | Folding |
| Model Number | 94283 |
| Model Name | SCH 830 TREADMILL |
| Version | 2017 |
Model Numbers: 94283
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
736401 | 1000512133 | 3 | BASE SHRD SIDRL ENDCAP LT SCH,MY16 | No |
Compatibility List |
$21.10 / Each
|
|
|
736405 | 1000512134 | 4 | BASE SHRD SIDRL ENDCAP RT SCH,MY16 | No |
Compatibility List |
$21.10 / Each
|
|
|
736413 | 1000511483 | 5 | BASE SHROUD, WHEEL COVER, RT (SCH) | No |
Compatibility List |
$6.48 / Each
|
|
|
736416 | 1000511484 | 6 | BASE SHROUD, WHEEL COVER, LT (SCH) | No |
Compatibility List |
$6.48 / Each
|
|
|
736417 | 1000511538 | 7 | COVER, HANDLEBAR JCTN, RT, SCH 830 | No |
Compatibility List |
$4.85 / Each
|
|
|
736418 | 1000511539 | 8 | COVER, HANDLEBAR JCTN, LT, SCH 830 | No |
Compatibility List |
$4.85 / Each
|
|
|
736419 | 1000512135 | 9 | SHRD,BASE FRAME UPRT,RT (SCH),MY16 | No |
Compatibility List |
$9.73 / Each
|
|
|
736385 | 1000511476 | 11 | SHROUD SIDE RAIL FRAME 1 PIECE SCH | No |
Compatibility List |
$43.85 / Each
|
|
|
736386 | 1000511485 | 12 | SUB ASSY BLT SCRNPRTGRFX (SCH)55"DK | No |
Compatibility List |
$128.35 / Each
|
|
|
736387 | 1000511477 | 13 | SUB ASSY MOTOR CVR GRAPHIC SCH 830 | No |
Compatibility List |
$87.73 / Each
|
|
|
736388 | 1000511534 | 14 | COVER CONSOLE CUP HOLDER RT SCH 830 | No |
Compatibility List |
$17.85 / Each
|
|
|
736389 | 1000511535 | 15 | COVER CONSOLE CUP HOLDER LT SCH 830 | No |
Compatibility List |
$17.85 / Each
|
|
|
736391 | 1000511492 | 17 | WELDMENT BASE FRAME TREADMILL | No |
Compatibility List |
$73.10 / Each
|
|
|
736221 | 1000511528 | 18 | WHEEL TRANSPORT, BLACK | No |
Compatibility List |
$6.22 / Each
|
|
|
736392 | 1000511486 | 20 | SUB ASSEMBLY UPRIGHT SCH 830 | No |
Compatibility List |
$77.98 / Each
|
|
|
736393 | 1000511487 | 21 | SUB ASSY UPRIGHT RIGHT SCH 830 | No |
Compatibility List |
$82.85 / Each
|
|
|
736394 | 1000511497 | 22 | SUB ASSY FRONT ROLLER | No |
Compatibility List |
$128.35 / Each
|
|
|
736395 | 1000511498 | 23 | SUB ASSY REAR ROLLER | No |
Compatibility List |
$116.98 / Each
|
|
|
736396 | 1000511499 | 24 | DRIVE BELT 210J7 | No |
Compatibility List |
$11.35 / Each
|
|
|
735963 | 1000511504 | 26 | WHEEL, TREADMILL DECK | No |
Compatibility List |
$4.66 / Each
|
|
|
736398 | 1000511649 | 27 | INCLINE MOTOR JS64 110VAC 60Hz | No |
Compatibility List |
$193.35 / Each
|
|
|
736399 | 1000511526 | 28 | SUSPENSION DECK SCH 830 | No |
Compatibility List |
$16.23 / Each
|
|
|
736400 | 1000511621 | 29 | SUB ASSY DECKLIFT SHOCK,50KG,SCH830 | No |
Compatibility List |
$51.98 / Each
|
|
|
735933 | 1000511517 | 30 | PWRCRD,3COND14AWG 2000mm 120VAC SJT | No |
Compatibility List |
$43.66 / Each
|
|
|
736402 | 1000511518 | 31 | WIRE ASSY, 800mm, 5 COND, CNSL COMM | No |
Compatibility List |
$17.85 / Each
|
|
|
735847 | 1000514244 | 32 | MEDIA CBL 250 MM,STEREO 90 DEGREE | No |
Compatibility List |
$4.66 / Each
|
|
|
736403 | 1000511645 | 34 | SVC KIT,CNSL BCK CVR MY14 SCH TREAD | No |
Compatibility List |
$47.10 / Each
|
|
|
736213 | 1000511680 | 35 | SVC KIT, MY14 TREADMILL MCB COVER | No |
Compatibility List |
$32.48 / Each
|
|
|
736208 | 1000511560 | 36 | SVC KIT, DRIVE MOTOR MOUNT | No |
Compatibility List |
$23.38 / Each
|
|
|

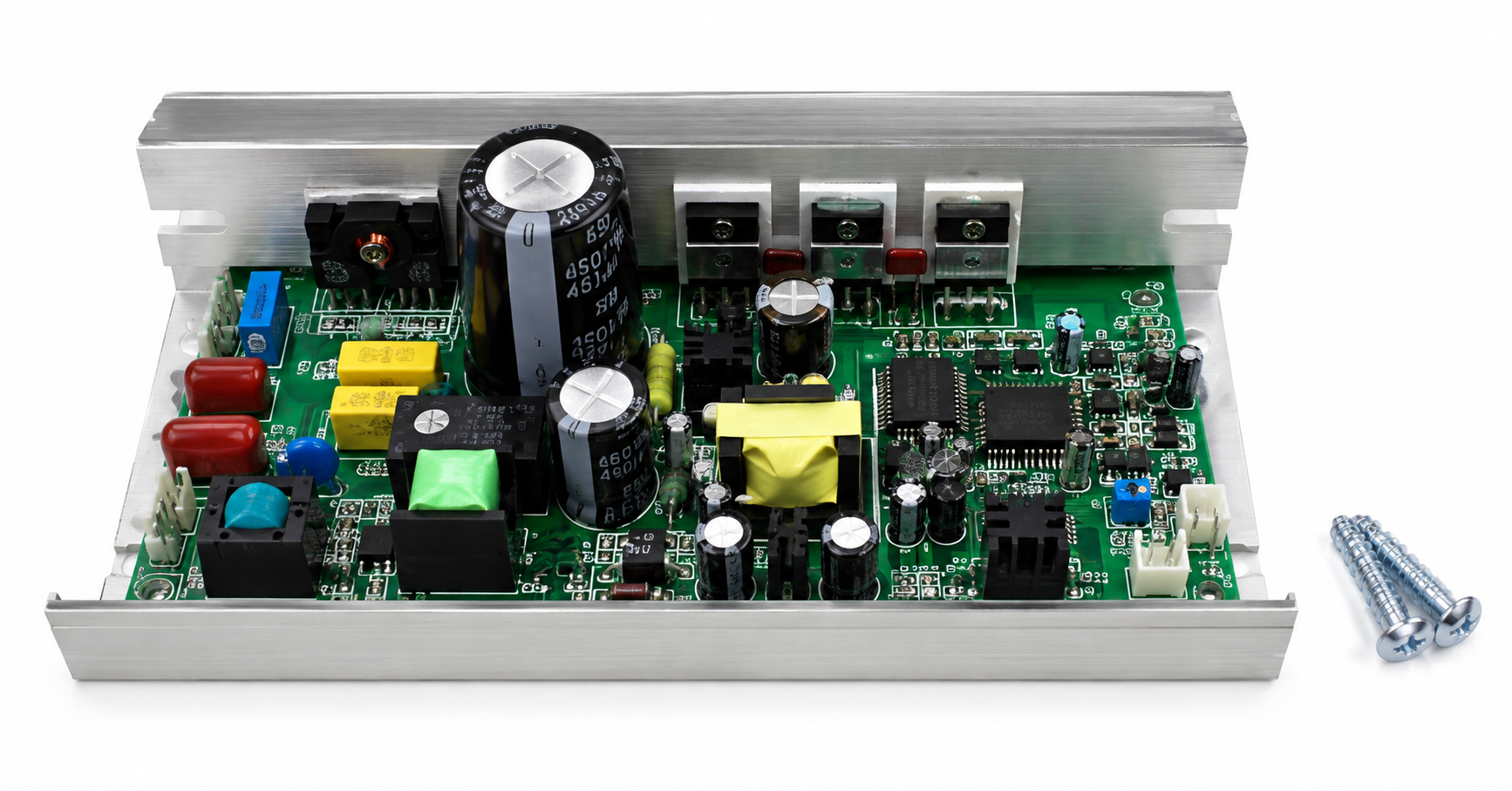

736212 | 1000511561 | 37 | SVC KIT, MCB, MY14 TM 110V | No |
Compatibility List |
$450.00 / Each
|
|
|
736404 | 1000511431 | 38 | MOTOR COVER, BOTTOM | No |
Compatibility List |
$107.23 / Each
|
|
|
736195 | 1000511601 | 39 | SAFETY KEY ASSEMBLY | No |
Compatibility List |
$15.58 / Each
|
|
|
736227 | 1000511596 | 40 | SPEED SENSOR CABLE, MY14 TM | No |
Compatibility List |
$18.70 / Each
|
|
|
736406 | 1000511496 | 41 | WELDMENT TREADMILL INCLINE | No |
Compatibility List |
$53.60 / Each
|
|
|
736407 | 1000511641 | 42 | SVC KIT, DECK HDW 614/830/8.0 | No |
Compatibility List |
$8.10 / Each
|
|
|
736408 | 1000511503 | 43 | DECK 1300L x 684W x 18THK | No |
Compatibility List |
$123.48 / Each
|
|
|
736409 | 1000511463 | 44 | CIRCUIT BREAKER RESET 15A 125VAC | No |
Compatibility List |
$15.58 / Each
|
|
|
736410 | 1000511464 | 45 | CONNECTOR POWER INLET IEC C14 | No |
Compatibility List |
$4.66 / Each
|
|
|
736411 | 1000511465 | 46 | ROCKER SWCH,DPST,16A/8A 125/250VAC | No |
Compatibility List |
$7.78 / Each
|
|
|
736412 | 1000511624 | 49 | WIRE ASSY, 900mm, 5 COND, BASE FRM | No |
Compatibility List |
$19.48 / Each
|
|
|
736210 | 1000511432 | 50 | MOTOR COVER, POWER BOX TRIM | No |
Compatibility List |
$4.66 / Each
|
|
|
736414 | 1000511623 | 55 | WIRE ASSY, 1300mm, 5 COND,FRAME ARM | No |
Compatibility List |
$24.60 / Each
|
|
|
736225 | 1000511841 | 56 | HDW KIT, MY14 TREADS, PRE ASSEMBLED | No |
Compatibility List |
$25.98 / Each
|
|
|
736224 | 1000511403 | 57 | SERVICE KIT, SHROUD HARDWARE | No |
Compatibility List |
$3.10 / Each
|
|
|
|
736290 | 42 | ASSY, HEART RATE ARMBAND, BFX | No |
Compatibility List |
Out Of Stock |
