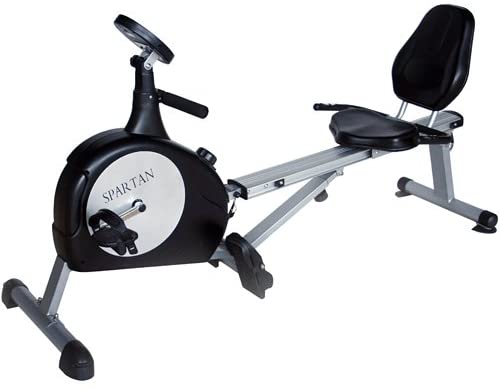

Spartan - Spartan 2 in 1 Rower Recumbent Bike Combination

Repair Parts for Spartan Spartan 2 in 1 Rower Recumbent Bike Combination

Brand: Spartan

Category: Residential Rowers

Type: Rowers

Model Name: Spartan 2 in 1 Rower Recumbent Bike Combination

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

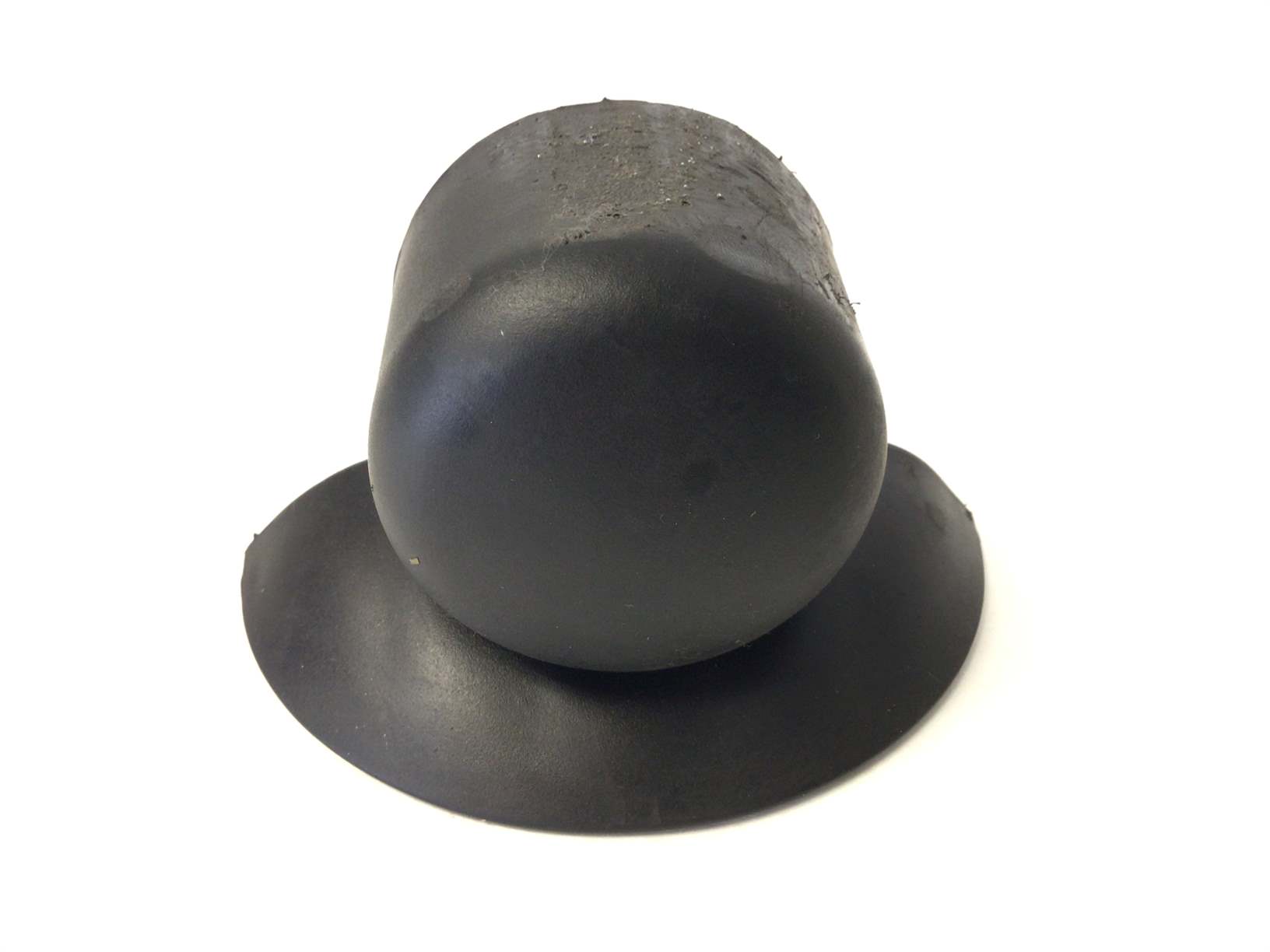

Base Level Stablilizer End Cap (Used) 1021169 Spar2n1-BLSWC 0 2 Base Level Stablilizer End Cap (Used) No Model Compatibility List $10.19 / Each

9

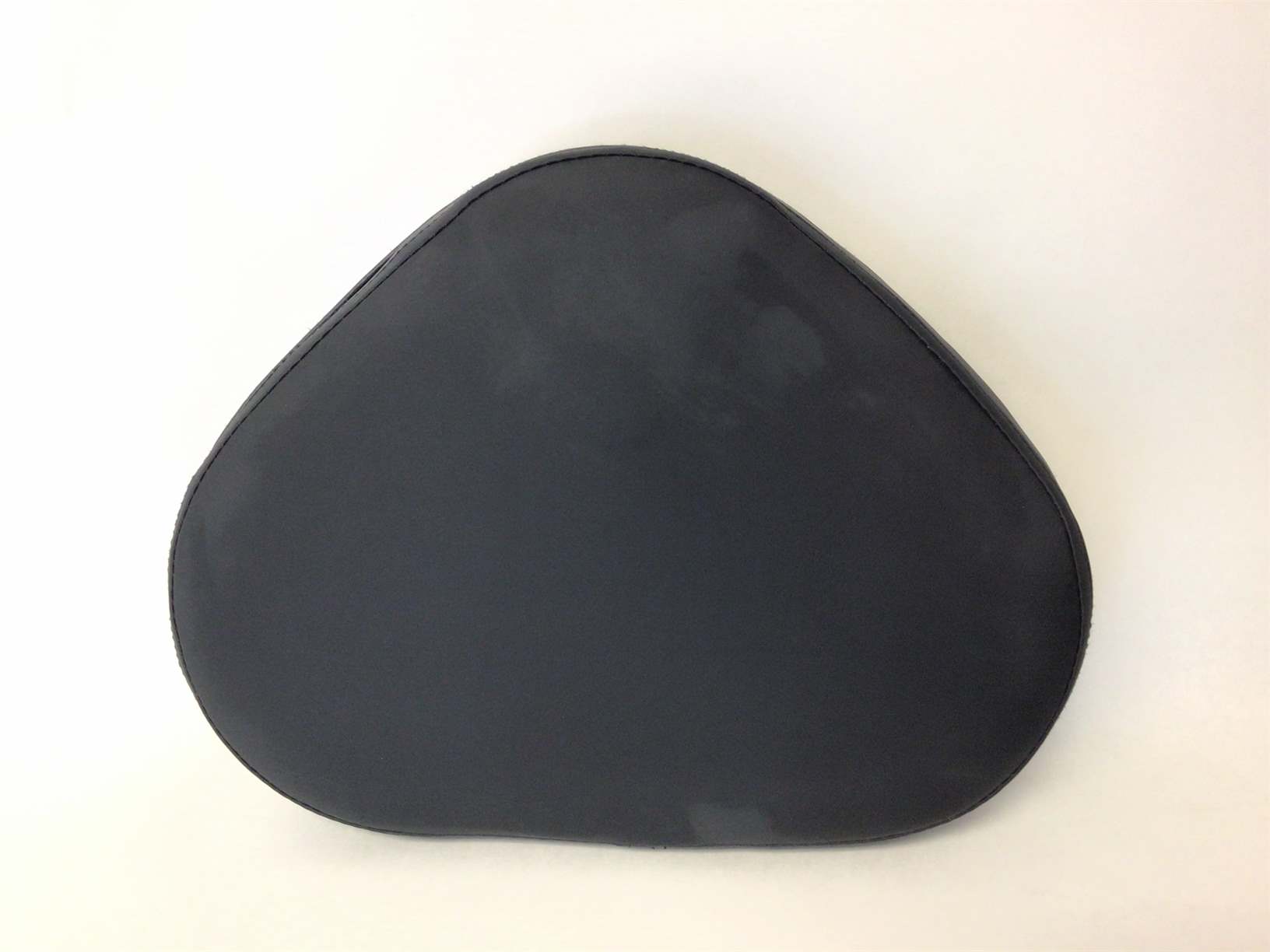

Bottom Seat Pad (Used) 1021122 Spar2n1-BSP 0 1 Bottom Seat Pad (Used) No Model Compatibility List $41.99 / Each

9

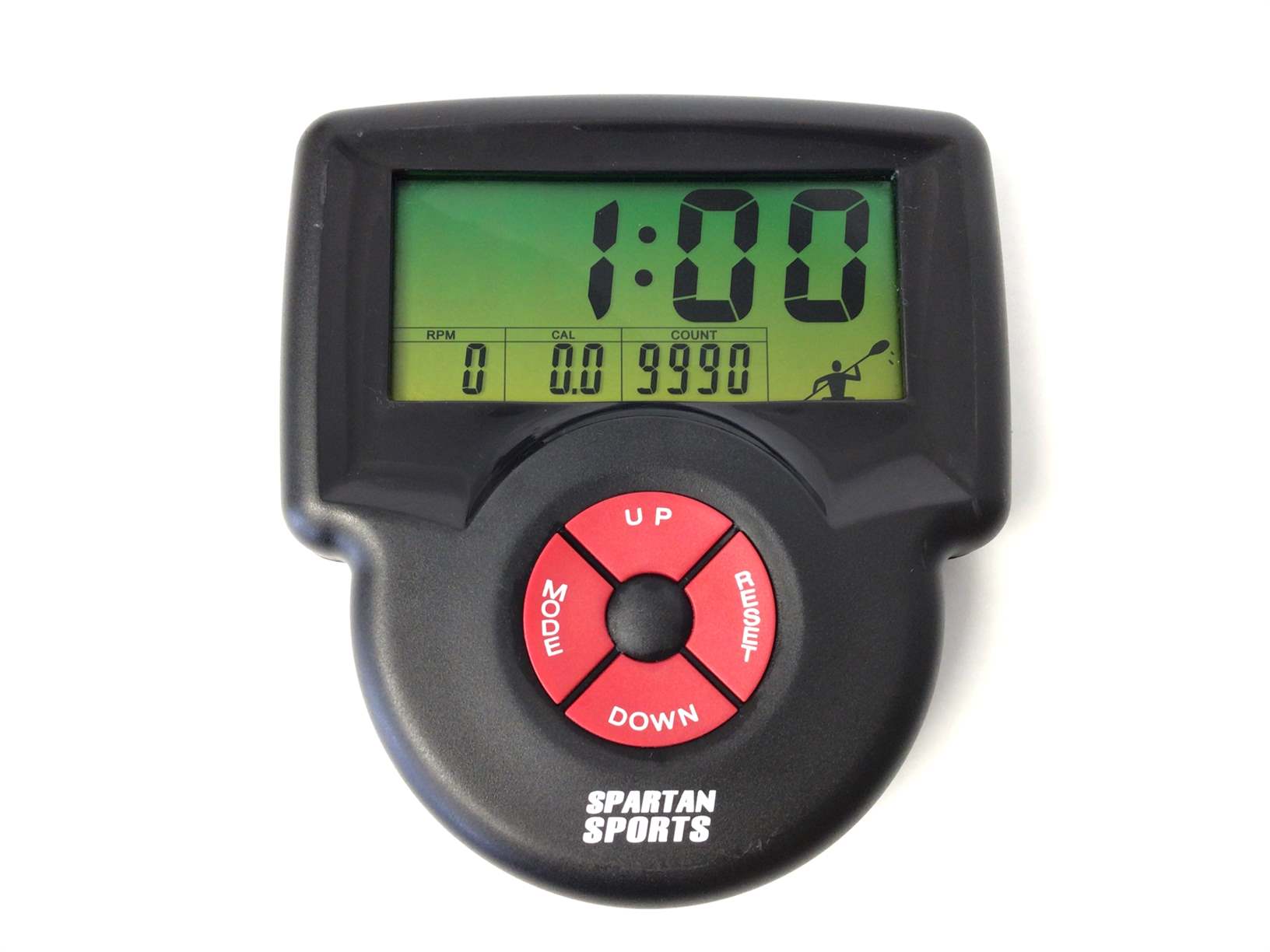

Display Console Assembly (Used) 1021121 Spar2n1-DCA 0 1 Display Console Assembly (Used) No Model Compatibility List $119.00 / Each

1

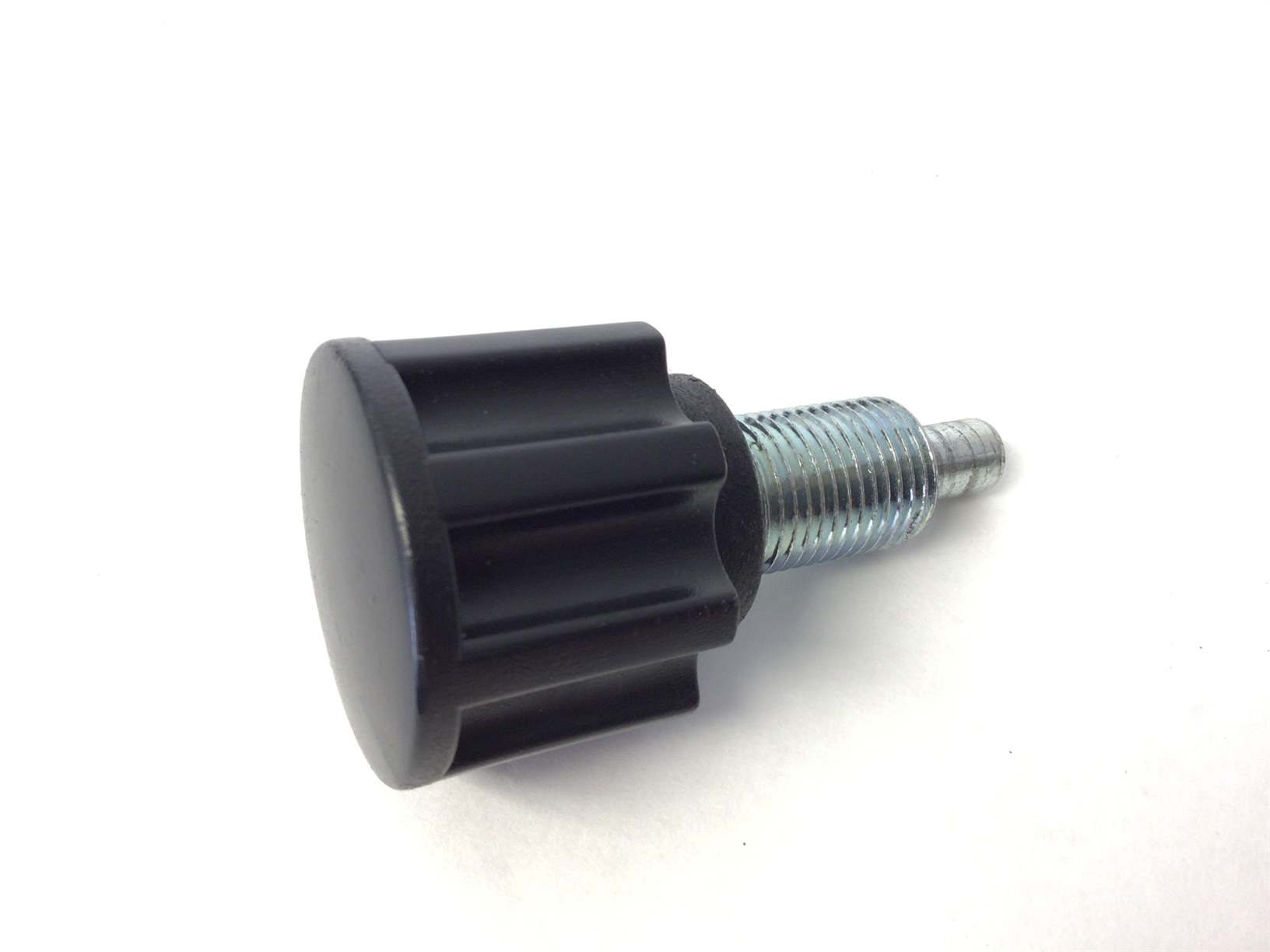

Folding Set Rear Knob (Used) 1021210 Spar2n1-FSRK 0 1 Folding Set Rear Knob (Used) No Model Compatibility List $8.99 / Each

1

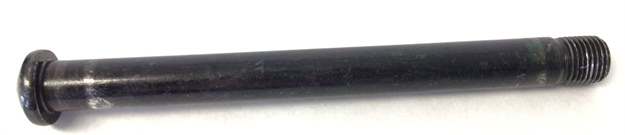

Front - Rear Frame Connect Bolt 5.50 inch (Used) 1021197 Spar2n1-FRFCB 0 1 Front - Rear Frame Connect Bolt 5.50 inch (Used) No Model Compatibility List $5.99 / Each

1

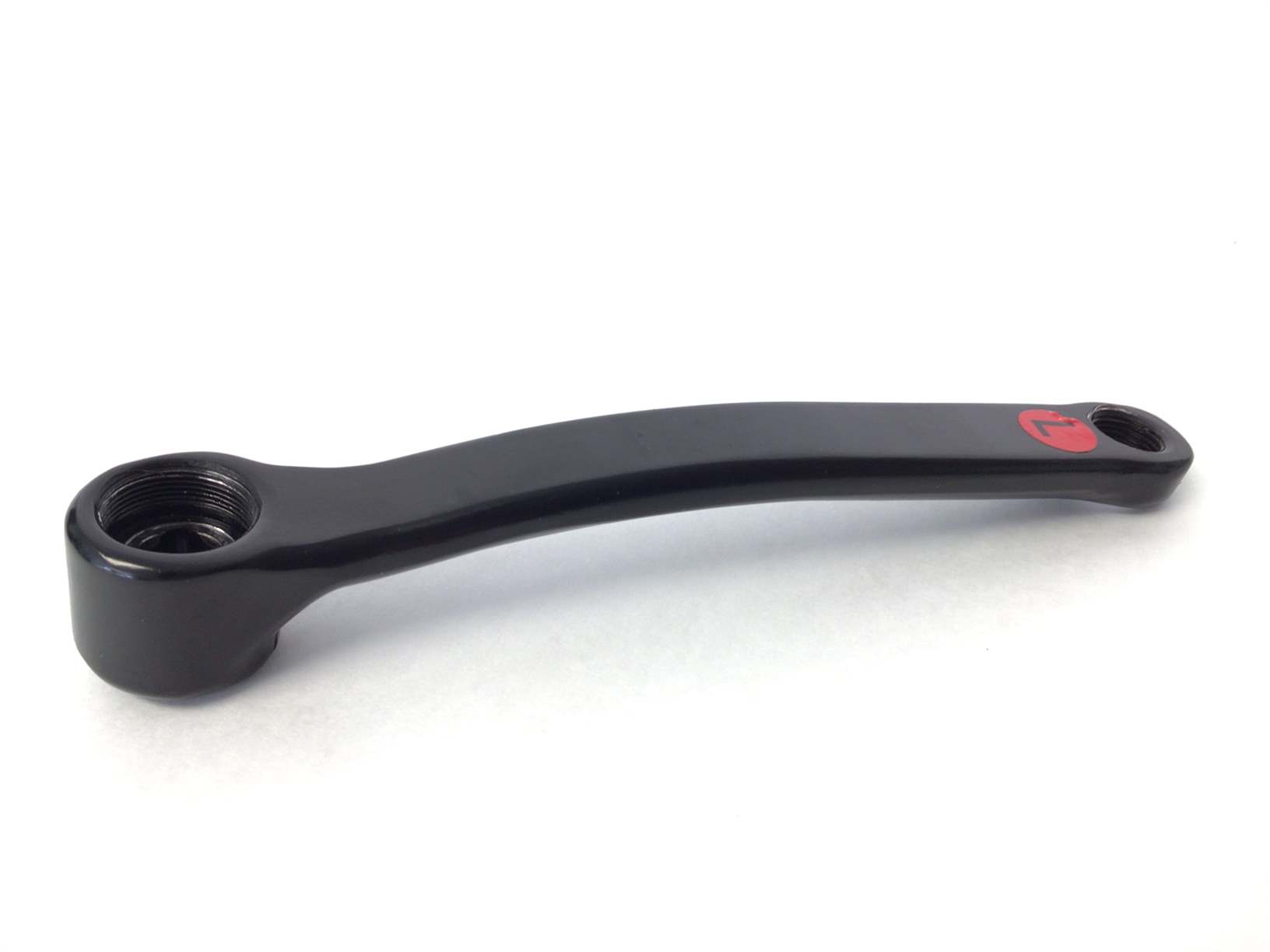

Left Bike Crank Arm (Used) 1021168 Spar2n1-LBCA 0 1 Left Bike Crank Arm (Used) No Model Compatibility List $17.99 / Each

1

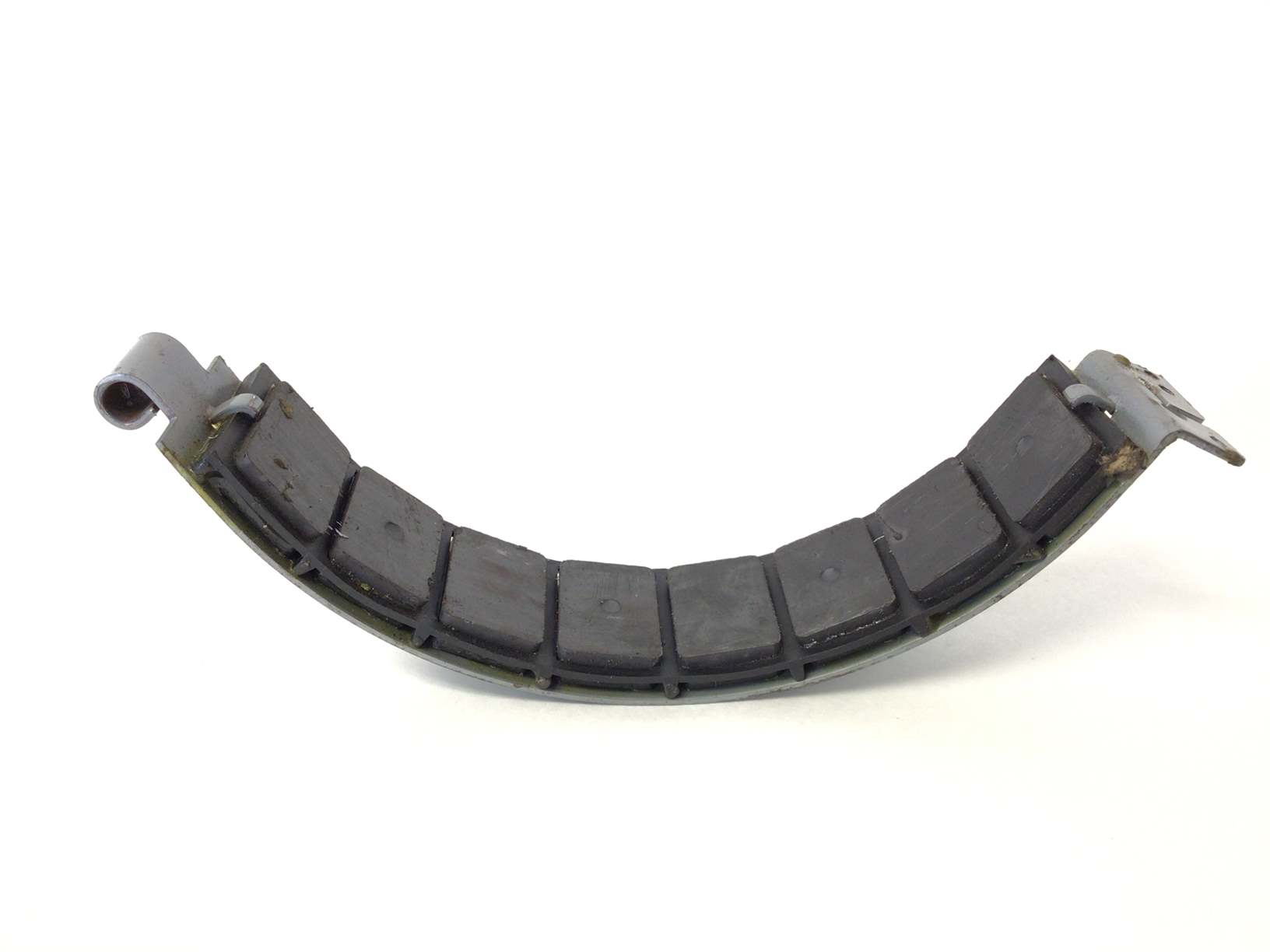

Magnetic C Brake Resistance Assembly (Used) 1021158 Spar2n1-MCBRA 0 1 Magnetic C Brake Resistance Assembly (Used) No Model Compatibility List $29.99 / Each

1

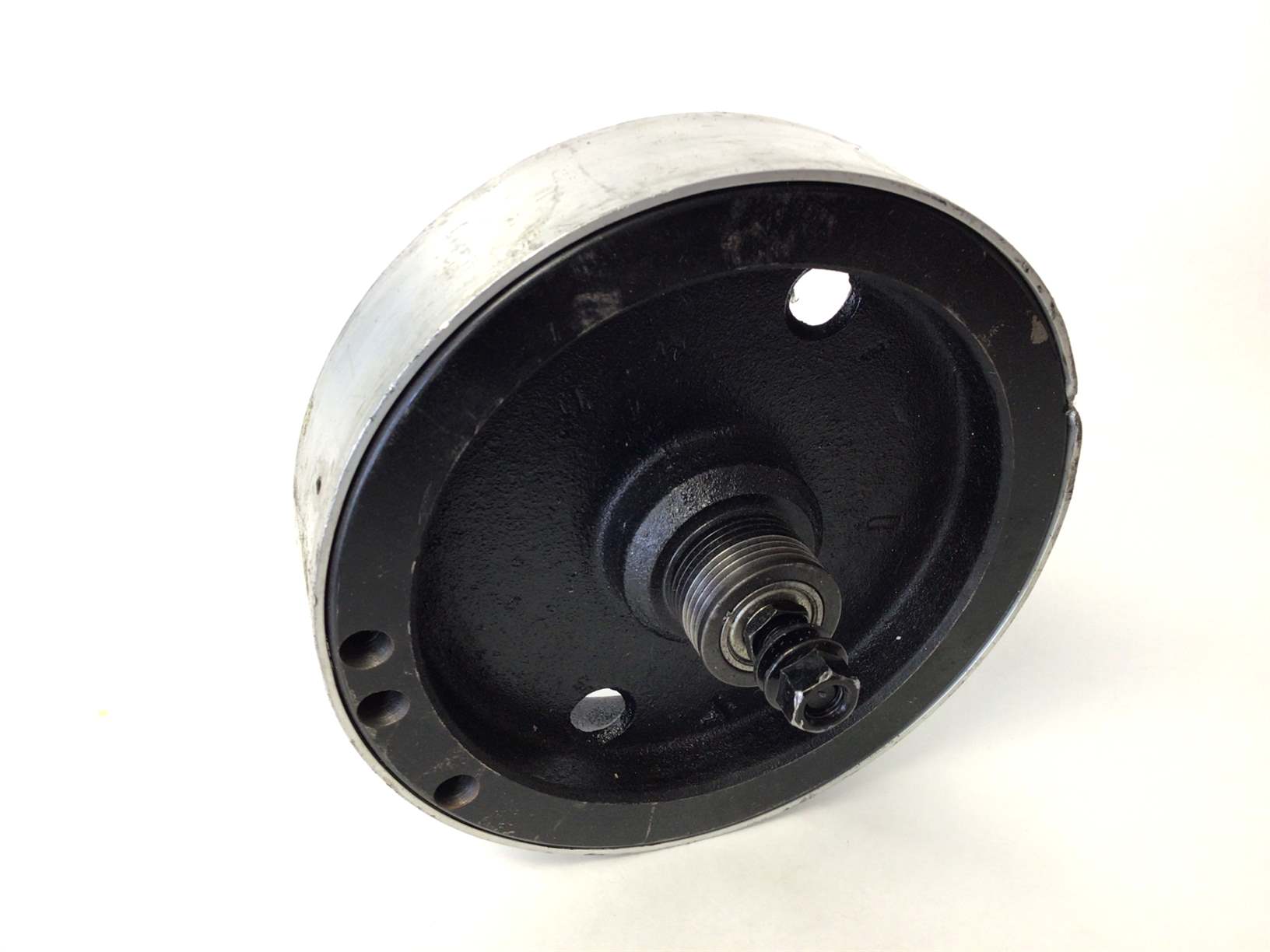

Magnetic Resistance Pulley Flywheel (Used) 1021181 Spar2n1-MRPF 0 1 Magnetic Resistance Pulley Flywheel (Used) No Model Compatibility List $53.99 / Each

1

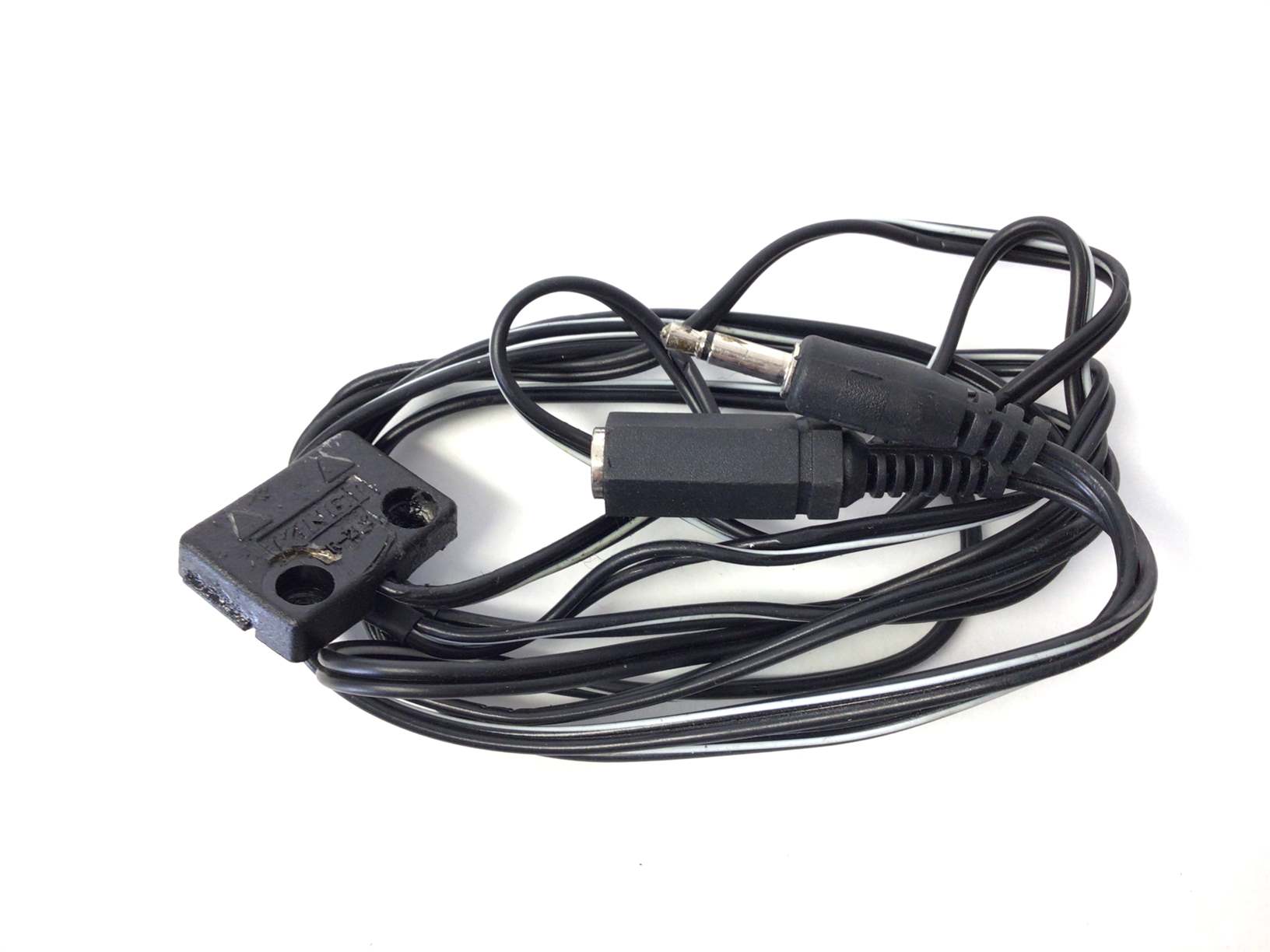

Pulse Sensor Wire Harness (Used) 1021209 Spar2n1-PSWH 0 1 Pulse Sensor Wire Harness (Used) No Model Compatibility List $8.99 / Each

4

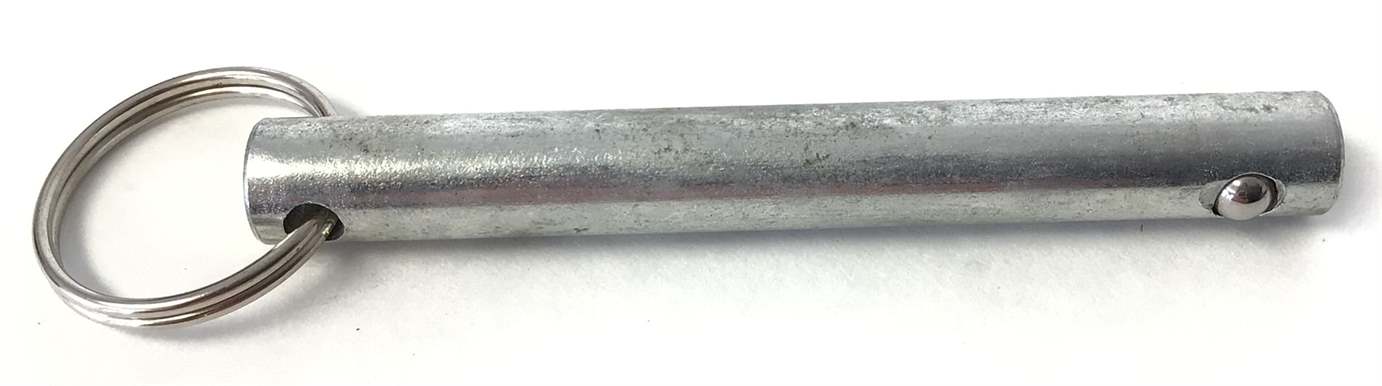

Rear Folding Locking Pin (Used) 1021195 Spar2n1-FLP 0 1 Rear Folding Locking Pin (Used) No Model Compatibility List $8.99 / Each
Out Of Stock 		1

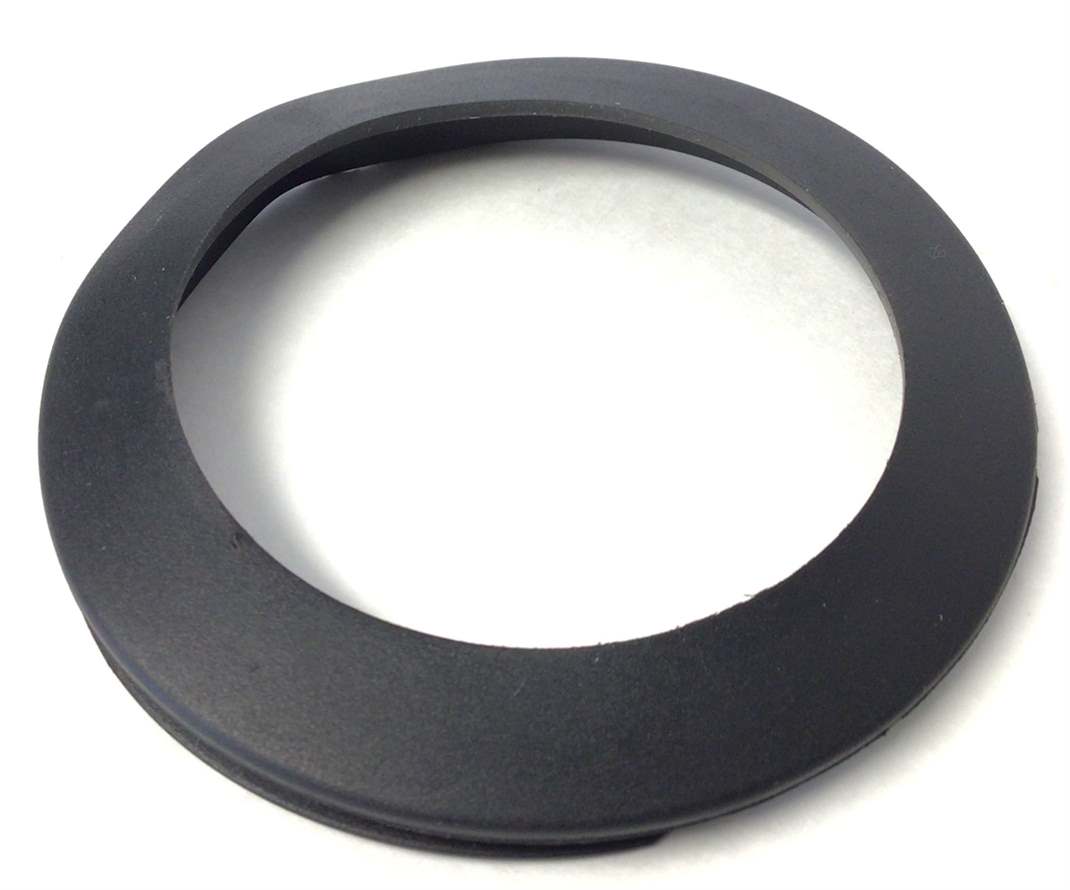

Rear Gasket - Round Grommet (Used) 1021198 Spar2n1-RG-RG 0 1 Rear Gasket - Round Grommet (Used) No Model Compatibility List $5.39 / Each

1

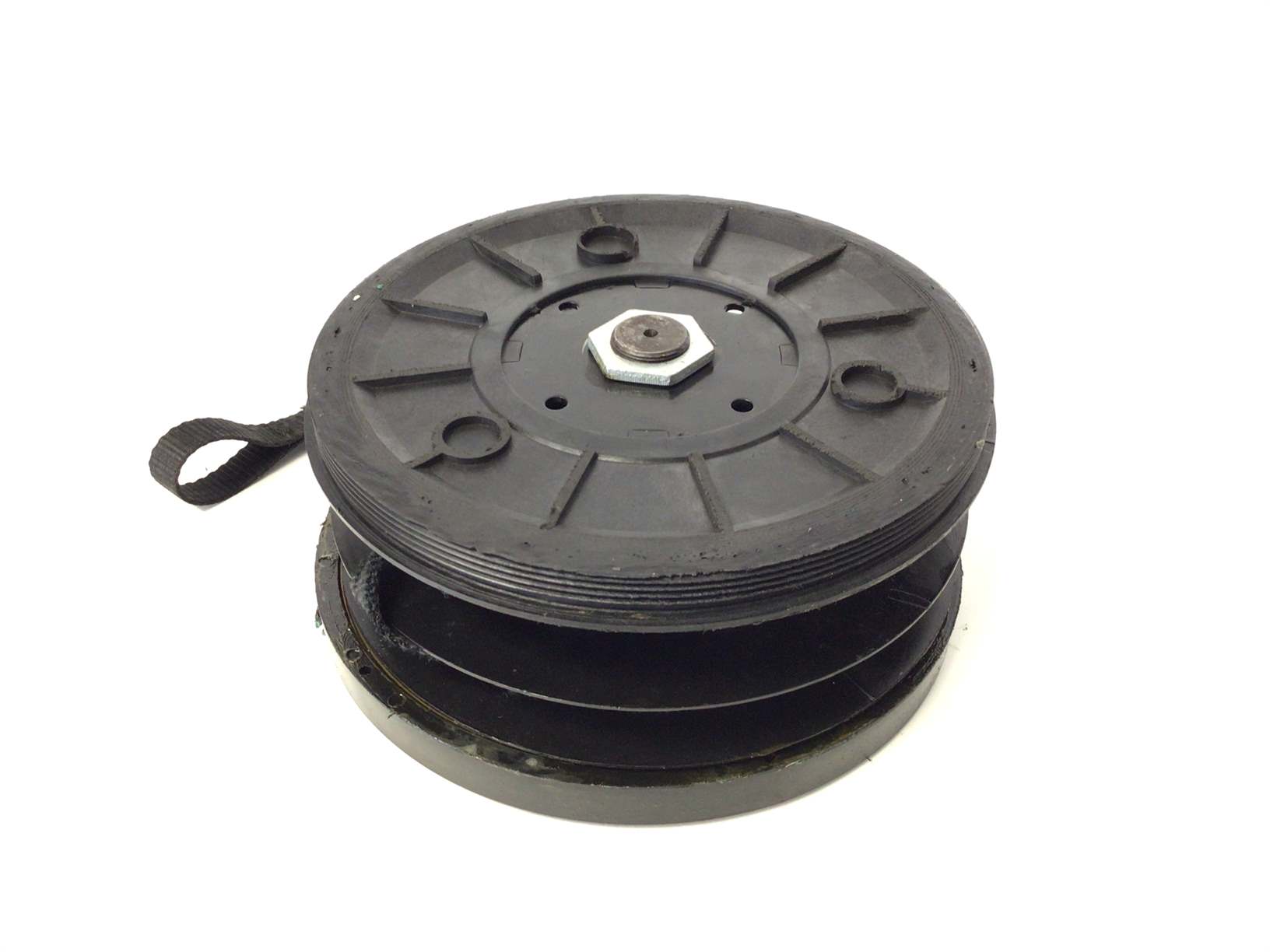

Rope Pulley Recoil with Rope (Used) 1021136 Spar2n1-RPRWR 0 1 Rope Pulley Recoil with Rope (Used) No Model Compatibility List $35.99 / Each
Out Of Stock 		1

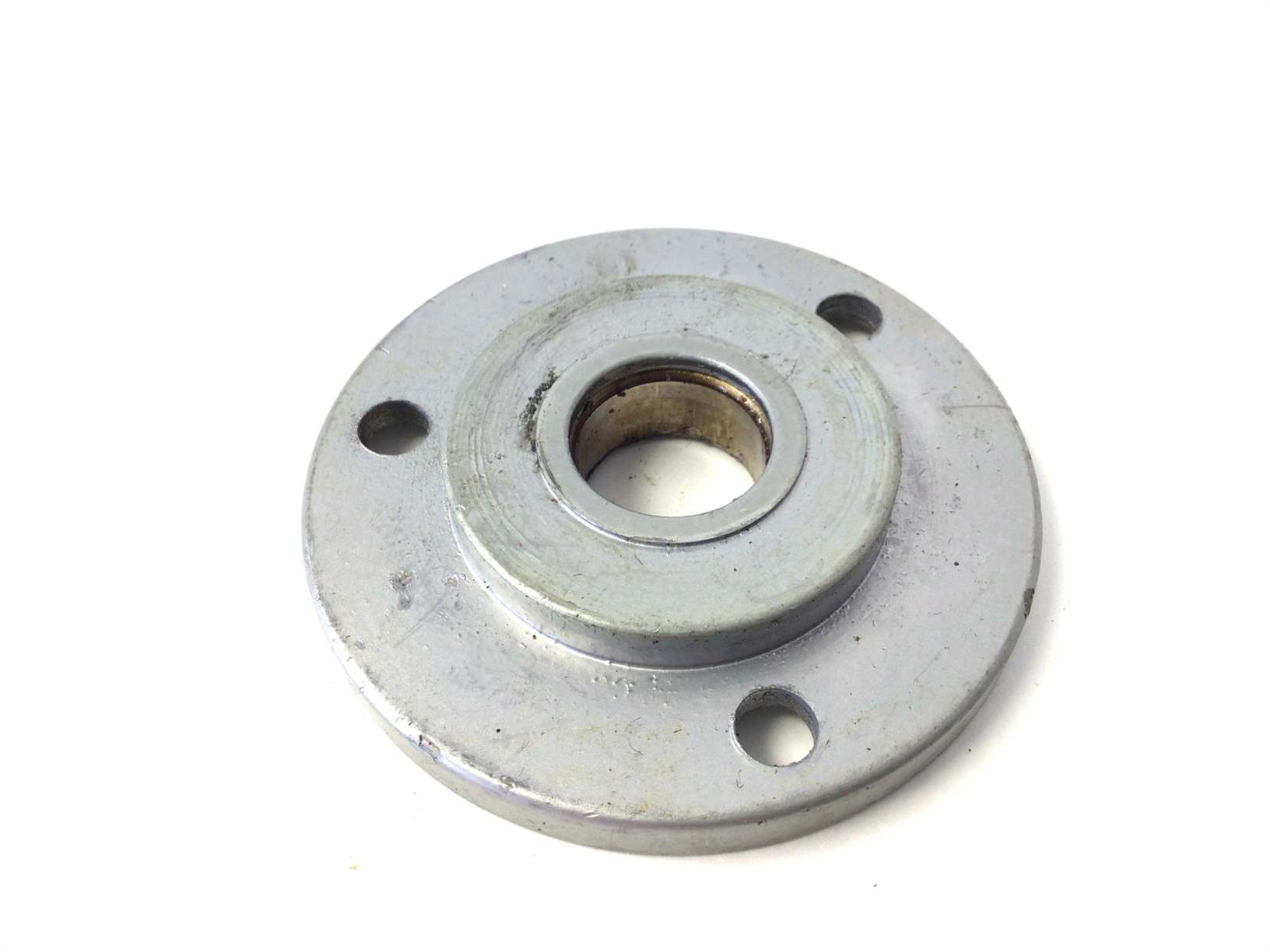

Row Strap Pulley End mount Plate (Used) 1021208 Spar2n1-RSPEMP 0 1 Row Strap Pulley End mount Plate (Used) No Model Compatibility List $11.99 / Each

1

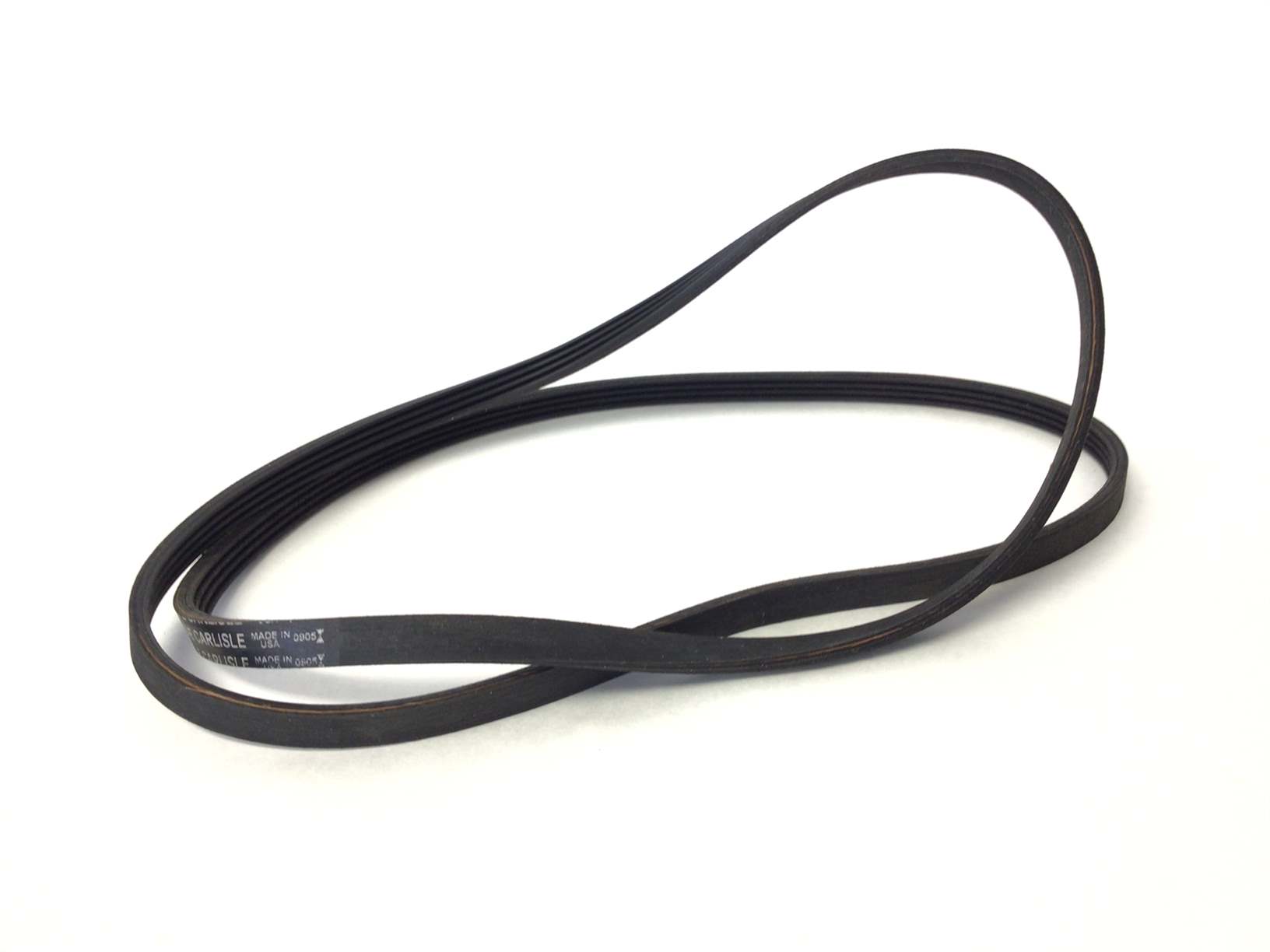

Pulley Drive Belt 490J4 490J4 0 1 Pulley Drive Belt Yes Model Compatibility List $59.99 / Each

15

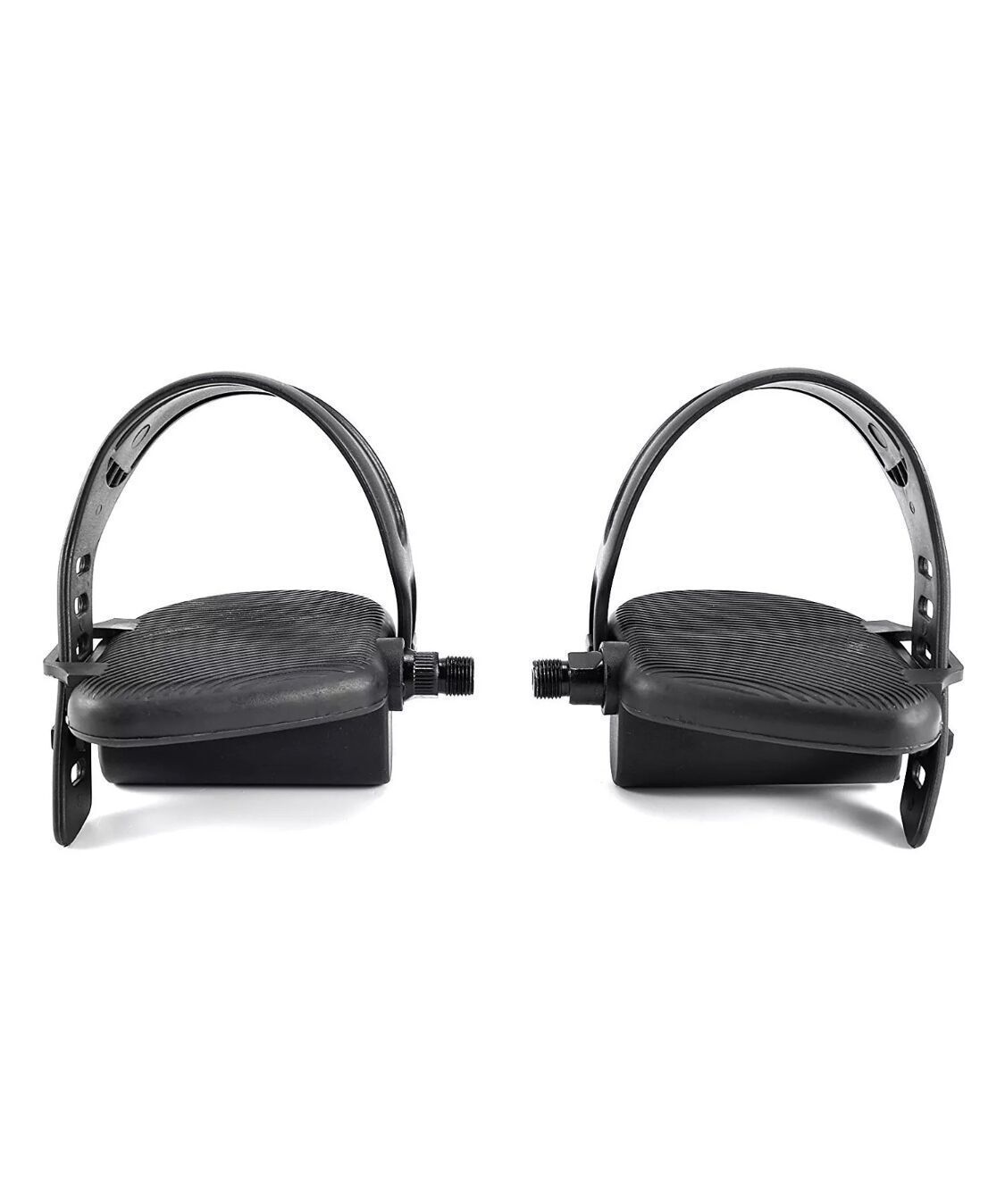

9-16 Inch Pedal Pair sparta916 sparta916 0 1 9-16 Inch Pedal Pair Yes Model Compatibility List $59.99 / Each

1

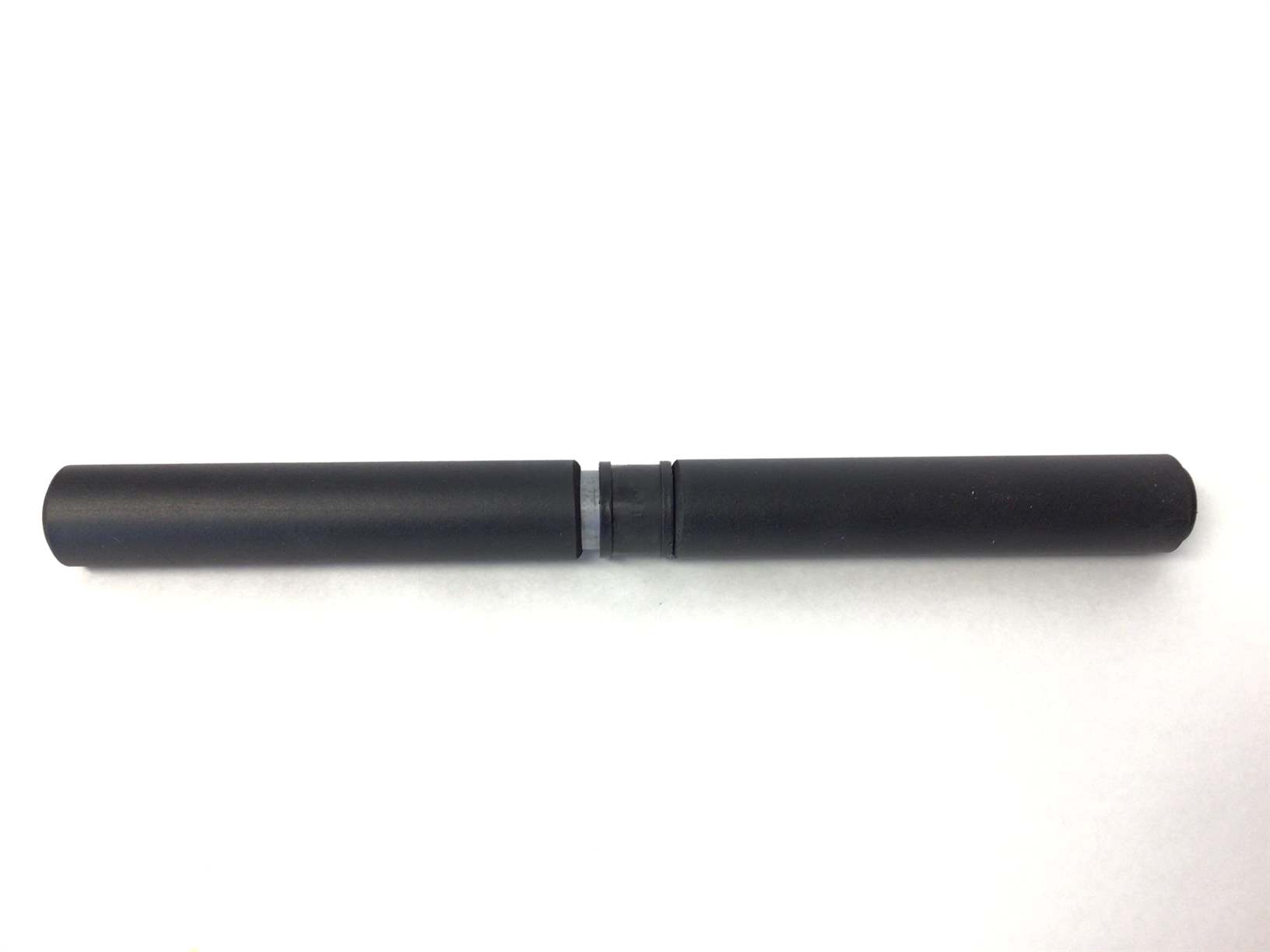

Rower Pull Bar -Handlebar (Used) 1021157 Spar2n1-RPBH 0 1 Rower Pull Bar -Handlebar (Used) No Model Compatibility List $23.99 / Each
Out Of Stock 		1

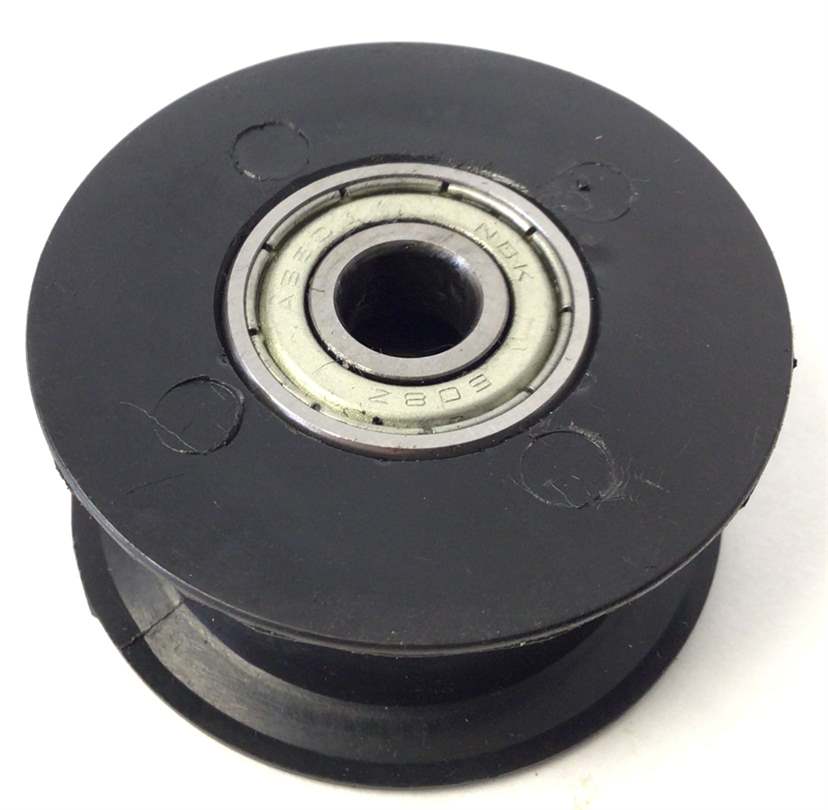

Rowing Wheel Pulley (Used) 1021155 Spar2n1-RWP 0 1 Rowing Wheel Pulley (Used) No Model Compatibility List $17.99 / Each
Out Of Stock 		1

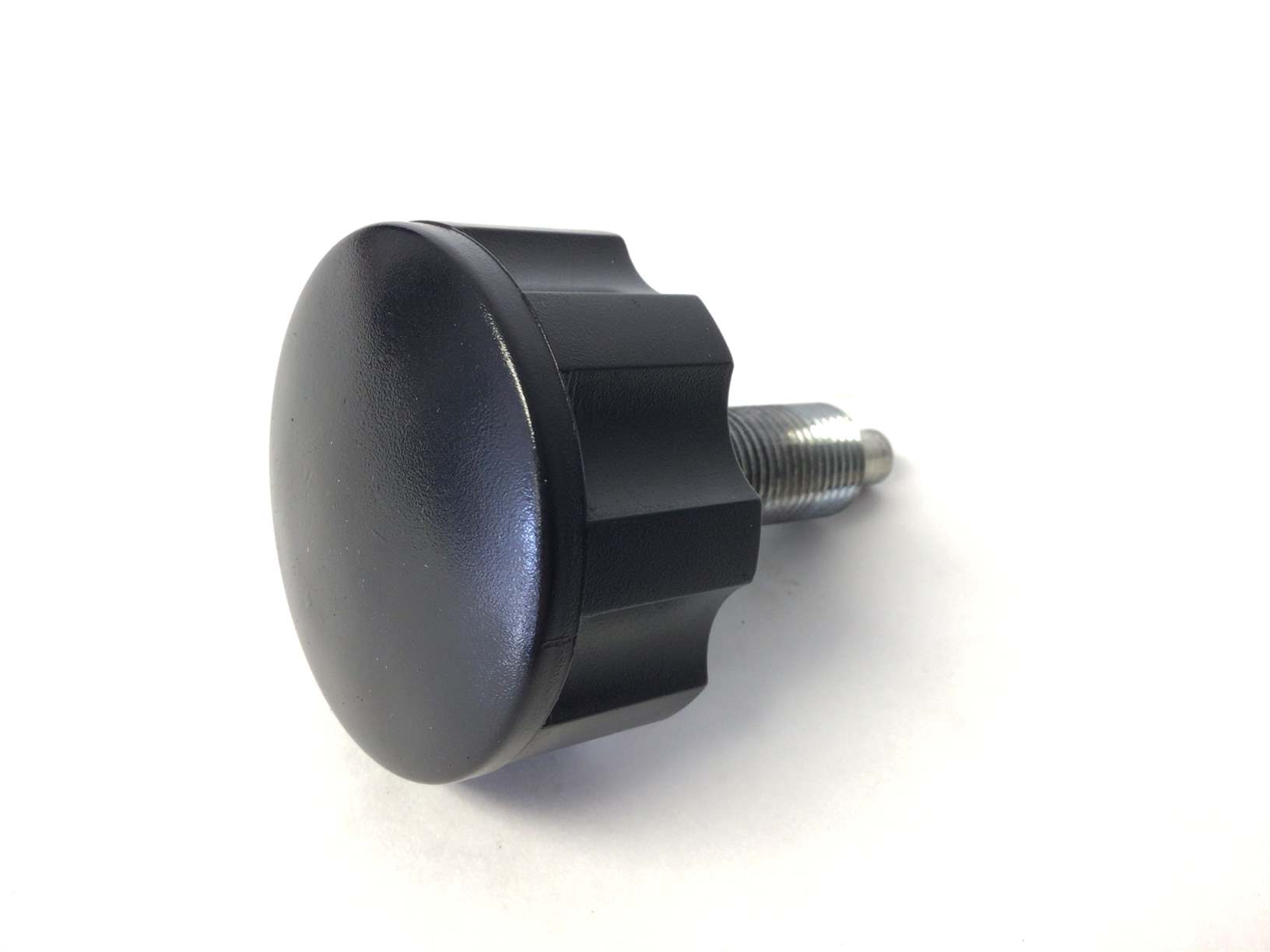

Seat Adjust Knob (Used) 1021183 Spar2n1-SAK 0 1 Seat Adjust Knob (Used) No Model Compatibility List $8.99 / Each
Out Of Stock 		1

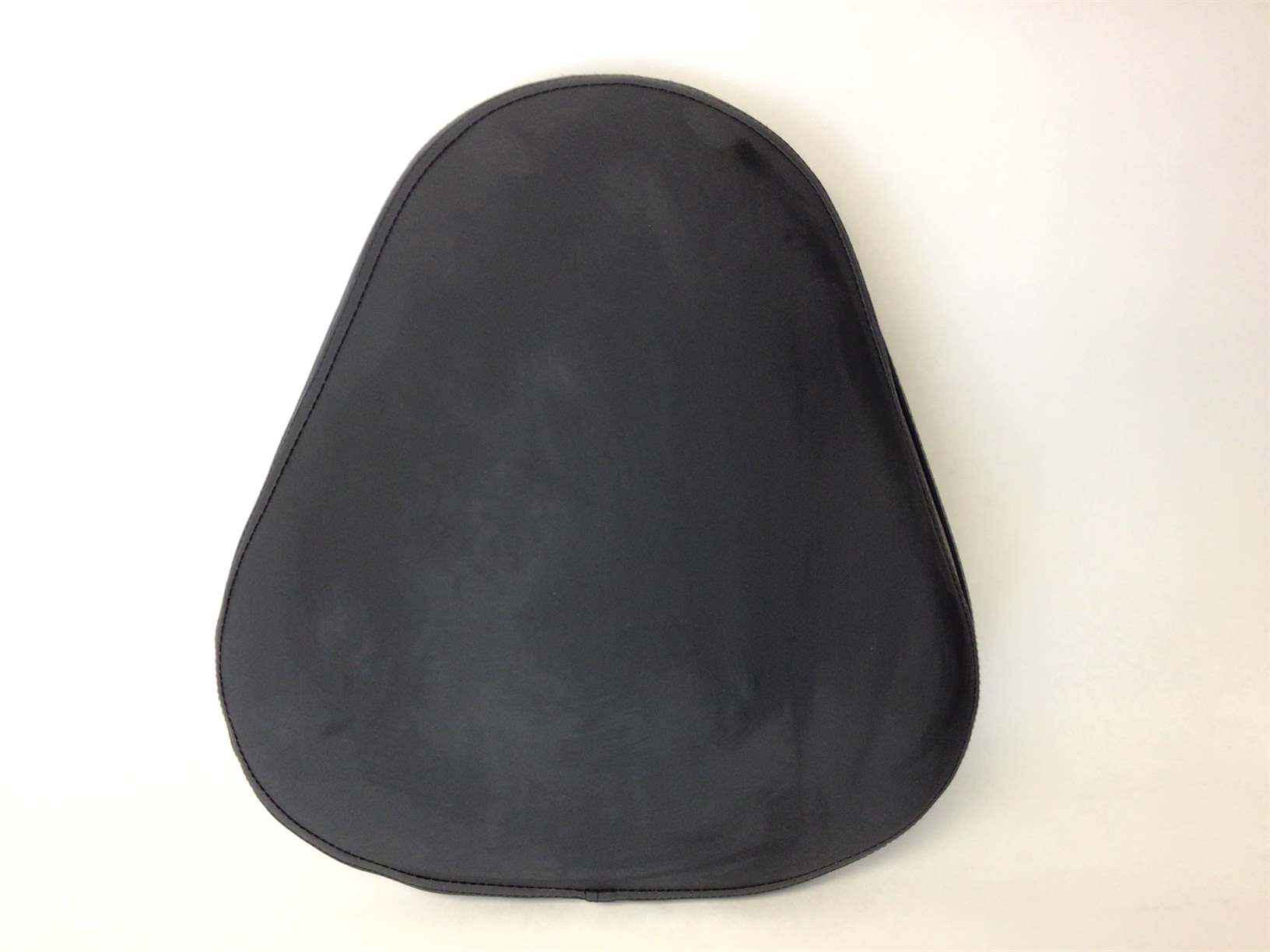

Seat Back Cushion Pad (Used) 1021123 Spar2n1-SBCP 0 1 Seat Back Cushion Pad (Used) No Model Compatibility List $47.99 / Each

1
Tension Pulley Spring Lage Gauge (Used) 1021171 Spar2n1-TPSLG 0 1 Tension Pulley Spring Lage Gauge (Used) No Model Compatibility List $6.59 / Each

1

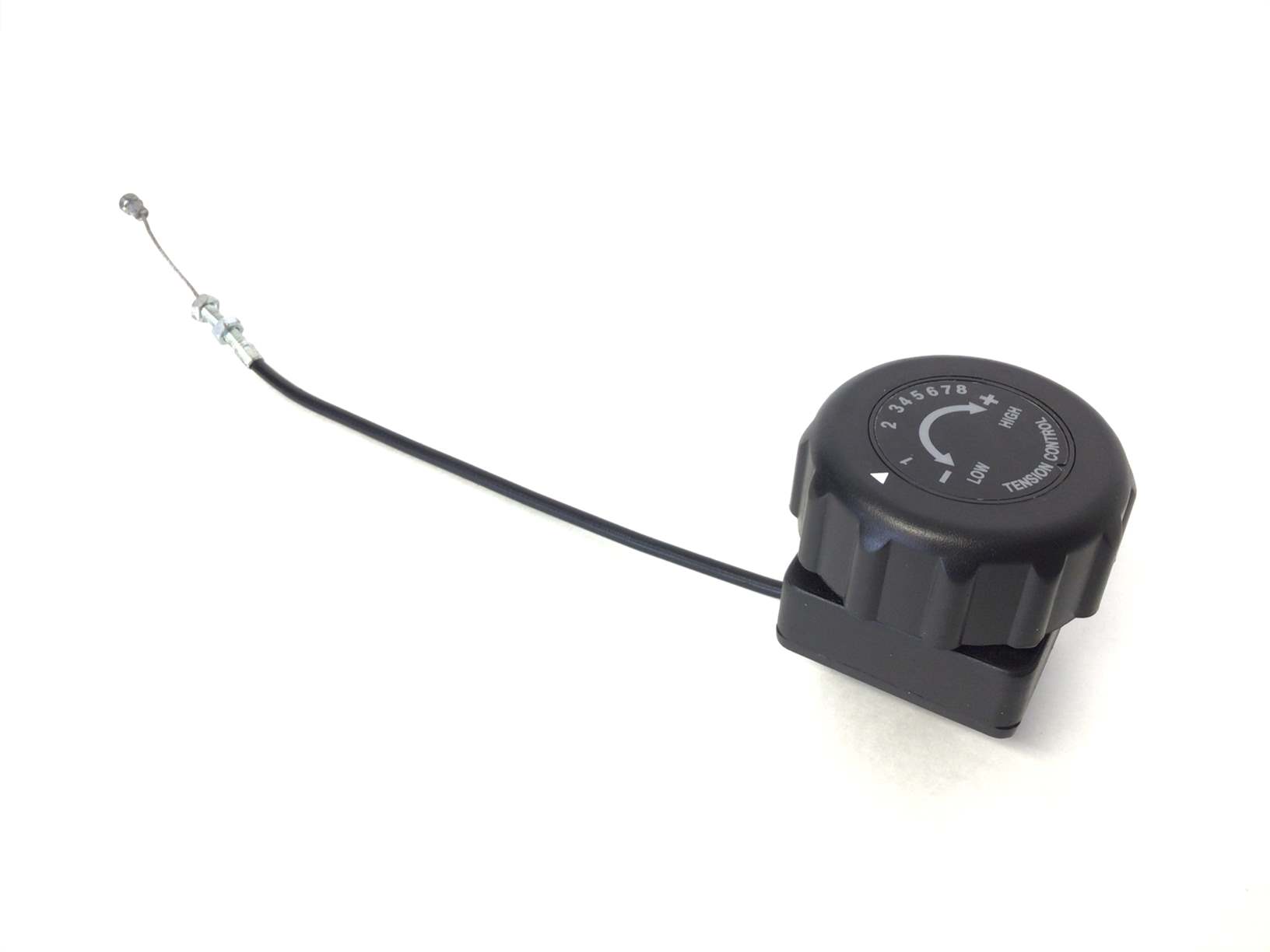

Tension Resistance Set Knob (Used) 1021135 Spar2n1-TRSK 0 1 Tension Resistance Set Knob (Used) No Model Compatibility List $29.99 / Each
Out Of Stock 		1

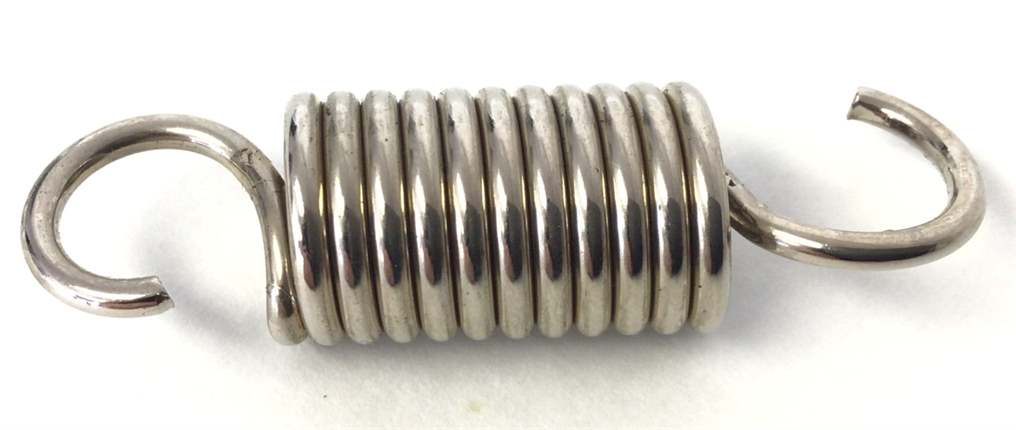

Tension Spring Medium Gauge (Used) 1021196 Spar2n1-TSMG 0 1 Tension Spring Medium Gauge (Used) No Model Compatibility List $5.99 / Each
Out Of Stock 		1

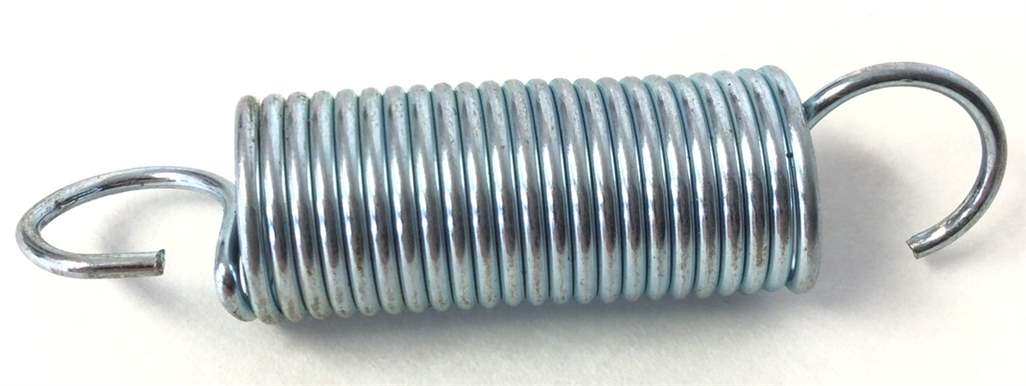

Tension Spring Small Gauge (Used) 1021170 Spar2n1-TSSG 0 1 Tension Spring Small Gauge (Used) No Model Compatibility List $5.39 / Each

1

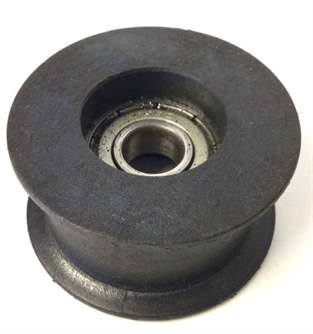

Wheel Idler Pulley (Used) 1021184 Spar2n1-WIP 0 1 Wheel Idler Pulley (Used) No Model Compatibility List $14.99 / Each

1
Rower Foot Pedal W Strap (Used) 1021120 Spar2n1-RFPWS 0 1 Rower Foot Pedal W Strap (Used) No Model Compatibility List $29.99 / Each

1

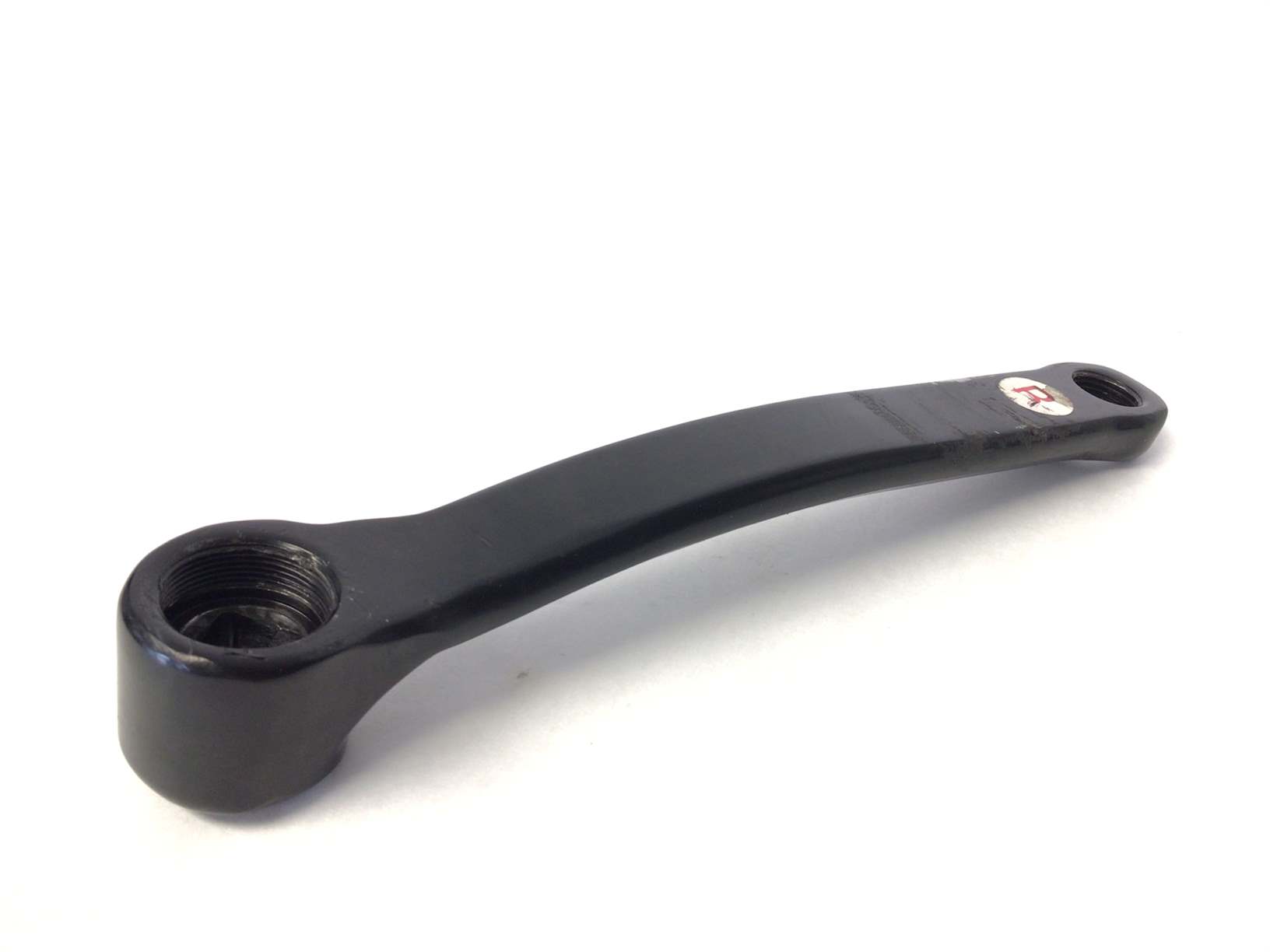

Right Bike Crank Arm (Used) 1021156 Spar2n1-RBCA 0 1 Right Bike Crank Arm (Used) No Model Compatibility List $15.59 / Each
Out Of Stock 		1

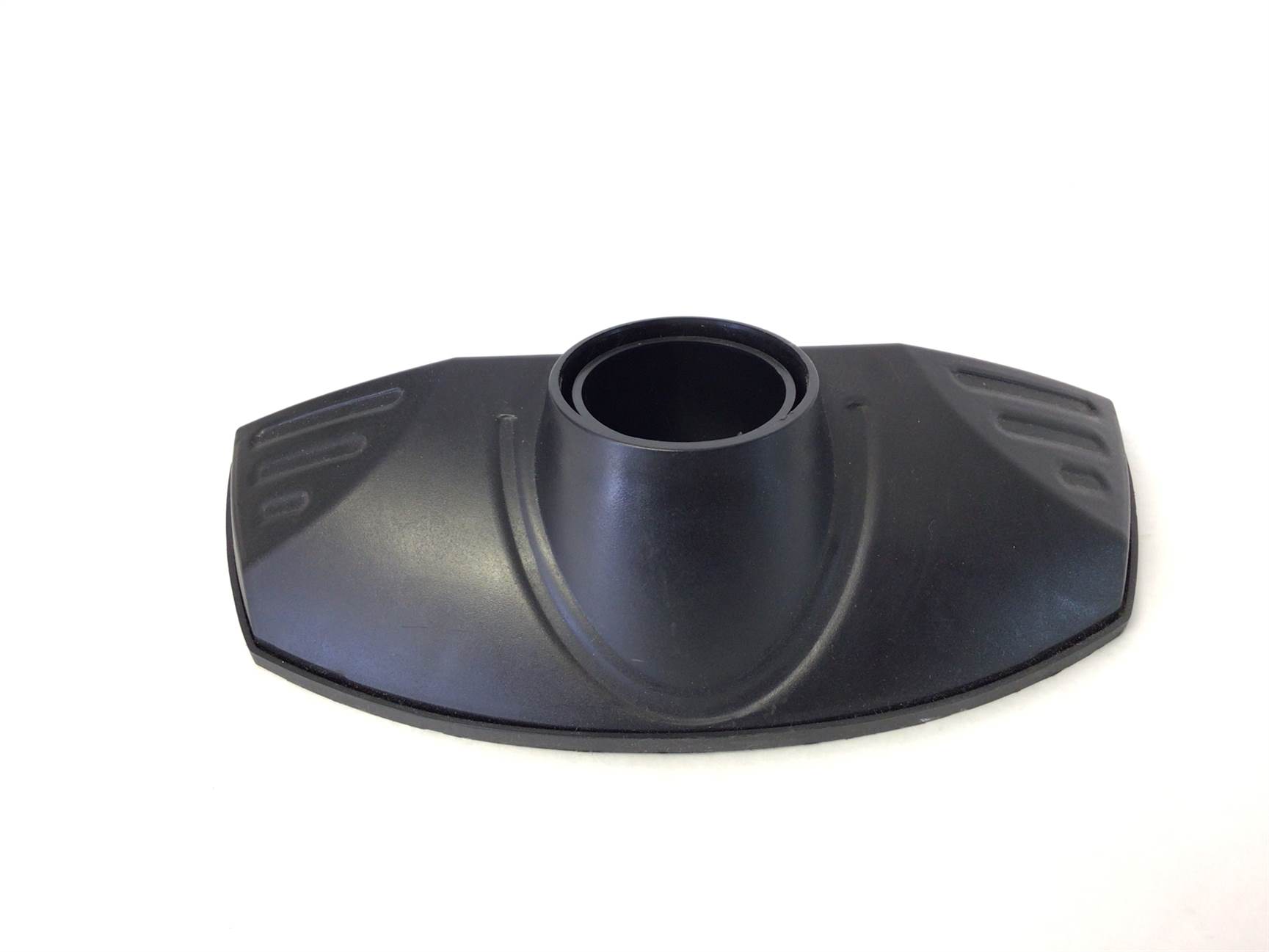

Rear Stabilzer Foot Pad 1022259 spar-footrear Rear Stabilzer Foot Pad No Model Compatibility List $16.79 / Each

3
