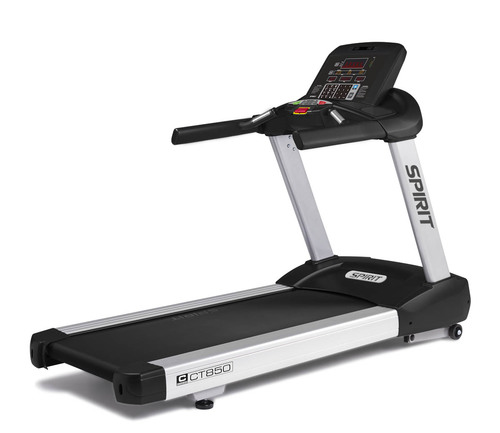

Spirit - CT850 - 2014 - 2014

Repair Parts for Spirit CT850 - 2014

Brand: Spirit

Category: Commercial Treadmills

Type: Non Folding Treadmills

Model Name: CT850 - 2014

Serial Number Prefix: CT850

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
211142 J260008 75 O5_Split Washer No Model Compatibility List $1.20 / Each

2
190344 J396804-Z1 126 Screw No Model Compatibility List $2.80 / Each

2
25m/m 50m/m_Square End Cap 212050 P040039-A1 109 25m/m 50m/m_Square End Cap Yes Model Compatibility List $17.99 / Each

9
Wheel 191145 P050004-A1 42 Wheel Yes Model Compatibility List $15.72 / Each

8
Anchor, Motor Cover 189794 P060021-A1 Anchor, Motor Cover No Model Compatibility List $4.66 / Each

9
212270 P060410-A1 53 O10 O25 0.8T_Nylon Washer No Model Compatibility List $2.40 / Each

2
210833 J043011A-Y3 65 M8 55m/m_Flat Head Countersink Bolt No Model Compatibility List $2.33 / Each

2
189823 J270001 125 3 WASHER, RAISED M5 No Model Compatibility List $2.40 / Each

2
189847 J139161 74 2 NUT, NYLON M5 (BLACK) No Model Compatibility List $1.20 / Each

2,4,5,6
190430 1 Drink Bottle (Optional) Yes Model Compatibility List $0.00 / Each
Out Of Stock 		1
Fan, Motor 190562 F040200 90 2 Fan, Motor Yes Model Compatibility List $46.92 / Each

8
204347 J330012 114 1 Wrench, Allen No Model Compatibility List $2.33 / Each

2
204931 J330020 137 1 Wrench, Allen No Model Compatibility List $8.74 / Each

2
208871 RAA040185-S13 33 1 Left Upright No Model Compatibility List $72.89 / Each

3
208873 RAA040188-S13 34 1 Right Upright No Model Compatibility List $70.20 / Each

3
208882 RAA050109A-Q2 5 1 Console Support No Model Compatibility List $334.80 / Each

3,7
208901 AA060147-S13 3 1 Interface Mounting Bracket, Left No Model Compatibility List $16.01 / Each

2,3,4,5,6
208903 AA060146-S13 4 1 Interface Mounting Bracket, Right No Model Compatibility List $16.01 / Each

2,3,4,5,6
208905 AA060010-S13 6 2 Deck Cross Brace A No Model Compatibility List $24.73 / Each

3,4,5,6
208907 RAA060011-S13 7 1 Deck Cross Brace B No Model Compatibility List $24.73 / Each

3,4,5,6
208949 B020018-S13 22 1 Hall Sensor Mounting Bracket No Model Compatibility List $5.24 / Each

2,3,4,5,6
208962 B030096-S13 98 2 Foam Pad No Model Compatibility List $12.23 / Each

12,13,14
209053 160 1 Filter Plate Yes Model Compatibility List $8.74 / Each

1
209054 161 2 Inverter Plate Yes Model Compatibility List $8.74 / Each

1
209060 B130802-ZB 8 1 GUIDE, BELT (R) CT800 No Model Compatibility List $29.99 / Each

15
209061 B130803-ZB 9 1 GUIDE, BELT (L) CT800 No Model Compatibility List $0.00 / Each
Out Of Stock 		15
Controller Inverter(RM6T3-1003B1/RS-485-1PH,110V 3HP) 209745 D110202 46 1 Controller Inverter(RM6T3-1003B1/RS-485-1PH,110V 3HP) Yes Model Compatibility List $838.80 / Each

1
209746 D120903 44 1 Toggle switch Key Board No Model Compatibility List $33.60 / Each

4,5,6,9
209795 E010783 56 1 300m/m_Motor Compartment Fan wire, White No Model Compatibility List $17.99 / Each

4,5,6,8
209796 E010148 55 1 450MM Fan Connecting Wire (Black) - CT850 No Model Compatibility List $17.99 / Each

4,5,6,8
209818 E011504 58 1 150MM Inverter Power Cord (Black) - CT850 No Model Compatibility List $8.74 / Each

4,5,6
209819 E011506 57 1 150MM Inverter Power Cord (White) - CT850 No Model Compatibility List $17.99 / Each

4,5,6
209820 E011901 83 1 450m/m_Connecting Wire (White) Yes Model Compatibility List $8.74 / Each

4,5,6
450 M/M CONNECTING WIRE (BLACK-UPPER) 209821 E011902 54 1 450 M/M CONNECTING WIRE (BLACK-UPPER) Yes Model Compatibility List $27.59 / Each

4,5,6
700m/m_Computer Cable (Upper) 209830 E020128 41 1 700m/m_Computer Cable (Upper) Yes Model Compatibility List $23.46 / Each

4,5,6
1700m/m_Computer Cable (Lower) 209831 E020129 42 1 1700m/m_Computer Cable (Lower) Yes Model Compatibility List $33.83 / Each

4,5,6
200m/m_Computer Cable 209839 E011901 53 1 200m/m_Computer Cable Yes Model Compatibility List $23.46 / Each

4,5,6
400m/m_Handpulse Wire (Upper/Lower) 209906 E030351 40 1 400m/m_Handpulse Wire (Upper/Lower) Yes Model Compatibility List $18.44 / Each

4,5,6,12,13,14
400m/m_Handpulse Wire (Upper/Lower) 209916 E030221 39 1 400m/m_Handpulse Wire (Upper/Lower) Yes Model Compatibility List $18.44 / Each

4,5,6,12,13,14
209925 E040018 81 1 300m/m_Motor Ground Wire No Model Compatibility List $2.33 / Each

4,5,6
209926 E040041 35 1 300m/m_Ground Wire No Model Compatibility List $3.53 / Each

4,5,6
Power Line Cord(NEMA,5-20P(20A,125V)) 209952 E060107 99 1 Power Line Cord(NEMA,5-20P(20A,125V)) Yes Model Compatibility List $42.12 / Each

4,5,6
209973 E070201-01 43 1 700m/m_Pad/Backlit Cable No Model Compatibility List $30.23 / Each

4,5,6,12,13,14
A.C. Input Module 209982 F030062-01 52 1 A.C. Input Module Yes Model Compatibility List $27.72 / Each
Out Of Stock 		1
209999 F030221 23 1 Emergency Switch No Model Compatibility List $23.28 / Each

4,5,6
1300m/m_Sensor W/Cable 210005 F030405 60 1 1300m/m_Sensor W/Cable Yes Model Compatibility List $18.34 / Each

4,5,6
Filter(GD20-FCC110A) 210030 F060010 48 1 Filter(GD20-FCC110A) Yes Model Compatibility List $142.01 / Each

1
210031 F070201 51 2 O ring for eliminate magnet(O3513L,Black) No Model Compatibility List $5.24 / Each

4,5,6,8
900m/m_Handpulse W/Cable Assembly A 210051 F090231-01 37 1 900m/m_Handpulse W/Cable Assembly A Yes Model Compatibility List $19.36 / Each

4,5,6,12,13,14
900m/m_Handpulse W/Cable Assembly B 210052 F090232-01 38 1 900m/m_Handpulse W/Cable Assembly B Yes Model Compatibility List $16.96 / Each

4,5,6,12,13,14
AC Drive Motor(KSP131,3.0HP,220V,1725rpm) 210116 G040103A 45 1 AC Drive Motor(KSP131,3.0HP,220V,1725rpm) Yes Model Compatibility List $598.80 / Each

4,5,6
Incline Motor(JS25A,N50198L,115V,1/6HP,VH 3.96) 210127 G110401 59 1 Incline Motor(JS25A,N50198L,115V,1/6HP,VH 3.96) Yes Model Compatibility List $215.34 / Each

10
Treadbelt 210161 H0743255-ZZ-A3 13 1 Treadbelt Yes Model Compatibility List $329.00 / Each

15
210188 I010069-D1 1 Console Faceplate (Upper - Does not include 'Start' and 'Stop' Overlay) No Model Compatibility List $32.59 / Each

4,5,6,7
210189 I010069-D2 1 Console Faceplate (Lower - 'Start' and 'Stop' Overlay) No Model Compatibility List $16.01 / Each

4,5,6,7
210261 1 STICKER, POLY OVAL - MEDIUM ICON (NEW SPIRIT "S" LOGO) Yes Model Compatibility List $0.00 / Each
Out Of Stock 		1
210307 1 Side Transferable Label Yes Model Compatibility List $0.00 / Each
Out Of Stock 		1
210331 2 Side Label Yes Model Compatibility List $5.24 / Each

1
210606 J011027-ZT 49 4 BOLT, HEX HEAD 3/8-16 X 1 No Model Compatibility List $2.40 / Each

2
210644 J013002-ZT 48 2 SCREW, HEX HEAD M8 X 12 No Model Compatibility List $2.40 / Each

2
210647 J013011S-Z4 123 8 M8 1.25 55L_Hex Head Bolt No Model Compatibility List $2.33 / Each

2
BOLT, HEX HEAD M10 X 50L CT800 210653 J013510P-Z2 53 1 BOLT, HEX HEAD M10 X 50L CT800 Yes Model Compatibility List $4.19 / Each

2
210657 J013514L-Z2 52 1 BOLT, HEX HEAD M10 X 65L CT800 No Model Compatibility List $4.19 / Each

2
210702 J021002-Z2 105 6 SCREW, BUTTON HEAD 3/8 X 3/4 No Model Compatibility List $1.20 / Each

2
210717 J021012A-Z2 144 6 3/8" No Model Compatibility List $2.33 / Each

2
210747 J031008-Z4 113 1 3/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		2,9
210789 J033002F-Z2 108 6 BOLT, SOCKET HEAD CAP M8 X 1.25 X 10 CT800 No Model Compatibility List $1.20 / Each

2,9
210803 J033008L-Z2 119 6 BOLT, SOCKET HEAD CAP M8 X 1.25 X 40L CT800 No Model Compatibility List $3.60 / Each

2,9
210810 J033021L-Z4 122 8 M8 1.25 90LSocket Head Cap Bolt No Model Compatibility List $2.33 / Each

2,9
210819 J033516-Z4 128 2 M10 1.5 100L_Socket Head Cap Bolt No Model Compatibility List $3.49 / Each

2,9
M10 1.5-80 m/m_Socket Head Cap Bolt 210820 J033518 67 1 M10 1.5-80 m/m_Socket Head Cap Bolt Yes Model Compatibility List $2.40 / Each

2,9
210860 J362004-Z2 47 2 BOLT, CARRIAGE 18 X 19 X 41L CT800 No Model Compatibility List $3.60 / Each

2
210898 J092002-Z2 134 16 M5 12L_Phillips Head Screw No Model Compatibility List $1.20 / Each

2
210904 J092004-Z2 133 2 M5 20L_Phillips Head Screw No Model Compatibility List $1.20 / Each

2
210947 118 2 3/8" 7T_Nyloc Nut Yes Model Compatibility List $0.00 / Each
Out Of Stock 		2
210979 J139211 72 6 Nut, Nylock No Model Compatibility List $1.20 / Each

2
211018 J160013 64 8 NUT, SQUARE CAP M8 X 1.25 X 6.5T CT800 No Model Compatibility List $1.20 / Each

2,9
211038 J033508 59 33 BOLT, SOCKET HEAD CAP M10 X 1.5MM X 40L CT800 No Model Compatibility List $3.60 / Each

2
211058 J210021-ZT 62 14 WASHER, FLAT 8 X 16 X 1T CT800 No Model Compatibility List $1.20 / Each

2
211062 J210024-ZT 116 11 O3/8 No Model Compatibility List $3.60 / Each

2
211079 J210042-ZT 51 2 WASHER, FLAT 8.5 X 20 X 3T MB880/SB700 No Model Compatibility List $2.40 / Each

2
211112 J240007 149 1 Nylon Washer CT800 (800849) No Model Compatibility List $2.40 / Each

2
211131 J260001-ZT 58 21 WASHER, SPLIT 3/8 X 16.5 X 2.0 X 4H CT800 TV BRACKET No Model Compatibility List $2.40 / Each

2,3,4,5,6
211141 J260007-ZT 61 6 8 x 1.5T_Split Washer No Model Compatibility List $1.20 / Each

2
211230 J352002-Z2 73 17 M5 x 12L_Phillips Head Screw No Model Compatibility List $1.20 / Each

2
211238 J354010 71 6 SCREW, PHILLIPS HEAD M3 X 35L CT800 No Model Compatibility List $1.20 / Each

2
211248 159 1 3 10L_Sheet Metal Screw Yes Model Compatibility List $0.00 / Each
Out Of Stock 		2,3
211252 J362004-Z2 77 25 M5 20m/m Tapping Screw No Model Compatibility List $2.40 / Each

2,12,13,14
211253 J366804 75 2 3.5 12L_Tapping Screw No Model Compatibility List $1.20 / Each

2,12,13,14
211297 J397104-Z2 141 6 M5 12L_Tapping Screw No Model Compatibility List $1.20 / Each

2,12,13,14
211302 J514002-Z2 137 2 M5 1.5T_Tapping Screw No Model Compatibility List $1.20 / Each

2,12,13,14
211304 J517009-Z2 76 4 M3 20L_Self Tapping Screw No Model Compatibility List $2.40 / Each

2,12,13,14
211323 152 8 O2.3 6m/m_Sheet Metal Screw Yes Model Compatibility List $0.00 / Each
Out Of Stock 		2,3
211346 J660001 147 5 Isolation Bushing No Model Compatibility List $3.60 / Each

8
211352 1 Assembly Screws Yes Model Compatibility List $40.74 / Each

2
211403 1 Guest Assembly Screws Yes Model Compatibility List $16.01 / Each

2
Roller, Rear Idler 211569 K140048-Z9 11 1 Roller, Rear Idler Yes Model Compatibility List $118.80 / Each

8
Roller, Front 211570 K140049-Z9 10 1 Roller, Front Yes Model Compatibility List $102.43 / Each

8
211642 M010011A-Z0 17 2 122 39 1390m/m_Aluminum Step Rail No Model Compatibility List $71.00 / Each

9
211643 RM010012AB-Z0 18 2 125 29 1390m/m_Aluminum Step Rail No Model Compatibility List $46.56 / Each

9
Motor Drive Belt(10J635) 211684 N012001 16 1 Motor Drive Belt(10J635) Yes Model Compatibility List $35.10 / Each

10,15
211770 N200026 151 12 Isolation Pad No Model Compatibility List $16.01 / Each

12,13,14
211793 N250009 150 1 Ending Tape CT800 (800849) No Model Compatibility List $10.80 / Each

1
Front Motor Cover 211831 PP010111-I1 24 1 Front Motor Cover Yes Model Compatibility List $35.99 / Each

9
211832 RP010112-I1 26 1 Motor Base Cap (L) No Model Compatibility List $11.99 / Each

3,9
211833 PP010113-I1 27 1 Motor Base Cap (R) No Model Compatibility List $29.99 / Each

3,9
Console Top Cover 211950 RP020331AA-I1 29 1 Console Top Cover Yes Model Compatibility List $58.80 / Each

7,9
211951 PP020332-I1 30 1 Console Bottom Cover No Model Compatibility List $47.99 / Each

7,9
211991 1 Interface Cap Yes Model Compatibility List $12.23 / Each

9,4,5,6
Rear Roller End Cap, Left 212028 PP030090-I1 63 1 Rear Roller End Cap, Left Yes Model Compatibility List $29.99 / Each

8,9
Rear Roller End Cap, Right 212029 PP030091-I1 64 1 Rear Roller End Cap, Right Yes Model Compatibility List $29.21 / Each

8,9
212072 P040086-A1 39 2 CAP, HANDPULSE BAR CT800 No Model Compatibility List $2.33 / Each

9,12,13,14
212257 P060368-A1 40 4 WASHER, NYLON 36 X 22 X 2T CE800 No Model Compatibility List $4.80 / Each

2
212263 34 1 RACK, SENSOR CU800/CR800/CE800 Yes Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
212626 P170075-A1 36 1 Touch-Pad-Button Board No Model Compatibility List $11.14 / Each

12,13,14
212777 PP220030-I1 31 1 Beverage Holder (L) No Model Compatibility List $17.99 / Each

1
212778 PP220031-I1 32 1 Beverage Holder (R) No Model Compatibility List $17.99 / Each

1
212815 P270013-A1 22 2 Rubber Stop, Incline(O30-O350L) No Model Compatibility List $5.24 / Each

10
CUSHION B (CT800 ONLY) 212817 P270015 15 4 CUSHION B (CT800 ONLY) Yes Model Compatibility List $8.74 / Each

3
Guide, Leveling - Foot Pad 212818 P270069 25 2 Guide, Leveling - Foot Pad Yes Model Compatibility List $22.99 / Each

1
212845 P280001-A1 85 1 Speaker End Cap No Model Compatibility List $4.80 / Each

9
212901 RAA030028-S13 2.1 1 Incline Bracket Assembly No Model Compatibility List $66.35 / Each

2,3,4,5,6,10
Motor Top Cover+Label 213247 RP010110-I1 25 1 Motor Top Cover+Label Yes Model Compatibility List $106.80 / Each

9
Assembly,Console 213403 RZ3WT0020-20 28 1 Assembly,Console Yes Model Compatibility List $598.80 / Each

7
213816 1 Carton Cover UP Yes Model Compatibility List $1.18 / Each

9
213817 I010069-D1 1 Carton Cover Down No Model Compatibility List $1.18 / Each

9
Safety Key 000278 N100036-A5 x 1 Safety Key Yes Model Compatibility List $39.59 / Each
Out Of Stock 		1
Running Deck (H180012-A1) WAX COATED AND REVERISBLE 000280 H180012-A2 12 1 Running Deck (H180012-A1) WAX COATED AND REVERISBLE No Model Compatibility List $274.80 / Each
Out Of Stock 		3
Rubber Foot Pad 000281 P060252-A1 192 2 Rubber Foot Pad Yes Model Compatibility List $11.99 / Each
3
WASHER RAISED M5 (Used) 1029256 J270001 0 1 WASHER RAISED M5 (Used) No Model Compatibility List $5.00 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
