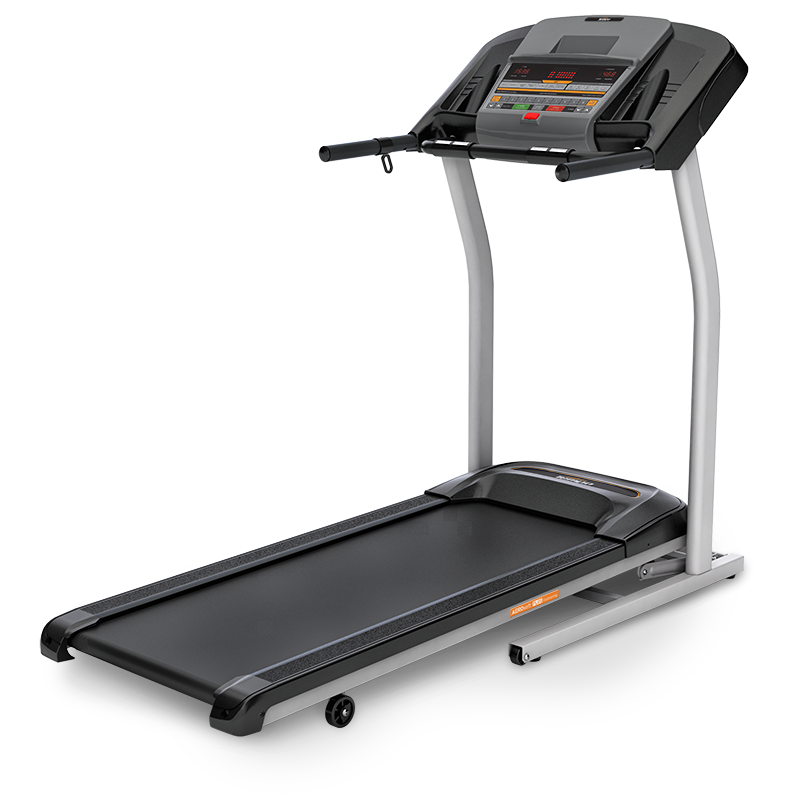

Tempo - 622T - 2012

Repair Parts for Tempo 622T TM452

Brand: Tempo

Category: Folding

Type: Folding Treadmill

Model Name: 622T

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Motor
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700402 001251-F B38 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
N 700700 001952-00 N18 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
701020 003346-00 P12 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
N 701044 003415-00 Not Shown Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
B 701375 004425-B B23 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

2
R 701445 004488-00 R06 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
M 701449 004493-00 M17 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

2
R 701476 004523-00 R05 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

2
M 701558 004589-00 M16 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

2
P 701577 004612-00 P15 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
Z 701586 004617-00 Z15 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 701588 004618-00 Q12 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
N 701590 004619-AB N07 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
P 701591 004620-00 P16 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14

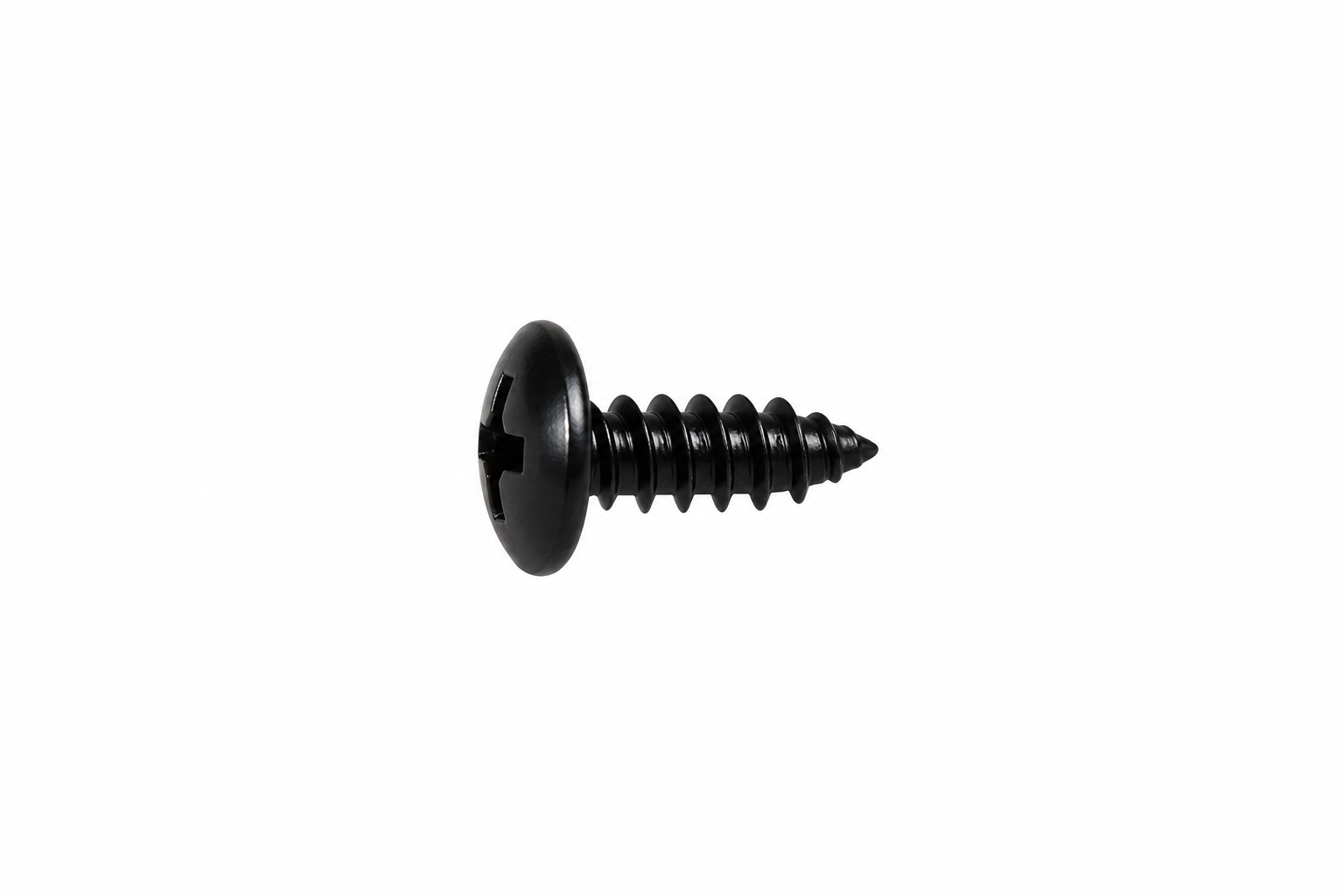

N 701592 004620-AB N16 Screw;Phillip;BH;Tapped;4x12L;BED(Black No Model Compatibility List $2.00 / Each

2,4,5,6
Q 701595 004620-AF Q13 Screw;Umbrella Cross Tapped;4x12L;Gap No Model Compatibility List $2.00 / Each

2
701597 004621-00 B30 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
B 701605 004627-00 B26 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

2
B 701633 004654-00 B11 SCREW;RND;Diam.4X15L;SM;PH;;BZN;;POT No Model Compatibility List $3.69 / Each

2
K 701713 004730-00 K14 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

2
Z 701781 004796-00 Z06 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Z 701803 004817-A Z03 Screw;BH;M6X1.0PX45L;;HS;;;; No Model Compatibility List $2.00 / Each

2
P 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
K 701897 004926-00 K15 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M18 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
B 701912 004941-00 B31 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
Z 701961 005004-00 Z05 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

2
Z 701964 005005-00 Z08 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
M 702075 005108-00 M12 Washer;Flat;10.5x18.0x2.0T No Model Compatibility List $2.00 / Each

2
B 702121 005146-A B33 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702136 005165-00 Z09 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
P 702145 005177-00 P20 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

2
P 702450 007490-C P11 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
M 704010 020100-AB M11 Screw;Hex Socket;Round;5/16'-18UNCx14L;A No Model Compatibility List $2.00 / Each

2
B 704047 020132-00 B25 Screw;Hex Socket;Sink;M8x1.25Px30L; No Model Compatibility List $2.00 / Each

2
704057 020151-Z M14 Screw;HH;M6X1.0PX35L;;HE;;BAN;; No Model Compatibility List $2.00 / Each

2
N 704087 020210-00 N14 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
Z 704175 020425-00 Z07 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

2
704211 020483-00 Z04 Washer;Arc;6.5X14.0X2.0T No Model Compatibility List $2.00 / Each

2
P 705211 039124-B P02 Power Cord; 16AWG 2M Yes Model Compatibility List $57.49 / Each

4,5,6
A 705241 039296-A AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
A 705242 039346-A AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
N 705257 039399-AA N25 Access Panel;Console Cable No Model Compatibility List $9.57 / Each

7,4,5,6
B 705259 039400-BA B24 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

8
P 705308 040695-A P01 Power Switch Yes Model Compatibility List $28.73 / Each

4,5,6
M 705313 040816-A M10 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
M 705329 048036-A M23 Screw;Phillip;BH;Tapped;4x12L;Color Zin No Model Compatibility List $2.00 / Each

2
K 705382 049024-BA K23 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

1
M 705469 049262-00 M15 Screw;Hex;3/8-16UNCX55L-14L;;HE;;;;P-T No Model Compatibility List $4.00 / Each

2
B 705514 049800-B B34 Belt Guide Yes Model Compatibility List $1.90 / Each

15
A 705566 051345-A AN5 Safety Key Set Yes Model Compatibility List $37.91 / Each

9
K 705779 056233-AA K13 Mobile Wheel;Base Frame Yes Model Compatibility List $9.57 / Each

8,3
K 705813 056299-BA K16 Leveler;Foot Pad;;Gray;NON-ROHS;TM234-K16C No Model Compatibility List $1.90 / Each

9,3,12,13,14
Q 705834 056330-BA Q08 End Cap;Base Frame No Model Compatibility List $3.82 / Each

9,3
Z 705925 056548-00 Z12 Screw;Phillip;BH;M6x1.0Px15L; No Model Compatibility List $2.00 / Each

2
H 706178 059929-B H09 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

2
Q 706200 060221-00 Q20 Screw;Phillip;BH;M5x0.8Px20L;Gap; No Model Compatibility List $2.00 / Each

2
Q 706314 061172-A Q07 Lock Latch;Deck No Model Compatibility List $11.18 / Each
Out Of Stock 		3
4 706600 063739-Z 4 Drive Motor Set;1.5HP/90V Yes Model Compatibility List $383.27 / Each

10
P 706800 065712-A P18 Screw;;Umbrella Cross;M5x0.8Px25L; No Model Compatibility List $1.85 / Each

2
R 708922 1000107269 R04 Drive Belt;Poly-V;180-J5 Yes Model Compatibility List $57.49 / Each

15,10
M 709205 1000111068 M07 Motor Control Board;1.5-2HP/110V Yes Model Compatibility List $401.52 / Each

7,10
709230 1000111355 M06 Elevator motor;AC;500LB;58mm;210mm;110V No Model Compatibility List $249.13 / Each

4,5,6,10
709344 1000113376 Q06 Cap;Frame;PP(BL);TM397 No Model Compatibility List $1.90 / Each

9,3
709351 1000113398 AN4 Pin sheath;Panting;;TM397 No Model Compatibility List $24.99 / Each

12,13,14
709353 1000113409 AM1 Mounting Bracket;Motor No Model Compatibility List $37.10 / Each

2,3,4,5,6,10
3 709366 1000113489 3 Handlebar Frame Set;TM398 Yes Model Compatibility List $219.52 / Each

3,11
709367 1000113497 Q02 Cover;Motor;D;BL;TM398-1US(WTM196-Q03B No Model Compatibility List $24.47 / Each

9,10
709374 1000113866 N60 Upper Control Board;725T;HAS601PA No Model Compatibility List $329.13 / Each

7
709383 1000113925 Q11 Foam;Adhesive;20x150x2.0t;BL;TM397 No Model Compatibility List $1.90 / Each

1
P 709398 1000114068 P03 Console Cable Wire;2200L;CKM2.5-9Px2 No Model Compatibility List $46.12 / Each

4,5

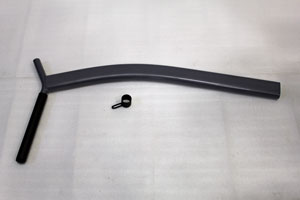

5 709400 1000114075 5 Console Mast Set;Left;Semi-Assy;TM398-1US Yes Model Compatibility List $382.82 / Each

3
709401 1000114079 C05 Foam;Arm;31.8x3.0tx315L;TM398;PAHS;REAC No Model Compatibility List $3.54 / Each

3,4,5,6

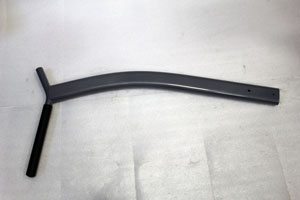

6 709402 1000114080 6 Console Mast Set;Right;Semi-Assy;TM398-1US No Model Compatibility List $382.82 / Each

7
709450 1000200082 AH1 Elevation Rack Set;SA;D;TM398;;; No Model Compatibility List $261.69 / Each

4,5,6,10
P 709474 1000200540 P14 Speed Sensor Wire;1000mm(CKM 25430101-03) Yes Model Compatibility List $28.73 / Each

4,5,6
709541 1000201204 B27 Running Deck;;1184X608X15; No Model Compatibility List $249.13 / Each

3
709542 1000201205 R02 Run / Walk Belt;458X2650X1.4T;BLACK;DIAMOND No Model Compatibility List $191.62 / Each

15,4,5,6

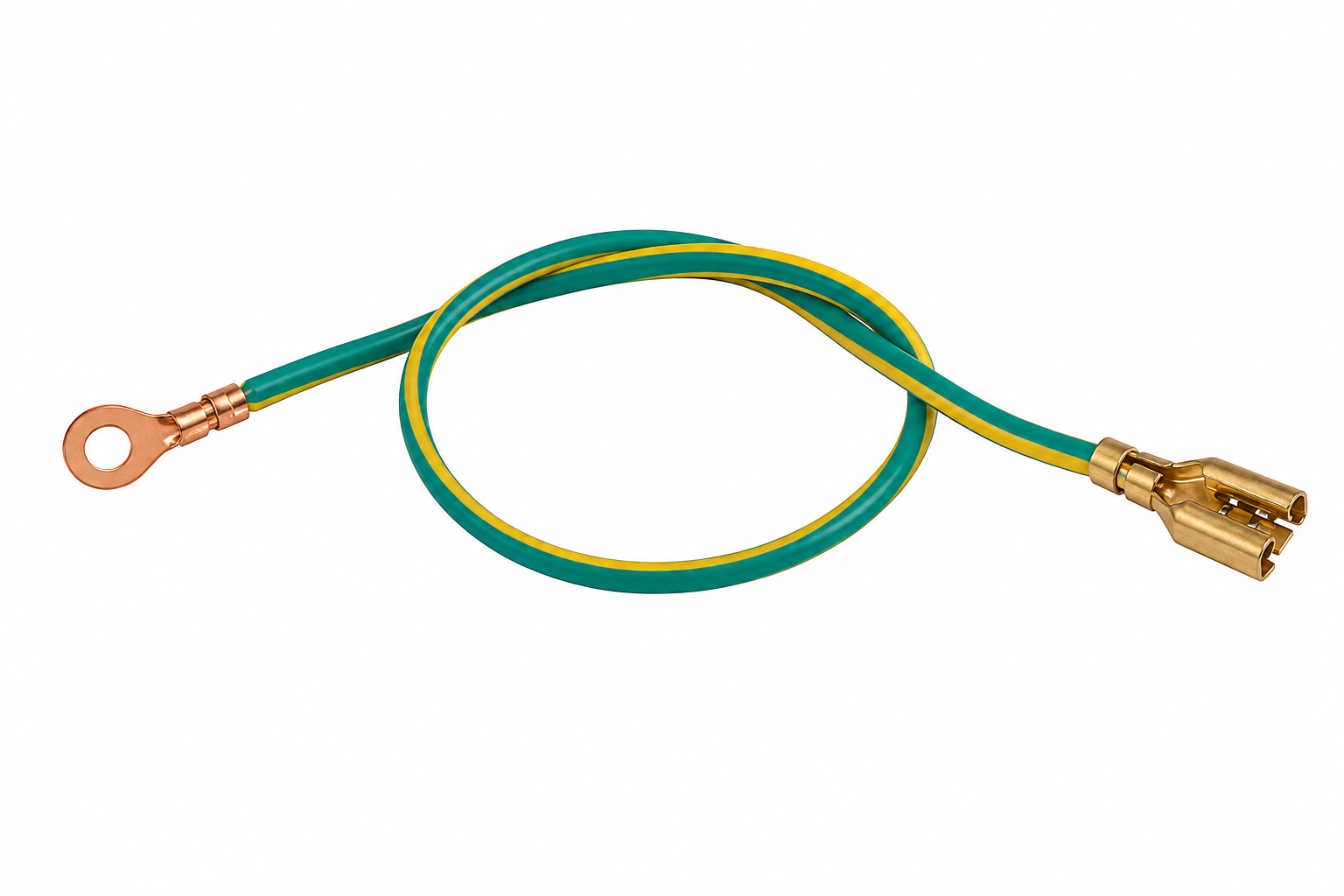

N 710000 1000205886 N63 Wire;Pulse Con;YELLOW/GREEN;;250LOCK-6 No Model Compatibility List $3.82 / Each

4,5,6,12,13,14
P 710001 1000205890 P13 Wire;BS CON;;BLACK;;250LOCK2 60L; No Model Compatibility List $3.82 / Each

4,5,6
710002 1000205891 P06 Wire;Control Board Power;BLACK;;250LOCK330L No Model Compatibility List $1.90 / Each

7,4,5,6
710246 1000207803 M20 Rubber;Elastomer;Motor;TM397-1US No Model Compatibility List $3.09 / Each

10
710308 1000208900 Not Shown HARDWARE BAG;TM398 No Model Compatibility List $14.04 / Each

1
710643 1000211507 B10 Fixing Plate;Power;;;;;PAT;;; No Model Compatibility List $23.32 / Each

3,4,5,6
712538 1000229412 Not Shown DOCUMENTATION;MANUAL;ASSEMBLY/MANIPULATE No Model Compatibility List $15.31 / Each

3
712539 1000229418 Q01 MOTOR COVER;U;HIPS;Q520-7-3;;;TM451-1US; No Model Compatibility List $68.98 / Each

9,10
712540 1000229419 V01 DECORATED LABEL;MOTOR COVER;;;;TM451-1US No Model Compatibility List $9.57 / Each

9,10
712542 1000229424 Q04 END CAP;R-REAR;ABS;Q520-7-3;;;TM451-1US; No Model Compatibility List $9.57 / Each

9
712544 1000229427 Q05 END CAP;L-REAR;ABS;Q520-7-3;;;TM451-1US; No Model Compatibility List $9.57 / Each

9
712555 1000229477 N61 OVERLAY;LE;ENGLISH;622T;TM452-N61; No Model Compatibility List $57.49 / Each

1
712562 1000229516 8 SIDE RAIL SET;SA;;TM452-1US;;; No Model Compatibility List $26.81 / Each

9
712563 1000229519 V08 DECORATED LABEL;END CAP;;;LEFT;TM452-1US No Model Compatibility List $1.90 / Each

9
712564 1000229521 V05 DECORATED LABEL;FRAME;;;;TM452-1US; No Model Compatibility List $3.54 / Each

3
712565 1000229522 V09 DECORATED LABEL;END CAP;;;RIGHT;TM452-1U No Model Compatibility List $1.90 / Each

9
712566 1000229530 N01 CONSOLE BASE;;HIPS;Q520-7-3;;;TM452-1US; No Model Compatibility List $51.71 / Each

7,3
712567 1000229533 N02 CONSOLE BOARD;;HIPS;Q716-2-4;;;TM452-1US No Model Compatibility List $26.60 / Each

7
712568 1000229534 V02 LOGO LABEL;CONSOLE;;;;TM452-1US; No Model Compatibility List $3.54 / Each

7
712569 1000229537 V03 CONSOLE STICKER;CONSOLE;;;LEFT;TM452-1US No Model Compatibility List $3.54 / Each

7
712570 1000229538 V04 CONSOLE STICKER;CONSOLE;;;RIGHT;TM452-1U No Model Compatibility List $3.54 / Each

7
712571 1000229549 AK1 BASE FRAME;PP;LM445;;TM452-1US No Model Compatibility List $212.91 / Each

3
712572 1000229551 AK2 L BASE FRAME;PP;LM445;TM452-1US No Model Compatibility List $32.55 / Each

3
712573 1000229553 AK3 R BASE FRAME;PP;LM445;TM452-1US No Model Compatibility List $32.55 / Each

3
712619 1000229912 V07 CONSOLE STICKER;FRENCH OVERLAY;;;;TM452- No Model Compatibility List $9.57 / Each

7
712818 1000230900 1 CONSOLE SET;SA;;TM452-1US;;; No Model Compatibility List $383.27 / Each

7
N 712898 1000231347 Not Shown MANUAL;TM SAFETY DIRECTION;EN/FR/SP;TM63 No Model Compatibility List $9.57 / Each

9
725030 101310 N05 Safety Key Sensor Wire;300L No Model Compatibility List $9.57 / Each

9,4,5,6
Washer;Flat;Teflon;10.5x25.0x2.0t; 725944 078520 H10 Washer;Flat;Teflon;10.5x25.0x2.0t; No Model Compatibility List $4.00 / Each

2
Pulse Sensor Set;800mm;31.8+2.5-2P JIND 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $31.33 / Each

12,13,14
728977 N/A 7 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AN2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 M03 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AC1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AC2 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729197 Part of Kit 8 Q03 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
Magnetic Safety Key (Used) 1017639 013871-A # 1 Magnetic Safety Key (Used) Yes Model Compatibility List $38.99 / Each

1
P 1021959 1000114068 P03 1 Console Wire 2200L #CKM2.5-9P#x2 (Used) No Model Compatibility List $27.68 / Each
Out Of Stock 		1,4
Magnetic Safety Key Lanyard (Used) 013699 013871-A 0 1 Magnetic Safety Key Lanyard (Used) No Model Compatibility List $35.09 / Each
Out Of Stock 		1
P 040695-A 040695-A P01 1 Power Switch on Off Yes Model Compatibility List $41.59 / Each

1
A 1000631 051345-A AN5 1 Safety Key Set Yes Model Compatibility List $34.99 / Each

1
P 1000730 040695-A P01 1 Power Switch Yes Model Compatibility List $31.99 / Each

1
M 1003455 1000111068 M07 1 Controller Motor Yes Model Compatibility List $299.99 / Each

48
4 1005024 063739-Z 4 1 Motor Drive Yes Model Compatibility List $349.00 / Each

28
