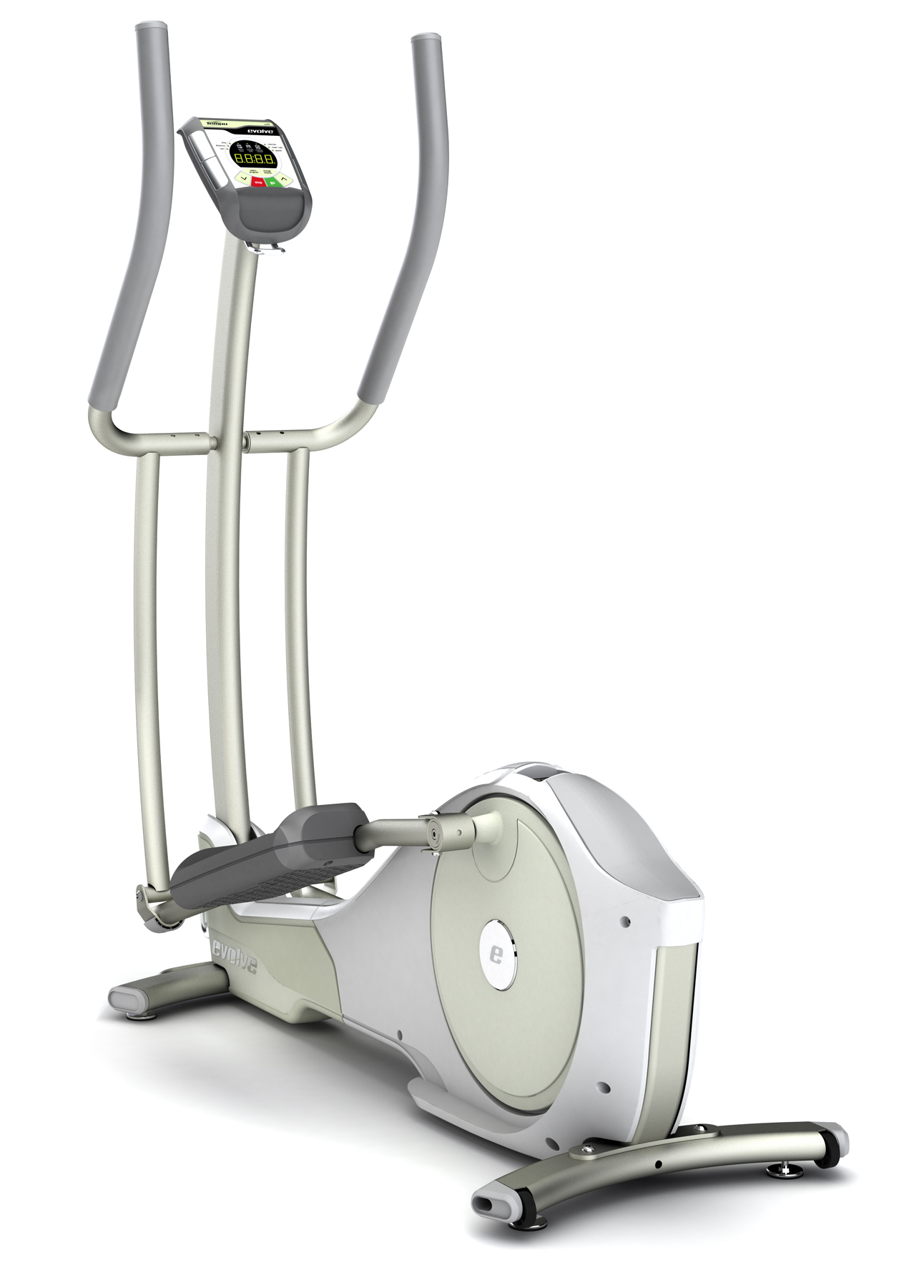

Tempo - Evolve CE11 - 2012

Repair Parts for Tempo Evolve CE11 EP549

Brand: Tempo

Category: Folding

Type: Elliptical

Model Name: Evolve CE11

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Motor
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700023 000038-C L10 Wheel;Base Frame Stabilizer Yes Model Compatibility List $3.82 / Each

8,3
L 700132 000485-00 L15 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700402 001251-F B29 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
R 701042 003413-00 R09 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701090 003710-00 U07 Clamp;External C-Shaped;S-15; No Model Compatibility List $1.85 / Each

4,5,6
E 701156 004074-A4 E16 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
U 701158 004075-A3 U03 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
701197 004149-00 R08 Drive Belt;Poly-V;430-J6-FG;;; No Model Compatibility List $54.73 / Each

15,10
C 701295 004361-00 C06 Screw;Phillip;BH;M4x0.7Px10L;Ni;Gap; No Model Compatibility List $9.10 / Each

2
701313 004370-Z T07 Screw;Phillip;BH;M5x0.8Px10L; No Model Compatibility List $1.85 / Each

2
701341 004387-Z Z07 Screw;Phillip;BH;M5x0.8Px10L;Cr; No Model Compatibility List $1.85 / Each

2
N 701351 004400-00 N65 Screw;Phillip;BH;M5x0.8Px6L;Black;;Zn-BL No Model Compatibility List $1.79 / Each

2,4,5,6
701360 004410-00 Q11 Screw;BH;M5X0.8PX20L;CT;PH;;NKL;; No Model Compatibility List $1.85 / Each

2
701371 004420-AB T08 Screw;FH;M5X0.8PX15L;;PH;;ZN;; No Model Compatibility List $1.85 / Each

2
Z 701484 004529-AD Z01 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $3.69 / Each

2
S 701583 004615-00 S03 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
N 701589 004619-00 N09 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
701597 004621-00 Q09 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
N 701615 004635-A N13 Screw;Oval Tapping;3x7L No Model Compatibility List $2.00 / Each

2,12,13,14
N 701628 004649-00 N11 Screw;Phillip;Round;3x6L;Black;Gap;;Zn- No Model Compatibility List $1.66 / Each

2,4,5,6
U 701713 004730-00 U09 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

2
701731 004757-00 C14 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
U 701740 004763-00 U08 Screw;Hex Socket;BH;M8x1.25Px16L;Adhere Yes Model Compatibility List $2.00 / Each

2
Z 701741 004763-AD Z04 Screw;Hex Socket;BH;Stainess;M8x1.25Px16 No Model Compatibility List $1.66 / Each

2
U 701862 004884-00 U11 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

2
L 701864 004887-00 L18 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

2
B 701890 004923-00 B31 Nut;Nylon;M4 x 0.7P;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
U 701897 004926-00 U10 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
E 701901 004929-00 E24 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 701934 004972-00 L07 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
R 701952 004988-00 R05 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
C 702018 005053-00 C13 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
B 702032 005064-A B25 Washer;Flat;8.2x20x3.0T No Model Compatibility List $1.85 / Each

2
T 702074 005106-00 T11 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702085 005117-AB Z10 Washer;Flat;8.2x16.0x2.0T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 702119 005145-AC Z05 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14

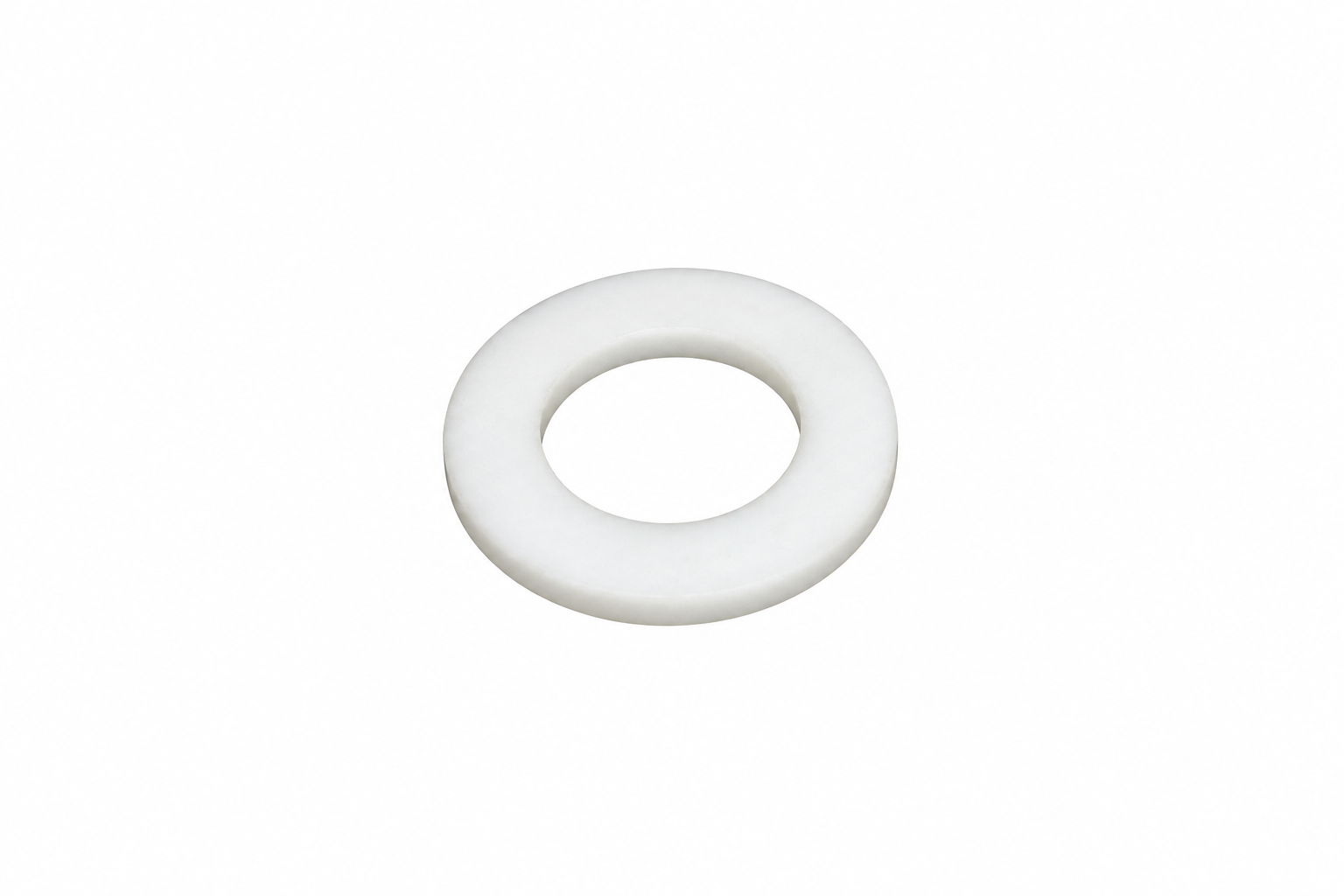

Z 702173 005215-AB Z09 Washer;Split Teflon;15.9x28.4x1.5T Yes Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q10 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
U 702227 005352-00 U06 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

2
R 702241 005366-00 R07 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2

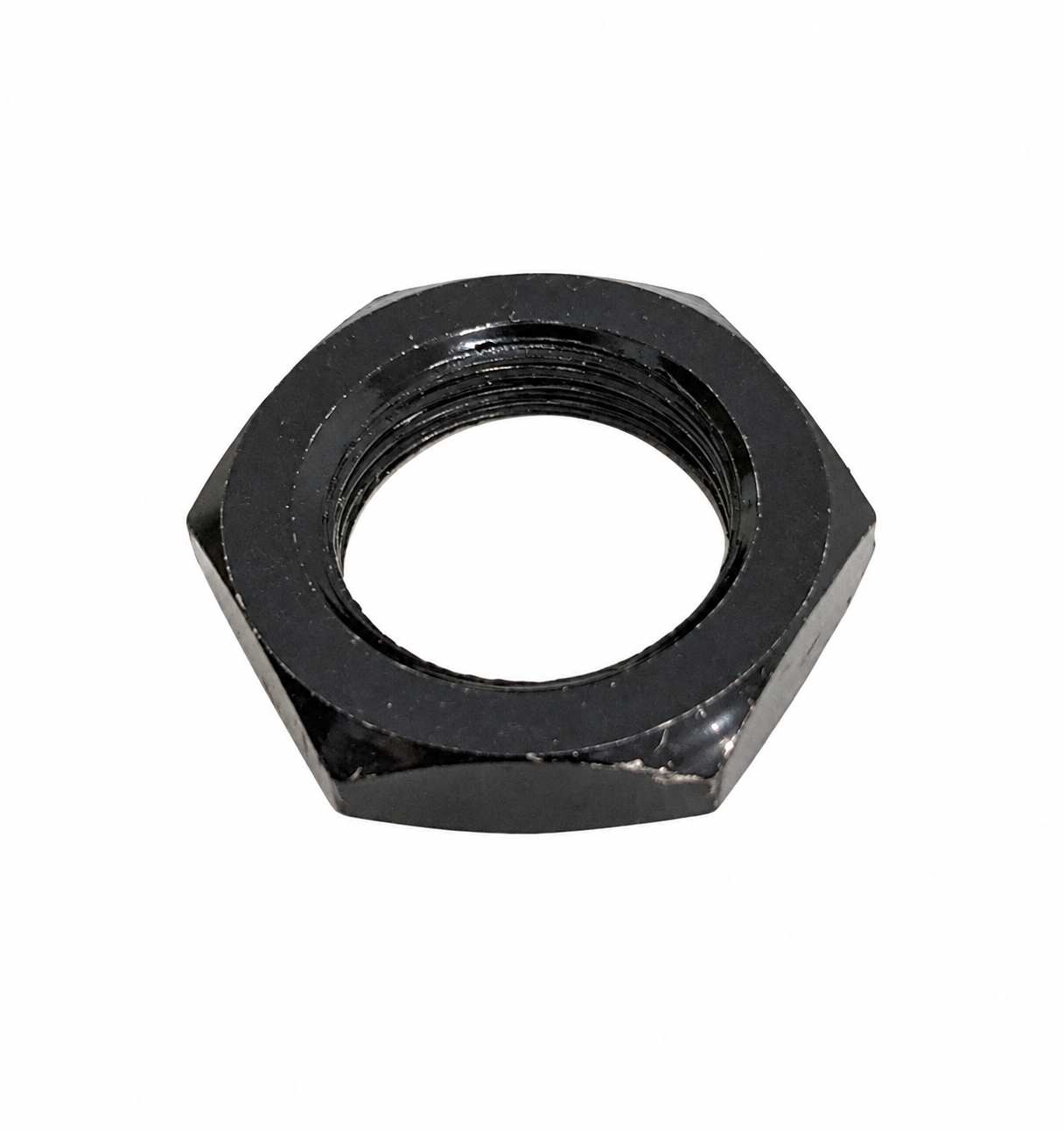

R 702829 011173-00 R06 Nut;Hex;M25x1.5P;Black No Model Compatibility List $4.00 / Each

2,4,5,6
T 704163 020370-00 T10 Nut;Hex;M10X1.5P;SS41;BAN;; No Model Compatibility List $1.79 / Each

2
C 704204 020478-AC C19 Washer;Flat;10.2X20.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 704273 022177-A Q08 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

2,9,3,4,5,6

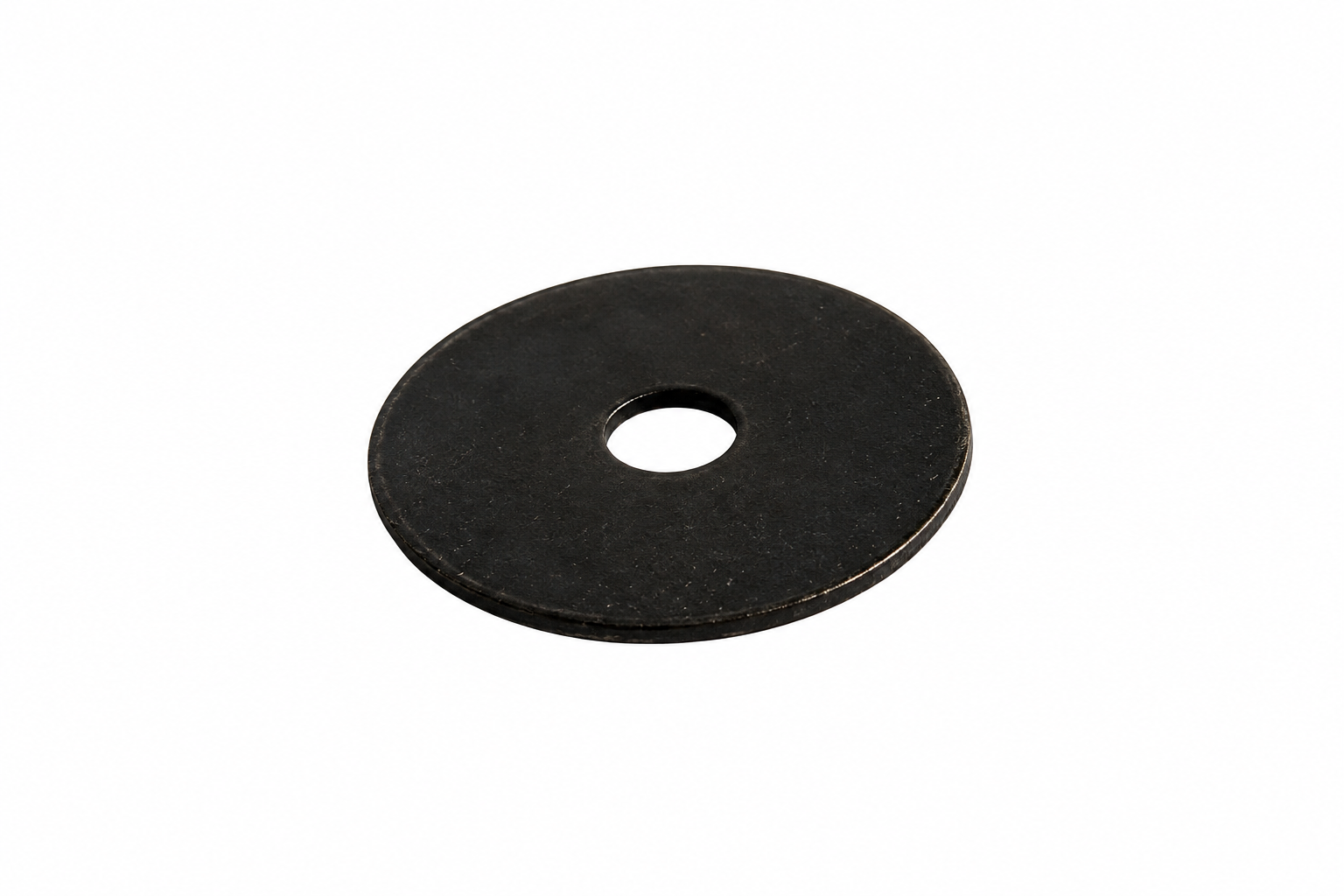

R 705324 040840-A R11 Washer;Flat;6.2X30.0X1.5T No Model Compatibility List $1.59 / Each

2

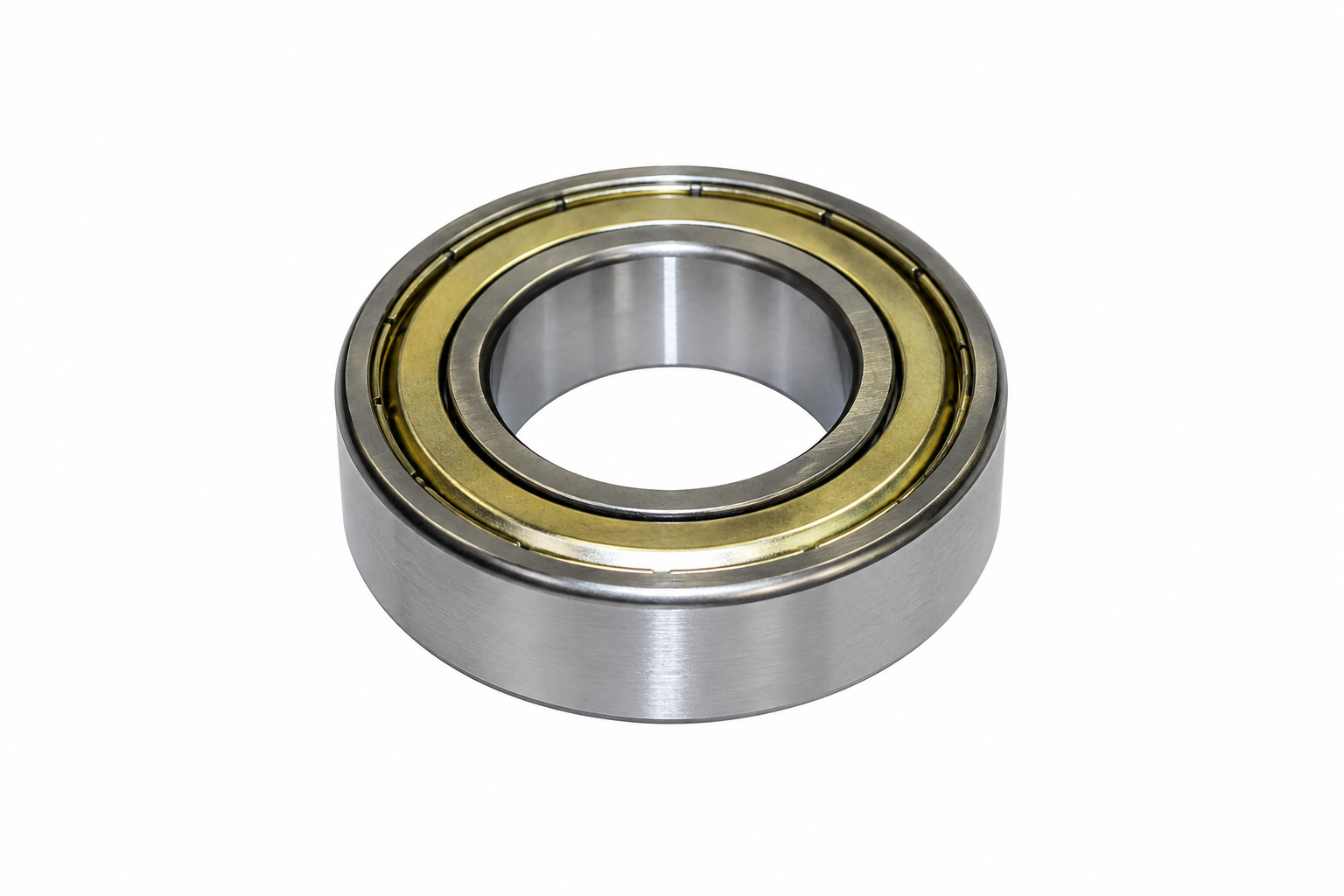

R 705452 049239-A R04 Bearing;Ball;6005ZZ;25X47X12T;;JHUANG No Model Compatibility List $18.85 / Each

8
P 705700 055204-A P02 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14

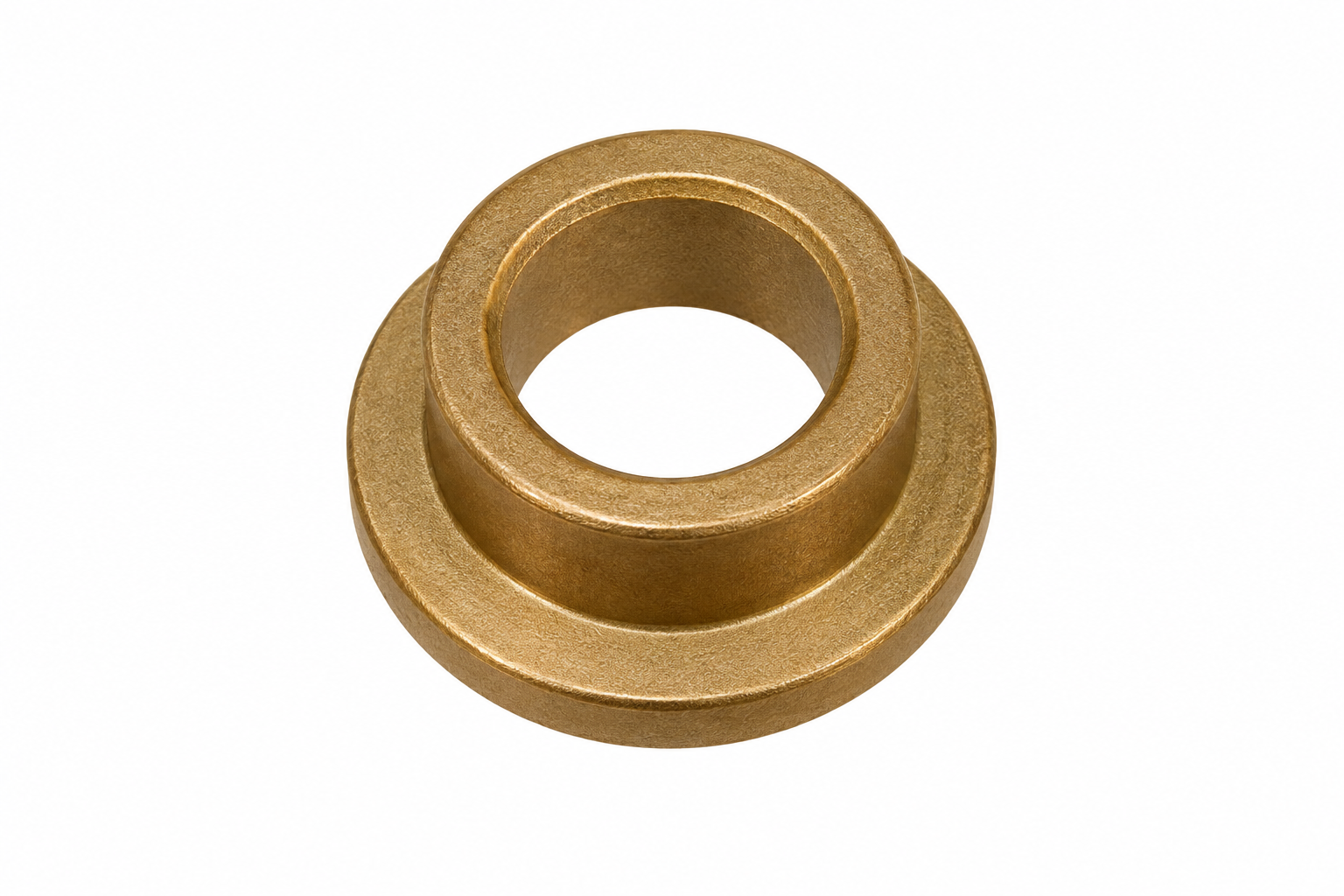

E 705963 057062-A E17 Bushing;Pedal Arm No Model Compatibility List $4.00 / Each

8,9,3
V 706142 059542-AX V12 Sticker;Warning No Model Compatibility List $1.77 / Each

1
E 707098 1000090317 E23 Screw;BH;M8X1.25PX60L-20L;;HS;G8.8;NKL;; Yes Model Compatibility List $2.00 / Each

2
L 707361 1000092318 L19 Front Leveler Yes Model Compatibility List $12.43 / Each

3
P 707734 1000094716 P01 Power Adapter;100-240V 12V/1A;2M No Model Compatibility List $76.65 / Each

4,5,6
P 708253 1000101534 P06 Speed Sensor Wire Yes Model Compatibility List $12.99 / Each

4
708530 1000103146 Z12 Nut;Cap;M8x1.25P;Nickle No Model Compatibility List $2.00 / Each

2,9
G 708563 1000103438 G09 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.57 / Each

2
R 708709 1000105037 R10 Screw;BH;M6x1.0Px10L;HS;G8.8;CHM;BP No Model Compatibility List $2.00 / Each

2
708721 1000105071 Z02 Washer;FLT;10.2x20x1.5t;CHM No Model Compatibility List $2.00 / Each

2

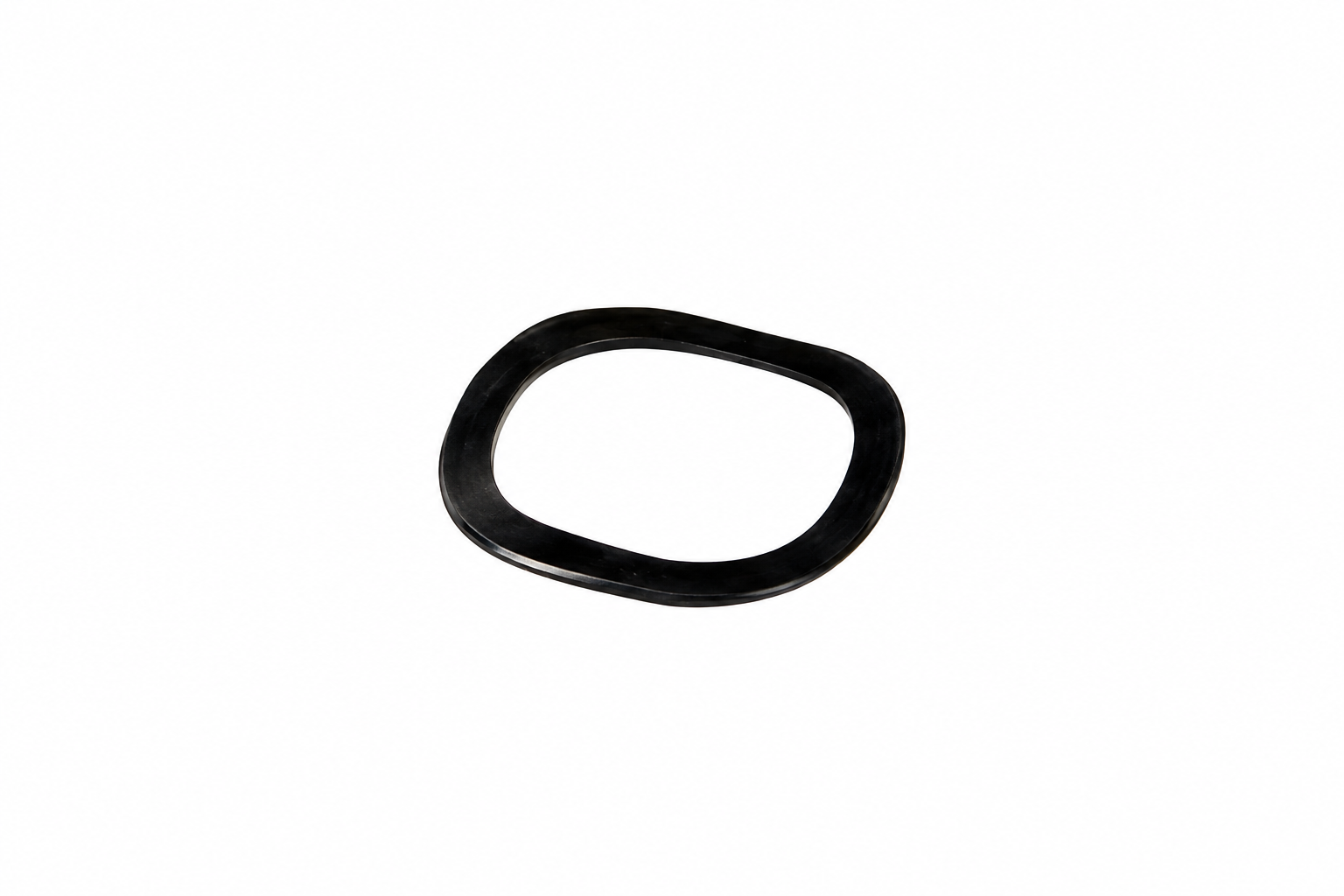

Z 709211 1000111159 Z06 Washer;Wavy;17.2x22.5x0.5T;65Mn No Model Compatibility List $1.59 / Each

2,4,5,6

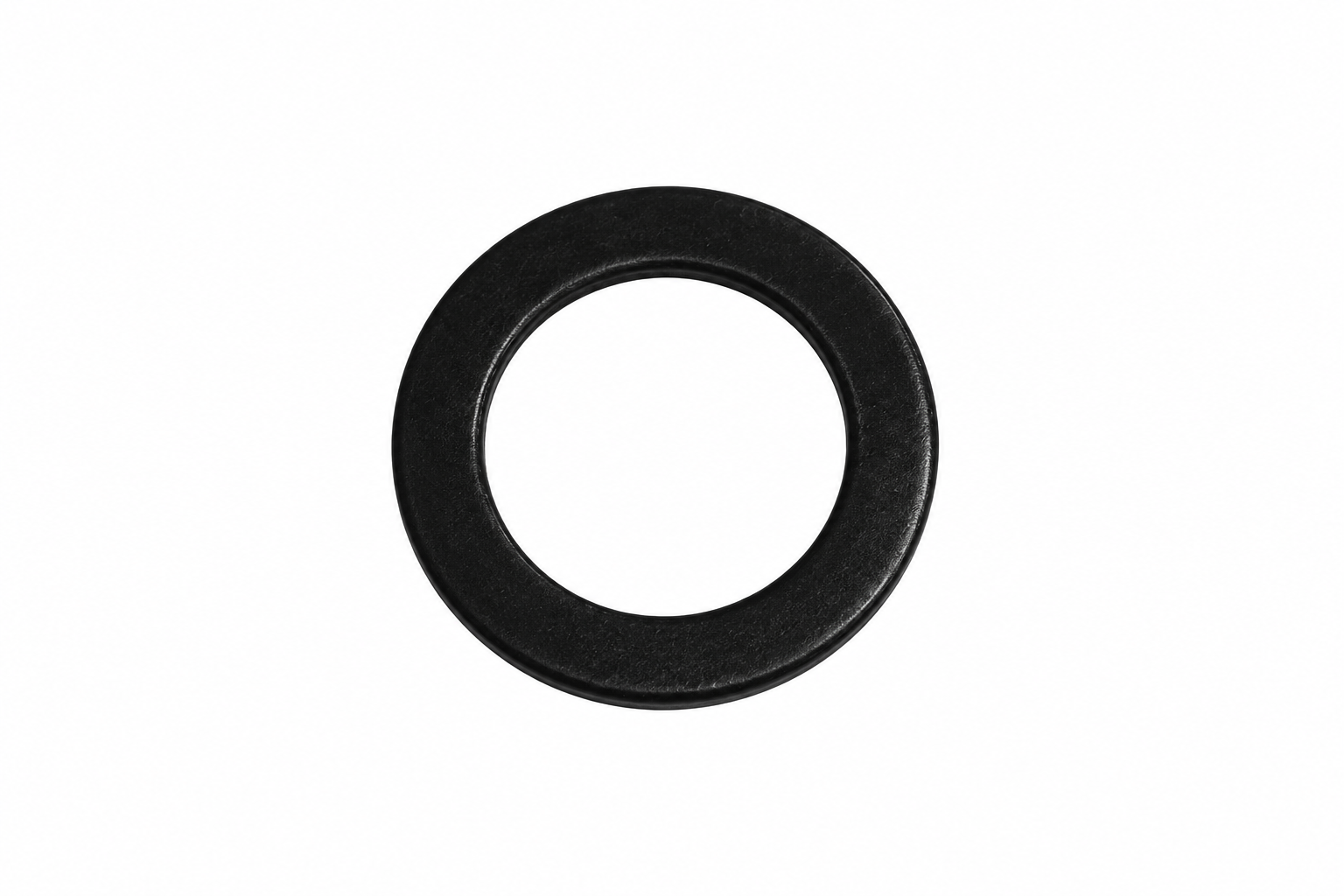

E 709468 1000200416 E18 Shim;Crank Sleeve No Model Compatibility List $2.00 / Each

8,3
C 709592 1000201521 C17 Spring;CMP;1.2X14.5X17.0LX8.5N;SWP;WZN No Model Compatibility List $2.00 / Each

2
710014 1000205922 P03 Wire;Console;-;-;-;2700L(CKM254301-8PX2) No Model Compatibility List $32.06 / Each

7,4,5,6
710017 1000205963 B22 Hook;Frame;U;SPHC;6.0T;EP549; No Model Compatibility List $8.87 / Each

3
710018 1000205964 C16 Pop Pin;EP549 No Model Compatibility List $64.64 / Each

12,13,14
710019 1000205971 C05 ZCon;Console Mast;;20#;EP549 No Model Compatibility List $31.95 / Each

7
710020 1000205972 C21 Swivel Axle;45#;;;#hFg;EP549; No Model Compatibility List $9.57 / Each

8
710021 1000205989 E09 Cover;Pedal;D;PAINTING;DS019;EP549-E09; No Model Compatibility List $32.21 / Each

8,9
710022 1000205990 E10 Plastic Cover;Pedal Arm;POM;25.3g;LS039; No Model Compatibility List $8.87 / Each

8,9,3
710023 1000206001 G07 Cap;Handle Bar;UP;POM;26g;LS039;EP549 No Model Compatibility List $3.54 / Each

9,11
710024 1000206008 AT1 Crank Set;welding;EP549 No Model Compatibility List $88.71 / Each

8
710025 1000206011 T05 Disk;HIPS;587g;LS125;EP549 No Model Compatibility List $35.18 / Each

1
710026 1000206012 T06 Cap;Disk;HIPS;17.8g;EP549 No Model Compatibility List $3.54 / Each

9
710027 1000206020 4 Console Set;SA;;EP549;;; No Model Compatibility List $402.22 / Each

7
710028 1000206032 Q03 Cover;decorate;Front;HIPS;LS039;59g;EP54 No Model Compatibility List $8.87 / Each

9
710029 1000206033 Q04 Cover;decorate;Mid;HIPS;LS039;135g;EP549 No Model Compatibility List $13.00 / Each

9
710030 1000206034 Q05 Cover;decorate;Rear;HIPS;LS039;99g;EP549 No Model Compatibility List $9.59 / Each

9
710031 1000206040 R12 Inside ECB Controller;4.5KG;EP549 No Model Compatibility List $172.46 / Each

7,8
710032 1000206049 Not Shown Manual;Manipulate&Assembly;EN;FR;SP;EP54 No Model Compatibility List $17.42 / Each

3
710061 1000206530 G06 Foam;Arm Rest;38.1X3.0TX490L;LS039 No Model Compatibility List $15.73 / Each

3
T 710067 1000206624 T09 Screw;SH;M10X1.5PX55L No Model Compatibility List $4.00 / Each

2
T 710072 1000206655 T03 Key;Round;Signal-End;6X6X20L;-;-;; No Model Compatibility List $1.51 / Each

9
710078 1000206686 P07 Wire;POWER Set;DC;-;;1400L(DC CKM 25430 No Model Compatibility List $9.57 / Each

4,5,6
710326 1000209456 B23 Rubber;Hook;Support Plate;EP549 No Model Compatibility List $8.87 / Each

3
710357 1000209739 G08 Swivel Axle;20#;Arm;EP549 No Model Compatibility List $9.57 / Each

8,3
710409 1000210146 L08 Plastic Cover;L;;PP;37g No Model Compatibility List $3.54 / Each

9
710410 1000210147 L09 Plastic Cover;R;;PP;37g No Model Compatibility List $3.54 / Each

9
S 710763 1000213379 S01 Resistance Motor Yes Model Compatibility List $180.67 / Each

10
710770 1000213451 Not Shown Hardware Set;-;EP549-1US;-; No Model Compatibility List $72.44 / Each

1
710796 1000213722 V22 Logo Label;Pedal;-;-;-;EP549-V05; No Model Compatibility List $3.54 / Each

8,9
710797 1000213723 V23 Logo Label;SIDE Cover;-;-;-;EP549-V06; No Model Compatibility List $2.21 / Each

9
710936 1000215471 Z08 Screw;BH;M8X1.25PX82L-15L;;-;HS;G8.8;CHM No Model Compatibility List $4.00 / Each

2
711019 1000215989 L20 End Cap;-;LS039;EP549 No Model Compatibility List $3.54 / Each

9
711071 1000216291 B27 Fixing Plate;EP549-1US; No Model Compatibility List $23.95 / Each

3
711073 1000216296 V07 Direction Label;POWER;-;-;-;EP549-V07; No Model Compatibility List $1.77 / Each

4,5,6
711131 1000216938 E19 Screw;TH;M6X1.0PX15L;=;-;HS;G8.8;BZN; No Model Compatibility List $2.00 / Each

2
711199 1000217449 Z03 Screw;SH;M10X1.5PX65-15L;=;-;HS;G8.8;C No Model Compatibility List $3.69 / Each

2
711207 1000217667 S02 Steel Rope;-;-;EP549-S02; No Model Compatibility List $17.97 / Each

1
711250 1000218471 B30 Screw;FH;M4X0.7PX15L;;CT;HS;-;BZN; No Model Compatibility List $1.85 / Each

2
711264 1000219177 E08 Cover;Pedal;U;PAINTING;DS019;EP549-E08 No Model Compatibility List $48.88 / Each

8,9
711830 1000223219 12 Side Cover Set;Right;EP549-1US;-;-; No Model Compatibility List $226.51 / Each

9
711831 1000223220 11 Side Cover Set;Left;EP549-1US;-;-; No Model Compatibility List $228.96 / Each

9
711832 1000223221 13 Drive Axle Set;SA;;EP549;;; No Model Compatibility List $194.79 / Each

8,10
711833 1000223222 2 Stabilizer Set;Front;EP549-1US;-;-; No Model Compatibility List $140.43 / Each

1
711834 1000223223 3 Stabilizer Set;Rear;EP549 No Model Compatibility List $141.44 / Each

1
711835 1000223225 10 Idler Set;SA;;EP549;;; No Model Compatibility List $55.95 / Each

8
711836 1000223228 5 Console Mast Set;SA;;EP549;;; No Model Compatibility List $587.39 / Each

7
711837 1000223229 16 Plastic Sleeve Set;EP549-1US No Model Compatibility List $88.06 / Each

9,3
711838 1000223230 6 Pedal Arm Set;Left;EP549;;; No Model Compatibility List $385.06 / Each

8,9,3
711839 1000223232 18 Crank Sleeve Set;SA;;EP549;;; No Model Compatibility List $57.49 / Each

8,3
711840 1000223233 7 Pedal Arm Set;Right;EP549;;; No Model Compatibility List $391.69 / Each

8,9,3
711841 1000223234 8 Arm Rest Set;Left;EP549;;; No Model Compatibility List $212.68 / Each

3
711842 1000223235 9 Arm Rest Set;Right;EP549;;; No Model Compatibility List $211.33 / Each

3
711939 1000223955 AC2 Console Mast Boot;painting;LM142;EP549 No Model Compatibility List $21.29 / Each

7
712043 1000225751 T04 Reinforce Plate;Crank;painting;;LM142;EP No Model Compatibility List $53.01 / Each

8,3
C 712638 1000230001 C18 Snap Ring;External;S-10; No Model Compatibility List $1.79 / Each

2
G 725259 103299 G05 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
725869 077441 C10 Sticker;Warning;Console set;38x54;EP197 No Model Compatibility List $1.77 / Each

7
Grounding Wire;Pulse;;150L; 725942 078500 N68 Grounding Wire;Pulse;;150L; No Model Compatibility List $1.90 / Each

4,5,6,12,13,14
Screw;Phillip;Big Umbrella;Tapped;;4x10 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $2.00 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
727902 091996 D89 Screw;Hex Socket;BH;M8x1.25Px16L;Black Z No Model Compatibility List $1.66 / Each

2,4,5,6
728169 093378 38 Nut;Nylon;M6x1.0P;;Zn-BL No Model Compatibility List $1.66 / Each

2
728977 N/A V04 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729052 Order Parts Separately 1 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729120 Part of Kit 10 U05 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729123 Part of Kit 11 Q01 Upper Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729124 Part of Kit 12 Q02 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729125 Part of Kit 13 R03 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729133 Part of Kit 16 C07 Stabilizer;Front;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729136 Part of Kit 18 AE3 Axle,TRANSIMISSION;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729138 Part of Kit 2 AL1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AL2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 N63 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AC1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AE1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 AE2 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729197 Part of Kit 8 AG1 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729201 Part of Kit 9 AG2 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
Motor Resistance (Used) 1028444 1000101530 M40 Motor Resistance (Used) No Model Compatibility List $89.00 / Each

28
R 1006814 011173-00 R06 1 Black Hex Nut M25x1.5 No Model Compatibility List $12.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
