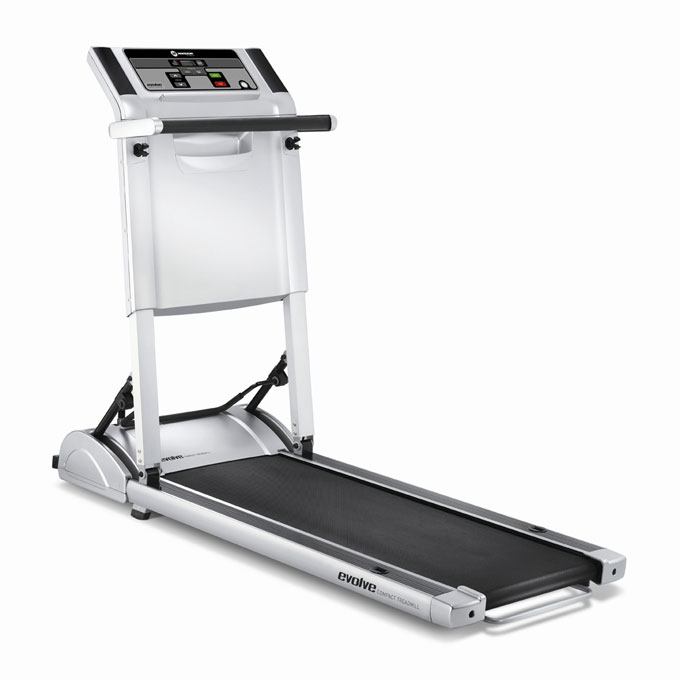

Tempo - Evolve HSN - 2008

Repair Parts for Tempo Evolve HSN TM343

Brand: Tempo

Category: Folding

Type: Folding Treadmill

Model Name: Evolve HSN

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Switch
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700251 000780-E B65 Cap;Tube;;PVC;Share D80;;;TM70 Yes Model Compatibility List $3.82 / Each

9,3
N 700700 001952-00 N15 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 700702 001956-C N09 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
700755 002169-A P09 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

4,5,6
P 700781 002267-B P12 Sensor Wire;750(OKI Magnet Reed Tube9216 Yes Model Compatibility List $14.99 / Each

8,3,4,5,6
701013 003326-00 P04 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
701020 003346-00 P05 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
H 701352 004400-Z H10 Screw;Phillip;BH;M5x0.8Px6L; No Model Compatibility List $2.00 / Each

2
R 701476 004523-00 R09 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

2
R 701478 004525-00 R04 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

2
M 701495 004535-AB M28 Screw;Hex Socket;Round;M8x1.25Px30L;Zinc No Model Compatibility List $3.69 / Each

2
B 701530 004562-00 B32 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
B 701538 004567-AC B33 Screw;Hex Socket;Sink;M8x1.25Px25L;Adher No Model Compatibility List $2.00 / Each

2
P 701581 004614-AB P21 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
Q 701589 004619-00 Q25 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
Q 701591 004620-00 Q16 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
B 701598 004622-00 B60 Screw;Phillip;BH;Tapped;4x8L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

2
C 701608 004628-A C10 Screw;Umbrella Cross Tapped;;M5x0.8Px15L No Model Compatibility List $2.00 / Each

2
N 701613 004632-00 N80 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
N 701615 004635-A N16 Screw;Oval Tapping;3x7L No Model Compatibility List $2.00 / Each

2,12,13,14
N 701676 004711-AC N23 Screw;Hex Socket;BH;;M5x0.8Px15L;Cr No Model Compatibility List $2.00 / Each

2
H 701690 004719-00 H07 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
G 701703 004725-AB G17 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
D 701710 004728-00 D15 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
C 701718 004739-00 C11 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
G 701841 004859-00 G13 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Q 701849 004867-A Q18 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
M 701897 004926-00 M08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
D 701901 004929-00 D23 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 701913 004942-00 B47 Nut;Nylon;M10x1.5P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 701964 005005-00 M10 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
H 702004 005042-00 H06 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
G 702005 005043-00 G18 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
M 702016 005051-00 M09 Washer;Flat;8x16x1.4T No Model Compatibility List $2.00 / Each

2
D 702021 005056-00 D20 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
R 702073 005104-00 R06 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

2
G 702182 005226-Z G15 Washer;Wavy;26.4x33.9x0.3T No Model Compatibility List $1.85 / Each

2,4,5,6
B 702197 005249-A B30 Elastomer;Front;Blue(80) Yes Model Compatibility List $15.31 / Each

1
B 702198 005250-A B17 Elastomer;Middle;Red(55) Yes Model Compatibility List $15.31 / Each

1
B 702217 005330-00 B40 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

2
H 702292 005493-A H24 Spring;Ext;60MN;Zinc No Model Compatibility List $2.00 / Each

2
A 703375 013877-A AN3 Safety Key Set No Model Compatibility List $40.14 / Each

9
P 703918 019353-A P06 Connecting Cable;Socket/Breaker No Model Compatibility List $1.51 / Each

4,5,6
P 703923 019453-A P07 Wire;Power;Control Board;Black No Model Compatibility List $1.90 / Each

7,4,5,6
P 703924 019454-A P08 Wire;Power;Control Board;White No Model Compatibility List $1.90 / Each

7,4,5,6
G 703978 020045-00 G12 Screw;Phillip;Sink;M5x0.8Px12L;;Zn-BL No Model Compatibility List $2.00 / Each

2
P 703979 020048-00 P11 Screw;FH;M3X0.5PX10L;CT;PH;;;; No Model Compatibility List $2.00 / Each

2
M 704010 020100-AB M11 Screw;Hex Socket;Round;5/16'-18UNCx14L;A No Model Compatibility List $2.00 / Each

2
M 704119 020276-00 M18 Screw;Hex Socket;BH;M8x1.25Px40L;Chromed No Model Compatibility List $1.85 / Each

7,2,12,13,14
Q 704198 020469-A Q26 Washer;Flat;5.0X13.0X1.3T No Model Compatibility List $2.00 / Each

2
K 704610 024326-A KIT Pedometer No Model Compatibility List $129.82 / Each

1
D 705270 039654-00 D09 C-Clip;S-12 No Model Compatibility List $2.00 / Each

2
P 705295 040647-A P02 Console Cable; 1800;PIN+2.5-9PIN No Model Compatibility List $38.32 / Each

7,4,5,6,12,13,14
K 705343 048901-A K14 Mobile Wheel No Model Compatibility List $9.57 / Each

8
D 705488 049292-A D25 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $2.00 / Each

2
B 705514 049800-B B57 Belt Guide Yes Model Compatibility List $1.90 / Each

15
P 705700 055204-A P27 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
R 705757 056045-A R01 Running Belt;430x2428x1.3T No Model Compatibility List $249.13 / Each

15
P 705915 056528-A P01 Socket;Power;100,250,60 16AWG;;TM209; Yes Model Compatibility List $9.57 / Each

4,5,6
A 705993 058022-BR AR1 Front Roller Set No Model Compatibility List $191.62 / Each

8
A 705995 058024-AR AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
N 706288 060786-A N62 KeyPad;Membrane;;1;6KEY;ROHS No Model Compatibility List $19.14 / Each

9,12,13,14
N 706289 060787-A N63 KeyPad;Membrane;;2;1KEY;ROHS No Model Compatibility List $3.82 / Each

9,12,13,14
N 706500 062879-AA N04 Console Cover;HIPS;TM272-N04 No Model Compatibility List $171.34 / Each

7,9
N 706501 062880-AA N03 Painting;Extension piece;HIPS;TM272-N03 No Model Compatibility List $9.57 / Each

1
Q 706502 062883-AA Q06 End Cover;Frame;R;ABS;TM272-Q06 Yes Model Compatibility List $21.03 / Each

9,3
Q 706503 062884-AA Q05 End Cover;Frame;L;ABS;TM272-Q05 Yes Model Compatibility List $21.03 / Each

9,3
Q 706504 062885-AA Q02 Cover;Motor;D;PP;TM272-Q02 No Model Compatibility List $89.57 / Each

9,10
Q 706505 062886-AA Q01 Cover;Motor;U;HIPS;TM272-Q01 Yes Model Compatibility List $110.73 / Each

9,10
Q 706508 062889-AA Q07 Cover;B;ABS B;ABS;TM272-Q07 Yes Model Compatibility List $22.07 / Each

9
M 706601 063746-Z M01 Drive Motor Set JM15-001 ;1.25HP/90V Yes Model Compatibility List $383.27 / Each

10
D 706630 063950-AA D06 Nylon;;;TM272-D06A No Model Compatibility List $3.82 / Each

1
D 706632 063985-B D07 Axle;Cam;45#;TM272-D07B No Model Compatibility List $3.64 / Each

8
Q 706637 064079-BA Q17 Rack;PA66+GF30%,BL;TM272-Q17C No Model Compatibility List $3.82 / Each

4,5,6
Q 706638 064082-BA Q08 Cover;Console;HIPS rTM272-Q08C No Model Compatibility List $3.54 / Each

7,9
Q 706639 064086-AA Q10 Cap;D;PVC B;TM272-Q10B No Model Compatibility List $3.82 / Each

9
Q 706640 064087-BA Q09 Cap;U;PP rTM272-Q09C No Model Compatibility List $3.54 / Each

9
A 706641 064107-B AS1 Locking Pin Set Yes Model Compatibility List $9.57 / Each

12,13,14
N 706642 064127-AA N01 Faceplate Yes Model Compatibility List $56.58 / Each

3,4,5,6
N 706643 064128-AA N02 Painting;Console Cover;F;HIPS;TM272-N02 Yes Model Compatibility List $133.28 / Each

7,9
N 706644 064129-AA N05 Painting;Console Cover;B;TM272D-N05 Yes Model Compatibility List $96.59 / Each

7,9
R 706645 064137-00 R03 Drive Belt;Poly-V;160-J5 Yes Model Compatibility List $57.49 / Each

15,10
B 706998 068175-AA B35 Foot Pad;B;TM272-B42A Yes Model Compatibility List $12.99 / Each

3,9,12,13,14
M 706999 068176-AA M20 Elastomer;;;;;TM272;TM272-M20A No Model Compatibility List $14.17 / Each

1
A 707031 068516-Z AN2 Console Base Set No Model Compatibility List $59.10 / Each

7,3
A 707198 1000091164 AH1 Pedal Set;Painting;TM322 No Model Compatibility List $80.05 / Each

8,9
A 707212 1000091226 AC1 Painting;Console;L;;TM312-AC1 Yes Model Compatibility List $418.44 / Each

7,4,5,6
M 707570 1000093447 M02 Bracket;Drive Motor No Model Compatibility List $38.32 / Each

2,3,4,5,6,10
A 707888 1000096635 AH2 Painting;;Pedal Set;TM312-AH2 No Model Compatibility List $141.10 / Each

8,9
B 710321 1000209334 B27 Running Deck;500x965x15t;TM322 No Model Compatibility List $252.04 / Each

3
Screw; SH; M5x1.0Px12L 725454 071452 G14 Screw; SH; M5x1.0Px12L No Model Compatibility List $1.85 / Each

2
725456 071458 AC3 Console Mast Support Tube No Model Compatibility List $63.88 / Each

7,3
Console Mast; Right 725457 071464 AC2 Console Mast; Right No Model Compatibility List $113.18 / Each

7
Spring;TM312-H05B 725458 071477 H05 Spring;TM312-H05B No Model Compatibility List $4.00 / Each

2
Screw;M4x0.7Px7L;Gap;;Black 725905 078130 D16 Screw;M4x0.7Px7L;Gap;;Black No Model Compatibility List $1.85 / Each

2,4,5,6
Screw;Phillip;BH;M5x0.8Px15L;Ni;Gap; 725906 078131 P22 Screw;Phillip;BH;M5x0.8Px15L;Ni;Gap; No Model Compatibility List $1.85 / Each

2
POS Plate;M6x1.0Px12L;TM312 725907 078160 H08 POS Plate;M6x1.0Px12L;TM312 No Model Compatibility List $1.77 / Each

3
Arm Rest Set;Left 726076 079769 AG3 Arm Rest Set;Left No Model Compatibility List $16.30 / Each

3
Bolt;Hex Socket;M8x1.25Px40L 726167 080559 D17 Bolt;Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
726168 080562 N08 Horn;TM322;TM322-N08 No Model Compatibility List $3.54 / Each

1
Upper Control Board 726174 080605 N60 Upper Control Board No Model Compatibility List $383.27 / Each

7
Fix Plate 726371 081432 G16 Fix Plate No Model Compatibility List $3.54 / Each

3
Fix Plate;Swivel Axle;;TM312 726372 081433 G11 Fix Plate;Swivel Axle;;TM312 No Model Compatibility List $12.87 / Each

8,3
Decal, Left Side Rail and Motor Cover 726468 082081 V01 Decal, Left Side Rail and Motor Cover No Model Compatibility List $1.77 / Each

7,9,3,10
Decal, Right Side Rail 726469 082082 V02 Decal, Right Side Rail No Model Compatibility List $1.77 / Each

7,9,3
Paper;92x30x2;TM322 726569 083020 B70 Paper;92x30x2;TM322 No Model Compatibility List $11.08 / Each

1
Running Deck;485x1073x15T 726721 084333 B27 Running Deck;485x1073x15T No Model Compatibility List $249.13 / Each

3
PullyFix Tube;12.7X12L;Painting;TM322 726722 084334 B46 PullyFix Tube;12.7X12L;Painting;TM322 No Model Compatibility List $3.54 / Each

3
Flexible Tube Set 726731 084423 AD2 Flexible Tube Set Yes Model Compatibility List $301.50 / Each

3
Screw;Hex Socket;Umbrella;;;M10x1.5Px90L 726842 085577 B45 Screw;Hex Socket;Umbrella;;;M10x1.5Px90L No Model Compatibility List $3.69 / Each

2
Left Side Rail Set w/Decal 726847 085594 Q03 Left Side Rail Set w/Decal Yes Model Compatibility List $53.69 / Each

7,9,3
Right Side Rail Set w/Decal 726848 085595 Q04 Right Side Rail Set w/Decal Yes Model Compatibility List $53.69 / Each

7,9,3
Decal;Console Shell;Rear 727219 087855 V03 Decal;Console Shell;Rear No Model Compatibility List $1.90 / Each

7,3
Owners Manual 727223 087882 KIT Owners Manual No Model Compatibility List $9.57 / Each

1
Overlay 727303 088457 N61 Overlay No Model Compatibility List $35.46 / Each

1
Overlay 727875 091756 N61 Overlay No Model Compatibility List $35.46 / Each

1
Motor Control Board;(1.25-1.5)HP; H101;110V;no Elevation 728910 098847 M06 Motor Control Board;(1.25-1.5)HP; H101;110V;no Elevation Yes Model Compatibility List $383.27 / Each

7,10
Sleeve;Welding;Black;;TM312 728958 099681 AH3 Sleeve;Welding;Black;;TM312 No Model Compatibility List $5.98 / Each

3,4,5,6
P 1001381 003326-00 P04 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
P 1001764 002169-A P09 1 Power Cord Yes Model Compatibility List $39.99 / Each

6
P 1002002 002169-A P09 1 Cord Power Yes Model Compatibility List $34.99 / Each

6
