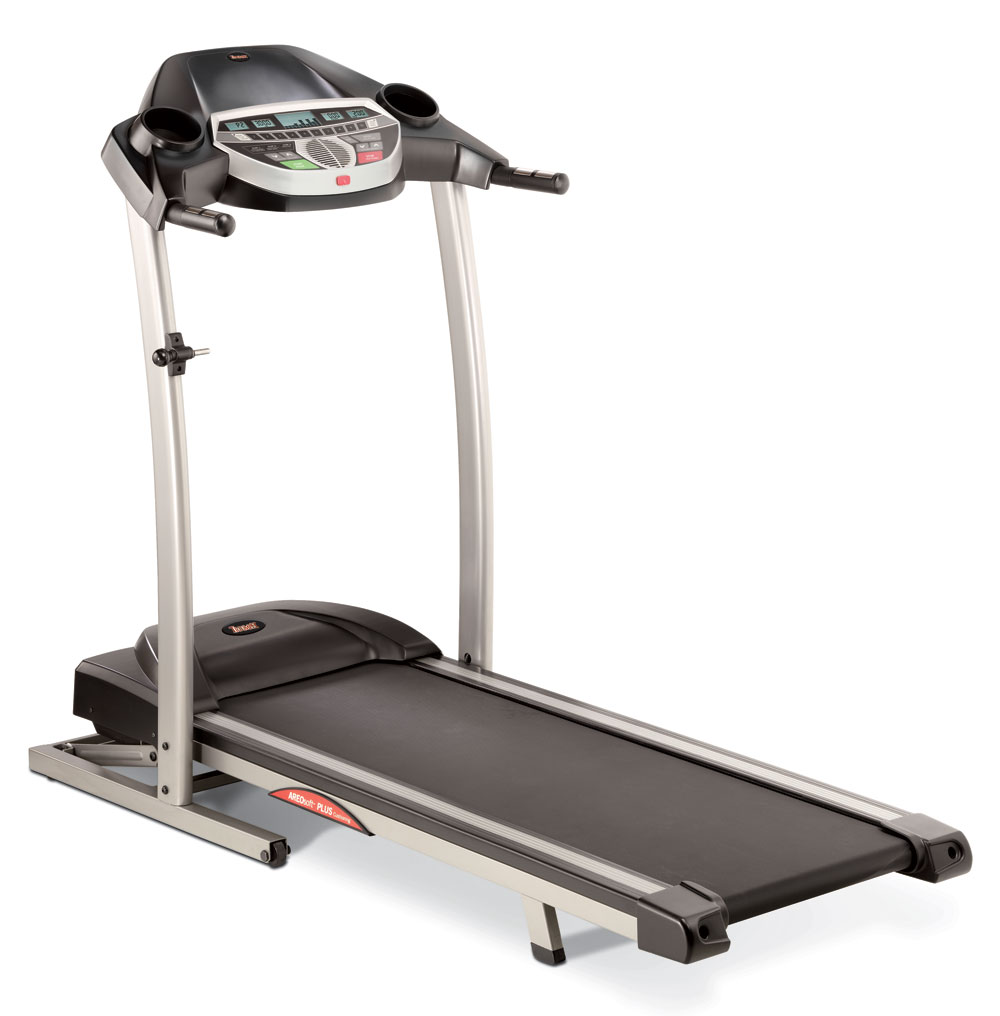

Triumph - 700T - 2007

Repair Parts for Triumph 700T TM281

Brand: Triumph

Category: Folding

Type: Folding Treadmill

Model Name: 700T

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Sensors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700021 000037-CA B24 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
N 700318 000940-A N17 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
N 700570 001679-00 N29 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2

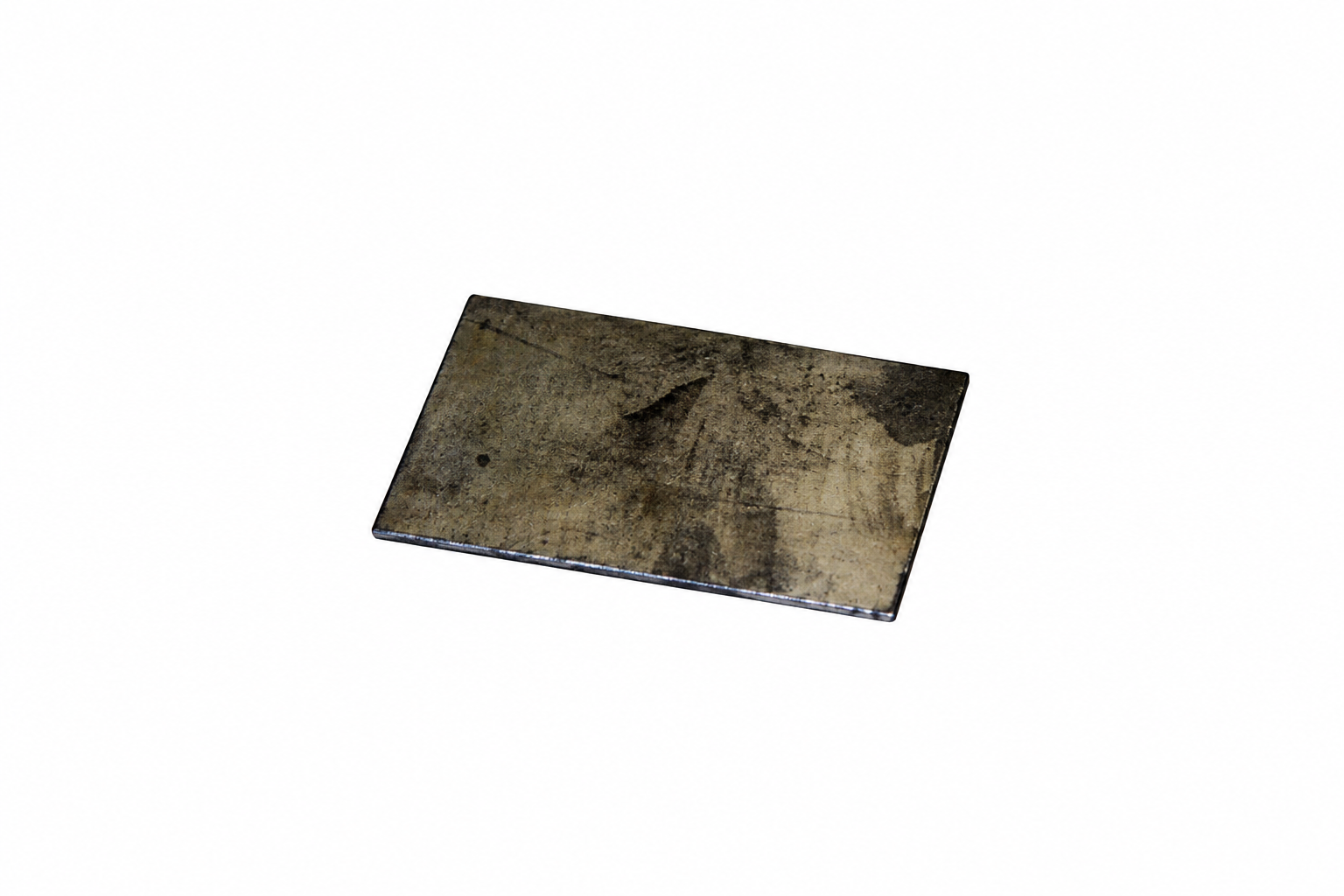

N 700700 001952-00 N22 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6

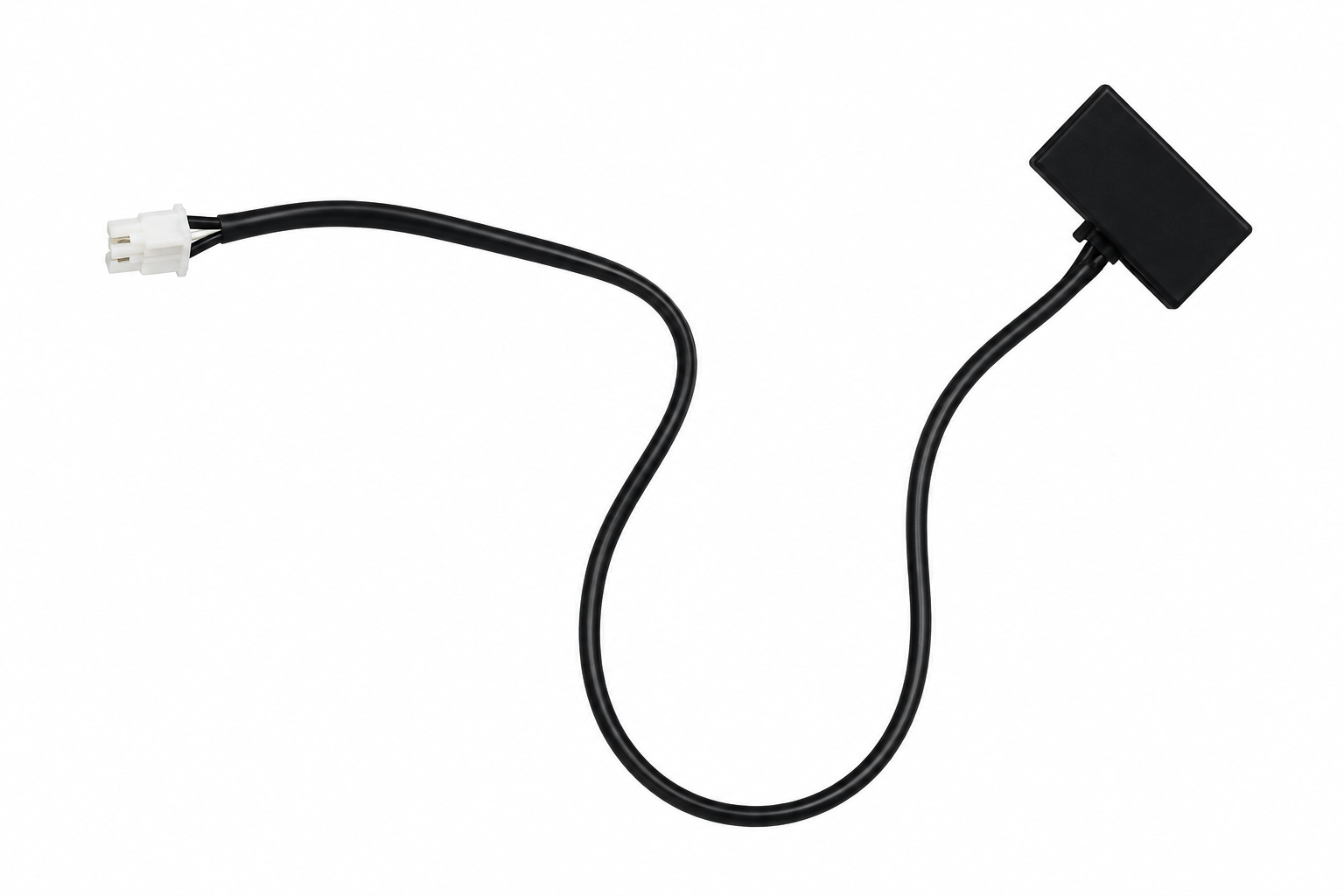

N 700702 001956-C N05 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
P 700746 002124-B P13 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

4,5,6
701020 003346-00 P12 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
M 701033 003386-A M22 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
P 701328 004381-00 P11 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

2
M 701434 004481-Z M08 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
R 701445 004488-00 R06 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
M 701454 004502-00 M11 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
R 701476 004523-00 R05 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

2
B 701530 004562-00 B29 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
M 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
P 701579 004613-00 P15 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

2
N 701581 004614-AB N04 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
N 701590 004619-AB N07 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
Q 701591 004620-00 Q11 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
B 701605 004627-00 B26 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

2
K 701713 004730-00 K14 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

2
Z 701781 004796-00 Z07 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
P 701866 004889-00 P16 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
M 701897 004926-00 M14 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M18 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
B 701912 004941-00 B33 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
Z 701964 005005-00 Z09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
M 701982 005017-AC M13 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702005 005043-00 Z08 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
B 702030 005062-00 B32 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
M 702032 005064-A M26 Washer;Flat;8.2x20x3.0T No Model Compatibility List $1.85 / Each

2
M 702075 005108-00 M12 Washer;Flat;10.5x18.0x2.0T No Model Compatibility List $2.00 / Each

2
Z 702135 005163-00 Z06 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
H 702160 005196-00 H08 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

2
K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

2,10
B 702450 007490-C B28 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
P 703925 019455-B P06 Cable;Socket to MCB;330L;16AWG;Black No Model Compatibility List $1.90 / Each

4,5,6
Z 703968 020019-00 Z18 Screw;Phillip;BH;M6x1.0Px16L No Model Compatibility List $2.00 / Each

2
R 704175 020425-00 R07 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

2

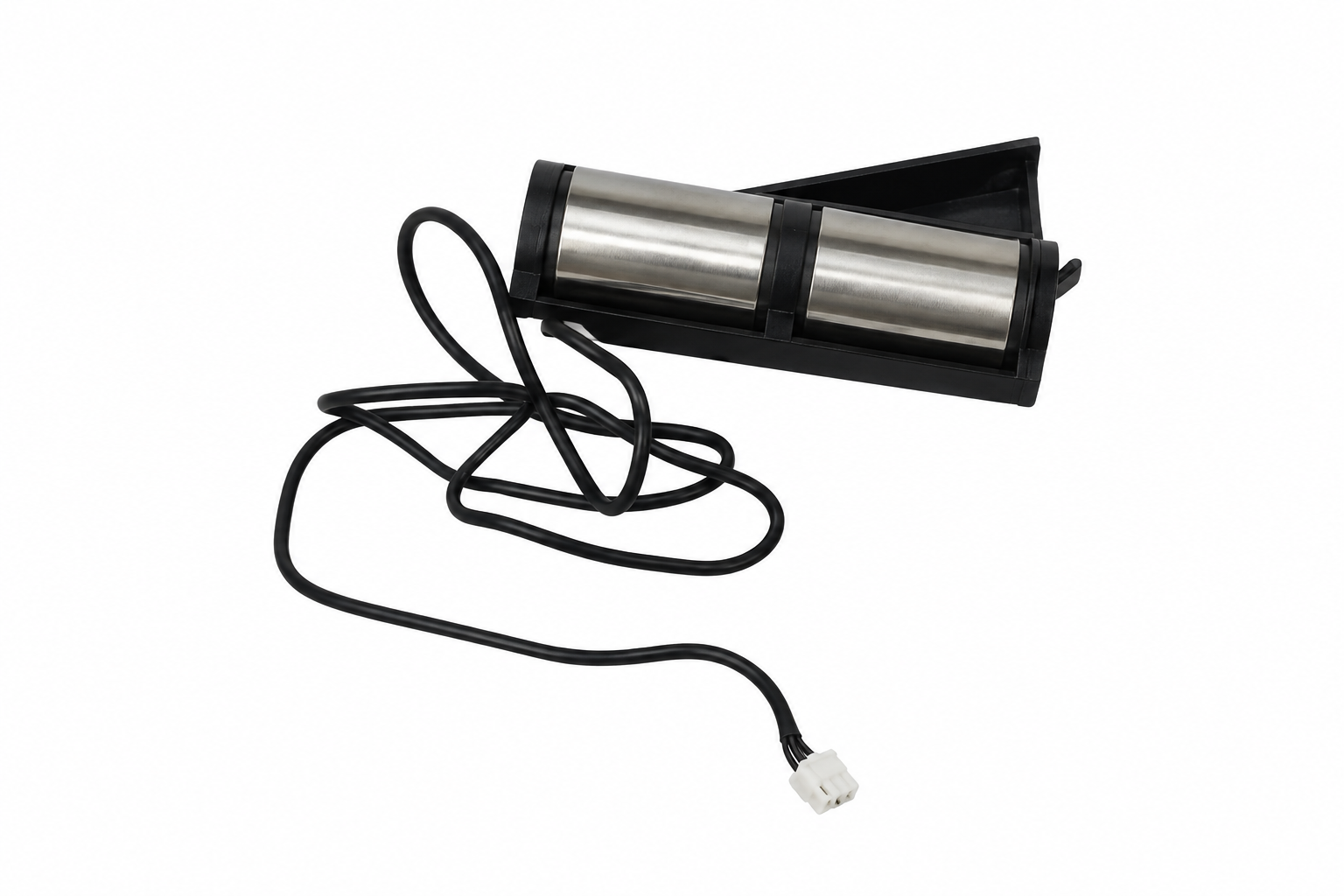

N 705181 039042-A N64 Pulse Sensor Set Yes Model Compatibility List $18.28 / Each

12,13,14
P 705211 039124-B P02 Power Cord; 16AWG 2M Yes Model Compatibility List $57.49 / Each

4,5,6
A 705241 039296-A AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
A 705242 039346-A AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
B 705244 039352-C B27 Running Deck;570x1175x15T No Model Compatibility List $249.13 / Each

3
Q 705250 039391-BC Q02 Motor Cover;Bottom No Model Compatibility List $16.64 / Each

9,10
Q 705256 039398-AA Q13 Accent Piece; No Model Compatibility List $9.57 / Each

4,5,6
705258 039399-AC N03 Access Panel;Console Cable No Model Compatibility List $3.82 / Each

7,4,5,6
M 705262 039441-00 M07 Elevation Motor Set;110V/58MM No Model Compatibility List $249.13 / Each

10
M 705273 039679-AA M04 Motor Control Board;1.25/1.50HP No Model Compatibility List $383.27 / Each
Out Of Stock 		7,10
P 705308 040695-A P01 Power Switch Yes Model Compatibility List $28.73 / Each

4,5,6
M 705329 048036-A M23 Screw;Phillip;BH;Tapped;4x12L;Color Zin No Model Compatibility List $2.00 / Each

2

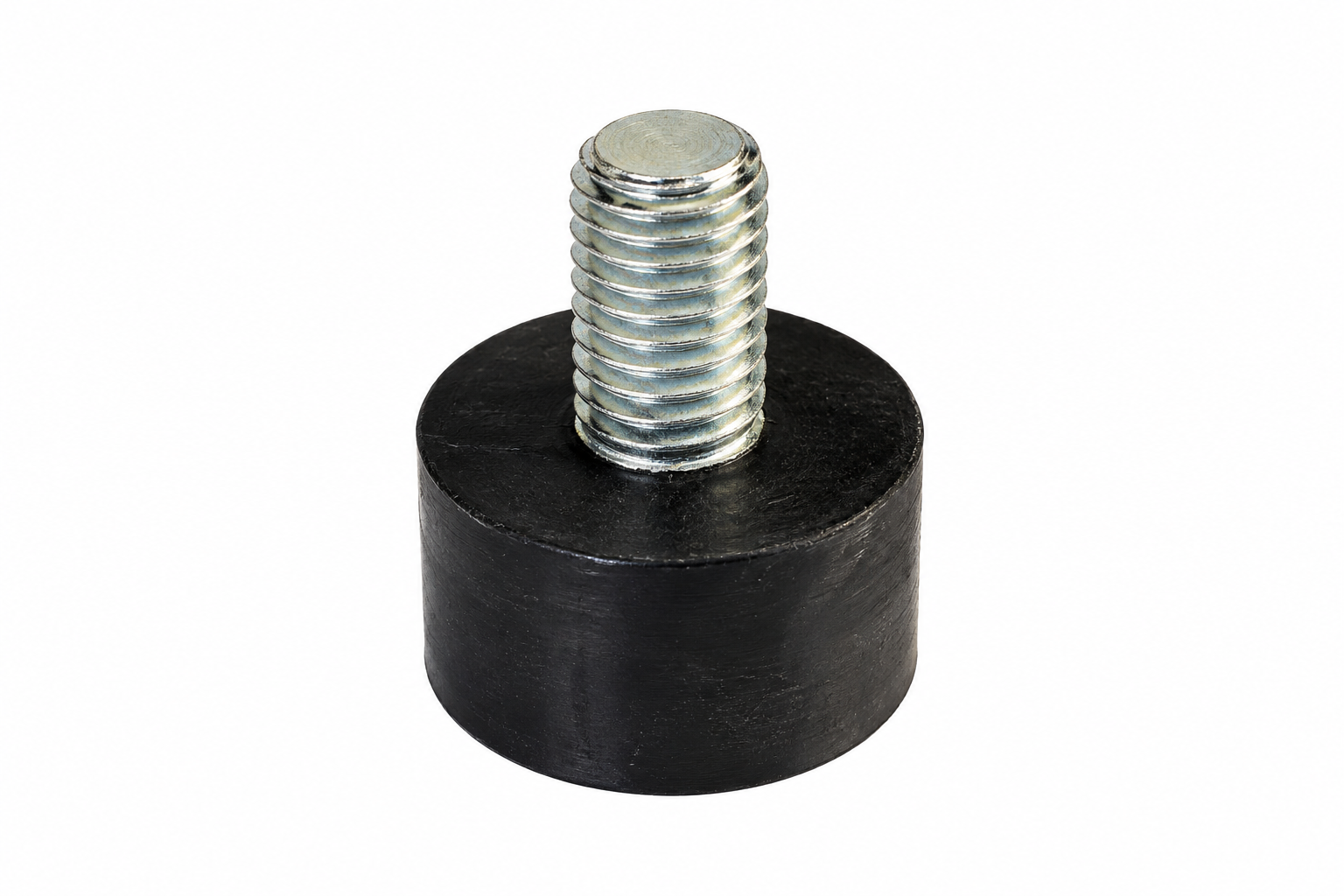

K 705382 049024-BA K24 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

1
M 705412 049105-AA M20 Elastomer; M8X1.25PX10L No Model Compatibility List $1.90 / Each

1
M 705469 049262-00 M15 Screw;Hex;3/8-16UNCX55L-14L;;HE;;;;P-T No Model Compatibility List $4.00 / Each

2
H 705480 049279-C H06 Screw;Special;M8X1.25PX9L-D10X9.5L;;HE;45#;BOX; No Model Compatibility List $4.00 / Each

2
B 705515 049800-BX B22 Belt Guide No Model Compatibility List $1.90 / Each

15
A 705566 051345-A AN5 Safety Key Set Yes Model Compatibility List $37.91 / Each

9
A 705589 051801-AC AM1 Bracket;Drive Motor No Model Compatibility List $137.98 / Each

2,3,4,5,6,10
R 705758 056045-C R03 Running Belt;458x2670x1.4T No Model Compatibility List $249.13 / Each

15
K 705779 056233-AA K13 Mobile Wheel;Base Frame Yes Model Compatibility List $9.57 / Each

8,3
705784 056246-AB Q04 Insert for Side Rail; D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $9.57 / Each

9
B 705812 056298-BA B23 Elastomer No Model Compatibility List $1.90 / Each

1
K 705813 056299-BA K16 Leveler;Foot Pad;;Gray;NON-ROHS;TM234-K16C No Model Compatibility List $1.90 / Each

9,3,12,13,14
N 705819 056309-AA N16 Arm Rest 31.8x3tx100L(BLACK) No Model Compatibility List $8.87 / Each

3,4,5,6
Q 705821 056315-AA Q10 Water Bottle Holder No Model Compatibility List $3.54 / Each

1
Q 705834 056330-BA Q08 End Cap;Base Frame No Model Compatibility List $3.82 / Each

9,3
705840 056342-BA N01 Console Shell No Model Compatibility List $54.39 / Each

7
Q 705864 056390-AB Q05 End Cap;Rear Roller;Left No Model Compatibility List $9.57 / Each
Out Of Stock 		8,9
Q 705870 056397-AB Q06 End Cap;Rear Roller;Right No Model Compatibility List $9.57 / Each
Out Of Stock 		8,9
705883 056418-AB Q03 Side Rail No Model Compatibility List $16.56 / Each

9
705909 056486-AX N61 Overlay; No Model Compatibility List $38.32 / Each

1
705948 056831-AX KIT Owners Manual No Model Compatibility List $8.87 / Each

1
B 705954 056905-A B36 Stopper;Side Rail No Model Compatibility List $1.79 / Each

9
705976 057922-A KIT Hardware Pack No Model Compatibility List $24.83 / Each

4,5,6
706000 058049-A C05 Lock Latch;Deck No Model Compatibility List $15.29 / Each

3
A 706010 058134-AA AH1 Elevation Frame Set No Model Compatibility List $107.64 / Each

3,10
706012 058144-AA N02 Faceplate; No Model Compatibility List $42.56 / Each

3,4,5,6
706089 058978-BX V23 Decal, POP, Motor Cover; No Model Compatibility List $3.54 / Each

7,9,3,10,12,13,14
706091 058994-AX V07 Decal for Frame Accent Piece; No Model Compatibility List $3.54 / Each

7,3,4,5,6

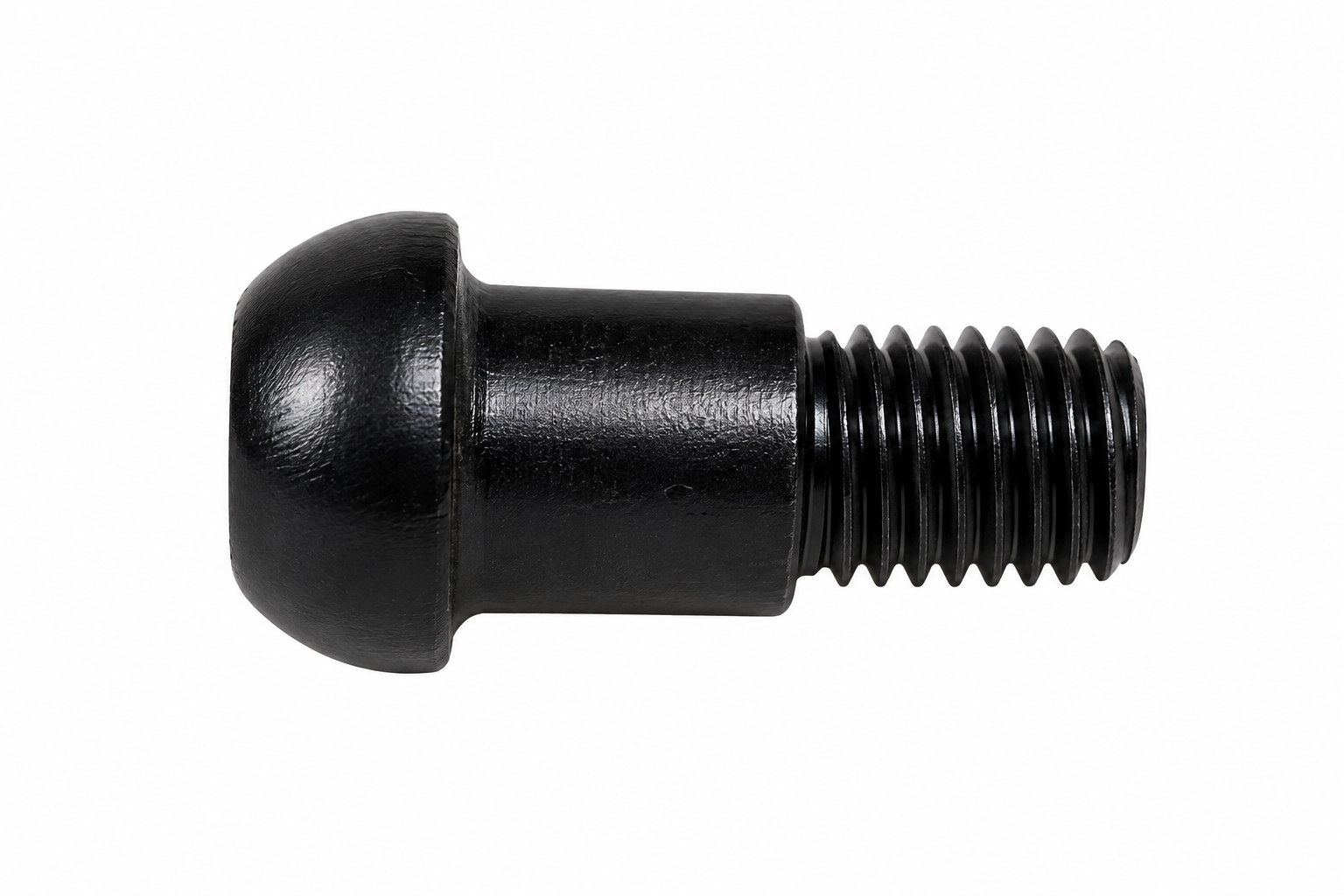

H 706178 059929-B H09 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

2
Z 706200 060221-00 Z11 Screw;Phillip;BH;M5x0.8Px20L;Gap; No Model Compatibility List $2.00 / Each

2
V 706261 060632-AX V04 Decal;Motor Cover No Model Compatibility List $18.85 / Each

7,9,3,10
N 706286 060781-A N63 Ground Wire;Grip Pulse;300mm Yes Model Compatibility List $3.54 / Each

4,5,6,12,13,14,11
706307 061118-AA AC1 Support Tube, L; No Model Compatibility List $1.77 / Each

3
706308 061119-AA AC2 Support Tube, R; No Model Compatibility List $1.77 / Each

3
B 706312 061162-AC B20 Screw;Hex Socket;Sink;M8x1.25Px40L No Model Compatibility List $4.00 / Each

2
706363 061377-AX V03 Decal;Console;Logo No Model Compatibility List $8.87 / Each

7,3
M 706601 063746-Z M03 Drive Motor Set JM15-001 ;1.25HP/90V Yes Model Compatibility List $383.27 / Each

10
707192 1000091154 AK2 Extension, Base Frame, L; No Model Compatibility List $16.30 / Each

3
708004 1000097515 AK3 Extension, Base Frame, R; No Model Compatibility List $77.04 / Each

3
R 708921 1000107268 R04 Drive Belt;Poly-V;170-J5 No Model Compatibility List $57.49 / Each

15,10
725957 078551 P03 Console Cable; No Model Compatibility List $38.32 / Each

7,4,5,6
Magnetic Safety Key (Used) 1017639 013871-A # 1 Magnetic Safety Key (Used) Yes Model Compatibility List $38.99 / Each

1
Magnetic Safety Key Lanyard (Used) 013699 013871-A 0 1 Magnetic Safety Key Lanyard (Used) No Model Compatibility List $35.09 / Each
Out Of Stock 		1
P 040695-A 040695-A P01 1 Power Switch on Off Yes Model Compatibility List $41.59 / Each

1
A 1000631 051345-A AN5 1 Safety Key Set Yes Model Compatibility List $34.99 / Each

1
P 1000730 040695-A P01 1 Power Switch Yes Model Compatibility List $31.99 / Each

1
Screw 3/8-16-1.65 (Used) 1026732 004595-B 0 1 Screw 3/8-16-1.65 (Used) No Model Compatibility List $5.99 / Each

1
sCREW 3/8-16-1.60 1026937 ME0106026B 0 1 sCREW 3/8-16-1.60" (Used) No Model Compatibility List $3.99 / Each

1
M 1002323 039679-AA M04 1 Controller No Model Compatibility List $265.00 / Each
Out Of Stock 		1
R 1002346 1000107268 R04 1 Belt Drive No Model Compatibility List $31.99 / Each

23
P 1002861 002248-D P14 1 Sensor RPM Yes Model Compatibility List $25.99 / Each

47
