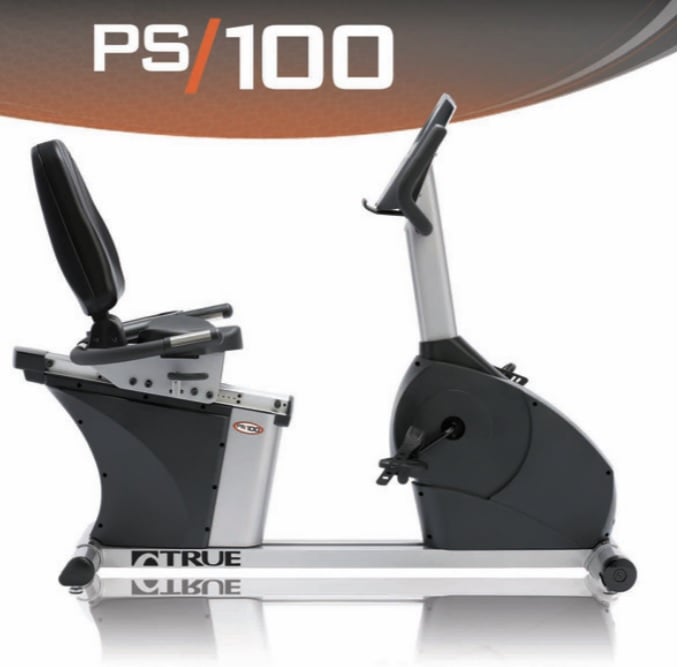

True Fitness - PS100

Repair Parts for True Fitness PS100 RPS100

Brand: True Fitness

Category: Commercial Recumbent Bikes

Type: Stationary Bikes

Model Name: PS100

Serial Number Prefix: 11-ps1r0341j

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Plastic Parts
  • Accessories
  • Hardware
  • Cover/trim
  • Wire/cables
  • Electronics
  • Misc
  • Frame
  • Belt
  • Overlay/console
  • Bearing
  • Decal
  • Seat
  • Crank/flywheel
  • Brake
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
890312 90029400 159 bearing, c2 polyrex em (6203-2rs) No Model Compatibility List $15.84 / Each

32
890320 9BZR0086 176 end cap, seat cushion 20x40x1.6t No Model Compatibility List $1.85 / Each

17
890340 9CB0221 87 shaft, intermediate for rlc900/rps100 ass-ps100r-20#1 No Model Compatibility List $246.82 / Each

35
890342 9CBW0015 15 washer, m8x16x1.2mm(t), sw-0816b-12 No Model Compatibility List $1.85 / Each

17
890343 9CBW0016 16 screw, allen head m8x15mm,s1a-0815b No Model Compatibility List $1.85 / Each

17
890344 9CBW0021 21 washer, curve m8x1.2mm,aw-0816b-12 No Model Compatibility List $1.85 / Each

17
890345 9CBW0023C 23 crank assy, rps100, rlc900, rcs400, rcs200 No Model Compatibility List $216.80 / Each

35
890346 9CBW0024 24 screw, allen hd m8x20mm, s1a-0820b No Model Compatibility List $1.85 / Each

17
890347 9CBW0025 25 washer, m8 spring, ssw-08b No Model Compatibility List $1.85 / Each

17
890348 9CBW0027A 27 handle assy, seat lock, fr200lc-27a black No Model Compatibility List $13.80 / Each

21
890349 9CBW0028 28 screw, m5x20mm, sa5-0520b No Model Compatibility List $1.85 / Each

17
890350 9CBW0033 33 washer, 16mm dia wave, 32476 No Model Compatibility List $1.85 / Each

17
890351 9CBW0034 34 washer, od30xid16.4x1.5,sw-1630b-15 No Model Compatibility List $1.85 / Each

17
wheel, transport, p47-fr200-b 890352 9CBW0035 35 wheel, transport, p47-fr200-b No Model Compatibility List $5.56 / Each

21
890353 9CBW0036 36 washer, m8x28x1.5mm(t), sw-0828b-15 No Model Compatibility List $1.85 / Each

17
890354 9CBW0037 37 shroud, frnt seat rail, p71-fr200-g No Model Compatibility List $1.85 / Each

17
890355 9CBW0038 38 screw, m4x10mm, s0tp-0410b No Model Compatibility List $1.85 / Each

17
890356 9CBW0040 40 shroud, rear seat rail, p72-fr200-g No Model Compatibility List $4.17 / Each

17
890357 9CBW0041 41 leveler foot p13-fr200 No Model Compatibility List $9.26 / Each

21
890358 9CBW0043 43 nut, m8 nylock, snn-08b No Model Compatibility List $1.85 / Each

17
890359 9CBW0044 44 screw,allenhdm8x110mm,s1a-08110b-23 No Model Compatibility List $1.85 / Each

17
890360 9CBW0045 45 end cap,rear stabilizer,p03-fr200-g No Model Compatibility List $27.88 / Each

21
890361 9CBW0052 52 panel, access No Model Compatibility List $44.47 / Each

17
890362 9CBW0059 166 bracket, seat lock handle ptfr200-07-ha No Model Compatibility List $11.12 / Each

21
890363 9CBW0060 60 screw, m6x30mm sa5-0630b No Model Compatibility List $1.85 / Each

17
890364 9CBW0061 61 washer, plastic p175505 No Model Compatibility List $1.85 / Each

17
890365 9CBW0062 62 nut, nylon m6 snn-06rb No Model Compatibility List $1.85 / Each

17
890366 9CBW0063 63 rail, alumm seat,al29-fr200-1 No Model Compatibility List $207.54 / Each

21
890367 9CBW0064 64 screw, m4x20mm s1tp-0420b No Model Compatibility List $1.85 / Each

17
890368 9CBW0069 69 washer, steel safe od18xid10.2x3mm sw-102183b No Model Compatibility List $1.70 / Each

17
890369 9CBW0070 70 nut, m10 nylon snn-10b No Model Compatibility List $1.85 / Each

17
890370 9CBW0071 71 axle, seat lock handle tw28-fr200-4 No Model Compatibility List $3.71 / Each

17
890371 9CBW0072 72 nut, seat lock handle (big) tw28-fr200-2 No Model Compatibility List $5.56 / Each

17
890372 9CBW0074 74 nut, seat lock handle (small) tw28-fr200-3 No Model Compatibility List $3.71 / Each

17
890373 9CBW0075 75 screw, seat lock bar s2t-0510rb No Model Compatibility List $1.85 / Each

17
890374 9CBW0077 77 strip, perforated, p29-fr200-2 No Model Compatibility List $16.68 / Each

17
890376 9CBW0097 97 screw, hex, sa5-0615b No Model Compatibility List $1.85 / Each

17
890377 9CBW0099 99 nut, m8 hexagon, ssn-08b No Model Compatibility List $1.85 / Each

17
890378 9CBW0100 100 hhcs m8*30mm (s60-0830b) No Model Compatibility List $1.85 / Each

17
890379 9CBW0102 102 screw, m4x8mm, swt-0408b No Model Compatibility List $1.85 / Each

17
890380 9CBW0103 103 cable, brake, sm-fr200-31-3 No Model Compatibility List $12.97 / Each

19
890381 9CBW0104 104 cable, control board, sm-fr200-31-4 No Model Compatibility List $16.68 / Each

19
890382 9CBW0106 106 insert,seat rail threaded, nr02p021 No Model Compatibility List $5.56 / Each

17
890383 9CBW0115 164 bearing 6205zz ic6205-tpi No Model Compatibility List $31.50 / Each

32
890384 9CBW0122 122 screw, m6 x 12mm s1t-0612rb No Model Compatibility List $1.85 / Each

17
belt p02-8pj610 890386 9CS80022 95 belt p02-8pj610 Yes Model Compatibility List $31.50 / Each

23
belt, j8 41 890387 9CS80023 94 belt, j8 41" p02-8pj1041 No Model Compatibility List $41.14 / Each

23
kit, cd & bottle holder 7cs8s011 890390 9CS8S011 127 kit, cd & bottle holder 7cs8s011 Yes Model Compatibility List $29.56 / Each

18
890391 9CS8S015 165 cover, seat back ass-trz7-12 No Model Compatibility List $56.10 / Each

34
890393 9CX0122 171 true decal black No Model Compatibility List $48.18 / Each

33
890396 9PSB0066 66 roller, seat sub-assy 7psb0066 No Model Compatibility List $83.38 / Each

21
890397 9PSB0068 68 clip, black c10 s30-c10b No Model Compatibility List $1.85 / Each

17
890398 9PSB0084 84 sleeve,od21xid17.1x2 z sw-17121r-20 No Model Compatibility List $1.85 / Each

17
890399 9PSB0089 89 sleeve,od19xid15.1x3.5 tw19-fr200-7 No Model Compatibility List $1.85 / Each

17
890400 9PSB0091 91 belt wheel with key No Model Compatibility List $29.00 / Each

21
890401 9PSB0092 92 washer,blk m6x19x1.5 sw-o619b-15 No Model Compatibility List $1.85 / Each

17
890402 9PSB0120 120 end cap, 40 x 100 p16-fr200-1 No Model Compatibility List $1.85 / Each

18
890403 9PSB0121 121 end cap, frnt 40 x 80 p16-fr200-2 No Model Compatibility List $1.85 / Each

18
890404 9PSB0122 122 end cap, rear 40 x 80 p16-fr200-3 No Model Compatibility List $1.85 / Each

18
890405 9PSB0124 124 washer,blk m6x16x1.5 sw-0616b-15 No Model Compatibility List $1.85 / Each

17
890406 9PSB0125 125 bracket, rear shroud ps27-fr200-3 No Model Compatibility List $2.31 / Each

17
890407 9PSB0130 130 nut, hex 3/8 zinc ssn-38-thinr No Model Compatibility List $1.85 / Each

17
890408 9PSB0131 131 wshr,blk znc m8x16x2.0 sw-0816rb-20 No Model Compatibility List $1.85 / Each

17
890410 9PSB0135 135 screw, m4 x 12l sotp-0412db-c No Model Compatibility List $1.85 / Each

17
890411 9PSB0162 162 brake, ps100r sm-ps100r-31-3 -r No Model Compatibility List $1018.30 / Each

36
890412 9PSB0166 166 adj seat carriage assy. silver rps50/100 No Model Compatibility List $122.30 / Each

21
890413 9PSB0173 173 screw, m8 x 15 sof-0815rb-l No Model Compatibility List $1.85 / Each

17
890414 9PSB0182 182 screw, m6 x 25 sa5-06225b No Model Compatibility List $1.85 / Each

17
cover,seat incline frnt p32-trz7-bf 890415 9PSB0189 189 cover,seat incline frnt p32-trz7-bf Yes Model Compatibility List $14.21 / Each

18
cover,seat incline rear p32-trz7-br 890416 9PSB0191 191 cover,seat incline rear p32-trz7-br Yes Model Compatibility List $7.41 / Each

18
air cylinder sub-asm ass-trz7-07a 890417 9SRS0002 199 air cylinder sub-asm ass-trz7-07a Yes Model Compatibility List $92.65 / Each

34
890418 9SRS0003 175 seat back,adjst sub-asm ass-trz7-08 No Model Compatibility List $239.04 / Each

34
knob - black 890419 9SRS0009 196 knob - black Yes Model Compatibility List $41.41 / Each

34
890420 9SRS0015 174 plate, seat bottom pt-28-trz7-11 No Model Compatibility List $7.41 / Each

17
890421 9SRS0016 132 screw, ah m6 x 16mm s1a-0616ed-l No Model Compatibility List $1.85 / Each

17
890422 9SRS0017 142 washer, spring m6 ssw-06ed No Model Compatibility List $1.85 / Each

17
890423 9SRS0018 141 washer, m6x16 x 1.2mm sw-0616ed-12 No Model Compatibility List $1.85 / Each

17
890921 9BZ00106 strap for pedal -w/logo (set) (md0403031a) No Model Compatibility List $93.50 / Each

16
bottom cushion, seat p08-trz7-sb 891387 9BZR0083 U02 bottom cushion, seat p08-trz7-sb Yes Model Compatibility List $199.00 / Each

34
891388 9BZR0085 U01 pad sub-assy, back rb72 No Model Compatibility List $191.23 / Each

34
891430 9CS80110 X10 screw sa5-0616n No Model Compatibility List $2.23 / Each

17
891439 9CS80120 X20 screw s0tr-#1019b No Model Compatibility List $2.55 / Each

17
891443 9CS80132 X32 screw sitp-0512b No Model Compatibility List $2.23 / Each

17
891444 9CS80135 X35 clip s30-c12b No Model Compatibility List $2.23 / Each

17
895049 9BZ00089 46 sensor subasm,heart rate grip (set) No Model Compatibility List $65.04 / Each

21
895050 9BZ00104 168 bracket sub-assy, book (dripping) No Model Compatibility List $57.82 / Each

21
895051 9BZ70009 163 lwr cntrl brd, bike sm-tuz7-31-6 No Model Compatibility List $667.27 / Each

20
895052 9BZ7R058 146 upper console data cable (1100(jxt/xhp-7+2.54 No Model Compatibility List $35.53 / Each

19
895054 9CBW0007 7 stabilizer, rear ,pt-fr200-06r No Model Compatibility List $120.44 / Each

22
895055 9CBW0010 10 stabilizer, front, pt-fr200-06f No Model Compatibility List $139.72 / Each

22
895056 9CBW0073 73 spring, small rc400-19 No Model Compatibility List $2.21 / Each

17
895059 9PSB0052 badge, model # rps100 ab01-rps100b No Model Compatibility List $21.68 / Each

33
895060 9PSB0093L 155 shroud, left front ps50/100 '09 ass-rps50b-fl - rps50 No Model Compatibility List $93.94 / Each

18
895061 9PSB0094L 157 shroud, left rear ps50/100 '09 ass-rps50b-rl No Model Compatibility List $80.22 / Each

18
895062 9PSB0094R 156 shroud, right rear ps50/100 '09 ass-rps50b-rr No Model Compatibility List $45.76 / Each

18
895063 9PSB0095R 154 shroud, right front ps100 '09 ass-rps100b-fr No Model Compatibility List $74.68 / Each

18
895064 9PSB0100 hardware kit, ps100r ass-ps100r-30 No Model Compatibility List $26.50 / Each

17
895065 9PSB0136 136 screw, m5 x 16l sttp-0516b No Model Compatibility List $2.41 / Each

17
895066 9PSB0137 137 plug, stand p36-trz7-b No Model Compatibility List $2.41 / Each

17
895067 9PSB0138 138B wire,handlebar hr-r sm-ps50r-31-6 No Model Compatibility List $26.50 / Each

19
895068 9PSB0143 152 console mast ps50r ass-ps50r-03 No Model Compatibility List $150.57 / Each

22
895069 9PSB0144 144 upper console hr cable 12p+5p.7p sm-ps50r-31-3 No Model Compatibility List $26.50 / Each

19
895070 9PSB0147 147 lower data cable sm-ps100r-31-2 No Model Compatibility List $45.76 / Each

19
895071 9PSB0150 150 lower hr sprng cable sm-ps50r-31-4 No Model Compatibility List $118.03 / Each

19
895072 9PSB0151 151 adj handlebar, seat back assy. silver rps50/100 No Model Compatibility List $228.85 / Each

34
895073 9PSB0170 170 screw, m6 x 55 sa5-0655rb No Model Compatibility List $2.41 / Each

17
895074 9PSB0172 172 decal, model # ps100r ab01-ps100r No Model Compatibility List $9.64 / Each

33
895075 9PSB0190 153 wire, handlebar hr-l sm-ps50r-31-5 No Model Compatibility List $26.50 / Each

19
895076 9PSB0202 148 console, rps100 sm-rps100b-31-a -r No Model Compatibility List $2015.52 / Each

30
Water Bottle Cup (Used) 1030816 0PS0113 1-3 1 Water Bottle Cup (Used) No Model Compatibility List $9.99 / Each
Out Of Stock 		1,9,16
M8-1.25x60mm Buttonhead Screw with Taper (Used) 1030872 M8-1.25x60mm 0 6 M8-1.25x60mm Buttonhead Screw with Taper (Used) No Model Compatibility List $5.00 / Each

2
PEDAL & STRAP P16-TUZ7-B 1/2 991198 9BZ00006BK 145 PEDAL & STRAP P16-TUZ7-B 1/2" SHANK No Model Compatibility List $81.48 / Each

16
990711 9CBW0009 9 ---OBS--- USE 7CS80111 No Model Compatibility List $1.30 / Each

17
991199 9CBW0023A 23 USE 7CBW0023C No Model Compatibility List $224.90 / Each

35
991200 9CBW0032 32 #NAME? No Model Compatibility List $1.30 / Each

21
991201 9CBW0042 42 #NAME? No Model Compatibility List $1.30 / Each

17
991202 9CBW0046A 46 ---NLA--- CONTACT HR GRIP ASSY FR200LC-46A (USE 7BZ00089) No Model Compatibility List $28.60 / Each

21
991203 9CBW0051 51 END CAP CONTACT HR NR02P073#1 No Model Compatibility List $1.30 / Each

21
991204 9CBW0065 65 ---OBS--- ORDER 7CBW0009 No Model Compatibility List $1.30 / Each

17
991205 9CBW0080A 80 ---OBS--- ORDER 7CS8S010 No Model Compatibility List $65.00 / Each

21
991206 9CBW0082 82 ---OBS--- ORDER 7CS80184 No Model Compatibility List $1.30 / Each

17
991207 9CBW0085 85 ---OBS--- ORDER 7FE0049 No Model Compatibility List $7.80 / Each

32
991208 9CBW0093 93 ---OBS--- ORDER 7ESB0094 No Model Compatibility List $1.30 / Each

17
991209 9CBW0096 96 ---OBS--- ORDER 7SRS0017 No Model Compatibility List $1.30 / Each

17
991210 9CBW0101 101 ---OBS--- ORDER 7CS80040 No Model Compatibility List $1.30 / Each

17
Lower Controller Board 1001123 ps100e LCB Lower Controller Board Yes Model Compatibility List $169.00 / Each
Out Of Stock 		48
Left and Right Foot Pad Pedal 1001125 trueped Left and Right Foot Pad Pedal Yes Model Compatibility List $34.99 / Each
Out Of Stock 		1
Drive Belt 1001126 TF490L8r Drive Belt Yes Model Compatibility List $38.99 / Each

23
View Drawing
