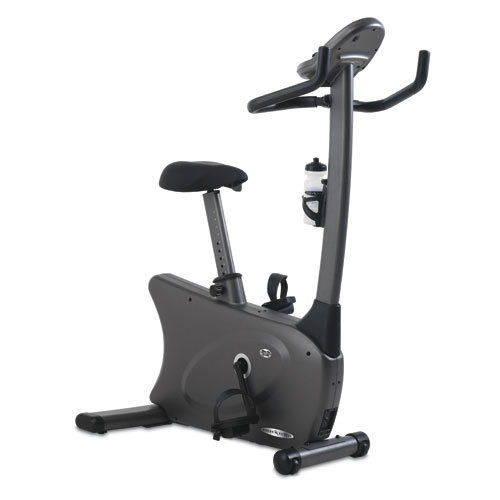

Vision Fitness - E1400 - 2007

Repair Parts for Vision Fitness E1400 CB120

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: E1400

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Crank/flywheel
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
F 700132 000485-00 F03 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
C 700255 000787-00 C06 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C05 Water Bottle No Model Compatibility List $9.88 / Each

1
G 700300 000894-00 G11 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
Q 700376 001161-C Q04 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
700793 002329-B P16 Pulse Grip Wire No Model Compatibility List $9.57 / Each

4,5,6,12,13,14,11
R 701229 004203-A R02 Drive Belt;Poly-V;410-J5 Yes Model Compatibility List $57.49 / Each

15,10
N 701316 004372-00 N20 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
C 701401 004454-00 C07 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
C 701449 004493-00 C08 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

2
F 701583 004615-00 F06 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
L 701585 004616-00 L05 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

2
701597 004621-00 L06 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
Q 701613 004632-00 Q08 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
P 701627 004648-00 P04 Screw;Round;3X10L;SM;PH;;WZN;ROHS;POT No Model Compatibility List $0.36 / Each

2
701696 004721-Z F09 BOLT BH M8X25 No Model Compatibility List $1.85 / Each

2
701816 004837-00 C12 Set Screw;M8x1,25Px8.2L No Model Compatibility List $2.00 / Each

2
L 701841 004859-00 L09 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
U 701893 004925-00 U10 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
R 701931 004968-00 R03 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
L 701964 005005-00 L10 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
R 702122 005146-AB R04 Washer;Flat;10.5x20.0x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
L 702136 005165-00 L11 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q06 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
U 702274 005437-00 U08 Spring;Tension Assembly;16x2x65Lx25N Yes Model Compatibility List $2.00 / Each

2,3
702419 006719-00 V11 Warranty Card No Model Compatibility List $1.66 / Each

1
702782 009672-00 D04 Seat Pull Pin Assembly Yes Model Compatibility List $13.47 / Each

3,12,13,14
U 702831 011179-00 U12 Washer;Teflon;M12x30Px1T No Model Compatibility List $4.00 / Each

2
H 702857 012847-00 H01 Resistance Motor Yes Model Compatibility List $206.67 / Each

10
T 703448 014721-A T05 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

8,9
703747 015987-ZL T02 CRANK ASSEMBLY LEFT Yes Model Compatibility List $57.49 / Each

8,3
T 703748 015987-ZR T03 CRANK ASSEMBLY RIGHT Yes Model Compatibility List $57.49 / Each

3,8
P 704073 020185-00 P11 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

2
F 704120 020283-00 F11 Screw;Hex Socket;BH;M8x1.25Px70L-20L;Partial No Model Compatibility List $2.00 / Each

2
U 704180 020438-00 U11 Washer;Flat;6.2x19x2.0T No Model Compatibility List $1.79 / Each

2
Q 704273 022177-A Q07 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

2,9,3,4,5,6
705277 040419-B DAX Inside ECB Controller;CB120;CB120-R01B No Model Compatibility List $153.30 / Each

7,8
705291 040637-C P02 Console Cable;1300mm Yes Model Compatibility List $76.65 / Each

7,4,5,6
P 705307 040690-A P08 Pulse Sensor Set;Single Yes Model Compatibility List $38.32 / Each

12,13,14
705366 048968-BX Q03 BOOT CONSOLE MAST No Model Compatibility List $13.10 / Each

7
F 705394 049051-AA F05 End Cap;Stabilizer Yes Model Compatibility List $12.17 / Each

9
705517 049827-A P03 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
H 705564 050487-B H02 CABLE ECB 420MM No Model Compatibility List $9.20 / Each

4,5,6
706282 060738-BX V04 Decal;Side Cover No Model Compatibility List $19.71 / Each

7,9,3
706375 061533-B D05 SLEEVE SEAT POST No Model Compatibility List $3.82 / Each

3,12,13,14
706400 061791-Z PAX PEDAL AXLE ASSEMBLY No Model Compatibility List $102.80 / Each

8,9,3
706401 061793-Z AU1 IDLER ASSEMBLY Yes Model Compatibility List $27.95 / Each

8,3
P 706799 065640-A P17 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $2.00 / Each

2
706851 066259-A AD1 POST SEAT ASSEMBLY Yes Model Compatibility List $12.14 / Each

3,12,13,14
T 709103 1000109595 T18 Crank Arm Cover;Round;Plastic;Black No Model Compatibility List $3.82 / Each

8,9,3,4,5,6
T 725261 103326 T08 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
726075 079756 L01 WHEEL MOBILE ASSEMBLY No Model Compatibility List $12.19 / Each

8,3
Power Adaptor; 120V/50HZ 12V/1A 726269 081149 P10 Power Adaptor; 120V/50HZ 12V/1A Yes Model Compatibility List $80.29 / Each
Out Of Stock 		4,5,6
726794 084862 Q10 COVER SIDE ASSEMBLY LEFT No Model Compatibility List $96.36 / Each

9,3
726795 084863 Q09 COVER SIDE ASSEMBLY RIGHT No Model Compatibility List $96.36 / Each

9,3
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

1
T 1009206 015987-ZR T03 1 Right Pedal Crank Arm W/Nut & Washer Yes Model Compatibility List $64.99 / Each
Out Of Stock 		35
