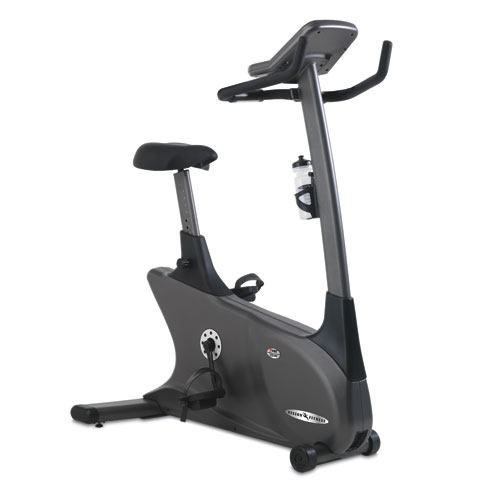

Repair Parts for Vision Fitness E3200 CB126
| Brand | Vision Fitness |
|---|---|
| Type | Stationary Bikes |
| Category | Upright |
| Model Number | CB126 |
| Model Name | E3200 |
| Version | 2007 |
Model Numbers: CB126
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
014721A | 014721-A | 0 | 1 | Pedal Pair Set 9/16" Spindle Quick Adjust Upgrade | No |
Compatibility List |
$39.99 / Each
|
|
1000484 | 004157-00 | 0 | 1 | Main Drive Belt | No |
Compatibility List |
$44.99 / Each
|
|
1010997 | 078380 | 0 | 1 | Transport Wheel | No |
Compatibility List |
$13.99 / Each
|
|
700262 | 000808-B | 80 | Water Bottle | No |
Compatibility List |
$9.88 / Each
|
|
|
|
706411 | 062083-AX | AN1 | CONSOLE ASSEMBLY 200 SERIES D/C, NO REPL Part will show as orderable until stock is depleted | No |
Compatibility List |
$958.20 / Each
|
|
|
|
709276 | 1000111722 | AU1 | Tension Wheel Set, CB142 | No |
Compatibility List |
$57.49 / Each
|
|
|
700255 | 000787-00 | C06 | Water Bottle Holder | Yes |
Compatibility List |
$15.59 / Each
|
|
|
700300 | 000894-00 | C06 | End Cap, Handlebar, 25.4x2.3t, Back | No |
Compatibility List |
$1.90 / Each
|
|
|
701690 | 004719-00 | C07 | Bolt, Hex Socket, M8x1.25Px12L | No |
Compatibility List |
$2.00 / Each
|
|
|
701718 | 004739-00 | C26 | Bolt, M8x1.25Px65L(20L) | No |
Compatibility List |
$2.00 / Each
|
|
|
|
700325 | 000974-B | D07 | Cover, Seat Knob | No |
Compatibility List |
$0.57 / Each
|
|
|
|
709275 | 1000111719 | DAX | Flywheel Set | No |
Compatibility List |
$306.62 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
701154 | 004072-A2 | E21 | Ball Bearing, Flywheel, 6002ZZ | Yes |
Compatibility List |
$14.00 / Each
|
|
|
700132 | 000485-00 | F07 | Leveler, Rubber, W3/8 16UNC | Yes |
Compatibility List |
$9.09 / Each
|
|
|
|
700220 | 000707-A | G09 | GRIP FOAM 415MM | No |
Compatibility List |
$3.82 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701583 | 004615-00 | J09 | Screw, Umbrella Cross Tapped, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
700352 | 001113-00 | L01 | Sleeve, Mobile Wheel | Yes |
Compatibility List |
$5.80 / Each
|
|
|
702567 | 008685-B | L02 | Axle, Transport Wheel | Yes |
Compatibility List |
$12.30 / Each
|
|
|
725922 | 078380 | L03 | Transport Wheel Set | No |
Compatibility List |
$13.99 / Each
|
|
|
701841 | 004859-00 | L05 | Screw, Umbrella Hex Scoket, M8x1.25Px20L | No |
Compatibility List |
$2.00 / Each
|
|
|
701698 | 004723-00 | L06 | Screw, Oval, Hex Socket, M8x1.25Px3/4L | No |
Compatibility List |
$2.00 / Each
|
|
|
702068 | 005097-00 | L07 | Washer, Flat, 5/16x30x1.5T | No |
Compatibility List |
$2.00 / Each
|
|
|
701585 | 004616-00 | L10 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
701316 | 004372-00 | N15 | Screw, Phillip, BH, M5x0.8Px12L, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
|
703403 | 014245-A | NOT SHOWN | Hardware Pack, Pink | No |
Compatibility List |
$9.28 / Each
|
|
|
|
726386 | 081538 | NOT SHOWN | Owners Manual | No |
Compatibility List |
$9.57 / Each
|
|
|
|
700775 | 002252-A | P01 | Speed Sensor Wire, 600(Magnet Reed Tube SMP 02V | No |
Compatibility List |
$9.54 / Each
|
|
|
|
700725 | 002043-A | P04 | Console Wire Set, 1370(JXT/XHP 10 SMR 3V | Yes |
Compatibility List |
$76.65 / Each
|
|
|
702511 | 008393-00 | P04 | Bracket, Speed Sensor | No |
Compatibility List |
$1.90 / Each
|
|
|
728841 | 097930 | P05 | Power Jack | No |
Compatibility List |
$16.51 / Each
|
|
|
|
701319 | 004374-ZAC | P08 | Screw, BH, M5X0.8X10 | No |
Compatibility List |
$2.00 / Each
|
|
|
|
700793 | 002329-B | P16 | Pulse Grip Wire | No |
Compatibility List |
$9.57 / Each
|
|
|
701275 | 004339-00 | P19 | Screw, Round, Crisscross, M3X0.5PX35L | No |
Compatibility List |
$2.00 / Each
|
|
|
701858 | 004880-00 | P20 | Nut, Zero Switch Cable, M3x0.5Px3H | No |
Compatibility List |
$2.00 / Each
|
|
|
700357 | 001126-C | P25 | End Cap, Pulse Grips, Inner | No |
Compatibility List |
$1.90 / Each
|
|
|
|
700038 | 000164-C | Q04 | Boot, Seat Post | No |
Compatibility List |
$1.90 / Each
|
|
|
|
707037 | 068824-Z | Q04 | Crank Cover | No |
Compatibility List |
$9.57 / Each
|
|
|
702483 | 007964-00 | Q07 | Connecting Plate, Side Cover | Yes |
Compatibility List |
$1.90 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
700376 | 001161-C | Q19 | Plate, Power Socket | No |
Compatibility List |
$5.00 / Each
|
|
|
986316 | 004616-00 | Q50 | Umbrella Cross Tapped Screw 4x12L (New) | No |
Compatibility List |
$12.00 / Each
|
|
|
957398 | 005330-00 | Q52 | Gear Rower Retainer Clip (New) | Yes |
Compatibility List |
$11.99 / Each
|
|
|
|
702859 | 012910-Z | R01 | Pedal Axle Set | No |
Compatibility List |
$124.07 / Each
|
|
|
701174 | 004096-00 | R04 | BEARING, ONE WAY, HFL2026 OR FCB 20, INA | No |
Compatibility List |
$26.49 / Each
|
|
|
701202 | 004157-00 | R05 | Drive Belt, Poly V, 430 J8 | Yes |
Compatibility List |
$57.49 / Each
|
|
|
|
702158 | 005194-00 | R08 | Washer, Teflon, 20.2X30.0X1.0T | No |
Compatibility List |
$0.49 / Each
|
|
|
|
704109 | 020256-AC | R14 | Screw, Hex Socket, BH, M5x0.8Px10L, Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
702226 | 005351-00 | R15 | Clamp, Internal C Shaped, R 32 | No |
Compatibility List |
$1.79 / Each
|
|
|
|
702861 | 012913-ZL | T02 | Crank Set, Left | No |
Compatibility List |
$57.49 / Each
|
|
|
|
702862 | 012913-ZR | T03 | Crank Set, Right | No |
Compatibility List |
$57.49 / Each
|
|
|
703448 | 014721-A | T05 | Pedal Set, Both Sides, threading 9/16 | Yes |
Compatibility List |
$60.22 / Each
|
|
|
725261 | 103326 | T08 | SCREW FHM8x1.0Px20 SERRATED | No |
Compatibility List |
$2.00 / Each
|
|
|
709103 | 1000109595 | T11 | Crank Arm Cover, Round, Plastic, Black | No |
Compatibility List |
$3.82 / Each
|
|
|
1037441 | 1000109595 | T11 | Crank arm cover | Yes |
Compatibility List |
$10.00 / Each
Out Of Stock |
|
|
703415 | 014411-AA | T13 | Pedal Strap Set Left Right | Yes |
Compatibility List |
$40.14 / Each
|
|
|
701042 | 003413-00 | T16 | Magnet, Crank Wheel, 15x7t | No |
Compatibility List |
$4.00 / Each
|
|
|
701165 | 004081-A2 | U03 | Ball Bearing, 6204ZZ, 20x47x14t, TPI | Yes |
Compatibility List |
$6.48 / Each
|
|
|
702240 | 005365-00 | U04 | C Clip, External, S 20 | No |
Compatibility List |
$1.02 / Each
|
|
|
703809 | 017657-00 | U05 | Spacer, Generator Shoulder, Right | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701132 | 003979-B | U06 | Spring, Idler | Yes |
Compatibility List |
$6.60 / Each
|
|
|
703985 | 020061-00 | U09 | Screw, Hex Socket, Round, M5x0.08Px18L | No |
Compatibility List |
$2.00 / Each
|
|
|
702052 | 005080-00 | U10 | Washer, Flat, 5.2x13.0x1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701449 | 004493-00 | U21 | Screw, Hex Socket, Round, M8x1.25Px16L | No |
Compatibility List |
$1.02 / Each
|
|
|
|
706656 | 064235-A | V02 | Decal, Side Cover, VF | No |
Compatibility List |
$18.77 / Each
|
|
|
702019 | 005054-00 | Z04 | Washer, Flat, 16.2X28.7X1.5T, Chromed | No |
Compatibility List |
$2.00 / Each
|
|
|
702178 | 005220-00 | Z20 | Washer, Wavy, 20.7x29.1x.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
701174 | 004096-00 | Bearing, Clutching | No |
Compatibility List |
$20.72 / Each
|
Catalog #: 706411
MPN: 062083-AX
CONSOLE ASSEMBLY 200 SERIES D/C, NO REPL Part will show as orderable until stock is depleted
$958.20 / each
