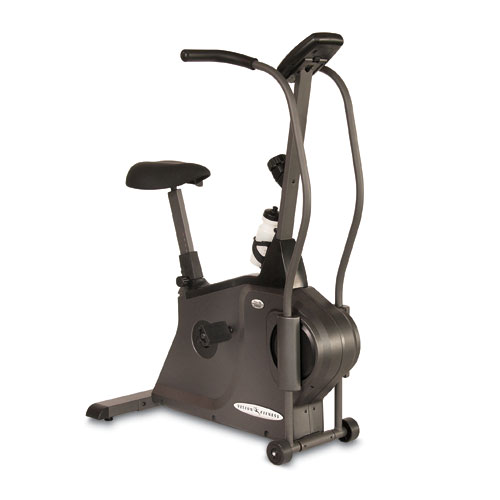

Vision Fitness - E4000 - 2007

Repair Parts for Vision Fitness E4000 VCB0065,CB29B

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: E4000

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
J 700132 000485-00 J05 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
J 700135 000491-B J04 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
J 700136 000496-00 J02 END CAP REAR FOOT Yes Model Compatibility List $7.54 / Each

3,9
C 700255 000787-00 C05 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C04 Water Bottle No Model Compatibility List $9.88 / Each

1
E 700300 000894-00 E06 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
E 700301 000901-00 E06 End Cap;Handlebar;20mm No Model Compatibility List $3.82 / Each

9,11
700332 000989-00 D07 Sleeve;Seat Tube No Model Compatibility List $3.64 / Each

3,12,13,14
700374 001158-00 Q03 CAM ARM DISC COVER No Model Compatibility List $4.37 / Each

9,3
700772 002243-00 P01 WIRE SENSOR No Model Compatibility List $9.52 / Each

4,5,6
T 701042 003413-00 T08 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
S 701124 003926-F S01 Tension Knob Yes Model Compatibility List $35.36 / Each

1
701135 003994-B T04 PEDAL EXERCISE BLOCK TYPE DUAL SIDE 9/16 No Model Compatibility List $76.65 / Each

8,9
R 701154 004072-A2 R20 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
T 701159 004077-A2 T10 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
R 701194 004145-00 R29 Drive Belt;Poly-V;360-J6 Yes Model Compatibility List $57.49 / Each

10,15
701263 004323-00 Q13 BOLT BH M4X90 PARTIAL W/NUT LK No Model Compatibility List $1.79 / Each

2
701264 004324-00 Q10 BOLT BH M5X85 PARTIAL No Model Compatibility List $1.79 / Each

2
T 701300 004364-00 T13 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
Q 701303 004365-00 Q08 Screw;Phillip;BH;M5x0.8Px50L;;Zn-BL No Model Compatibility List $1.79 / Each

2
T 701316 004372-00 T13 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
T 701318 004374-00 T16 Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

2
701343 004389-00 C06 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
701377 004430-00 Q11 BOLT FH M5X8 No Model Compatibility List $1.66 / Each

2
R 701426 004475-00 R25 SCREW;SH;M8X1.25PX15L;;HS;;BZN;; No Model Compatibility List $0.52 / Each

2
701458 004507-00 R17 BEARING BLK ALLEN BOLT No Model Compatibility List $0.42 / Each

2,8
Q 701585 004616-00 Q06 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

2
Q 701588 004618-00 Q12 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
T 701627 004648-00 T16 Screw;Round;3X10L;SM;PH;;WZN;ROHS;POT No Model Compatibility List $0.36 / Each

2
S 701642 004676-00 S16 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
C 701710 004728-00 C03 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
701819 004840-00 E13 SCREW SS 5/16X10 No Model Compatibility List $0.31 / Each

2
J 701841 004859-00 J07 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
R 701861 004883-00 R31 Nut;Hex;M6x1.0P No Model Compatibility List $2.00 / Each

2
S 701869 004891-00 S17 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

2
Q 701891 004924-00 Q09 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
E 701897 004926-00 E21 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
701902 004930-00 S19 Nut;Nylon;1/4"-20UNC;Generator Axle No Model Compatibility List $2.00 / Each

2,8
J 701939 004975-00 J06 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
R 701964 005005-00 R26 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
E 702004 005042-00 E12 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
E 702007 005044-00 E20 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
E 702027 005059-00 E19 WASHER;Flat;12.5x19.0x1.0T;Black Zinc No Model Compatibility List $3.64 / Each

2,4,5,6
S 702030 005062-00 S18 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
702048 005076-00 R32 Washer;Flat;6x12.5x1.6T;Black Zinc No Model Compatibility List $0.21 / Each

2,4,5,6
T 702178 005220-00 T14 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
E 702180 005222-00 E23 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
T 702194 005241-A T19 Washer;DSP;8.0X18.0X0.9T No Model Compatibility List $2.00 / Each

2
B 702217 005330-00 B30 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
R 702236 005361-00 R16 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
T 702240 005365-00 T11 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
702282 005469-00 E18 SPRING COMPRESS ROLLER No Model Compatibility List $1.79 / Each

2,8
702465 007735-00 R23 HUB MOUNT BRACKET RIGHT No Model Compatibility List $6.79 / Each

2,3,4,5,6
702466 007736-00 R24 HUB MOUNT BRACKET LEFT No Model Compatibility List $6.79 / Each

2,3,4,5,6
T 702511 008393-00 T07 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
702515 008407-A R12 BEARING CLIP No Model Compatibility List $0.42 / Each

2,8
702570 008691-00 E02 AXLE WHEEL FRONT No Model Compatibility List $20.05 / Each

8
702641 009209-00 R36 PIN COTTER CAM ARM No Model Compatibility List $1.66 / Each

3,12,13,14
702749 009495-Z R07 BEARING BLOCK TOP No Model Compatibility List $3.54 / Each

8
702756 009539-00 R10 Chain;410x78P;CB07;1/8X1/2 TAYA No Model Compatibility List $9.52 / Each

1
702782 009672-00 D01 Seat Pull Pin Assembly Yes Model Compatibility List $13.47 / Each

3,12,13,14
702788 009726-B AD1 Seat Post No Model Compatibility List $106.68 / Each

12,13,14
702864 012916-Z DAX DRIVE AXLE ASSEMBLY No Model Compatibility List $162.24 / Each

8,3,10
704340 023154-Z R06 ARM CAM SPROCKET No Model Compatibility List $130.65 / Each

3
704341 023155-ZR E08 HANDLEBAR DA RIGHT PEWTER No Model Compatibility List $321.96 / Each

11
704342 023159-ZL Q01 COVER SIDE ASSEMBLY LEFT No Model Compatibility List $142.56 / Each

9,3
704343 023159-ZR Q02 COVER SIDE ASSEMBLY RIGHT No Model Compatibility List $156.86 / Each

9,3
706654 064225-AX V19 Decal;Vision Fitness No Model Compatibility List $47.37 / Each

7,3
706902 067060-A NOT SHOWN MANUAL OWNERS E4000 No Model Compatibility List $11.15 / Each

1
706903 067071-BA AN1 CONSOLE ASSEMBLY No Model Compatibility List $182.49 / Each

7,3
S 706904 067088-A S12 GENERATOR ASSEMBLY No Model Compatibility List $547.53 / Each

3,8
706921 067231-A S02 CABLE CONNECTING No Model Compatibility List $14.46 / Each

4,5,6
706922 067232-A AS2 TENSION KNOB ASSEMBLY No Model Compatibility List $44.46 / Each

3
707045 068978-Z PAX AXLE CRANK ASSEMBLY No Model Compatibility List $87.15 / Each

8,3
C 707151 1000090498 C03 Screw;Phillip;BH;;M8x1.25Px40L;8.8 No Model Compatibility List $2.00 / Each

2
708141 1000100444 D09 Upright Saddle No Model Compatibility List $93.37 / Each

3
T 709103 1000109595 T05 Crank Arm Cover;Round;Plastic;Black No Model Compatibility List $3.82 / Each

8,9,3,4,5,6
T 725261 103326 T12 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

8
726827 085363 H10 Washer;Flat;8.2X16.0X1.6T;Zinc No Model Compatibility List $1.79 / Each

2
728169 093378 38 Nut;Nylon;M6x1.0P;;Zn-BL No Model Compatibility List $1.66 / Each

2
729325 ZMS1000080 P01 RPM SENSOR W/WIRE FOR INDEXED CONSOLE 14 No Model Compatibility List $10.35 / Each

7,4,5,6
729333 ZMS1000159 R02 E4100 INTER HUB ASSY No Model Compatibility List $42.07 / Each

1
Seat Frame End Cap (Used) 1015108 001404-C # 1 Seat Frame End Cap (Used) Yes Model Compatibility List $19.49 / Each
