Vision Fitness - R2000 - RB104 - 2006

Repair Parts for Vision Fitness R2000 RB104

Brand	Vision Fitness
Type	Stationary Bikes
Category	Recumbent
Model Number	RB104
Model Name	R2000
Version	2006

Model Numbers: RB104

Parts Diagram

Replacement Parts (57 parts found)

Catalog #	MPN	List Key	Qty	Part Description	Used	Compat.	New Price

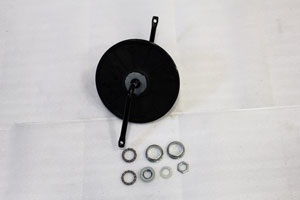

1020481	016025-z	0	1	Axle, Pedal Pulley z21rb54 pax	No	Compatibility List	$64.99 / Each Out Of Stock	8
1004805	014724-A	0	1	Foot Pedal Set w/Strap 1/2”	No	Compatibility List	$56.99 / Each	8,9
703449	014724-A	66		Pedal Set, With Strap	No	Compatibility List	$34.99 / Each	8,9
702277	005444-00	68		Spring, Idler, 2.0x16.0x103.0Lx26N	No	Compatibility List	$3.35 / Each	2,8
700262	000808-B	80		Water Bottle	No	Compatibility List	$9.88 / Each	1
707949	1000097219	AF2		RAIL SLIDE ASSEMBLY	No	Compatibility List	$430.66 / Each	9,3
703760	016021-Z	AG1		HANDLEBAR SEAT ASSEMBLY	No	Compatibility List	$137.51 / Each	3,12,13,14,11
700255	000787-00	C06		Water Bottle Holder	Yes	Compatibility List	$15.59 / Each	1
702770	009638-C	C11		Block, Water Bottle	No	Compatibility List	$3.82 / Each	1
729324	ZMS1000076	C12		BOLT SH M5X22 PARTIAL	No	Compatibility List	$2.00 / Each	2
702021	005056-00	C25		Washer, Flat, 13.2X26.0X2.0T, Black Zinc	No	Compatibility List	$1.54 / Each	2,4,5,6
704293	022297-00	D07		Pressing Shaft	No	Compatibility List	$8.87 / Each	3
700466	001437-00	D10		Clamp Block Nylon	No	Compatibility List	$3.82 / Each	4,5,6
700590	001715-C	D12		PAD SEAT	No	Compatibility List	$53.56 / Each	12,13,14
704156	020354-A	D17		Screw, Oval, M6X1.0PX35L 23L, HS, BP, P T	No	Compatibility List	$2.00 / Each	2
700301	000901-00	D21		End Cap, Handlebar, 20mm	No	Compatibility List	$3.82 / Each	9,11
700273	000840-H	D22		SLEEVE SEAT	No	Compatibility List	$3.82 / Each	3,12,13,14
702234	005359-00	D22		C Clip, External, S 12	No	Compatibility List	$3.88 / Each
702747	009486-00	D23		Bushing, Seat Slide Bar	No	Compatibility List	$1.90 / Each	8,12,13,14
701159	004077-A2	E17		Ball Bearing, 6004ZZ, 20X42X12T, SKF	No	Compatibility List	$19.48 / Each
701154	004072-A2	E21		Ball Bearing, Flywheel, 6002ZZ	Yes	Compatibility List	$14.00 / Each	8
700392	001201-A	F03		End Cap, Seat Rail	No	Compatibility List	$3.82 / Each	9,12,13,14
700132	000485-00	F07		Leveler, Rubber, W3/8 16UNC	Yes	Compatibility List	$9.09 / Each	3
701964	005005-00	H04		Washer, Spring, Lock, 8.2x15.4x2.0t	Yes	Compatibility List	$3.88 / Each
702050	005078-00	I23		Washer, Flat, 5.3x10x1.0T, Black Zinc	No	Compatibility List	$0.48 / Each
701583	004615-00	J09		Screw, Umbrella Cross Tapped, 4x10L	No	Compatibility List	$2.00 / Each
701585	004616-00	L10		Screw, Umbrella Cross Tapped, 4x12L	No	Compatibility List	$1.54 / Each
701300	004364-00	N11		Screw, Oval Head, M5x0.8Px12L	No	Compatibility List	$0.96 / Each
701316	004372-00	N15		Screw, Phillip, BH, M5x0.8Px12L, Gap	No	Compatibility List	$2.00 / Each
701146	1000524555	Not Shown		Pedal Strap Set(includes both sides), Rub	No	Compatibility List	$36.48 / Each	1
702511	008393-00	P04		Bracket, Speed Sensor	No	Compatibility List	$1.90 / Each	2,3,4,5,6
701275	004339-00	P19		Screw, Round, Crisscross, M3X0.5PX35L	No	Compatibility List	$2.00 / Each	2
701858	004880-00	P20		Nut, Zero Switch Cable, M3x0.5Px3H	No	Compatibility List	$2.00 / Each	2,4,5,6
700357	001126-C	P25		End Cap, Pulse Grips, Inner	No	Compatibility List	$1.90 / Each
700375	001160-A	Q05		Plate, Power Socket	No	Compatibility List	$3.82 / Each	3,4,5,6
702483	007964-00	Q07		Connecting Plate, Side Cover	Yes	Compatibility List	$1.90 / Each	9,3
702217	005330-00	Q08		Tinnamen Nut	Yes	Compatibility List	$1.54 / Each
986316	004616-00	Q50		Umbrella Cross Tapped Screw 4x12L (New)	No	Compatibility List	$12.00 / Each
957398	005330-00	Q52		Gear Rower Retainer Clip (New)	Yes	Compatibility List	$11.99 / Each
701227	004201-00	R02		Drive Belt, Poly V, 430 J5	No	Compatibility List	$57.49 / Each	15,10
701174	004096-00	R04		BEARING, ONE WAY, HFL2026 OR FCB 20, INA	No	Compatibility List	$26.49 / Each
701812	004829-00	R11		Screw, M5x0.8Px15L	No	Compatibility List	$0.34 / Each	2
702150	005185-00	R11		Washer, Teflon, 20.3x40x1.0T	No	Compatibility List	$2.05 / Each	2
702226	005351-00	R15		Clamp, Internal C Shaped, R 32	No	Compatibility List	$1.79 / Each
702067	005096-Z	R18		Washer, Flat, 6.2X20.0X2.0T	No	Compatibility List	$1.79 / Each	2
701112	003879-00	T05		Ball Bearing Set, Crank Wheel	No	Compatibility List	$25.00 / Each	8
703415	014411-AA	T13		Pedal Strap Set Left Right	Yes	Compatibility List	$40.14 / Each	8,9
701042	003413-00	T16		Magnet, Crank Wheel, 15x7t	No	Compatibility List	$4.00 / Each	8
702240	005365-00	U04		C Clip, External, S 20	No	Compatibility List	$1.02 / Each
701449	004493-00	U21		Screw, Hex Socket, Round, M8x1.25Px16L	No	Compatibility List	$1.02 / Each
702313	005968-B	V04		MODEL DECAL, VISION, BLACK/SILVER, AL, AL W/	No	Compatibility List	$21.68 / Each	7,3,4,5,6
701308	004369-00	Z02		Screw, Phillip, BH, M5x0.8Px15L, BED	No	Compatibility List	$2.00 / Each
701667	004700-AB	Z05		Screw, Hex Socket, TH, M8X1.25PX15L, Chromed	No	Compatibility List	$1.79 / Each
702140	005170-A	Z11		Washer, Arc, 6.2x14.0x1.2T	No	Compatibility List	$2.00 / Each	2
701591	004620-00	Z31		Screw, Self Tapping, 4x12L	No	Compatibility List	$3.88 / Each
701174	004096-00			Bearing, Clutching	No	Compatibility List	$20.72 / Each
911968	004620-00			Self Tapping Screw 4X12L (New)	No	Compatibility List	$12.99 / Each
