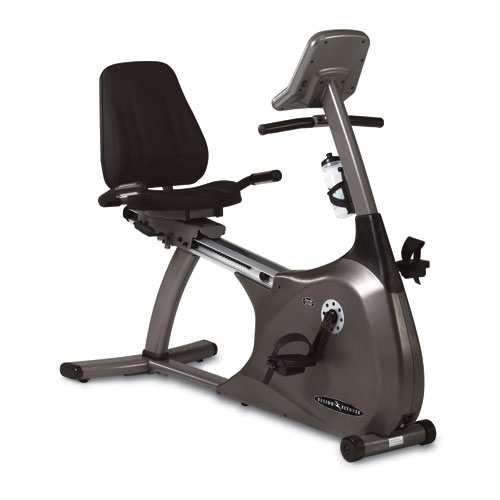

Vision Fitness - R2200 - 2005

Repair Parts for Vision Fitness R2200 RB42C

Brand: Vision Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R2200

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Crank/flywheel
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
F 700132 000485-00 F09/F10 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
J 700136 000496-00 J02 END CAP REAR FOOT Yes Model Compatibility List $7.54 / Each

3,9
700219 000701-00 G03 REST ARM FOAM BLACK No Model Compatibility List $3.82 / Each

3,4,5,6
C 700255 000787-00 C09 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C08 Water Bottle No Model Compatibility List $9.88 / Each

1
F 700273 000840-H F04 SLEEVE SEAT No Model Compatibility List $3.82 / Each

3,12,13,14
G 700300 000894-00 G04 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
700306 000924-F F18 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
N 700357 001126-C N24 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

9,12,13,14,11
N 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

9,12,13,14,11
Q 700376 001161-C Q05 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
D 700379 001170-00 D02 Stopper Wheel;Seat Yes Model Compatibility List $7.54 / Each

8,12,13,14
H 700381 001172-AA H11 Stopper Wheel;Seat Yes Model Compatibility List $5.56 / Each

8,12,13,14
D 700390 001193-00 D25 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

9,12,13,14
F 700392 001201-A F17 End Cap;Seat Rail No Model Compatibility List $3.82 / Each

9,12,13,14
700400 001245-A D07 Bushing;U-Shaped No Model Compatibility List $1.79 / Each

8
700449 001404-E H09 END CAP SEAT RAIL No Model Compatibility List $0.00 / Each
Out Of Stock 		9,12,13,14
D 700466 001437-00 D10 Clamp Block Nylon No Model Compatibility List $3.82 / Each

4,5,6
D 700604 001735-B D27 PAD SEAT BACK D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $144.77 / Each
Out Of Stock 		4,5,6,12,13,14
700707 001988-B P01 CABLE CONSOLE 10 PIN No Model Compatibility List $38.95 / Each

7,4,5,6,12,13,14
700712 002010-G P07 WIRE HARNESS PEWTER No Model Compatibility List $67.57 / Each

4,5,6
700725 002043-A P04 Console Wire Set;1370(JXT/XHP-10+SMR-3V- Yes Model Compatibility List $76.65 / Each

7,4,5,6
P 700768 002229-00 P01 Speed Sensor Wire;480(OKI+SM-2Y);RB18 Yes Model Compatibility List $8.06 / Each

4,5,6
700796 002352-B P11 CABLE CONNECTING HRT No Model Compatibility List $3.82 / Each

7,4,5,6,12,13,14
700797 002356-B P13 WIRE PULSE CON 1200 No Model Compatibility List $9.57 / Each

4,5,6,12,13,14
T 701042 003413-00 T16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
701050 003478-A2 P11 Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

4,5,6
P 701052 003499-D2 P21 Power Adapter;9V/1.5A Yes Model Compatibility List $76.65 / Each

4,5,6
R 701120 003904-00 R03 Pulley;ECB Flywheel;J840 No Model Compatibility List $17.58 / Each

8
U 701132 003979-B U06 Spring;Idler Yes Model Compatibility List $6.60 / Each

2,8
701144 004033-00 T17 STRAP PEDAL PAIR No Model Compatibility List $40.14 / Each

8,9
R 701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
T 701160 004078-A2 T11 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
U 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
R 701174 004096-00 R07 BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA; No Model Compatibility List $26.49 / Each

8
R 701202 004157-00 R06 Drive Belt;Poly-V;430-J8 Yes Model Compatibility List $57.49 / Each

15,10
N 701275 004339-00 N25 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701297 004362-00 D05 Screw;BH;M4X0.7PX10L;;PH;;BZN;; No Model Compatibility List $1.79 / Each

2
N 701316 004372-00 N05 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
701319 004374-ZAC P08 Screw;BH;M5X0.8X10 No Model Compatibility List $2.00 / Each

2
Q 701365 004416-00 Q09 Screw;FH;M5x0.8Px20L No Model Compatibility List $0.49 / Each

2
H 701367 004417-00 H08 Screw;Phillip;Sink;M5x0.8Px10L; No Model Compatibility List $2.00 / Each

2
H 701373 004421-AB H08 Screw;Sink Cross;M5x0.8Px12L;Adhere; No Model Compatibility List $1.59 / Each

2
R 701393 004448-Z R14 Screw;Round;Hex Socket;M5x0.8Px10L No Model Compatibility List $1.79 / Each

2
C 701401 004454-00 C24 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
R 701403 004457-00 R14 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
D 701435 004482-00 D44 Screw;Round;Hex Socket;SH;M8X1.25PX20L No Model Compatibility List $1.79 / Each

2
F 701449 004493-00 F15 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

2
D 701471 004520-00 D35 Screw;Round;Hex Socket;M5x0.8Px22L No Model Compatibility List $2.00 / Each

2
D 701479 004526-00 D19 Screw;Hex Socket;Round;M6x1.0Px30L No Model Compatibility List $2.00 / Each

2
701492 004534-00 C12 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $0.88 / Each

2
Q 701583 004615-00 Q08 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
Q 701585 004616-00 Q07 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

2
Q 701586 004617-00 Q07 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
P 701627 004648-00 P14 Screw;Round;3X10L;SM;PH;;WZN;ROHS;POT No Model Compatibility List $0.36 / Each

2
D 701685 004716-00 D21 Screw;BH;M6X1.0PX55L-23L;;HS;;BZN;;P-T No Model Compatibility List $1.79 / Each

2
D 701687 004718-00 D31 Screw;Oval;Hex Socket;M8X1.25PX10L No Model Compatibility List $1.85 / Each

2
L 701698 004723-00 L05 Screw;Oval;Hex Socket;M8x1.25Px3/4L No Model Compatibility List $2.00 / Each

2
701699 004724-00 G05 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
F 701717 004737-00 F09 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
F 701718 004739-00 F13 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
D 701828 004848-00 D60 Set Screw;M6X1.0PX10L No Model Compatibility List $1.79 / Each

2
L 701841 004859-00 L06 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Q 701849 004867-A Q16 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
N 701858 004880-00 N26 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
D 701909 004935-00 D20 Nut;Nylon;M6X1.0P No Model Compatibility List $2.00 / Each

2
D 701961 005004-00 D22 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

2
G 701964 005005-00 G06 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
T 701987 005025-00 T21 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 702019 005054-00 L07 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702040 005070-00 D25 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
D 702054 005082-00 D03 Washer;Flat;5.0x16.0x1.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
R 702067 005096-Z R18 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
L 702068 005097-00 L07 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
D 702073 005104-00 D41 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

2
T 702177 005219-00 T19 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

2,4,5,6
Q 702217 005330-00 Q11 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
R 702226 005351-00 R09 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

4,5,6
U 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
T 702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
D 702287 005482-C D15 Spring;Compress;Adjust;SWPB; No Model Compatibility List $9.10 / Each

2
702313 005968-B V03 MODEL DECAL;VISION;BLACK/SILVER;AL;AL W/ No Model Compatibility List $21.68 / Each

7,3,4,5,6
702344 006295-A V04 Decal;Seat Rail No Model Compatibility List $2.99 / Each

7,9,3,12,13,14
702358 006421-E V07 Decal;Crank Cover;T=0.3mm;RB41 No Model Compatibility List $3.64 / Each

7,8,9,3
702419 006719-00 NOT SHOWN Warranty Card No Model Compatibility List $1.66 / Each

1
702442 006957-A NOT SHOWN Owners Manual D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $9.57 / Each

1
D 702480 007904-D D14 Plate Position No Model Compatibility List $99.35 / Each

3
Q 702483 007964-00 Q12 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702489 008021-C P02 Fix Plate;Speed Sensor No Model Compatibility List $3.82 / Each

3
P 702511 008393-00 P07 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
U 702516 008418-00 U07 Bracket;Spring Adjustment No Model Compatibility List $1.90 / Each

2,3,4,5,6
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702586 008769-A D04 Axle;Stopper;;SS41;12.0x89L;Zn Plate;;; No Model Compatibility List $3.64 / Each

8,3
D 702588 008829-C D16 Knob;Seat Lever Yes Model Compatibility List $9.57 / Each

3,12,13,14
T 702601 008914-B T10 Nut;Fixing;S46C;AN04 M20x1.0Px6t;BED; No Model Compatibility List $4.00 / Each

2
D 702748 009491-E D09 Cam No Model Compatibility List $9.75 / Each

1
702752 009524-B H01 RAIL SEAT HRT ASSEMBLY No Model Compatibility List $155.66 / Each

7,9,3,12,13,14
D 702764 009581-J D06 FIXING BLOCK SEAT Yes Model Compatibility List $23.89 / Each

12,13,14
T 703415 014411-AA T18 Pedal Strap Set - Left Right No Model Compatibility List $40.14 / Each

8,9
S 703436 014658-00 S01 ECB Brake Assembly Z3260121 Yes Model Compatibility List $172.46 / Each

3,8
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

8,9
P 703745 015971-Z PAX Pedal Axle Set Yes Model Compatibility List $164.79 / Each

8,9
703747 015987-ZL T02 CRANK ASSEMBLY LEFT Yes Model Compatibility List $57.49 / Each

8,3
T 703748 015987-ZR T03 CRANK ASSEMBLY RIGHT Yes Model Compatibility List $57.49 / Each

3,8
703749 015990-Z AD5 Frame Set;Seat Back D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $175.92 / Each

3,4,5,6,12,13,14
D 703750 015992-Z D07 Seat Roller Set Yes Model Compatibility List $34.74 / Each

8,12,13,14
R 703751 015994-Z R02 Drive Axle Set Yes Model Compatibility List $315.54 / Each

8,10
703752 015997-Z AN2 Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
D 703807 017550-C D04 Seat Lever Yes Model Compatibility List $15.60 / Each
3,12,13,14
U 703809 017657-00 U05 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

2,8,3,4,5,6
703903 019160-BA F14 COVER SEAT POST RUBBER No Model Compatibility List $1.95 / Each

9,12,13,14
R 703969 020024-00 R17 Screw;Phillip;BH;M6x1.0Px12L;BED;Adhere; No Model Compatibility List $2.00 / Each

2
D 703980 020050-Z D24 Screw;BH;Sunk;M6X1X20;Zinc No Model Compatibility List $1.66 / Each

2
R 703985 020061-00 R15 Screw;Hex Socket;Round;M5x0.08Px18L No Model Compatibility List $2.00 / Each

2
R 703986 020066-00 R17 Screw;Hex Socket;Round;M6x1.0Px12L No Model Compatibility List $1.66 / Each

2
703987 020066-Z R17 SCREW HEX M6X1X12 No Model Compatibility List $1.79 / Each

2
703988 020067-00 B32 Screw;Hex Socket;M6x1.0Px30L No Model Compatibility List $1.09 / Each

2
F 704060 020156-00 F11 Bolt;HH;3/8X80L;Partial No Model Compatibility List $1.92 / Each

2
P 704072 020184-00 P08 Screw;Phillip;BH;Tapped;3x12L;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
704086 020208-00 F14 Screw;Round;4X12L;TC;PH;;;;POT No Model Compatibility List $1.56 / Each

2
H 704292 022293-B H12 Seat Stop;Rail Assembly No Model Compatibility List $4.06 / Each

9,3,12,13,14
D 704293 022297-00 DO7 Pressing Shaft No Model Compatibility List $8.87 / Each

3
T 704625 024569-A T17 Pedal Set Assembly;9/16 Yes Model Compatibility List $72.98 / Each

3,8,9
T 704898 025790-ZL T02 Crank Arm;Left D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $54.73 / Each
Out Of Stock 		3,8
T 704899 025790-ZR T03 Crank Arm;Right D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $54.73 / Each

3,8
704900 025868-Z NOT SHOWN BACK SEAT CLIP No Model Compatibility List $15.00 / Each

2,4,5,6,12,13,14
704905 025948-Z AC1 MAST CONSOLE ASSEMBLY No Model Compatibility List $129.69 / Each

7,3
704906 025951-Z AC2 HANDLBAR CONSOLE MAST No Model Compatibility List $96.59 / Each

7
707037 068824-Z Q04 Crank Cover No Model Compatibility List $9.57 / Each

8,9
708140 1000100442 T17 Pedal;w/ Belt;L/R;JD-1A-B;;; No Model Compatibility List $35.46 / Each

8,9,15
708151 1000100565 D26 PAD SEAT Yes Model Compatibility List $142.48 / Each

12,13,14
T 709103 1000109595 T04 Crank Arm Cover;Round;Plastic;Black No Model Compatibility List $3.82 / Each

8,9,3,4,5,6
712753 1000230522 NOT SHOWN Cover Seat Back;ABS;BL;R70-02; No Model Compatibility List $47.89 / Each

9,4,5,6,12,13,14
T 725261 103326 T07 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

8
726827 085363 H10 Washer;Flat;8.2X16.0X1.6T;Zinc No Model Compatibility List $1.79 / Each

2
Power Jack 728841 097930 P05 Power Jack Yes Model Compatibility List $16.51 / Each

4,5,6
729324 ZMS1000076 D34 BOLT SH M5X22 PARTIAL No Model Compatibility List $2.00 / Each

2
729326 ZMS1000087 F19 BOLT BH M8X60 PARTIAL No Model Compatibility List $9.28 / Each

2
729327 ZMS1000088 D23 SEATROLLER ACORN NUT No Model Compatibility List $1.77 / Each

2,8,4,5,6,12,13,14
729328 ZMS1000090 F26 SEAT QUICK REL ASSY No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
Seat Frame End Cap (Used) 1015108 001404-C # 1 Seat Frame End Cap (Used) Yes Model Compatibility List $19.49 / Each

9
M6-1.0 X 56MM Screw 1018911 004716-Z 0 1 M6-1.0 X 56MM Screw No Model Compatibility List $6.49 / Each

2
Idler Belt Pulley Set (Used) 1018923 025967-Z 0 1 Idler Belt Pulley Set (Used) Yes Model Compatibility List $50.70 / Each

8
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

1
R 1002352 004157-00 R06 1 Motor Drive Belt 8 Ribs 43" Yes Model Compatibility List $31.99 / Each

23
T 1009206 015987-ZR T03 1 Right Pedal Crank Arm W/Nut & Washer Yes Model Compatibility List $64.99 / Each
Out Of Stock 		35
R 701174 004096-00 R07 Bearing, Clutching No Model Compatibility List $20.72 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
