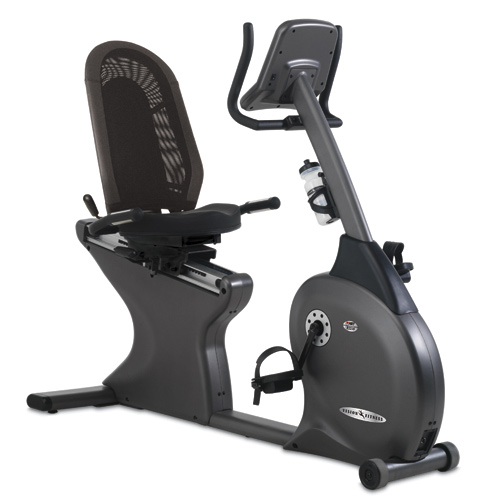

Vision Fitness - R2250HRT - 2008

Repair Parts for Vision Fitness R2250HRT RB125

Brand: Vision Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R2250HRT

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Crank/flywheel
  • Consoles
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
F 700132 000485-00 F05 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
700227 000738-A D57 Foam No Model Compatibility List $0.00 / Each
Out Of Stock 		1
700228 000738-B D57 GRIP SEAT LEVER FOAM No Model Compatibility List $3.64 / Each

3,12,13,14,11
C 700255 000787-00 C08 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C10 Water Bottle No Model Compatibility List $9.88 / Each

1
700306 000924-F F12 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
P 700357 001126-C P18 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

9,12,13,14,11
P 700358 001127-C P17 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

9,12,13,14,11
Q 700376 001161-C Q09 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
H 700379 001170-00 H08 Stopper Wheel;Seat Yes Model Compatibility List $7.54 / Each

8,12,13,14
H 700381 001172-AA H06 Stopper Wheel;Seat Yes Model Compatibility List $5.56 / Each

8,12,13,14
D 700390 001193-00 D28 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

9,12,13,14
700400 001245-A D07 Bushing;U-Shaped No Model Compatibility List $1.79 / Each

8
H 700406 001263-A H10 Sleeve;Grommet No Model Compatibility List $1.90 / Each

2,3
700544 001576-AA Q05 Boot;Console Mast No Model Compatibility List $19.71 / Each

7
700566 001670-00 P14 GROMMET HRT WIRES No Model Compatibility List $1.90 / Each

7,2,4,5,6,12,13,14
Q 700571 001681-A Q15 Fix Pillar;PP;TM81 No Model Compatibility List $1.90 / Each

1
700725 002043-A P04 Console Wire Set;1370(JXT/XHP-10+SMR-3V- Yes Model Compatibility List $76.65 / Each

7,4,5,6
P 700768 002229-00 P01 Speed Sensor Wire;480(OKI+SM-2Y);RB18 Yes Model Compatibility List $8.06 / Each

4,5,6
700796 002352-B P10 CABLE CONNECTING HRT No Model Compatibility List $3.82 / Each

7,4,5,6,12,13,14
700801 002360-B P12 WIRE HAND PULSE Yes Model Compatibility List $14.95 / Each

4,5,6,12,13,14
P 700863 002573-C P11 WIRE HRT RAIL Yes Model Compatibility List $22.54 / Each

4,5,6,7,9,12,13,14
P 701052 003499-D2 P21 Power Adapter;9V/1.5A Yes Model Compatibility List $76.65 / Each

4,5,6
R 701120 003904-00 R03 Pulley;ECB Flywheel;J840 No Model Compatibility List $17.58 / Each

8
U 701132 003979-B U06 Spring;Idler Yes Model Compatibility List $6.60 / Each

2,8
R 701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
U 701159 004077-A2 U03 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
T 701160 004078-A2 T09 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
U 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
R 701174 004096-00 R07 BEARING;ONE-WAY;HFL2026 OR FCB-20;;;INA; No Model Compatibility List $26.49 / Each

8
R 701202 004157-00 R06 Drive Belt;Poly-V;430-J8 Yes Model Compatibility List $57.49 / Each

15,10
P 701275 004339-00 P19 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701297 004362-00 h09 Screw;BH;M4X0.7PX10L;;PH;;BZN;; No Model Compatibility List $1.79 / Each

2
Q 701308 004369-00 Q10 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
C 701309 004369-AD C09 Screw;BH;M5X0.8PX15L;;PH;;BZN;; No Model Compatibility List $2.00 / Each

2
N 701316 004372-00 N07 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
701319 004374-ZAC U08 Screw;BH;M5X0.8X10 No Model Compatibility List $2.00 / Each

2
Q 701320 004375-00 Q10 Screw;Phillip;BH;M5x0.8Px15L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

2
D 701365 004416-00 D24 Screw;FH;M5x0.8Px20L No Model Compatibility List $0.49 / Each

2
D 701367 004417-00 D24 Screw;Phillip;Sink;M5x0.8Px10L; No Model Compatibility List $2.00 / Each

2
H 701373 004421-AB H05 Screw;Sink Cross;M5x0.8Px12L;Adhere; No Model Compatibility List $1.59 / Each

2
R 701390 004447-AB R14 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
C 701401 004454-00 C09 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
R 701403 004457-00 R14 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
D 701440 004483-00 D44 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

2
C 701449 004493-00 C06 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

2
D 701471 004520-00 D35 Screw;Round;Hex Socket;M5x0.8Px22L No Model Compatibility List $2.00 / Each

2
D 701479 004526-00 D19 Screw;Hex Socket;Round;M6x1.0Px30L No Model Compatibility List $2.00 / Each

2
F 701583 004615-00 F17 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
Q 701585 004616-00 Q12 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

2
Q 701586 004617-00 Q10 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
P 701627 004648-00 P07 Screw;Round;3X10L;SM;PH;;WZN;ROHS;POT No Model Compatibility List $0.36 / Each

2
D 701667 004700-AB D41 Screw;Hex Socket;TH;M8X1.25PX15L;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
D 701685 004716-00 D29 Screw;BH;M6X1.0PX55L-23L;;HS;;BZN;;P-T No Model Compatibility List $1.79 / Each

2
701699 004724-00 D41 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
C 701700 004724-AC C06 Screw;Hex Socket;BH;M8x1.25Px15L;Cr No Model Compatibility List $2.00 / Each

2
H 701717 004737-00 H03 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
F 701718 004739-00 F13 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
C 701730 004756-00 C11 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2
701816 004837-00 C13 Set Screw;M8x1,25Px8.2L No Model Compatibility List $2.00 / Each

2
701826 004845-Z D34 SCREW SS M12X12 No Model Compatibility List $1.66 / Each

2
D 701828 004848-00 D82 Set Screw;M6X1.0PX10L No Model Compatibility List $1.79 / Each

2
F 701841 004859-00 F10 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
P 701858 004880-00 P20 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
D 701909 004935-00 D20 Nut;Nylon;M6X1.0P No Model Compatibility List $2.00 / Each

2
D 701912 004941-00 D72 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
F 701934 004972-00 F16 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
C 701937 004973-00 C04 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
F 701939 004975-00 F15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 701961 005004-00 D30 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

2
H 701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
701987 005025-00 T21 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 702019 005054-00 L07 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
T 702027 005059-00 T23 WASHER;Flat;12.5x19.0x1.0T;Black Zinc No Model Compatibility List $3.64 / Each

2,4,5,6
R 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
H 702054 005082-00 H08 Washer;Flat;5.0x16.0x1.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
R 702067 005096-Z R18 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
L 702068 005097-00 L06 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
T 702177 005219-00 T19 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

2,4,5,6
B 702217 005330-00 B29 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
R 702226 005351-00 R09 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

4,5,6
R 702240 005365-00 R10 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
T 702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
D 702287 005482-C D15 Spring;Compress;Adjust;SWPB; No Model Compatibility List $9.10 / Each

2
702345 006297-AX V04 Decal;Guide Rail No Model Compatibility List $9.57 / Each

7,9,3
D 702480 007904-D D14 Plate Position No Model Compatibility List $99.35 / Each

3
P 702489 008021-C P02 Fix Plate;Speed Sensor No Model Compatibility List $3.82 / Each

3
U 702516 008418-00 U07 Bracket;Spring Adjustment No Model Compatibility List $1.90 / Each

2,3,4,5,6
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702586 008769-A H07 Axle;Stopper;;SS41;12.0x89L;Zn Plate;;; No Model Compatibility List $3.64 / Each

8,3
D 702588 008829-C D09 Knob;Seat Lever Yes Model Compatibility List $9.57 / Each

3,12,13,14
D 702764 009581-J D06 FIXING BLOCK SEAT Yes Model Compatibility List $23.89 / Each

12,13,14
703414 014402-AA D27 Back Pad;RB77 No Model Compatibility List $575.56 / Each

4,5,6,12,13,14
T 703415 014411-AA T13 Pedal Strap Set - Left Right No Model Compatibility List $40.14 / Each

8,9
E 703436 014658-00 ECB ECB Brake Assembly Z3260121 Yes Model Compatibility List $172.46 / Each

3,8
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

8,9
P 703745 015971-Z PAX Pedal Axle Set Yes Model Compatibility List $164.79 / Each

8,9
A 703746 015974-Z AU1 IDLER ASSEMBLY Yes Model Compatibility List $55.77 / Each

3,8
703747 015987-ZL T02 CRANK ASSEMBLY LEFT Yes Model Compatibility List $57.49 / Each

8,3
T 703748 015987-ZR T03 CRANK ASSEMBLY RIGHT Yes Model Compatibility List $57.49 / Each

3,8
703749 015990-Z AD5 Frame Set;Seat Back D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $175.92 / Each

3,4,5,6,12,13,14
A 703750 015992-Z AD3 Seat Roller Set Yes Model Compatibility List $34.74 / Each

8,12,13,14
703752 015997-Z HPS Pulse Grip Set No Model Compatibility List $38.32 / Each
Out Of Stock 		12,13,14,11
D 703807 017550-C D04 Seat Lever Yes Model Compatibility List $15.60 / Each
Out Of Stock 		3,12,13,14
U 703809 017657-00 U05 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

2,8,3,4,5,6
R 703985 020061-00 R15 Screw;Hex Socket;Round;M5x0.08Px18L No Model Compatibility List $2.00 / Each

2
703987 020066-Z R17 SCREW HEX M6X1X12 No Model Compatibility List $1.79 / Each

2
P 704072 020184-00 P08 Screw;Phillip;BH;Tapped;3x12L;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
704086 020208-00 Q11 Screw;Round;4X12L;TC;PH;;;;POT No Model Compatibility List $1.56 / Each

2
U 704107 020256-00 U08 Screw;Oval Hex Socket;M5x.8Px10L;Black Zinc No Model Compatibility List $4.00 / Each

2,4,5,6
704108 020256-AB D56 Screw;Hex Socket;BH;M5x0.8Px10L No Model Compatibility List $1.85 / Each

2
704118 020274-Z L05 Screw;Hex Socket;BH;M8x1.25Px19L No Model Compatibility List $1.07 / Each

2
D 704149 020339-A D34 Screw;Adjustic;Spring;M12x1.75Px10L Yes Model Compatibility List $0.36 / Each

2
B 704220 020634-00 B29 Tinnerman Nut;M5 No Model Compatibility List $2.00 / Each

2
Q 704270 022147-A Q14 PLATE CONNECTING No Model Compatibility List $1.90 / Each

3
H 704292 022293-B H07 Seat Stop;Rail Assembly No Model Compatibility List $4.06 / Each

9,3,12,13,14
704897 025787-Z00 H01 Seat Rail Assembly No Model Compatibility List $244.01 / Each

9,3,12,13,14
704900 025868-Z D56 BACK SEAT CLIP No Model Compatibility List $15.00 / Each

2,4,5,6,12,13,14
F 705394 049051-AA F12 End Cap;Stabilizer Yes Model Compatibility List $12.17 / Each

9
706515 062966-B D71 Pressing plate No Model Compatibility List $0.00 / Each
Out Of Stock 		3
D 706516 062969-A D74 SLEEVE;;;Q235;Hard Cr;RB116;Diam.25x6; No Model Compatibility List $6.19 / Each

3
706520 062978-AB AD5 FRAME SEAT BOTTOM No Model Compatibility List $169.49 / Each

3,12,13,14
706656 064235-A V02 Decal;Side Cover; VF No Model Compatibility List $18.77 / Each

7,9,3
706724 064998-A AD7 FRAME SEAT BACK No Model Compatibility List $133.28 / Each

3,4,5,6,12,13,14
706796 065622-Z AC1 MAST CONSOLE ASSEMBLY No Model Compatibility List $147.89 / Each

7,3
706797 065625-Z AC3 Handlebar Mast Assembly No Model Compatibility List $119.81 / Each

3,11
706798 065630-Z AD2 HANDLEBAR SEAT ASSEMBLY D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $195.94 / Each

3,12,13,14,11
707037 068824-Z Q08 Crank Cover No Model Compatibility List $9.57 / Each

8,9
D 707075 1000090035 D73 Bush;RB135 No Model Compatibility List $8.87 / Each

1
707333 1000092117 AD10 LEVER SEAT ASSEMBLY RECLINING No Model Compatibility List $163.75 / Each

3,12,13,14
D 708148 1000100553 D46 MESH SEAT SLEEVE ONLY Yes Model Compatibility List $153.27 / Each

3,12,13,14
708151 1000100565 D26 PAD SEAT Yes Model Compatibility List $142.48 / Each

12,13,14
T 709103 1000109595 T04 Crank Arm Cover;Round;Plastic;Black No Model Compatibility List $3.82 / Each

8,9,3,4,5,6
709282 1000112307 AD1 seating washer slide carriage set ;RB135 No Model Compatibility List $640.07 / Each

2,12,13,14
712753 1000230522 D58 Cover Seat Back;ABS;BL;R70-02; No Model Compatibility List $47.89 / Each

9,4,5,6,12,13,14
D 713479 1000304052 DAX Flywheel set;Semi-Assy;-;add bearing set Yes Model Compatibility List $383.27 / Each

8
T 725261 103326 T07 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
725353 070348 D27 PAD SEAT BACK No Model Compatibility List $237.30 / Each

4,5,6,12,13,14
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

8
726375 081481 AD7 FRAME ADAPTER FOR MESH SEAT No Model Compatibility List $315.07 / Each

3,12,13,14
726376 081482 D58 BACK COVER MESH SEAT ASSEMBLY No Model Compatibility List $43.91 / Each

9,3,4,5,6,12,13,14
726386 081538 NOT SHOWN Owners Manual No Model Compatibility List $9.57 / Each

1
726387 081541 NOT SHOWN Hardware Kit;Blue No Model Compatibility List $4.00 / Each

1
726746 084572 AD8 SEAT LEVER RECLINING ASSEMBLY No Model Compatibility List $24.91 / Each

3,12,13,14
726985 086507 T23 Washer;Lock;Diam.10.0XDiam.16.0X1.0TX1.6H;Serrated Dome No Model Compatibility List $1.79 / Each

2
727163 087512 Q06 Pulley;115mm No Model Compatibility List $18.23 / Each

8
727876 091775 NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $4.00 / Each

1
COVER END CAP ASSEMBLY 727932 092093 Q07 COVER END CAP ASSEMBLY Yes Model Compatibility List $16.07 / Each

9,3
Power Jack 728841 097930 P05 Power Jack Yes Model Compatibility List $16.51 / Each

4,5,6
729324 ZMS1000076 D34 BOLT SH M5X22 PARTIAL No Model Compatibility List $2.00 / Each

2
Seat Back Cover (Used Only( 1014794 1000112311 AD58 1 Seat Back Cover (Used Only( Yes Model Compatibility List $116.99 / Each
Out Of Stock 		3
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

1
R 1002352 004157-00 R06 1 Motor Drive Belt 8 Ribs 43" Yes Model Compatibility List $31.99 / Each

23
T 1009206 015987-ZR T03 1 Right Pedal Crank Arm W/Nut & Washer Yes Model Compatibility List $64.99 / Each
Out Of Stock 		35
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

8
Display Console (Used) 1032451 062084-ax AN1 1 Display Console (Used) No Model Compatibility List $249.00 / Each
Out Of Stock 		51
R 701174 004096-00 R07 Bearing, Clutching No Model Compatibility List $20.72 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
