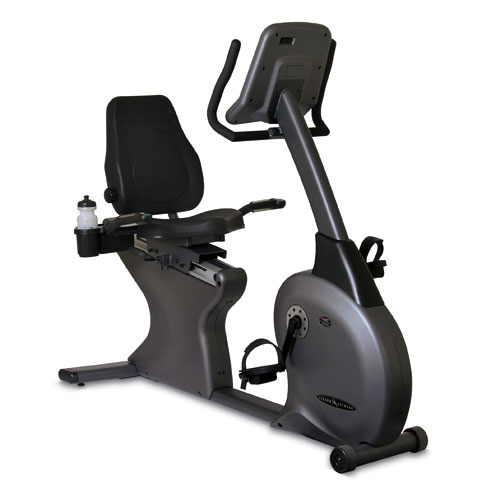

Vision Fitness - R2650HRT - 2006

Repair Parts for Vision Fitness R2650HRT RB79

Brand: Vision Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R2650HRT

Version: 2006

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Overlay/console
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
J 700132 000485-00 J05 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
700228 000738-B D61 GRIP SEAT LEVER FOAM No Model Compatibility List $3.64 / Each

3,12,13,14,11
700260 000803-AA D64 Water Bottle Holder No Model Compatibility List $22.07 / Each

1
700262 000808-B D65 Water Bottle No Model Compatibility List $9.88 / Each

1
700306 000924-F J12 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
N 700357 001126-C N24 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

9,12,13,14,11
H 700379 001170-00 H04 Stopper Wheel;Seat Yes Model Compatibility List $7.54 / Each

8,12,13,14
D 700390 001193-00 D28 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

9,12,13,14
700400 001245-A D07 Bushing;U-Shaped No Model Compatibility List $1.79 / Each

8
700543 001575-BA Q03 Boot;Console Mast No Model Compatibility List $17.89 / Each

7
D 700602 001731-CA D26 Seat Pad Set Yes Model Compatibility List $128.47 / Each

12,13,14
P 700800 002359-C P04 Seat Rail Connection Wire;3300L Yes Model Compatibility List $39.65 / Each

4,5,6,9,12,13,14
700818 002412-C P07 Pulse Grip Wire;Right; 700L No Model Compatibility List $17.97 / Each

4,5,6,12,13,14,11
700819 002413-B P09 Pulse Grip Wire;Left; 700L No Model Compatibility List $14.01 / Each

4,5,6,12,13,14,11
P 700888 002664-B P02 Lower Console Wire Harness; 1000L Yes Model Compatibility List $9.10 / Each

7,4,5,6
700957 002972-C N09 Manipulate Overlay;D;US(##);CB58 No Model Compatibility List $19.14 / Each

1
N 701008 003307-00 NOT SHOWN Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

1
P 701066 003556-D P03 Power Resistor;300W Yes Model Compatibility List $128.78 / Each

4,5,6
T 701160 004078-A2 T07 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
R 701171 004091-00 R26 Bearing;One-Way;;HFL2530;INA No Model Compatibility List $30.89 / Each

8
R 701194 004145-00 R04 Drive Belt;Poly-V;360-J6 Yes Model Compatibility List $57.49 / Each

10,15
R 701205 004161-00 R20 Drive Belt;Poly-V;380-J8 Yes Model Compatibility List $54.73 / Each

15,10
H 701265 004326-00 H25 Screw;Phillip;Round;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
N 701275 004339-00 N25 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701278 004345-AB D67 SCREW;RND;M5X0.8PX35L;;PH;;BZN;;BP No Model Compatibility List $0.55 / Each

2
701297 004362-00 H06 Screw;BH;M4X0.7PX10L;;PH;;BZN;; No Model Compatibility List $1.79 / Each

2
701315 004371-Z P55 Bolt;BH;M5X25 No Model Compatibility List $1.66 / Each

2
P 701316 004372-00 P51 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
701343 004389-00 Q22 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
H 701367 004417-00 H26 Screw;Phillip;Sink;M5x0.8Px10L; No Model Compatibility List $2.00 / Each

2
D 701435 004482-00 D44 Screw;Round;Hex Socket;SH;M8X1.25PX20L No Model Compatibility List $1.79 / Each

2
U 701449 004493-00 U21 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

2
D 701471 004520-00 D35 Screw;Round;Hex Socket;M5x0.8Px22L No Model Compatibility List $2.00 / Each

2
D 701479 004526-00 D19 Screw;Hex Socket;Round;M6x1.0Px30L No Model Compatibility List $2.00 / Each

2
701527 004558-AA P52 Screw;SH;M5X0.8PX50L;;HS;;BZN;; No Model Compatibility List $1.66 / Each

2
J 701583 004615-00 J17 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
P 701626 004647-00 P16 Screw;Phillip;Round;3x12L No Model Compatibility List $1.79 / Each

2
C 701667 004700-AB C05 Screw;Hex Socket;TH;M8X1.25PX15L;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
D 701685 004716-00 D29 Screw;BH;M6X1.0PX55L-23L;;HS;;BZN;;P-T No Model Compatibility List $1.79 / Each

2
R 701690 004719-00 R30 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
H 701717 004737-00 H23 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
J 701718 004739-00 J13 Bolt;M8x1.25Px65L(20L) No Model Compatibility List $2.00 / Each

2
701826 004845-Z D34 SCREW SS M12X12 No Model Compatibility List $1.66 / Each

2
D 701828 004848-00 D63 Set Screw;M6X1.0PX10L No Model Compatibility List $1.79 / Each

2
L 701841 004859-00 L06 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
N 701858 004880-00 N26 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
S 701870 004892-00 S10 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
P 701891 004924-00 P53 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 701907 004933-00 S06 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.79 / Each

2
D 701909 004935-00 D20 Nut;Nylon;M6X1.0P No Model Compatibility List $2.00 / Each

2
S 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
D 701960 005003-00 D68 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
D 701961 005004-00 D30 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

2
J 701964 005005-00 J11 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
T 701987 005025-00 T31 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
T 702013 005048-00 T33 Washer;Flat;8.2x15.0x1.2T No Model Compatibility List $2.00 / Each

2
L 702019 005054-00 L05 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
S 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
S 702050 005078-00 S11 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
D 702052 005080-00 D25 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
H 702054 005082-00 H05 Washer;Flat;5.0x16.0x1.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
R 702068 005097-00 R31 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
S 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
U 702076 005109-00 U22 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
T 702177 005219-00 T32 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

2,4,5,6
T 702241 005366-00 T06 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
702278 005445-A U12 Spring;2.0x16.0x130.0 No Model Compatibility List $10.01 / Each

2
D 702287 005482-C D15 Spring;Compress;Adjust;SWPB; No Model Compatibility List $9.10 / Each

2
S 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

2,3
D 702480 007904-D D14 Plate Position No Model Compatibility List $99.35 / Each

3
702484 007970-B Q25 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.79 / Each

9,3
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702586 008769-A H03 Axle;Stopper;;SS41;12.0x89L;Zn Plate;;; No Model Compatibility List $3.64 / Each

8,3
D 702588 008829-C D16 Knob;Seat Lever Yes Model Compatibility List $9.57 / Each

3,12,13,14
702835 011641-A NOT SHOWN MANUAL OWNER E3600HRT/R2600HRT/R2650HRT No Model Compatibility List $11.60 / Each

7,12,13,14
S 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
S 703368 013783-AB S08 Lower Control Board;700 Series Yes Model Compatibility List $389.77 / Each

7
703414 014402-AA D27 Back Pad;RB77 No Model Compatibility List $575.56 / Each

4,5,6,12,13,14
T 703415 014411-AA T18 Pedal Strap Set - Left Right No Model Compatibility List $40.14 / Each

8,9
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

8,9
703560 015392-AB Q08 Rear Side Cover End Cap;Left No Model Compatibility List $61.85 / Each

9
703561 015393-AB Q09 Rear Side Cover End Cap;Right No Model Compatibility List $61.85 / Each

9
703764 016073-ZL HPS-L GRIP HRT ASSEMBLY LEFT No Model Compatibility List $36.48 / Each

7,3,12,13,14,11
703765 016073-ZR HPS-R GRIP HRT ASSEMBLY RIGHT No Model Compatibility List $36.48 / Each

7,3,12,13,14,11
703766 016074-Z AD1 FRAME SEAT ASSEMBLY No Model Compatibility List $556.66 / Each

3,12,13,14
704109 020256-AC S12 Screw;Hex Socket;BH;M5x0.8Px10L;Zinc; No Model Compatibility List $1.79 / Each

2
T 704898 025790-ZL T03 Crank Arm;Left D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $54.73 / Each
Out Of Stock 		3,8
T 704899 025790-ZR T04 Crank Arm;Right D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $54.73 / Each

3,8
704900 025868-Z D57 BACK SEAT CLIP No Model Compatibility List $15.00 / Each

2,4,5,6,12,13,14
704916 026095-Z RST STABILIZER ASSEMBLY REAR No Model Compatibility List $92.22 / Each

3
704922 026241-Z DAX DRIVE AXLE ASSEMBLY D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $305.11 / Each

8,3,10
704923 026242-Z SHB HANDLEBAR SEAT No Model Compatibility List $342.55 / Each

12,13,14,11
704924 026243-ZL AP5 GRIP LEFT ASSEMBLY FAST KEY No Model Compatibility List $26.83 / Each

9,3,11
704925 026243-ZR AP6 GRIP RIGHT ASSEMBLY FAST KEY No Model Compatibility List $26.83 / Each

9,3,11
D 704926 026249-Z D04 LEVER SEAT ASSEMBLY Yes Model Compatibility List $42.82 / Each

3,12,13,14
704927 026251-Z TSW IDLER ASSEMBLY No Model Compatibility List $136.55 / Each

8,3
707037 068824-Z Q04 Crank Cover No Model Compatibility List $9.57 / Each

8,9
T 709103 1000109595 T05 Crank Arm Cover;Round;Plastic;Black No Model Compatibility List $3.82 / Each

8,9,3,4,5,6
712753 1000230522 D58 Cover Seat Back;ABS;BL;R70-02; No Model Compatibility List $47.89 / Each

9,4,5,6,12,13,14
T 725261 103326 T08 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

8
727824 091195 RAL Seat Guide Rail Set;Aluminum No Model Compatibility List $546.16 / Each

9,12,13,14
729339 ZMS1000254 H24 WASHER FT 8X16X1.5 ZNC No Model Compatibility List $1.85 / Each

2
M6-1.0 X 56MM Screw 1018911 004716-Z 0 1 M6-1.0 X 56MM Screw No Model Compatibility List $6.49 / Each

2
Pedal Axle Set 1020551 026244-z 0 1 Pedal Axle Set No Model Compatibility List $297.70 / Each

8
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

1
Console Display (Used) 1002766 014213-GA 0 1 Console Display (Used) No Model Compatibility List $399.00 / Each

30
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

8
Q 1036645 007970-B Q25 PLATE CONNECTING COVER FRONT Yes Model Compatibility List $5.00 / Each

1
