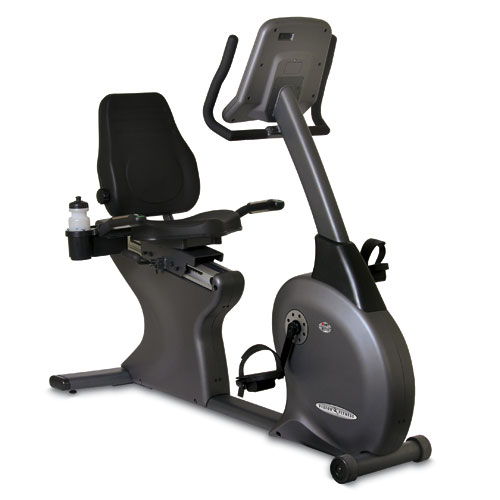

Repair Parts for Vision Fitness R2750HRT RB0078
| Brand | Vision Fitness |
|---|---|
| Type | Stationary Bikes |
| Category | Recumbent |
| Model Number | RB0078 |
| Model Name | R2750HRT |
| Version | 2007 |
Model Numbers: RB0078, RB87
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
701402 | 004456-00 | - | Screw, Round, Hex Socket, M5x0.8Px16L | No |
Compatibility List |
$1.02 / Each
|
|
|
1010997 | 078380 | 0 | 1 | Transport Wheel | No |
Compatibility List |
$13.99 / Each
|
|
735689 | 0000091207 | 8 | Pedal Axle (Drive) Set, US, R70 | No |
Compatibility List |
$204.12 / Each
|
|
|
701828 | 004848-00 | 41 | Set Screw, M6X1.0PX10L | No |
Compatibility List |
$3.88 / Each
|
|
|
700262 | 000808-B | 80 | Water Bottle | No |
Compatibility List |
$9.88 / Each
|
|
|
701931 | 004968-00 | 104 | Nut, Hex, Flange, 3/8 26UNF, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
706799 | 065640-A | 183 | Screw, Round Cross Tapped, M3X30L | Yes |
Compatibility List |
$2.00 / Each
|
|
|
|
703730 | 015913-AA | AC2 | HANDLEBAR CONSOLE MAST | No |
Compatibility List |
$215.20 / Each
|
|
|
|
703766 | 016074-Z | AD1 | FRAME SEAT ASSEMBLY | No |
Compatibility List |
$556.66 / Each
|
|
|
|
704916 | 026095-Z | AJ1 | STABILIZER ASSEMBLY REAR | No |
Compatibility List |
$92.22 / Each
|
|
|
725349 | 070314 | AN1 | CONSOLE ASSEMBLY | No |
Compatibility List |
$518.70 / Each
Out Of Stock |
|
|
|
729107 | Part of HPS-L | AP5 | GRIP FAST KEY ASSEMBLY LEFT | No |
Compatibility List |
Out Of Stock |
|
|
|
729108 | Part of HPS-R | AP6 | GRIP FAST KEY ASSEMBLY RIGHT | No |
Compatibility List |
Out Of Stock |
|
|
701945 | 004980-A | B21 | Insert Nut, Hex, NHS 580 3.0(M5X0.8P) | Yes |
Compatibility List |
$1.02 / Each
|
|
|
704926 | 026249-Z | D04 | LEVER SEAT ASSEMBLY | No |
Compatibility List |
$42.82 / Each
|
|
|
|
700400 | 001245-A | D07 | Bushing, U Shaped | No |
Compatibility List |
$1.79 / Each
|
|
|
700602 | 001731-CA | D14 | Seat Pad Set | No |
Compatibility List |
$128.47 / Each
Out Of Stock |
|
|
702480 | 007904-D | D14 | Plate Position | No |
Compatibility List |
$99.35 / Each
|
|
|
|
701369 | 004419-AB | D24 | Screw, FH, M5X0.8PX16L, PH, ZN, BP | No |
Compatibility List |
$1.79 / Each
|
|
|
|
703414 | 014402-AA | D27 | Back Pad, RB77 | No |
Compatibility List |
$575.56 / Each
Out Of Stock |
|
|
702287 | 005482-C | D28 | Spring, Compress, Adjust, SWPB | No |
Compatibility List |
$9.10 / Each
|
|
|
702588 | 008829-C | D31 | Knob, Seat Lever | No |
Compatibility List |
$9.57 / Each
|
|
|
|
701840 | 004858-C | D34 | Set Screw, M12X10L, BZN, ADJ SPRING | No |
Compatibility List |
$3.64 / Each
|
|
|
701688 | 004718-AC | D50 | Screw, BH, M8X1.25PX10L, HS, BZN, BP | No |
Compatibility List |
$3.88 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
701479 | 004526-00 | D55 | Screw, Hex Socket, Round, M6x1.0Px30L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
|
700228 | 000738-B | D57 | GRIP SEAT LEVER FOAM | No |
Compatibility List |
$3.64 / Each
|
|
|
|
712753 | 1000230522 | D58 | Cover Seat Back, ABS, BL, R70 02 | No |
Compatibility List |
$47.89 / Each
|
|
|
|
700260 | 000803-AA | D64 | Water Bottle Holder | No |
Compatibility List |
$22.07 / Each
Out Of Stock |
|
|
|
701278 | 004345-AB | D67 | SCREW, RND, M5X0.8PX35L, PH, BZN, BP | No |
Compatibility List |
$0.55 / Each
|
|
|
701685 | 004716-00 | D95 | Screw, BH, M6X1.0PX55L 23L, HS, BZN, P T | No |
Compatibility List |
$1.79 / Each
|
|
|
|
704922 | 026241-Z | DAX | DRIVE AXLE ASSEMBLY D/C, NO REPL: Part will show as orderable until stock is depleted. | No |
Compatibility List |
$305.11 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
701939 | 004975-00 | F03 | Insert Nut, Brass, ALS7 8125 3.8(0.5 3.8) | No |
Compatibility List |
$1.90 / Each
|
|
|
701934 | 004972-00 | F05 | Insert Nut, Brass, ALS7 616 150(0.02 0.15) | No |
Compatibility List |
$1.90 / Each
|
|
|
700132 | 000485-00 | F07 | Leveler, Rubber, W3/8 16UNC | Yes |
Compatibility List |
$9.09 / Each
|
|
|
|
700306 | 000924-F | F18 | End Cap, Rear Stabilizer | No |
Compatibility List |
$9.57 / Each
Out Of Stock |
|
|
|
702132 | 005158-A | G06 | Washer, Flat, 8x16x1.5T, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
|
726416 | 081713 | G21 | Washer, Flat, 10.3X20X1.0T | No |
Compatibility List |
$1.79 / Each
|
|
|
701626 | 004647-00 | G22 | Screw, Phillip, Round, 3x12L | No |
Compatibility List |
$1.79 / Each
|
|
|
700379 | 001170-00 | H03 | Stopper Wheel, Seat | Yes |
Compatibility List |
$7.54 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702054 | 005082-00 | H08 | Washer, Flat, 5.0x16.0x1.0T, Black Zinc | Yes |
Compatibility List |
$2.00 / Each
|
|
|
|
702586 | 008769-A | H12 | Axle, Stopper, SS41, 12.0x89L, Zn Plate | No |
Compatibility List |
$3.64 / Each
|
|
|
700390 | 001193-00 | H13 | End Cap, Seat Pad, 20x40x1.6t, RB06 | No |
Compatibility List |
$1.51 / Each
|
|
|
|
701306 | 004366-Z | H25 | Screw, BH, M5X8 | No |
Compatibility List |
$1.79 / Each
|
|
|
|
703764 | 016073-ZL | HPS-L | GRIP HRT ASSEMBLY LEFT | No |
Compatibility List |
$36.48 / Each
|
|
|
|
703765 | 016073-ZR | HPS-R | GRIP HRT ASSEMBLY RIGHT | No |
Compatibility List |
$36.48 / Each
|
|
|
702050 | 005078-00 | I23 | Washer, Flat, 5.3x10x1.0T, Black Zinc | No |
Compatibility List |
$0.48 / Each
|
|
|
702037 | 005067-00 | J04 | Washer, Flat, 10.2X15.0X1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701583 | 004615-00 | J09 | Screw, Umbrella Cross Tapped, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
701008 | 003307-00 | KIT | Chest Strap, Polar, T34/T41 | No |
Compatibility List |
$76.99 / Each
|
|
|
700352 | 001113-00 | L01 | Sleeve, Mobile Wheel | Yes |
Compatibility List |
$5.80 / Each
|
|
|
702567 | 008685-B | L02 | Axle, Transport Wheel | Yes |
Compatibility List |
$12.30 / Each
|
|
|
725922 | 078380 | L03 | Transport Wheel Set | No |
Compatibility List |
$13.99 / Each
|
|
|
701841 | 004859-00 | L05 | Screw, Umbrella Hex Scoket, M8x1.25Px20L | No |
Compatibility List |
$2.00 / Each
|
|
|
|
702188 | 005231-A | L05 | Washer, Wavy, 16.2x28.7x1.5Tx1.5H | No |
Compatibility List |
$1.79 / Each
|
|
|
702068 | 005097-00 | L07 | Washer, Flat, 5/16x30x1.5T | No |
Compatibility List |
$2.00 / Each
|
|
|
701585 | 004616-00 | L10 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
701295 | 004361-00 | N49 | Screw, Phillip, BH, M4x0.7Px10L, Ni, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
|
703411 | 014382-C | NOT SHOWN | HARDWARE KIT PINK | No |
Compatibility List |
$1.66 / Each
|
|
|
|
703413 | 014396-A | NOT SHOWN | HARDWARE KIT BLACK | No |
Compatibility List |
$8.42 / Each
|
|
|
|
704900 | 025868-Z | NOT SHOWN | BACK SEAT CLIP | No |
Compatibility List |
$15.00 / Each
|
|
|
|
725339 | 070151 | NOT SHOWN | OWNERS MANUAL R2700HRT/R2750HRT/E3700HRT | No |
Compatibility List |
$13.26 / Each
|
|
|
|
725342 | 070177 | NOT SHOWN | MANUAL ASSEMBLY R2750HRT | No |
Compatibility List |
$3.35 / Each
|
|
|
701066 | 003556-D | P03 | Power Resistor, 300W | Yes |
Compatibility List |
$128.78 / Each
|
|
|
700800 | 002359-C | P04 | Seat Rail Connection Wire, 3300L | Yes |
Compatibility List |
$39.65 / Each
|
|
|
700888 | 002664-B | P06 | Lower Console Wire Harness, 1000L | Yes |
Compatibility List |
$9.10 / Each
|
|
|
|
700818 | 002412-C | P07 | Pulse Grip Wire, Right, 700L | No |
Compatibility List |
$17.97 / Each
|
|
|
|
700819 | 002413-B | P09 | Pulse Grip Wire, Left, 700L | No |
Compatibility List |
$14.01 / Each
|
|
|
701858 | 004880-00 | P20 | Nut, Zero Switch Cable, M3x0.5Px3H | No |
Compatibility List |
$2.00 / Each
|
|
|
700357 | 001126-C | P25 | End Cap, Pulse Grips, Inner | No |
Compatibility List |
$1.90 / Each
|
|
|
701342 | 004388-00 | P51 | Screw, Oval, PH, M5X0.8PX12L(ZINC PLATING) | No |
Compatibility List |
$1.79 / Each
|
|
|
701527 | 004558-AA | P52 | Screw, SH, M5X0.8PX50L, HS, BZN | No |
Compatibility List |
$1.66 / Each
|
|
|
|
701315 | 004371-Z | P55 | Bolt, BH, M5X25 | No |
Compatibility List |
$1.66 / Each
|
|
|
|
727828 | 091207 | PAX | Pedal Axle (Drive) Set, US, R70 | No |
Compatibility List |
$220.97 / Each
|
|
|
|
700543 | 001575-BA | Q03 | Boot, Console Mast | No |
Compatibility List |
$17.89 / Each
|
|
|
|
707037 | 068824-Z | Q04 | Crank Cover | No |
Compatibility List |
$9.57 / Each
|
|
|
|
703560 | 015392-AB | Q08 | Rear Side Cover End Cap, Left | No |
Compatibility List |
$61.85 / Each
|
|
|
|
703561 | 015393-AB | Q09 | Rear Side Cover End Cap, Right | No |
Compatibility List |
$61.85 / Each
|
|
|
701367 | 004417-00 | Q15 | Screw, Phillip, Sink, M5x0.8Px10L | No |
Compatibility List |
$2.00 / Each
|
|
|
702484 | 007970-B | Q20 | Connecting Plate, Side Cover, 2 Hole | No |
Compatibility List |
$1.79 / Each
|
|
|
1036645 | 007970-B | Q27 | PLATE CONNECTING COVER FRONT | No |
Compatibility List |
$3.00 / Each
|
|
|
986316 | 004616-00 | Q50 | Umbrella Cross Tapped Screw 4x12L (New) | No |
Compatibility List |
$12.00 / Each
|
|
|
701194 | 004145-00 | R04 | Drive Belt, Poly V, 360 J6 | Yes |
Compatibility List |
$57.49 / Each
|
|
|
701171 | 004091-00 | R10 | Bearing, One Way, HFL2530, INA | No |
Compatibility List |
$30.89 / Each
|
|
|
701205 | 004161-00 | R12 | Drive Belt, Poly V, 380 J8 | Yes |
Compatibility List |
$54.73 / Each
|
|
|
|
704109 | 020256-AC | R14 | Screw, Hex Socket, BH, M5x0.8Px10L, Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
|
727824 | 091195 | RAL | Seat Guide Rail Set, Aluminum | No |
Compatibility List |
$546.16 / Each
|
|
|
702856 | 012818-00 | S01 | Generator, ECB, 190 CE CB/RB MX/600, 400W, JM07 | Yes |
Compatibility List |
$602.29 / Each
|
|
|
702470 | 007768-D | S05 | Fix Plate, Eye Bolt | No |
Compatibility List |
$1.79 / Each
|
|
|
701907 | 004933-00 | S06 | Nut, Nylon, 1/4" 20UNC, BED | No |
Compatibility List |
$1.79 / Each
|
|
|
702070 | 005102-00 | S07 | Washer, Flat, 1/4"x15.0x1.0T, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
703368 | 013783-AB | S08 | Lower Control Board, 700 Series | Yes |
Compatibility List |
$389.77 / Each
|
|
|
701909 | 004935-00 | S13 | Nut, Nylon, M6X1.0P | No |
Compatibility List |
$2.00 / Each
|
|
|
|
704923 | 026242-Z | SHB | HANDLEBAR SEAT | No |
Compatibility List |
$342.55 / Each
|
|
|
704898 | 025790-ZL | T02 | Crank Arm, Left D/C, NO REPL: Part will show as orderable until stock is depleted. | No |
Compatibility List |
$54.73 / Each
|
|
|
704899 | 025790-ZR | T03 | Crank Arm, Right D/C, NO REPL: Part will show as orderable until stock is depleted. | No |
Compatibility List |
$49.99 / Each
|
|
|
727462 | 0000089466 | T03 | Crank, Left, SS41, BED, S14.8, CB59B T03 | No |
Compatibility List |
$75.00 / Each
|
|
|
735707 | 0000089466 | T03 | Crank, Left, SS41, BED, S14.8, CB59B T03 | No |
Compatibility List |
$49.32 / Each
|
|
|
701987 | 005025-00 | T04 | Washer, Flat, 25.5x38.0x1.5t, Black Zinc | No |
Compatibility List |
$0.74 / Each
|
|
|
|
727463 | 089467 | T04 | Crank, Right, SS41, BED, S14.8, CB59B T04 | No |
Compatibility List |
$51.48 / Each
|
|
|
735708 | 0000089467 | T04 | Crank, Right, SS41, BED, S14.8, CB59B T04 | No |
Compatibility List |
$47.56 / Each
|
|
|
703448 | 014721-A | T05 | Pedal Set, Both Sides, threading 9/16 | Yes |
Compatibility List |
$60.22 / Each
|
|
|
709103 | 1000109595 | T05 | Crank Arm Cover, Round, Plastic, Black | No |
Compatibility List |
$3.82 / Each
|
|
|
1037441 | 1000109595 | T05 | Crank arm cover | Yes |
Compatibility List |
$10.00 / Each
Out Of Stock |
|
|
|
715532 | 1000325796 | T08 | Nut, Hex Flange, M10x1.25Px7T, SS41, Black A | No |
Compatibility List |
$1.79 / Each
|
|
|
725261 | 103326 | T08 | SCREW FHM8x1.0Px20 SERRATED | No |
Compatibility List |
$2.00 / Each
|
|
|
701160 | 004078-A2 | T09 | Ball Bearing, 6005ZZ, Z25XZ47X12T, TPI | No |
Compatibility List |
$19.14 / Each
|
|
|
701891 | 004924-00 | T10 | Nut, Nylon, M5x0.8P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
703415 | 014411-AA | T13 | Pedal Strap Set Left Right | Yes |
Compatibility List |
$40.14 / Each
|
|
|
|
704927 | 026251-Z | TSW | IDLER ASSEMBLY | No |
Compatibility List |
$136.55 / Each
|
|
|
701165 | 004081-A2 | U03 | Ball Bearing, 6204ZZ, 20x47x14t, TPI | Yes |
Compatibility List |
$6.48 / Each
|
|
|
702240 | 005365-00 | U04 | C Clip, External, S 20 | No |
Compatibility List |
$1.02 / Each
|
|
|
702052 | 005080-00 | U10 | Washer, Flat, 5.2x13.0x1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701449 | 004493-00 | U21 | Screw, Hex Socket, Round, M8x1.25Px16L | No |
Compatibility List |
$1.02 / Each
|
|
|
|
706656 | 064235-A | V02 | Decal, Side Cover, VF | No |
Compatibility List |
$18.77 / Each
|
|
|
706806 | 065753-A | Z01 | Screw, Hex Socket, BH, M10x1.5Px65L(Tooth25 | No |
Compatibility List |
$4.00 / Each
|
|
|
701308 | 004369-00 | Z02 | Screw, Phillip, BH, M5x0.8Px15L, BED | No |
Compatibility List |
$2.00 / Each
|
|
|
701961 | 005004-00 | Z06 | Washer, Spring, Lock, SW6 6.1x12.2x1.5t | No |
Compatibility List |
$2.00 / Each
|
|
|
701717 | 004737-00 | Z13 | Screw, BH, M8x1.25Px55L 20L | No |
Compatibility List |
$2.00 / Each
|
|
|
701999 | 005037-00 | Z17 | Washer, Flat, 8.2x30.0x1.5T | No |
Compatibility List |
$1.79 / Each
|
|
|
1000435 | 014335-F | Lumbar Back Seat | No |
Compatibility List |
$110.39 / Each
Out Of Stock |
||
|
1001358 | 013783-AB | Lower Control Board Controller Set | No |
Compatibility List |
$99.99 / Each
|
||
|
1003245 | 013783-AB | Controller Board | No |
Compatibility List |
$349.99 / Each
|
||
|
971749 | 003307-00 | Rate Chest Strap (New) | Yes |
Compatibility List |
$76.65 / Each
|
Catalog #: 704922
MPN: 026241-Z
DRIVE AXLE ASSEMBLY D/C, NO REPL: Part will show as orderable until stock is depleted.
$305.11 / each
Catalog #: 704898
MPN: 025790-ZL
Crank Arm, Left D/C, NO REPL: Part will show as orderable until stock is depleted.
$54.73 / each
Catalog #: 704899
MPN: 025790-ZR
Crank Arm, Right D/C, NO REPL: Part will show as orderable until stock is depleted.
$49.99 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
