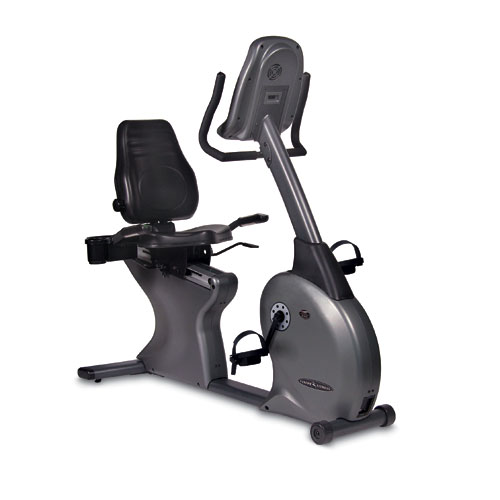

Vision Fitness - R2850HRT - N/A

Repair Parts for Vision Fitness R2850HRT VRB0060

Brand: Vision Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R2850HRT

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
J 700132 000485-00 J05 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
700260 000803-AA D64 Water Bottle Holder No Model Compatibility List $22.07 / Each

1
700262 000808-B D65 Water Bottle No Model Compatibility List $9.88 / Each

1
700306 000924-F J12 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
P 700357 001126-C P13 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

9,12,13,14,11
H 700379 001170-00 H04 Stopper Wheel;Seat Yes Model Compatibility List $7.54 / Each

8,12,13,14
D 700390 001193-00 D80 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

9,12,13,14
700400 001245-A D32 Bushing;U-Shaped No Model Compatibility List $1.79 / Each

8
700543 001575-BA Q06 Boot;Console Mast No Model Compatibility List $17.89 / Each

7
D 700602 001731-CA D26 Seat Pad Set Yes Model Compatibility List $128.47 / Each

12,13,14
P 700888 002664-B P02 Lower Console Wire Harness; 1000L Yes Model Compatibility List $9.10 / Each

7,4,5,6
P 701066 003556-D P03 Power Resistor;300W Yes Model Compatibility List $128.78 / Each

4,5,6
R 701159 004077-A2 R09 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
T 701160 004078-A2 T07 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
U 701165 004081-A2 U07 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
R 701171 004091-00 R26 Bearing;One-Way;;HFL2530;INA No Model Compatibility List $30.89 / Each

8
R 701194 004145-00 R04 Drive Belt;Poly-V;360-J6 Yes Model Compatibility List $57.49 / Each

10,15
R 701205 004161-00 R20 Drive Belt;Poly-V;380-J8 Yes Model Compatibility List $54.73 / Each

15,10
P 701275 004339-00 P14 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701278 004345-AB D67 SCREW;RND;M5X0.8PX35L;;PH;;BZN;;BP No Model Compatibility List $0.55 / Each

2
701283 004350-Z C55 BOLT BH M3X6 No Model Compatibility List $2.00 / Each

2
H 701286 004355-00 H21 Screw;Oval;PH; M4X0.7PX10L No Model Compatibility List $2.00 / Each

2
701297 004362-00 H06 Screw;BH;M4X0.7PX10L;;PH;;BZN;; No Model Compatibility List $1.79 / Each

2
H 701304 004366-00 H25 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
701306 004366-Z H25 Screw;BH;M5X8 No Model Compatibility List $1.79 / Each

2
Q 701308 004369-00 Q27 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
P 701314 004371-00 P55 Screw;Phillip;BH;M5x0.8Px25L;;Zn-BL No Model Compatibility List $1.66 / Each

2
701315 004371-Z P55 Bolt;BH;M5X25 No Model Compatibility List $1.66 / Each

2
Z 701332 004385-00 Z102 Screw;BH;M5X0.8PX12L;;PH;;BAN;; Yes Model Compatibility List $1.79 / Each

2
P 701342 004388-00 P51 Screw;Oval;PH; M5X0.8PX12L(ZINC PLATING) No Model Compatibility List $1.79 / Each

2
701343 004389-00 Q27 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
H 701367 004417-00 H26 Screw;Phillip;Sink;M5x0.8Px10L; No Model Compatibility List $2.00 / Each

2
701369 004419-AB D82 Screw;FH;M5X0.8PX16L;;PH;;ZN;;BP No Model Compatibility List $1.79 / Each

2
D 701401 004454-00 D67 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
D 701402 004456-00 D74 Screw;Round;Hex Socket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
D 701436 004482-AB D100 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

2
U 701449 004493-00 U21 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

2
D 701479 004526-00 D81 Screw;Hex Socket;Round;M6x1.0Px30L No Model Compatibility List $2.00 / Each

2
701527 004558-AA P52 Screw;SH;M5X0.8PX50L;;HS;;BZN;; No Model Compatibility List $1.66 / Each

2
J 701583 004615-00 J17 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
P 701626 004647-00 P16 Screw;Phillip;Round;3x12L No Model Compatibility List $1.79 / Each

2
701666 004700-00 C06 Screw;M8x1.25Px15 No Model Compatibility List $0.73 / Each

2
C 701667 004700-AB C05 Screw;Hex Socket;TH;M8X1.25PX15L;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
D 701684 004714-AF D29 Screw;BH;M6X1.0PX15L;;HS;;BZN;; No Model Compatibility List $1.66 / Each

2
D 701685 004716-00 D29 Screw;BH;M6X1.0PX55L-23L;;HS;;BZN;;P-T No Model Compatibility List $1.79 / Each

2
R 701688 004718-AC R30 Screw;BH;M8X1.25PX10L;;HS;;BZN;;BP No Model Compatibility List $2.00 / Each

2
H 701717 004737-00 H23 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
C 701827 004847-AB C30 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
D 701828 004848-00 D77 Set Screw;M6X1.0PX10L No Model Compatibility List $1.79 / Each

2
701840 004858-C D73 Set Screw;M12X10L;BZN;ADJ SPRING No Model Compatibility List $3.64 / Each

2
L 701841 004859-00 L06 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
P 701858 004880-00 P15 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
P 701891 004924-00 P53 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
D 701893 004925-00 D75 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
D 701897 004926-00 D71 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
S 701907 004933-00 S06 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.79 / Each

2
D 701909 004935-00 D75 Nut;Nylon;M6X1.0P No Model Compatibility List $2.00 / Each

2
S 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
J 701934 004972-00 J16 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
J 701939 004975-00 J15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
B 701945 004980-A B51 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) Yes Model Compatibility List $1.79 / Each

2
D 701960 005003-00 D76 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
D 701961 005004-00 D30 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

2
J 701964 005005-00 J11 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
T 701987 005025-00 T31 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 701999 005037-00 R31 Washer;Flat;8.2x30.0x1.5T No Model Compatibility List $1.79 / Each

2
S 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
P 702040 005070-00 P33 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Q 702050 005078-00 Q28 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
D 702052 005080-00 D83 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
P 702054 005082-00 P54 Washer;Flat;5.0x16.0x1.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
L 702068 005097-00 L07 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
S 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
U 702076 005109-00 U22 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
702183 005227-00 T32 Washer;Wavy;26x34x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702188 005231-A L05 Washer;Wavy;16.2x28.7x1.5Tx1.5H No Model Compatibility List $1.79 / Each

2,4,5,6
U 702240 005365-00 U23 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
T 702241 005366-00 T06 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
702278 005445-A U12 Spring;2.0x16.0x130.0 No Model Compatibility List $10.01 / Each

2
D 702287 005482-C D34 Spring;Compress;Adjust;SWPB; No Model Compatibility List $9.10 / Each

2
S 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

2,3
D 702480 007904-D D62 Plate Position No Model Compatibility List $99.35 / Each

3
702484 007970-B Q25 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.79 / Each

9,3
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
702586 008769-A H03 Axle;Stopper;;SS41;12.0x89L;Zn Plate;;; No Model Compatibility List $3.64 / Each

8,3
S 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
T 703415 014411-AA T13 Pedal Strap Set - Left Right No Model Compatibility List $40.14 / Each

8,9
T 703448 014721-A T17 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

8,9
703560 015392-AB Q08 Rear Side Cover End Cap;Left No Model Compatibility List $61.85 / Each

9
703561 015393-AB Q09 Rear Side Cover End Cap;Right No Model Compatibility List $61.85 / Each

9
703764 016073-ZL HPS-L GRIP HRT ASSEMBLY LEFT No Model Compatibility List $36.48 / Each

7,3,12,13,14,11
703765 016073-ZR HPS-R GRIP HRT ASSEMBLY RIGHT No Model Compatibility List $36.48 / Each

7,3,12,13,14,11
703810 017670-A D37 Air Shock No Model Compatibility List $73.71 / Each

1
704109 020256-AC S12 Screw;Hex Socket;BH;M5x0.8Px10L;Zinc; No Model Compatibility List $1.79 / Each

2
P 704179 020437-00 P33 Washer;Flat;M6.5X16X2.0T No Model Compatibility List $1.66 / Each

2
T 704898 025790-ZL T03 Crank Arm;Left D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $54.73 / Each
Out Of Stock 		3,8
T 704899 025790-ZR T04 Crank Arm;Right D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $54.73 / Each

3,8
704900 025868-Z D57 BACK SEAT CLIP No Model Compatibility List $15.00 / Each

2,4,5,6,12,13,14
704922 026241-Z DAX DRIVE AXLE ASSEMBLY D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $305.11 / Each

8,3,10
704927 026251-Z AU1 IDLER ASSEMBLY No Model Compatibility List $136.55 / Each

8,3
705771 056160-A NOT SHOWN MANUAL OWNERS R2850HRT No Model Compatibility List $11.15 / Each

7,12,13,14
705772 056178-A D02 BASE MOUNTING AIR SHOCK No Model Compatibility List $3.64 / Each

2,3
705773 056180-AA AD4 FRAME SEAT ASSEMBLY No Model Compatibility List $17.03 / Each

3,12,13,14
705774 056193-AA D27 Back Pad Assembly - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $616.98 / Each

3,4,5,6,12,13,14
705775 056195-AA D58 COVER SEAT BACK No Model Compatibility List $25.04 / Each

9,4,5,6,12,13,14
705776 056200-BA P31 Rubber Pad No Model Compatibility List $3.35 / Each

12,13,14
706068 058851-B P21 WIRE CONSOLE 8 PIN 2400mm No Model Compatibility List $54.73 / Each

7,4,5,6,12,13,14
706069 058852-B P17 WIRE BATTERY 1300mm No Model Compatibility List $17.86 / Each

4,5,6
706070 058853-B P18 Wire;Battery;280mm No Model Compatibility List $9.10 / Each

4,5,6
706071 058854-B P19 WIRE POWER 1300mm No Model Compatibility List $40.98 / Each

4,5,6
706140 059527-CB S08 Motor Control Board No Model Compatibility List $638.79 / Each

7,10
P 706177 059907-A P32 Bolt;Eye Hook;1/4"-20UNCx135 No Model Compatibility List $3.35 / Each

2
706182 060018-A P01 BRACKET WHEEL No Model Compatibility List $3.35 / Each

2,8,3,4,5,6
706246 060510-AA AN1 Console Set;Bike 800 Series No Model Compatibility List $1095.09 / Each

7
P 706478 062621-A P34 Nut;Wing;1/4"-20UNC;SS41;BZN;; No Model Compatibility List $1.66 / Each

2
706522 063013-C NOT SHOWN HARDWARE KIT PINK No Model Compatibility List $14.51 / Each

12,13,14
706523 063015-B NOT SHOWN HARDWARE KIT GREEN No Model Compatibility List $34.16 / Each

1
706656 064235-A V12 Decal;Side Cover; VF No Model Compatibility List $18.77 / Each

7,9,3
T 706753 065247-A TP03 TV Exchange Connector;;F HDR Into F HSG 9 No Model Compatibility List $9.41 / Each

4,5,6
T 706754 065248-A TP04 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

4,5,6
P 706799 065640-A P14 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $2.00 / Each

2
J 706806 065753-A J13 Screw;Hex Socket;BH;M10x1.5Px65L(Tooth25 No Model Compatibility List $4.00 / Each

2
706859 066321-A D45 SPRING;TOR;Diam.1.2XDiam.8.5LX12.0LX3-1/ No Model Compatibility List $3.64 / Each

2
706972 067736-A P04 WIRE CONSOLE 6 PIN No Model Compatibility List $127.74 / Each

7,4,5,6,12,13,14
C 706976 067765-AA C43 Screw; BH SUNK M4X0.7X8 No Model Compatibility List $1.79 / Each

2
707015 068410-ZL AP5 GRIP LEFT KEY FAST ASSEMBLY No Model Compatibility List $21.03 / Each

9,3,11
707016 068410-ZR AP6 GRIP RIGHT KEY FAST ASSEMBLY No Model Compatibility List $21.03 / Each

9,3,11
707017 068412-Z AU2 PULLEY ASSEMBLY No Model Compatibility List $80.52 / Each

8,3
707018 068413-Z H01 RAIL ASSEMBLY No Model Compatibility List $612.56 / Each

9,3
707019 068414-Z AJ1 STABILIZER ASSEMBLY REAR No Model Compatibility List $192.56 / Each

3
707037 068824-Z Q07 Crank Cover No Model Compatibility List $9.57 / Each

8,9
707060 070000-A P25 Sensor Wire;Left;600mm No Model Compatibility List $12.27 / Each

4,5,6
707061 070001-A P24 Sensor Wire;Right;600mm No Model Compatibility List $13.47 / Each

4,5,6
T 709103 1000109595 T05 Crank Arm Cover;Round;Plastic;Black No Model Compatibility List $3.82 / Each

8,9,3,4,5,6
P 713881 1000309219 P20 Battery WP1.2-12;12V 1.2Ah; Yes Model Compatibility List $72.98 / Each

1
715532 1000325796 T08 Nut;Hex Flange;M10x1.25Px7T;SS41;Black A No Model Compatibility List $1.79 / Each

2,4,5,6
T 725261 103326 T08 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

8
726172 080593 NOT SHOWN TV BRACKET KIT RECUMBENT No Model Compatibility List $323.99 / Each

2,3,4,5,6
726175 080617 C41 TV Bracket Console Mast Cover No Model Compatibility List $3.35 / Each

7,2,9,3,4,5,6
726176 080620 TP05 CABLE EXT TV No Model Compatibility List $11.05 / Each

4,5,6
726177 080622 P15 TV Cable Wire;1400L;(FM-0086-NBG7)x2;RB8 No Model Compatibility List $16.64 / Each

4,5,6
726416 081713 G21 Washer;Flat;10.3X20X1.0T No Model Compatibility List $1.79 / Each

2
726434 081789 Z104 Screw;Stopper;M8X1.25X10 No Model Compatibility List $1.66 / Each

2
726464 081969 C54 PLATE TV MOUNTING No Model Compatibility List $3.35 / Each

2,3,4,5,6
727462 089466 T03 Crank;Left;SS41;BED;S14.8;CB59B-T03; No Model Compatibility List $51.48 / Each

8
727463 089467 T04 Crank;Right;SS41;BED;S14.8;CB59B-T04; No Model Compatibility List $51.48 / Each

8
727828 091207 PAX Pedal Axle (Drive) Set;US;R70; No Model Compatibility List $220.97 / Each

8,9,10
ADAPTER AC-DC 800 SERIES 24V/1A 728380 094446 P35 ADAPTER AC-DC 800 SERIES 24V/1A No Model Compatibility List $72.98 / Each

4,5,6
M6-1.0 X 56MM Screw 1018911 004716-Z 0 1 M6-1.0 X 56MM Screw No Model Compatibility List $6.49 / Each

2
Pedal Axle Set 1020551 026244-z 0 1 Pedal Axle Set No Model Compatibility List $297.70 / Each

8
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

1
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

8
Q 1036645 007970-B Q25 PLATE CONNECTING COVER FRONT Yes Model Compatibility List $5.00 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
