Vision Fitness - ST720 - 2007

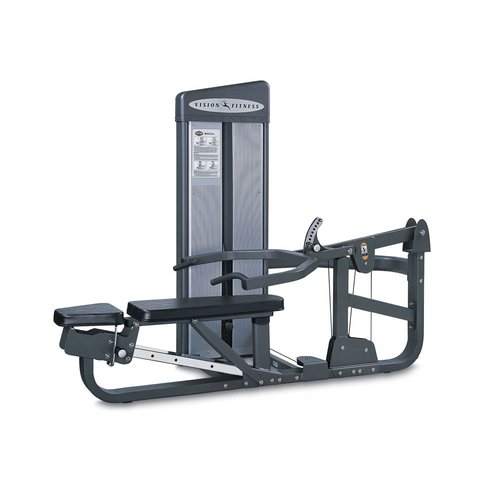

Repair Parts for Vision Fitness ST720 GM88

Brand: Vision Fitness

Category: Multi Station

Type: Strength Systems

Model Name: ST720

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
F 700519 001523-E F12 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
F 701159 004077-A2 F07 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
T 701187 004126-A T09 Dry Bearing;Flange;LEF-1015 LFF-1015 No Model Compatibility List $3.35 / Each

8
B 701660 004696-AB B08 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701677 004711-AE Z55 Screw;Hex Socket;BH;;M5x0.8Px15L No Model Compatibility List $1.79 / Each

2
Z 701757 004779-00 Z15 Screw;Oval;Hex Socket;M10x1.5Px30L;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
701777 004794-AD Z02 SCREW HEX M12X25 CHM No Model Compatibility List $4.00 / Each

2
Z 701783 004797-AC Z06 Screw;Hex;10X1.5X70L No Model Compatibility List $10.01 / Each

2
Z 701792 004808-AF Z12 Screw;Umbrella Hex Scoket;M10x1.5Px120L No Model Compatibility List $18.23 / Each

2
Z 701901 004929-00 Z27 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 701914 004943-00 H18 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
H 701916 004945-00 H13 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701968 005007-00 Z01 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701980 005016-00 Z23 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
702059 005085-AD Z22 Washer;Flat;5.2x10.0x1.5T;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 702098 005130-00 Z25 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 702102 005132-00 H12 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
T 702126 005152-A T10 Washer;Flat;6.4x11x1.6T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702178 005220-00 Z31 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
K 702308 005847-A K09 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
K 703901 019151-AA K10 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

3,4,5,6
H 704043 020127-AC H15 Screw;SH;M8X1.25PX12L;;HS;;CHM;; No Model Compatibility List $1.79 / Each

2
704108 020256-AB Z21 Screw;Hex Socket;BH;M5x0.8Px10L No Model Compatibility List $1.85 / Each

2
704123 020289-00 Z29 Screw;Hex Socket;BH;M10x1.5Px60;Chromed No Model Compatibility List $3.64 / Each

7,2,12,13,14

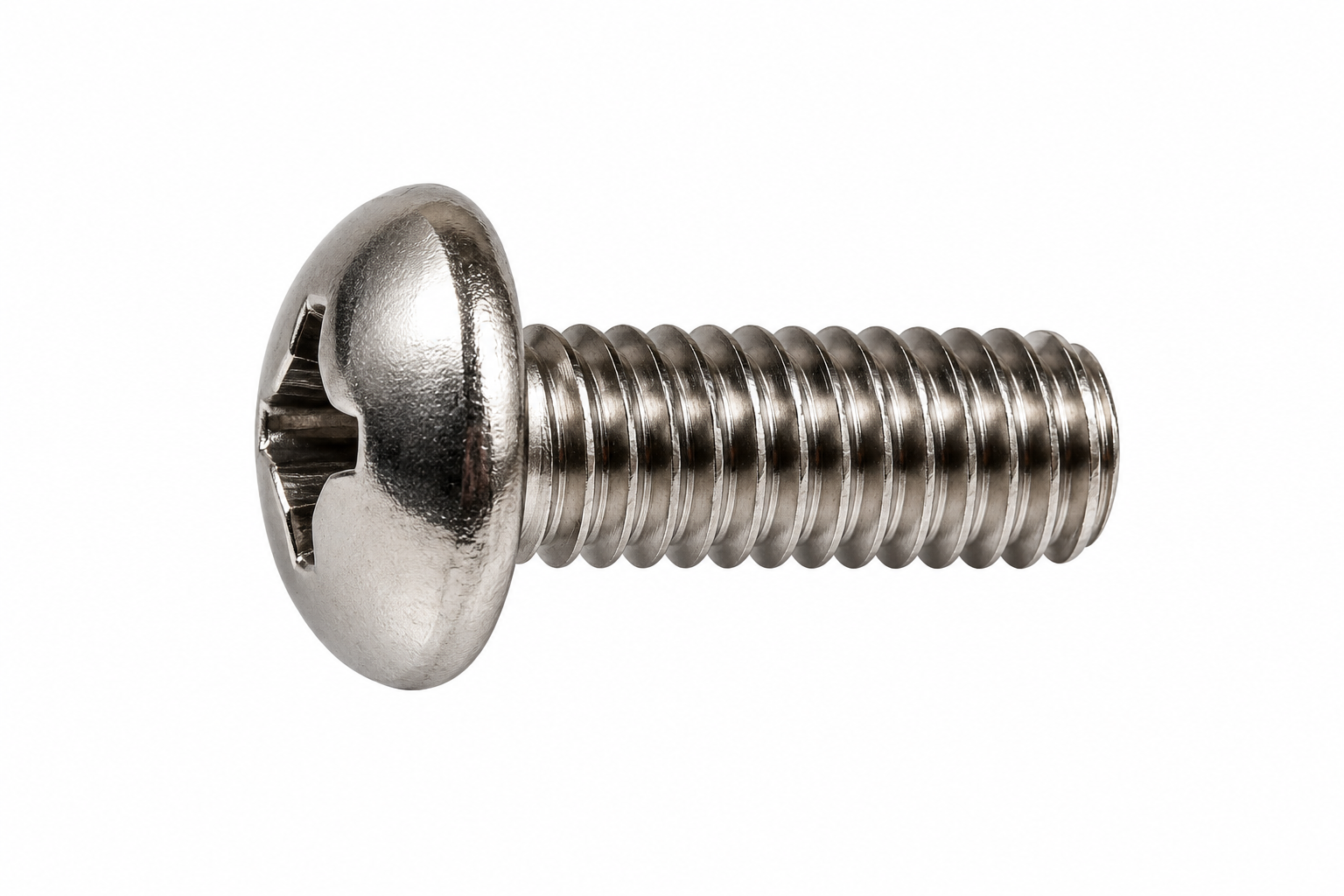

Z 704128 020294-ABX Z07 Screw;BH;M10x1.5Px20L;Chromed No Model Compatibility List $0.99 / Each

7,2,12,13,14
704136 020303-AB Z08 Screw;Hex Socket;BH;M10x1.25Px125L;Chromed No Model Compatibility List $9.28 / Each

7,2,12,13,14
H 704206 020479-A H19 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 704220 020634-00 Z20 Tinnerman Nut;M5 No Model Compatibility List $2.00 / Each

2
Z 704316 022395-B Z54 Sleeve;Axle;20X40MM No Model Compatibility List $3.64 / Each

8,3
Z 704319 022400-A Z52 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

2,12,13,14
C 705369 048973-AA C16 Pad Frame Stabilizer No Model Compatibility List $3.35 / Each

3,12,13,14
705378 049008-BA D10 GRIP FOAM HANDLE No Model Compatibility List $8.42 / Each

11
D 705402 049062-BA D08 END CAP No Model Compatibility List $3.64 / Each

9
705404 049064-BA F15 END CAP No Model Compatibility List $1.66 / Each

9
D 705405 049066-AA D09 Cap;25x50x3.0t;MS100;MS100-D27A No Model Compatibility List $2.29 / Each

9
705411 049102-BA H08 ROLLER PLASTIC No Model Compatibility List $3.35 / Each

8,9
705427 049139-BA D13 END CAP No Model Compatibility List $1.79 / Each

9
H 705428 049145-AA H17 Sleeve;Rubber No Model Compatibility List $8.42 / Each

3
C 705432 049152-A C15 Swing Arm Stop;Rubber No Model Compatibility List $8.42 / Each

3
T 705462 049253-AA T08 Screw;SH;M6X1.0PX10L;;HS;;ZN;; No Model Compatibility List $1.66 / Each

2
705490 049295-AB H11 CLIP C EXTERNAL 12 CHM No Model Compatibility List $1.85 / Each

2
705527 050216-A H10 BRACKET SEAT SUPPORT No Model Compatibility List $16.87 / Each

2,3,4,5,6,12,13,14
705528 050224-B F11 PLATE ROM CHM No Model Compatibility List $16.87 / Each

3
705541 050313-A D01 AXLE 20X202MM No Model Compatibility List $16.87 / Each

8
F 705542 050314-A F08 Axle;20X130MM No Model Compatibility List $16.87 / Each

8
705545 050326-B D07 Sleeve;Axle20x20mm No Model Compatibility List $18.23 / Each

8,3
705551 050377-B C20 SPACER 10MM CHROME No Model Compatibility List $3.64 / Each

7,2,3,4,5,6,12,13,14
705556 050402-D K07 Pin Selector;Weight Plate No Model Compatibility List $25.09 / Each

3,12,13,14
F 705559 050411-B F21 Spacer 15x21.5 CHM No Model Compatibility List $9.10 / Each

2,3,4,5,6
F 705562 050468-A F14 Bushing;Brass No Model Compatibility List $3.64 / Each

8
705583 051745-C D14 PULL PIN 60MM No Model Compatibility List $18.23 / Each

12,13,14
705635 052204-AA AH2 TUBE SEAT SUPPORT SLIDING No Model Compatibility List $544.39 / Each

3,12,13,14
705641 052431-A K02 WEIGHT PLATE 10 LB. No Model Compatibility List $63.86 / Each

3
705650 053312-CA J01 PAD SEAT BOTTOM No Model Compatibility List $211.80 / Each

12,13,14
705657 053322-BA J02 PAD SEAT BACK No Model Compatibility List $309.14 / Each

4,5,6,12,13,14
705722 055343-A F22 BUSHING CHM No Model Compatibility List $3.35 / Each

8
705734 055470-AA K05 Guide Rod;Chromed No Model Compatibility List $267.57 / Each

7,3,12,13,14
706181 060008-AA K03 BUSHING INNER WEIGHT PLATE No Model Compatibility List $1.79 / Each

8,3
706213 060252-A H20 SCREW HEX 10X1.5X140 CHM No Model Compatibility List $18.56 / Each

2
706214 060264-A V01 DECAL INSTRUCTION ST720 No Model Compatibility List $3.35 / Each

7,3
706215 060265-A V03 DECAL WEIGHT PLATE No Model Compatibility List $3.64 / Each

7,3
706216 060271-A NOT SHOWN MANUAL ASSEMBLY/OWNER ST720 No Model Compatibility List $16.87 / Each

3
706293 060828-Z AT1 SUPPORT SEAT BACK No Model Compatibility List $323.88 / Each

3,4,5,6,12,13,14
706294 060829-Z AD1 PRESS ARM No Model Compatibility List $687.26 / Each

3
706295 060830-Z AF1 SWING ARM No Model Compatibility List $474.14 / Each

3
706296 060831-Z AT2 SEAT BRACKET MOUNTING No Model Compatibility List $57.38 / Each

2,3,4,5,6,12,13,14
Z 706533 063161-AA Z26 Screw;Hex Socket;MX8X1.25X62L-20L;Chromed Yes Model Compatibility List $7.90 / Each

2
F 706539 063236-A F13 Screw;SH;M8X1.25PX22L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
706542 063238-AA F23 SCREW HEX M10X62 CHM No Model Compatibility List $4.00 / Each

2
706543 063240-AA Q06 COVER TOP RIGHT No Model Compatibility List $81.02 / Each

9
706544 063241-AA Q07 COVER TOP LEFT No Model Compatibility List $81.02 / Each

9
706558 063485-AA C18 BOLT M10X1.5X48 CHM No Model Compatibility List $4.00 / Each

2
706598 063714-AA Z14 BOLT M12X152 CHM No Model Compatibility List $18.56 / Each

2
706867 066448-A Z28 SCREW HEX 10X1.5X68 CHM No Model Compatibility List $3.69 / Each

2
706877 066553-A Z40 BOLT M10X123 CHM No Model Compatibility List $18.56 / Each

2
706909 067130-A V14 DECAL VF PANEL 700 SERIES No Model Compatibility List $1.66 / Each

7,3
706934 067282-A NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $18.56 / Each

1
706935 067283-A NOT SHOWN HARDWARE KIT BLUE No Model Compatibility List $93.70 / Each

1
706936 067284-A NOT SHOWN HARDWARE KIT PINK No Model Compatibility List $108.32 / Each

12,13,14
706937 067285-A NOT SHOWN HARDWARE KIT GREEN No Model Compatibility List $51.30 / Each

1
706938 067286-A NOT SHOWN HARDWARE KIT BLACK No Model Compatibility List $18.56 / Each

4,5,6
706939 067287-A NOT SHOWN HARDWARE KIT YELLOW No Model Compatibility List $18.56 / Each

1
706940 067288-A NOT SHOWN HARDWARE KIT RED No Model Compatibility List $18.56 / Each

1
706941 067289-A NOT SHOWN HARDWARE KIT LIGHT BLUE No Model Compatibility List $18.56 / Each

1
706942 067290-A NOT SHOWN HARDWARE KIT PURPLE No Model Compatibility List $18.56 / Each

1
707312 1000091939 NOT SHOWN Bolt;Cable;4.8mm Slotted;M12x60 No Model Compatibility List $13.03 / Each

2,4,5,6
707566 1000093433 AH1 SEAT BOTTOM ASSEMBLY SLIDING No Model Compatibility List $294.48 / Each

3,12,13,14
707575 1000093463 AT3 POST SEAT BACK LIMITER No Model Compatibility List $233.82 / Each

4,5,6,12,13,14
707576 1000093464 AC2 BRACKET SWING ARM PULLEY No Model Compatibility List $497.95 / Each

2,8,3,4,5,6
707577 1000093465 AC3 SUPPORT SWING ARM No Model Compatibility List $455.91 / Each

3
707587 1000093542 AC1 SUPPORT MAIN FLOOR No Model Compatibility List $805.12 / Each

3
707593 1000093572 AG3 SUPPORT CENTER FLOOR W/O PULLEY No Model Compatibility List $163.46 / Each

8,3
707594 1000093573 AG2 SUPPORT CENTER FLOOR W/PULLEY No Model Compatibility List $191.44 / Each

8,3
707597 1000093577 AG1 BRACE CONNECTING No Model Compatibility List $303.78 / Each

3,4,5,6
707606 1000093638 AB1 WEIGHT STACK TOWER No Model Compatibility List $1.30 / Each

3,4,5,6
707896 1000096719 F17 CABLE 5628mm No Model Compatibility List $161.41 / Each

4,5,6
708236 1000101378 Q05 BRACKET CONNECTING TOP & BOTTOM No Model Compatibility List $71.34 / Each

2,3,4,5,6
708300 1000101896 Q04 BRACKET SIDE CONNECTING No Model Compatibility List $61.33 / Each

2,3,4,5,6
K 708711 1000105039 K08 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $3.54 / Each

2,12,13,14
708797 1000106069 Q02 COVER FRONT RIGHT No Model Compatibility List $160.65 / Each

9
708812 1000106125 Q01 COVER FRONT LEFT No Model Compatibility List $155.35 / Each

9
709010 1000108225 H09 BRACKET BACKREST ADJUSTMENT No Model Compatibility List $33.98 / Each

2,3,4,5,6,12,13,14
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
727007 086641 K01 Top Plate Assembly No Model Compatibility List $206.75 / Each

3
729009 ORDER K04 K01 PLATE WEIGHT TOP No Model Compatibility List $0.00 / Each
Out Of Stock 		3
