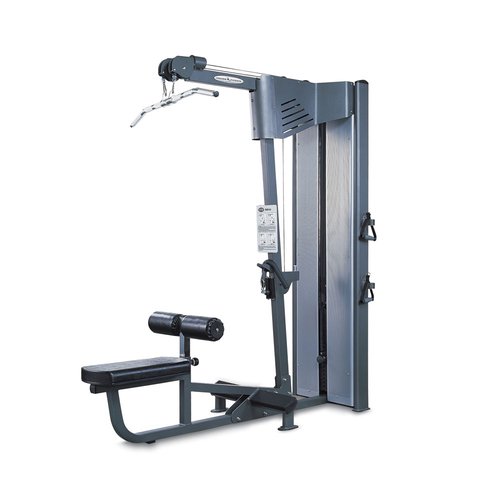

Vision Fitness - ST730 - 2007

Repair Parts for Vision Fitness ST730 GM87

Brand: Vision Fitness

Category: Multi Station

Type: Strength Systems

Model Name: ST730

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
T 700467 001440-AA T17 Seat Adjustment Knob No Model Compatibility List $9.10 / Each
Out Of Stock 		12,13,14
Z 700494 001510-B Z24 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
C 700520 001525-B C17 Rubber Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
701387 004442-AB Z32 Screw;Hex Socket;Round;M4x0.7Px10L No Model Compatibility List $1.79 / Each

2
B 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701676 004711-AC Z34 Screw;Hex Socket;BH;;M5x0.8Px15L;Cr No Model Compatibility List $2.00 / Each

2
F 701682 004714-AC F12 Screw;Hex Socket;BH;M6x1.0Px15L;Cr No Model Compatibility List $1.66 / Each

2
Z 701758 004780-00 Z05 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere No Model Compatibility List $2.00 / Each

2
T 701761 004781-00 T25 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere; No Model Compatibility List $9.10 / Each

2
701767 004789-AC T21 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $3.69 / Each

2
Z 701783 004797-AC Z04 Screw;Hex;10X1.5X70L No Model Compatibility List $10.01 / Each

2
701809 004825-A Z08 BOLT BH M10X45 PARTIAL CHM No Model Compatibility List $1.85 / Each

2
Z 701842 004859-AC Z38 Screw;BH;M8X1.25PX20L;;HS;;CHM;; No Model Compatibility List $2.00 / Each

2
701882 004909-AB F15 Nut;Rod End Bearing;M12x1.75P No Model Compatibility List $0.36 / Each

2,8,9,3
Z 701897 004926-00 Z30 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
Z 701914 004943-00 Z13 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Z 701915 004944-00 Z33 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 701980 005016-00 Z03 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702056 005084-00 Z02 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702098 005130-00 Z29 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
702243 005368-00 F11 C-Clip;External;S-35 No Model Compatibility List $1.66 / Each

2
K 702308 005847-A K08 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
Z 703901 019151-AA Z25 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

3,4,5,6
704108 020256-AB Z01 Screw;Hex Socket;BH;M5x0.8Px10L No Model Compatibility List $1.85 / Each

2
Z 704206 020479-A Z12 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 704220 020634-00 Z50 Tinnerman Nut;M5 No Model Compatibility List $2.00 / Each

2
704968 026875-C E36 CO-MOLDED EXERCISE HANDLE No Model Compatibility List $18.23 / Each

11
705318 040827-00 Z07 SCREW HEX 10X1.5X95 CHM No Model Compatibility List $4.00 / Each

2
Z 705359 048946-BA Z27 Disc;Plastic Interior No Model Compatibility List $3.64 / Each

9
Z 705360 048947-BA Z28 Disc;Plastic Exterior No Model Compatibility List $3.64 / Each

9
C 705369 048973-AA C15 Pad Frame Stabilizer No Model Compatibility List $3.35 / Each

3,12,13,14
705371 048983-CA T19 TAPE GRIP No Model Compatibility List $27.04 / Each

11
705377 049007-CA G09 ROLLER LOWER GUIDE No Model Compatibility List $3.82 / Each

8
T 705401 049061-BA T20 END CAP No Model Compatibility List $3.64 / Each

9
T 705402 049062-BA T16 END CAP No Model Compatibility List $3.64 / Each

9
705450 049231-A F09 ROLLER NYLON 20X25 No Model Compatibility List $1.79 / Each

8
705539 050301-A F10 AXLE ROLLER NYLON 20MM No Model Compatibility List $3.35 / Each

8
705550 050366-A G10 BUSHING CHM No Model Compatibility List $8.42 / Each

8
705556 050402-D K07 Pin Selector;Weight Plate No Model Compatibility List $25.09 / Each

3,12,13,14
705598 051917-AA AB1 FRAME WEIGHT STACK No Model Compatibility List $1181.28 / Each

3,4,5,6
705631 052196-AA AT4 LEG HOLD DOWN No Model Compatibility List $445.35 / Each

1
705634 052203-AA K05 GUIDE ROD CHM No Model Compatibility List $137.98 / Each

3
705641 052431-A K02 WEIGHT PLATE 10 LB. No Model Compatibility List $63.86 / Each

3
705660 053328-AA NOT SHOWN ROLLER PAD FOR LEGS No Model Compatibility List $83.02 / Each

8,12,13,14
705719 055340-A E08 LAT BAR DBL HOOK No Model Compatibility List $270.37 / Each

1
706181 060008-AA K03 BUSHING INNER WEIGHT PLATE No Model Compatibility List $1.79 / Each

8,3
706215 060265-A V13 DECAL WEIGHT PLATE No Model Compatibility List $3.64 / Each

7,3
706275 060709-Z AF1 PULLEY TRI-FLOATING ASSEMBLY No Model Compatibility List $261.07 / Each

8,3
706407 061848-AA AG2 ROLLER UPPER GUIDE No Model Compatibility List $48.41 / Each

8
B 706532 063070-A B14 Hook Snap No Model Compatibility List $9.10 / Each

1
706556 063483-AA F20 BOLT 10X1.5X1138 CHM No Model Compatibility List $10.01 / Each

2
706557 063484-AA F19 BOLT 10X1.5X132 CHM No Model Compatibility List $9.28 / Each

2
706558 063485-AA Z14 BOLT M10X1.5X48 CHM No Model Compatibility List $4.00 / Each

2
706559 063487-AA Z10 BOLT 10X1.5X98 CHM No Model Compatibility List $9.28 / Each

2
706560 063488-AA Z31 BOLT 8X1.25X62 CHM No Model Compatibility List $3.69 / Each

2
706654 064225-AX V14 Decal;Vision Fitness No Model Compatibility List $47.37 / Each

7,3
706867 066448-A Z09 SCREW HEX 10X1.5X68 CHM No Model Compatibility List $3.69 / Each

2
706943 067316-A NOT SHOWN HARDWARE KIT BLACK No Model Compatibility List $18.56 / Each

4,5,6
706944 067317-A NOT SHOWN HARDWARE KIT YELLOW No Model Compatibility List $24.31 / Each

1
707312 1000091939 NOT SHOWN Bolt;Cable;4.8mm Slotted;M12x60 No Model Compatibility List $13.03 / Each

2,4,5,6
707583 1000093516 Q06 COVER RIGHT No Model Compatibility List $119.78 / Each

9
707584 1000093517 Q05 COVER LEFT No Model Compatibility List $119.78 / Each

9
707585 1000093518 Q04 COVER CENTER No Model Compatibility List $106.37 / Each

9
707592 1000093564 AG1 UPRIGHT FRONT VERTICAL No Model Compatibility List $0.00 / Each
Out Of Stock 		3
707893 1000096716 F17 CABLE #1 6170mm No Model Compatibility List $175.99 / Each

4,5,6
707894 1000096717 F18 CABLE #2 2400mm No Model Compatibility List $77.43 / Each

4,5,6
708236 1000101378 B10 BRACKET CONNECTING TOP & BOTTOM No Model Compatibility List $71.34 / Each

2,3,4,5,6
708300 1000101896 B09 BRACKET SIDE CONNECTING No Model Compatibility List $61.33 / Each

2,3,4,5,6
708528 1000103099 AF3 BRACKET TOP PLATE PULLEY No Model Compatibility List $143.16 / Each

2,8,3,4,5,6
708809 1000106118 AT1 SUPPORT FLOOR MAIN No Model Compatibility List $607.67 / Each

3
708820 1000106144 C05 BRACKET COVER MOUNTING No Model Compatibility List $59.90 / Each

2,9,3,4,5,6
708821 1000106145 F03 COVER PULLEY SIDE No Model Compatibility List $51.17 / Each

8,9
708842 1000106207 F08 BEARING HOUSING(service) No Model Compatibility List $111.15 / Each

8
708848 1000106228 Q03 SHIELD BACK No Model Compatibility List $470.91 / Each

3,4,5,6
709011 1000108226 Q01 SHIELD FRONT LEFT No Model Compatibility List $261.38 / Each

3
709012 1000108227 Q02 SHIELD FRONT RIGHT No Model Compatibility List $255.37 / Each

3
709045 1000108680 AG3 MOUNT INSTRUCTIONAL PLACARD No Model Compatibility List $16.87 / Each

2,4,5,6
E 721052 1000380094 E07 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
725461 071498 AE1 Handle; Row No Model Compatibility List $100.15 / Each

11
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
727007 086641 K01 Top Plate Assembly No Model Compatibility List $206.75 / Each

3
729010 ORDER K09 K01 PLATE WEIGHT TOP No Model Compatibility List $0.00 / Each
Out Of Stock 		3
