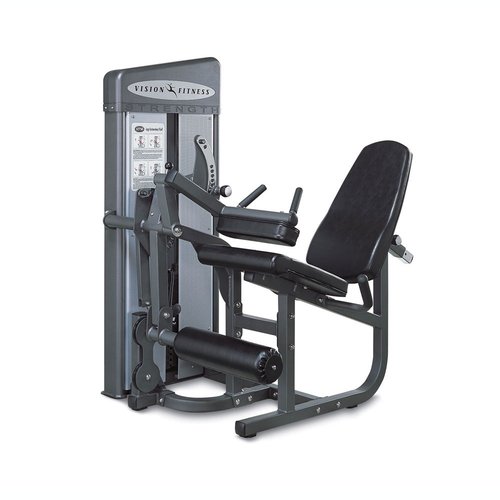

Vision Fitness - ST750 - 2007

Repair Parts for Vision Fitness ST750 GM86

Brand: Vision Fitness

Category: Single Station

Type: Strength Systems

Model Name: ST750

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700388 001191-00 F05 COVER DUAL PULLEY No Model Compatibility List $9.02 / Each

8,9
D 700448 001402-A D38 End Cap;Round No Model Compatibility List $1.79 / Each

9
C 700467 001440-AA C17 Seat Adjustment Knob No Model Compatibility List $9.10 / Each
Out Of Stock 		12,13,14
Z 700494 001510-B Z15 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
H 700519 001523-E H08 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
H 701159 004077-A2 H07 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
D 701183 004118-00 D31 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
C 701660 004696-AB C20 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701677 004711-AE Z42 Screw;Hex Socket;BH;;M5x0.8Px15L No Model Compatibility List $1.79 / Each

2
D 701723 004743-00 D27 Screw;Hex Socket;BH;M8x1.25Px60L(Tooth20) No Model Compatibility List $1.66 / Each

2
Z 701758 004780-00 Z01 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere No Model Compatibility List $2.00 / Each

2
Z 701761 004781-00 Z07 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere; No Model Compatibility List $9.10 / Each

2
701767 004789-AC Z03 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $3.69 / Each

2
701777 004794-AD Z06 SCREW HEX M12X25 CHM No Model Compatibility List $4.00 / Each

2
Z 701783 004797-AC Z33 Screw;Hex;10X1.5X70L No Model Compatibility List $10.01 / Each

2
Z 701790 004805-AB Z39 Screw;Umbrella Hex Scoket;M10x1.5Px65L No Model Compatibility List $9.10 / Each

2
Z 701901 004929-00 Z35 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701914 004943-00 Z29 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Z 701968 005007-00 Z32 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701970 005009-AB Z38 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

2
Z 701980 005016-00 Z12 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701981 005017-00 Z41 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
D 702013 005048-00 D28 Washer;Flat;8.2x15.0x1.2T No Model Compatibility List $2.00 / Each

2
Z 702056 005084-00 Z11 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702098 005130-00 Z36 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702102 005132-00 Z31 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
702178 005220-00 Z26 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
K 702308 005847-A K08 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
Z 702530 008522-C Z23 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
K 702719 009365-00 K07 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
703884 018979-B D23 END CAP ADJUSTMENT LEVER No Model Compatibility List $1.66 / Each

9,3
703887 018997-AA D45 TIP DELRIN No Model Compatibility List $1.79 / Each

1
Z 703901 019151-AA Z14 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

3,4,5,6
H 704001 020090-00 H09 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
704108 020256-AB Z10 Screw;Hex Socket;BH;M5x0.8Px10L No Model Compatibility List $1.85 / Each

2
Z 704206 020479-A Z28 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 704220 020634-00 Z37 Tinnerman Nut;M5 No Model Compatibility List $2.00 / Each

2
D 704316 022395-B D40 Sleeve;Axle;20X40MM No Model Compatibility List $3.64 / Each

8,3
D 704319 022400-A D39 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

2,12,13,14
E 705014 029160-AA E04 End Cap;Handlebar No Model Compatibility List $1.79 / Each

9,11
705350 048923-00 D26 HANDLE SHAFT ROM/EXERCISE SELECTOR No Model Compatibility List $9.10 / Each

3,11
D 705360 048947-BA D41 Disc;Plastic Exterior No Model Compatibility List $3.64 / Each

9
C 705369 048973-AA C18 Pad Frame Stabilizer No Model Compatibility List $3.35 / Each

3,12,13,14
J 705401 049061-BA J05 END CAP No Model Compatibility List $3.64 / Each

9
F 705402 049062-BA F06 END CAP No Model Compatibility List $3.64 / Each

9
705427 049139-BA D42 END CAP No Model Compatibility List $1.79 / Each

9
705520 049916-A Z27 BRACKET L No Model Compatibility List $8.87 / Each

2,3,4,5,6
705524 050060-B D18 ADJUSTABLE PLATE No Model Compatibility List $19.14 / Each

3
705525 050061-A H06 PLATE ROM CHM No Model Compatibility List $26.62 / Each

3
705532 050238-B Z40 Screw;BH;10X8X26;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
705546 050328-A D20 AXLE LEG PAD EXERCISE ARM 78MM L No Model Compatibility List $18.23 / Each

8,3,12,13,14
705549 050352-A H10 Spacer;Steel;20X11X6 No Model Compatibility List $3.64 / Each

2,3,4,5,6
705556 050402-D K13 Pin Selector;Weight Plate No Model Compatibility List $25.09 / Each

3,12,13,14
705557 050403-A D25 PIN ROLL M4X35 No Model Compatibility List $1.79 / Each

12,13,14
C 705562 050468-A C24 Bushing;Brass No Model Compatibility List $3.64 / Each

8
705583 051745-C D32 PULL PIN 60MM No Model Compatibility List $18.23 / Each

12,13,14
705618 052110-AA AJ1 SEAT BACK POST No Model Compatibility List $383.60 / Each

4,5,6,12,13,14
705641 052431-A K02 WEIGHT PLATE 10 LB. No Model Compatibility List $63.86 / Each

3
705723 055344-C D21 SHAFT HORIZONTAL ROM/EXERCISE No Model Compatibility List $18.23 / Each

3
706086 058952-AA D43 FOAM GRIP 125MM No Model Compatibility List $9.10 / Each

11
C 706092 059003-A C26 Washer;Flat;12.5X50X2;Chromed No Model Compatibility List $10.01 / Each

7,2,12,13,14
706181 060008-AA K03 BUSHING INNER WEIGHT PLATE No Model Compatibility List $1.79 / Each

8,3
706213 060252-A Z43 SCREW HEX 10X1.5X140 CHM No Model Compatibility List $18.56 / Each

2
706321 061198-Z AD1 ARM SWING No Model Compatibility List $360.07 / Each

3
706322 061201-Z AD3 SUPPORT THIGH PAD No Model Compatibility List $238.81 / Each

3,12,13,14
706323 061202-Z AC2 SUPPORT SWING ARM No Model Compatibility List $424.27 / Each

3
706324 061203-Z AF1 BRACKET DUAL PULLEY No Model Compatibility List $297.91 / Each

2,8,3,4,5,6
706325 061204-Z AH1 ADJUSTMENT ROM No Model Compatibility List $314.03 / Each

1
706387 061748-AA AD4 SHAFT ROM/EXERCISE SELECTOR No Model Compatibility List $61.18 / Each

3
Z 706533 063161-AA Z13 Screw;Hex Socket;MX8X1.25X62L-20L;Chromed Yes Model Compatibility List $7.90 / Each

2
706534 063162-AA Z05 SCREW HEX M10X98 CHM No Model Compatibility List $3.69 / Each

2
706541 063237-AB Z04 SCREW HEX M10X1.5X48 CHM PARTIAL No Model Compatibility List $4.00 / Each

2
706543 063240-AA Q06 COVER TOP RIGHT No Model Compatibility List $81.02 / Each

9
706544 063241-AA Q07 COVER TOP LEFT No Model Compatibility List $81.02 / Each

9
706814 065801-A V06 DECALS WEIGHT PLATES No Model Compatibility List $39.55 / Each

7,3
706909 067130-A V15 DECAL VF PANEL 700 SERIES No Model Compatibility List $1.66 / Each

7,3
706910 067156-A NOT SHOWN MANUAL ASSEMBLY/OWNER ST750 No Model Compatibility List $34.79 / Each

3
706911 067163-A NOT SHOWN HARDWARE KIT PINK No Model Compatibility List $54.89 / Each

12,13,14
706912 067164-A NOT SHOWN HARDWARE KIT GREEN No Model Compatibility List $18.56 / Each

1
706913 067165-A NOT SHOWN HARDWARE KIT BLACK No Model Compatibility List $18.56 / Each

4,5,6
706914 067166-A NOT SHOWN HARDWARE KIT YELLOW No Model Compatibility List $3.69 / Each

1
706915 067167-A NOT SHOWN HARDWARE KIT RED No Model Compatibility List $9.28 / Each

1
706916 067168-A NOT SHOWN HARDWARE KIT LIGHT BLUE No Model Compatibility List $42.72 / Each

1
706925 067259-A NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $28.11 / Each

1
706984 067878-A V07 DCEAL INSTRUCTION ST750 No Model Compatibility List $55.41 / Each

4,5,6
707209 1000091214 AB1 WEIGHT STACK TOWER No Model Compatibility List $1.30 / Each

3,4,5,6
707211 1000091220 AG3 SUPPORT CENTER FLOOR No Model Compatibility List $347.39 / Each

3
707312 1000091939 NOT SHOWN Bolt;Cable;4.8mm Slotted;M12x60 No Model Compatibility List $13.03 / Each

2,4,5,6
707573 1000093454 AD2 ARM LEG PAD EXERCISE No Model Compatibility List $237.43 / Each

3,12,13,14
707580 1000093471 AG4 CONNECTING TUBE STABILIZER No Model Compatibility List $478.58 / Each

3
707586 1000093541 AC1 FRAME SEAT SUPPORT No Model Compatibility List $671.19 / Each

3,12,13,14
707875 1000096559 F07 CABLE 3480mm No Model Compatibility List $113.02 / Each

4,5,6
708236 1000101378 B10 BRACKET CONNECTING TOP & BOTTOM No Model Compatibility List $71.34 / Each

2,3,4,5,6
708300 1000101896 B09 BRACKET SIDE CONNECTING No Model Compatibility List $61.33 / Each

2,3,4,5,6
708800 1000106079 Q01 SHIELD LEFT No Model Compatibility List $96.80 / Each

3
708813 1000106126 Q02 SHIELD RIGHT No Model Compatibility List $127.56 / Each

3
708814 1000106127 Q03 SHIELD REAR No Model Compatibility List $226.33 / Each

3
708831 1000106186 AG1 FRAME CONNECTING SUPPORT No Model Compatibility List $70.28 / Each

3
711476 1000220854 AG2 DISASSEMBLY CONNECT SET;SA;R;GM86-KM;SER No Model Compatibility List $195.81 / Each

3
D 719252 1000358938 D24 Spring;Compression;1.2x12.9x65Lx12N;65 No Model Compatibility List $1.43 / Each

2
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
727007 086641 K01 Top Plate Assembly No Model Compatibility List $206.75 / Each

3
729009 ORDER K04 K01 PLATE WEIGHT TOP No Model Compatibility List $0.00 / Each
Out Of Stock 		3
