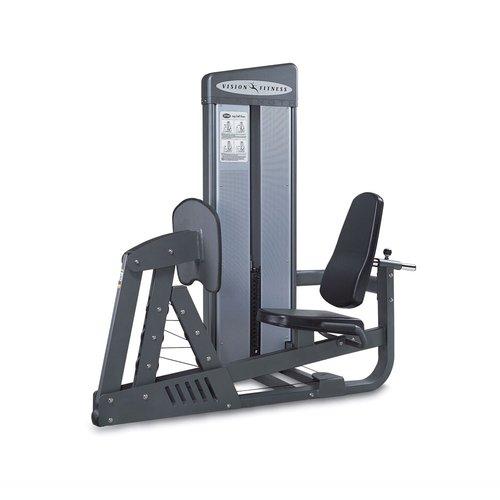

Vision Fitness - ST760 - 2007

Repair Parts for Vision Fitness ST760 GM85

Brand: Vision Fitness

Category: Single Station

Type: Strength Systems

Model Name: ST760

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
H 700314 000933-C H03 End Cap;Guide Rail Yes Model Compatibility List $14.77 / Each

9
C 700467 001440-AA C18 Seat Adjustment Knob No Model Compatibility List $9.10 / Each
Out Of Stock 		12,13,14
Z 700494 001510-B Z41 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
B 701660 004696-AB B08 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701674 004708-AD C19 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
Z 701758 004780-00 Z15 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere No Model Compatibility List $2.00 / Each

2

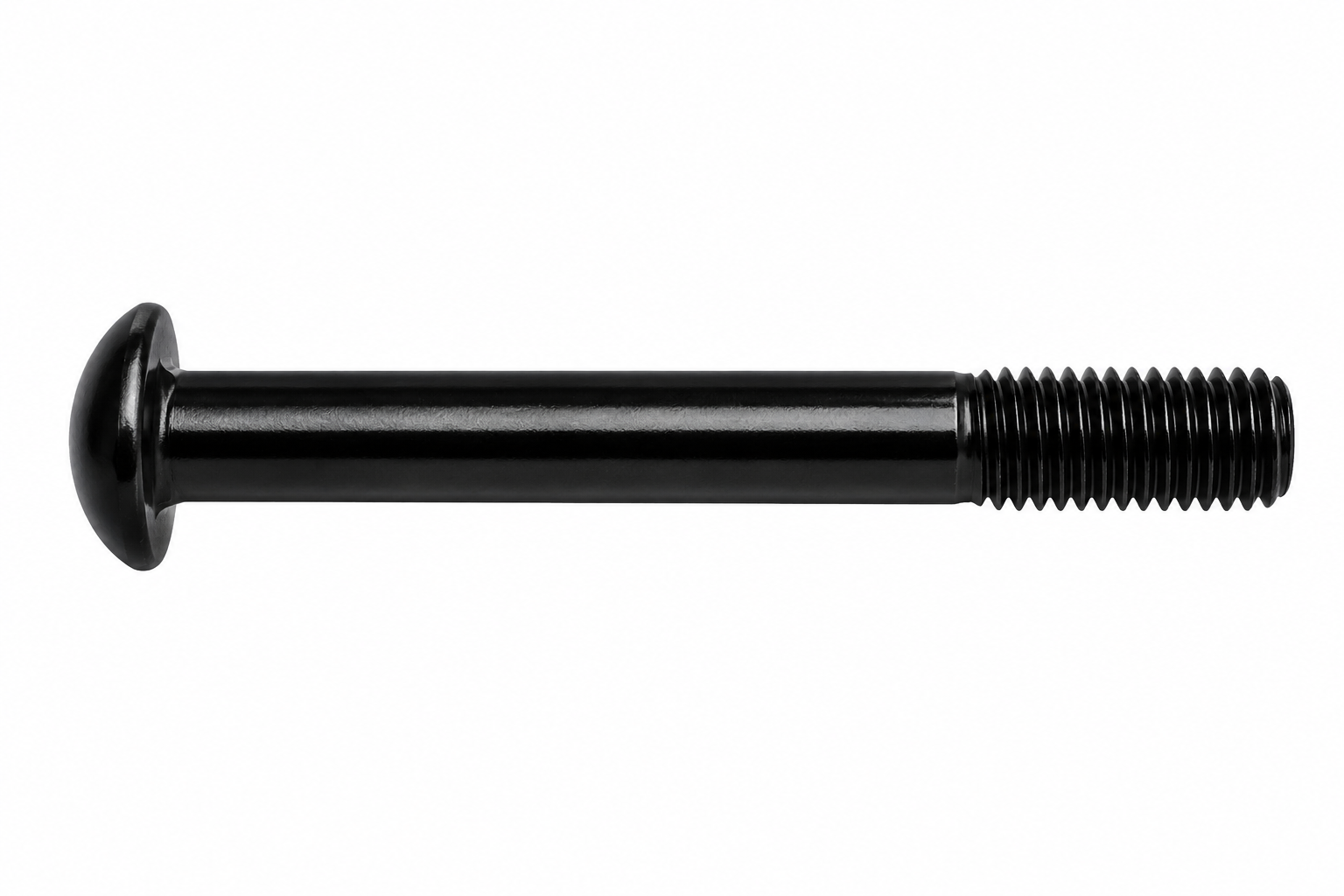

Z 701768 004789-Z Z06 Screw;Hex Socket;M10x1.5Px75L No Model Compatibility List $10.01 / Each

2
Z 701783 004797-AC Z03 Screw;Hex;10X1.5X70L No Model Compatibility List $10.01 / Each

2
Z 701790 004805-AB Z02 Screw;Umbrella Hex Scoket;M10x1.5Px65L No Model Compatibility List $9.10 / Each

2
Z 701792 004808-AF Z01 Screw;Umbrella Hex Scoket;M10x1.5Px120L No Model Compatibility List $18.23 / Each

2
Z 701901 004929-00 Z38 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701914 004943-00 Z11 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
C 701941 004976-00 C20 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701980 005016-00 Z34 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701981 005017-00 Z09 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
702059 005085-AD Z33 Washer;Flat;5.2x10.0x1.5T;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 702098 005130-00 Z36 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702151 005186-00 Z08 Washer;Teflon;20.3X30X1.0T No Model Compatibility List $1.79 / Each

2
K 702308 005847-A K09 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
K 702719 009365-00 K08 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
702723 009373-E C17 Delrin Insert No Model Compatibility List $3.64 / Each

1
Z 703901 019151-AA Z42 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

3,4,5,6
Z 704107 020256-00 Z32 Screw;Oval Hex Socket;M5x.8Px10L;Black Zinc No Model Compatibility List $4.00 / Each

2,4,5,6
704123 020289-00 Z07 Screw;Hex Socket;BH;M10x1.5Px60;Chromed No Model Compatibility List $3.64 / Each

7,2,12,13,14
Z 704193 020465-AB Z05 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 704206 020479-A Z10 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 704220 020634-00 Z40 Tinnerman Nut;M5 No Model Compatibility List $2.00 / Each

2
C 704284 022231-A C16 Pad Frame Stabilizer No Model Compatibility List $1.79 / Each

3,12,13,14
C 705014 029160-AA C22 End Cap;Handlebar No Model Compatibility List $1.79 / Each

9,11
705372 048984-AA D09 RUBBER PEDAL No Model Compatibility List $146.41 / Each

8,9
705380 049012-AA C14 GRIP FOAM HANDLEBAR 200MM No Model Compatibility List $3.54 / Each

11
D 705432 049152-A D12 Swing Arm Stop;Rubber No Model Compatibility List $8.42 / Each

3
705536 050296-B Z18 SHAFT 98mm No Model Compatibility List $16.87 / Each

3
705537 050297-C Z19 SHAFT 105mm No Model Compatibility List $16.87 / Each

3
705552 050378-B Z20 SPACER 15x11.5 CHM No Model Compatibility List $3.64 / Each

2,3,4,5,6
705556 050402-D K10 Pin Selector;Weight Plate No Model Compatibility List $25.09 / Each

3,12,13,14
Z 705559 050411-B Z21 Spacer 15x21.5 CHM No Model Compatibility List $9.10 / Each

2,3,4,5,6
D 705562 050468-A D10 Bushing;Brass No Model Compatibility List $3.64 / Each

8
705599 051918-AA AB1 WEIGHT STACK TOWER No Model Compatibility List $1163.40 / Each

3,4,5,6
705605 051952-AA AC1 SUPPORT SEAT MAIN No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
705608 052009-AA AH1 POST SEAT BACK No Model Compatibility List $412.70 / Each

4,5,6,12,13,14
705623 052156-AA AG2 SUPPORT CENTER FLOOR No Model Compatibility List $240.08 / Each

3
705637 052207-AA K05 GUIDE ROD CHM No Model Compatibility List $293.23 / Each

3
705641 052431-A K02 WEIGHT PLATE 10 LB. No Model Compatibility List $63.86 / Each

3
705655 053320-AA C24 PAD SEAT BACK PRESS ARM No Model Compatibility List $259.22 / Each

3,4,5,6,12,13,14
706181 060008-AA K03 BUSHING INNER WEIGHT PLATE No Model Compatibility List $1.79 / Each

8,3
706215 060265-A V15 DECAL WEIGHT PLATE No Model Compatibility List $3.64 / Each

7,3
706291 060826-Z1 AD1 EXERCISE ARM W/PULLEYS No Model Compatibility List $830.36 / Each

8,3
706292 060826-Z2 AD2 EXERCISE ARM W/O PULLEYS No Model Compatibility List $559.70 / Each

8,3
Z 706533 063161-AA Z37 Screw;Hex Socket;MX8X1.25X62L-20L;Chromed Yes Model Compatibility List $7.90 / Each

2
706543 063240-AA Q05 COVER TOP RIGHT No Model Compatibility List $81.02 / Each

9
706544 063241-AA Q06 COVER TOP LEFT No Model Compatibility List $81.02 / Each

9
706558 063485-AA Z39 BOLT M10X1.5X48 CHM No Model Compatibility List $4.00 / Each

2
706566 063530-AA Z04 BOLT 10X1.5X123 CHM No Model Compatibility List $9.28 / Each

2
706875 066513-AA C23 PAD SEAT No Model Compatibility List $219.73 / Each

12,13,14
706909 067130-A V14 DECAL VF PANEL 700 SERIES No Model Compatibility List $1.66 / Each

7,3
706919 067223-A V17 DECAL INSTRUCTION ST760 No Model Compatibility List $1.66 / Each

7,3
706920 067230-A NOT SHOWN HARDWARE KIT RED No Model Compatibility List $31.02 / Each

1
707312 1000091939 NOT SHOWN Bolt;Cable;4.8mm Slotted;M12x60 No Model Compatibility List $13.03 / Each

2,4,5,6
707876 1000096560 Z23 CABLE 6650MM No Model Compatibility List $225.37 / Each

4,5,6
707998 1000097488 Q01 Shield;Rear No Model Compatibility List $599.33 / Each

3
708002 1000097502 Q02 Shield;Right No Model Compatibility List $246.48 / Each

3
708003 1000097503 Q03 Shield;Left No Model Compatibility List $246.48 / Each

3
708236 1000101378 B10 BRACKET CONNECTING TOP & BOTTOM No Model Compatibility List $71.34 / Each

2,3,4,5,6
708300 1000101896 B09 BRACKET SIDE CONNECTING No Model Compatibility List $61.33 / Each

2,3,4,5,6
708405 1000102683 AD3 FOOT PLATE No Model Compatibility List $305.79 / Each

9,3
708822 1000106147 C13 COVER SIDE No Model Compatibility List $43.81 / Each

9
708829 1000106184 AG1 CONNECTING BRACE No Model Compatibility List $116.48 / Each

3,4,5,6
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
727007 086641 K01 Top Plate Assembly No Model Compatibility List $206.75 / Each

3
729009 ORDER K04 K01 PLATE WEIGHT TOP No Model Compatibility List $0.00 / Each
Out Of Stock 		3
