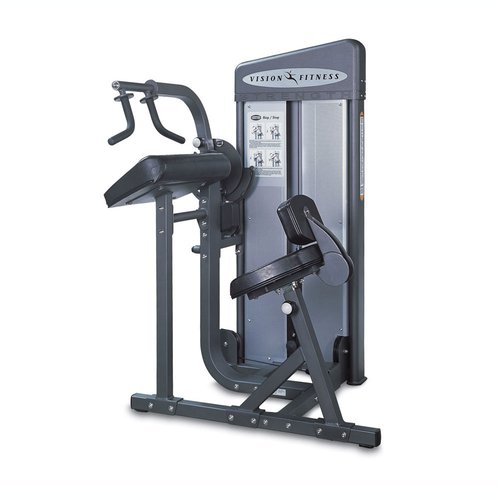

Vision Fitness - ST770 - 2007

Repair Parts for Vision Fitness ST770 GM83

Brand: Vision Fitness

Category: Single Station

Type: Strength Systems

Model Name: ST770

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
T 700467 001440-AA T27 Seat Adjustment Knob No Model Compatibility List $9.10 / Each
Out Of Stock 		12,13,14
Z 700494 001510-B Z37 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
F 700519 001523-E F19 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
C 700526 001529-B C20 Stopper Bolt;Rubber No Model Compatibility List $1.79 / Each

2
F 701159 004077-A2 F17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
C 701660 004696-AB C15 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701677 004711-AE Z21 Screw;Hex Socket;BH;;M5x0.8Px15L No Model Compatibility List $1.79 / Each

2
Z 701758 004780-00 Z05 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere No Model Compatibility List $2.00 / Each

2
701767 004789-AC Z09 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $3.69 / Each

2
701777 004794-AD Z16 SCREW HEX M12X25 CHM No Model Compatibility List $4.00 / Each

2
Z 701783 004797-AC Z08 Screw;Hex;10X1.5X70L No Model Compatibility List $10.01 / Each

2
Z 701790 004805-AB Z07 Screw;Umbrella Hex Scoket;M10x1.5Px65L No Model Compatibility List $9.10 / Each

2
Z 701792 004808-AF Z11 Screw;Umbrella Hex Scoket;M10x1.5Px120L No Model Compatibility List $18.23 / Each

2
701809 004825-A Z22 BOLT BH M10X45 PARTIAL CHM No Model Compatibility List $1.85 / Each

2
F 701842 004859-AC F28 Screw;BH;M8X1.25PX20L;;HS;;CHM;; No Model Compatibility List $2.00 / Each

2
Z 701897 004926-00 Z38 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
Z 701914 004943-00 Z15 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Z 701968 005007-00 Z18 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701980 005016-00 Z04 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702056 005084-00 Z03 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702098 005130-00 Z12 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702102 005132-00 Z17 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
702178 005220-00 Z19 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
K 702308 005847-A K08 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
Z 702530 008522-C Z28 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
K 702719 009365-00 K07 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
Z 703901 019151-AA Z36 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

3,4,5,6
F 704001 020090-00 F27 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
Z 704107 020256-00 Z47 Screw;Oval Hex Socket;M5x.8Px10L;Black Zinc No Model Compatibility List $4.00 / Each

2,4,5,6
Z 704206 020479-A Z14 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 704220 020634-00 Z39 Tinnerman Nut;M5 No Model Compatibility List $2.00 / Each

2
E 704281 022221-A E12 Ring;Exercise Arm;Rubber No Model Compatibility List $24.65 / Each

3
Z 704316 022395-B Z31 Sleeve;Axle;20X40MM No Model Compatibility List $3.64 / Each

8,3
Z 704319 022400-A Z20 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

2,12,13,14
C 705369 048973-AA C21 Pad Frame Stabilizer No Model Compatibility List $3.35 / Each

3,12,13,14
705376 049002-BA E04 GRIP FOAM 25.4x3.0tx298L No Model Compatibility List $18.23 / Each

11
705391 049045-AA F29 END CAP 30x60x2 No Model Compatibility List $1.66 / Each

9
705397 049054-AA T08 END CAP 25.4X25.4X2 No Model Compatibility List $1.66 / Each

9
T 705402 049062-BA T17 END CAP No Model Compatibility List $3.64 / Each

9
705427 049139-BA E11 END CAP No Model Compatibility List $1.79 / Each

9
705520 049916-A Z35 BRACKET L No Model Compatibility List $8.87 / Each

2,3,4,5,6
Z 705531 050236-C Z01 Screw;;10.2XM8X12L;;;;CHM;;SB No Model Compatibility List $3.35 / Each

2
705548 050341-B F24 COUNTERWEIGHT No Model Compatibility List $79.30 / Each

3
705556 050402-D K13 Pin Selector;Weight Plate No Model Compatibility List $25.09 / Each

3,12,13,14
705582 051744-C B29 KNOB SPRING PIN ASSEMBLY 80MM No Model Compatibility List $9.10 / Each
Out Of Stock 		2,3,12,13,14
705604 051946-AA AC1 SUPPORT FLOOR MAIN No Model Compatibility List $400.01 / Each

3
705607 051991-AA AC4 SUPPORT SWING ARM No Model Compatibility List $306.85 / Each

3
705616 052097-AA AT1 FIX SET WELDING;SEAT;EXRTA-WORK;CR PLATE No Model Compatibility List $364.65 / Each

3,12,13,14
705641 052431-A K02 WEIGHT PLATE 10 LB. No Model Compatibility List $63.86 / Each

3
705653 053318-AA B14 PAD SEAT BACK No Model Compatibility List $54.73 / Each

4,5,6,12,13,14
705658 053323-AA B15 PAD ARM REST No Model Compatibility List $182.44 / Each

3,12,13,14
705695 055194-A E07 BEARING BALL3030 FLANGE No Model Compatibility List $9.57 / Each

8
706181 060008-AA K03 BUSHING INNER WEIGHT PLATE No Model Compatibility List $1.79 / Each

8,3
706213 060252-A Z13 SCREW HEX 10X1.5X140 CHM No Model Compatibility List $18.56 / Each

2
706326 061206-Z AF3 ARM SWING No Model Compatibility List $394.34 / Each

3
706327 061207-Z AF1 CAM ROM PLATE No Model Compatibility List $779.84 / Each

3
706328 061209-Z AT2 POST SEAT FRAME ASSEMBLY No Model Compatibility List $615.34 / Each

3,12,13,14
Z 706533 063161-AA Z10 Screw;Hex Socket;MX8X1.25X62L-20L;Chromed Yes Model Compatibility List $7.90 / Each

2
706543 063240-AA Q06 COVER TOP RIGHT No Model Compatibility List $81.02 / Each

9
706544 063241-AA Q07 COVER TOP LEFT No Model Compatibility List $81.02 / Each

9
706558 063485-AA Z06 BOLT M10X1.5X48 CHM No Model Compatibility List $4.00 / Each

2
706813 065800-A V01 DECAL INSTRUCTION ST770 No Model Compatibility List $3.35 / Each

7,3
706814 065801-A V02 DECALS WEIGHT PLATES No Model Compatibility List $39.55 / Each

7,3
706909 067130-A V14 DECAL VF PANEL 700 SERIES No Model Compatibility List $1.66 / Each

7,3
707038 068843-A NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $35.70 / Each

1
707062 070035-A NOT SHOWN HARDWARE KIT YELLOW No Model Compatibility List $18.56 / Each

1
707063 070036-A NOT SHOWN HARDWARE KIT RED No Model Compatibility List $18.56 / Each

1
707312 1000091939 NOT SHOWN Bolt;Cable;4.8mm Slotted;M12x60 No Model Compatibility List $13.03 / Each

2,4,5,6
707871 1000096555 F20 CABLE 3745MM No Model Compatibility List $120.56 / Each

4,5,6
708024 1000097847 AB1 WEIGHT STACK TOWER No Model Compatibility List $1.30 / Each

3,4,5,6
708236 1000101378 B10 BRACKET CONNECTING TOP & BOTTOM No Model Compatibility List $71.34 / Each

2,3,4,5,6
708300 1000101896 B09 BRACKET SIDE CONNECTING No Model Compatibility List $61.33 / Each

2,3,4,5,6
708301 1000101897 Q01 SHIELD FRONT LEFT No Model Compatibility List $329.32 / Each

3
708302 1000101898 Q02 SHIELD FRONT RIGHT No Model Compatibility List $336.75 / Each

3
708814 1000106127 Q03 SHIELD REAR No Model Compatibility List $226.33 / Each

3
708826 1000106179 Z42 Plate Support;Swivel Arm No Model Compatibility List $33.54 / Each

3
708827 1000106180 AC5 SUPPORT LEFT FLOOR No Model Compatibility List $138.94 / Each

3
708834 1000106189 AC3 SUPPORT MAIN SEAT No Model Compatibility List $138.29 / Each

3,12,13,14
708835 1000106190 AG2 BRACE CONNECTING No Model Compatibility List $78.36 / Each

3,4,5,6
708866 1000106837 AC2 SUPPORT ARM PAD No Model Compatibility List $168.64 / Each

3,12,13,14
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

8
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
727007 086641 K01 Top Plate Assembly No Model Compatibility List $206.75 / Each

3
729009 ORDER K04 K01 PLATE WEIGHT TOP No Model Compatibility List $0.00 / Each
Out Of Stock 		3
View Drawing
