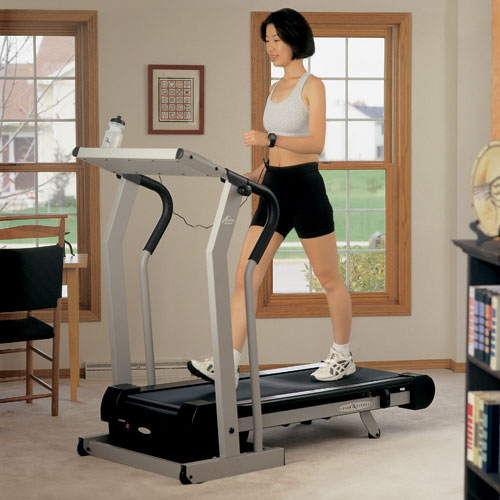

Vision Fitness - T7200 - 1998-2000

Repair Parts for Vision Fitness T7200 T7200

Brand: Vision Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T7200

Version: 1998-2000

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Switch
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700013 000020-C2 L01 Wheel;;;Nylon;74;;;;TM08 Yes Model Compatibility List $3.82 / Each

8
700074 000266-00 Q03 COVER END REAR UPPER RIGHT No Model Compatibility List $9.57 / Each

9
K 700132 000485-00 K08 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
700238 000758-B B15 PAD DECK CUSHION No Model Compatibility List $9.10 / Each

3,12,13,14
M 700291 000877-B M06 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $2.18 / Each

10,12,13,14
C 700405 001258-00 C09 KNOB FIX Yes Model Compatibility List $19.21 / Each

1
N 700701 001955-00 N23 Reed Switch Yes Model Compatibility List $25.40 / Each

4,5,6
P 700746 002124-B P07 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
P 700750 002137-E P06 Power Cord;3000;3000;16AWG No Model Compatibility List $54.73 / Each

4,5,6
700976 003104-00 N03 TOUCH BOARD SIMPLE No Model Compatibility List $36.48 / Each

1
701013 003326-00 P01 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
P 701018 003340-C P03 Circuit Breaker;20A/110V - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $37.75 / Each

4,5,6
701024 003356-00 P02 Power Socket;Large;100-120-170 No Model Compatibility List $12.71 / Each

4,5,6
P 701364 004415-Z P11 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
R 701519 004551-ZA R11 Screw;SH;M8X1.25PX80L-20L ;;HS;;;;P-T Yes Model Compatibility List $7.20 / Each

2
B 701530 004562-00 B18 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
M 701550 004577-00 M17 Screw;Round Hex Socket;5/16-18UNCx3/4L No Model Compatibility List $1.79 / Each

2
Q 701585 004616-00 Q15 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

2
701597 004621-00 N07 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
701663 004698-Z L03 BOLT PH M8X50 PARTIAL No Model Compatibility List $1.79 / Each

2
G 701690 004719-00 G08 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
G 701717 004737-00 G09 Screw;BH;M8x1.25Px55L-20L No Model Compatibility List $2.00 / Each

2
B 701891 004924-00 B20 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 701897 004926-00 M11 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q16 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
702457 007535-Z Q11 Washer;SP;8X30.5X4;Deck No Model Compatibility List $1.85 / Each

2,3
A 703780 016376-Z AR1 ROLLER ASSEMBLY FRONT D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $337.97 / Each
Out Of Stock 		3,8
704067 020177-00 Q14 SCREW BH M4X75 No Model Compatibility List $1.85 / Each

2
704069 020182-Z Q12 SCREW BH M4X50 No Model Compatibility List $1.85 / Each

2
704071 020183-Z Q13 SCREW BH M4X38 No Model Compatibility List $1.85 / Each

2
704102 020245-Z G07 Bolt;Phillip;M8x95;Partial No Model Compatibility List $3.35 / Each

2
A 704937 026438-Z AN3 SAFETY KEY ASSEMBLY Yes Model Compatibility List $41.68 / Each

3,9
M 704944 026570-Z1 M01 Drive Motor;2.0HP;Cambridge Yes Model Compatibility List $574.91 / Each

10
P 705072 035097-AA P05 Console Cable;8 Pin;3000mm Yes Model Compatibility List $38.53 / Each

4,5,6,7,12,13,14
R 709101 1000109551 R10 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $60.22 / Each

15,10
726827 085363 H10 Washer;Flat;8.2X16.0X1.6T;Zinc No Model Compatibility List $1.79 / Each

2
K 729334 ZMS1000217 KIT TREADMILL WAX WITH INSTRUCTIONS No Model Compatibility List $15.18 / Each

1
729341 ZMS1000258 Z06 POWER CORD GROMMET No Model Compatibility List $1.90 / Each

2,4,5,6
Console Cable;6 Pin;3000mm(Used) 1012776 035097-AA-00 1 Console Cable;6 Pin;3000mm(Used) Yes Model Compatibility List $15.59 / Each

5
BOLT FH M6X40 SHOULDER (Used ONly) 1017906 022252-B # 2 BOLT FH M6X40 SHOULDER (Used ONly) No Model Compatibility List $12.99 / Each

2
Handrail Cover 1020924 024862-00 0 1 Handrail Cover No Model Compatibility List $7.79 / Each

9
Front Handrail 1020923 t8100-fhr 0 1 Front Handrail No Model Compatibility List $25.99 / Each

3
Rear Roller T7200 T8100 (Used Only) 1021167 009808-Z 0 1 Rear Roller T7200 T8100 (Used Only) Yes Model Compatibility List $103.99 / Each

8
M 1000416 013680-DI M03 1 Lower Control Board Motor Controller Yes Model Compatibility List $319.00 / Each

48
P 1001381 003326-00 P01 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
M 1002261 013680-DI M03 1 Controller 110V Yes Model Compatibility List $299.00 / Each

1
R 1002356 1000109551 R10 1 Belt Drive Yes Model Compatibility List $31.99 / Each

23
P 1002369 003340-C P03 1 Circuit Breaker Yes Model Compatibility List $29.00 / Each

1
