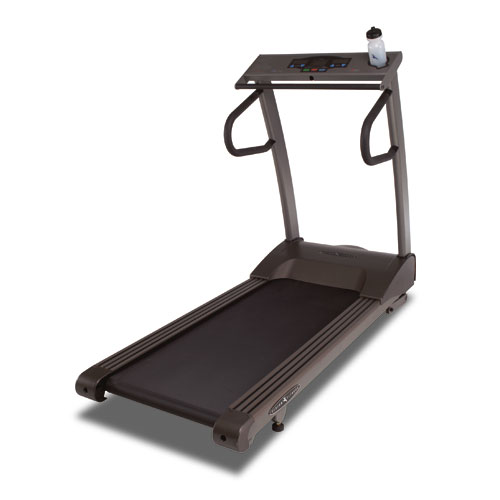

Repair Parts for Vision Fitness T9200 TM49
| Brand | Vision Fitness |
|---|---|
| Type | Non Folding Treadmills |
| Category | Non Folding |
| Model Number | TM49 |
| Model Name | T9200 |
| Version | 2002-2003 |
Model Numbers: TM49, TM49D
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1000416 | 013680-DI | 0 | 1 | Lower Control Board Motor Controller | No |
Compatibility List |
$389.00 / Each
|
|
1000538 | 002130-00 | 0 | 1 | Power Cord (Used) | No |
Compatibility List |
$22.99 / Each
|
|
1001381 | 003326-00 | 0 | 1 | Power Switch | No |
Compatibility List |
$20.00 / Each
|
|
1002261 | 013680-DI | 0 | 1 | Controller 110V | No |
Compatibility List |
$389.00 / Each
|
|
1002330 | 013680-DI | 0 | 1 | Controller 110V | No |
Compatibility List |
$389.00 / Each
|
|
700262 | 000808-B | 80 | Water Bottle | No |
Compatibility List |
$9.88 / Each
|
|
|
704938 | 026509-Z | AG1 | REST ARM ASSEMBLY | Yes |
Compatibility List |
$57.38 / Each
|
|
|
703817 | 018095-AA | AG2 | HANDLEBAR CONSOLE | No |
Compatibility List |
$93.78 / Each
|
|
|
|
704668 | 024769-A | AH1 | Elevation Rack D/C, NO REPL: Part will show as orderable until stock is depleted | No |
Compatibility List |
$86.71 / Each
Out Of Stock |
|
|
709033 | 1000108444 | AR1 | Roller Set, Front, W/O Texture, TM49 | No |
Compatibility List |
$249.13 / Each
|
|
|
1026398 | 1000108441 | AR2 | 1 | Roller Set Rear TM49 (Used) | No |
Compatibility List |
$39.59 / Each
Out Of Stock |
|
702160 | 005196-00 | B12 | Washer, Teflon, 10.5x20.0x1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702030 | 005062-00 | B21 | Washer, Flat, 10.2x19x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
|
703507 | 015054-AC | B25 | Fix Plate, Side Rail | No |
Compatibility List |
$1.38 / Each
|
|
|
710400 | 1000210086 | B26 | Running Deck, 605X1190LX25.4 | No |
Compatibility List |
$383.27 / Each
|
|
|
700239 | 000760-E | B30 | Elastomer, White | Yes |
Compatibility List |
$17.34 / Each
|
|
|
702029 | 005061-00 | B32 | Washer, Flat, 10.5x18x2.0T, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
709277 | 1000111750 | B32 | Leveler | Yes |
Compatibility List |
$4.37 / Each
|
|
|
1003973 | 1000111750 | B32 | Leveling Foot Leveler | No |
Compatibility List |
$12.99 / Each
|
|
|
702456 | 007528-BX | B34 | Belt Guide | Yes |
Compatibility List |
$5.98 / Each
|
|
|
701530 | 004562-00 | B36 | Bolt, Deck, M8x1.25Px35L | Yes |
Compatibility List |
$12.99 / Each
|
|
|
1020890 | 000763-E | B40 | 1 | Red Elastomer Version Used | No |
Compatibility List |
$9.59 / Each
|
|
700240 | 000761-D | B44 | Elastomer, Yellow, 12mm | No |
Compatibility List |
$15.31 / Each
|
|
|
700246 | 000768-D | B58 | Elastomer, Blue, 20x44L | Yes |
Compatibility List |
$18.64 / Each
|
|
|
701435 | 004482-00 | B60 | Screw, Round, Hex Socket, SH, M8X1.25PX20L | No |
Compatibility List |
$1.79 / Each
|
|
|
702033 | 005065-00 | B68 | Washer, Flat, 10x30x2.0T, Black Zinc | No |
Compatibility List |
$2.00 / Each
|
|
|
703506 | 015054-A | B72 | Fix Plate, Side Rail | Yes |
Compatibility List |
$8.53 / Each
|
|
|
|
704663 | 024694-B | C02 | Console Mast Set, Right | No |
Compatibility List |
$73.58 / Each
|
|
|
|
704665 | 024697-B | C02 | Console Mast Set, Right | No |
Compatibility List |
$139.91 / Each
|
|
|
701750 | 004774-00 | C10 | Long Handrail Button HeadScrew, Umbrella Hex Socket, M8X135L(20L) | Yes |
Compatibility List |
$10.99 / Each
|
|
|
704049 | 020134-00 | C22 | Counter Sunk Flat Head Screw, Hex Socket, M8X1.25X60L 20L, Partial | Yes |
Compatibility List |
$4.65 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
|
701283 | 004350-Z | C55 | BOLT BH M3X6 | No |
Compatibility List |
$2.00 / Each
|
|
|
702025 | 005058-00 | D18 | Washer, Flat, 12x26x2.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
702831 | 011179-00 | F21 | Washer, Teflon, M12x30Px1T | No |
Compatibility List |
$4.00 / Each
|
|
|
700534 | 001553-A | G04 | SLEEVE HANDLEBAR END | Yes |
Compatibility List |
$7.10 / Each
|
|
|
701320 | 004375-00 | G18 | Screw, Phillip, BH, M5x0.8Px15L, Gap, Zn BL | Yes |
Compatibility List |
$2.00 / Each
|
|
|
701968 | 005007-00 | G28 | Washer, Spring, 12.2x21.5x3.0t | No |
Compatibility List |
$3.88 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
700270 | 000826-00 | H07 | Bushings, Elevation Frame | Yes |
Compatibility List |
$5.80 / Each
|
|
|
703994 | 020077-00 | H09 | Screw, Hex Socket, Round, M12X1.75PX60L(30L) | No |
Compatibility List |
$4.00 / Each
|
|
|
701560 | 004591-00 | H10 | Screw, Hex, 3/8 16UNCx75L/Tooth20L | No |
Compatibility List |
$4.00 / Each
|
|
|
|
704169 | 020401-00 | H16 | Nut, Nlk, M12X1.75P | No |
Compatibility List |
$0.83 / Each
|
|
|
700013 | 000020-C2 | H18 | Wheel, Nylon, 74, TM08 | Yes |
Compatibility List |
$9.99 / Each
|
|
|
701529 | 004561-00 | H32 | Screw, Plain Hex Socket, M8x1.25Px20L | No |
Compatibility List |
$2.00 / Each
|
|
|
700288 | 000874-A2 | H37 | Rubber Stopper, AC003 >TS, TM16 | Yes |
Compatibility List |
$6.99 / Each
|
|
|
701863 | 004885-00 | J03 | Nut, Hex, M10x1.5P | No |
Compatibility List |
$2.00 / Each
|
|
|
701673 | 004706-A | J33 | Screw, TH, M6X1.0PX16L, HS, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
701008 | 003307-00 | KIT | Chest Strap, Polar, T34/T41 | No |
Compatibility List |
$76.99 / Each
|
|
|
700014 | 000021-B | L05 | Mobile Wheel, Rear Deck | Yes |
Compatibility List |
$11.62 / Each
|
|
|
701841 | 004859-00 | L05 | Screw, Umbrella Hex Scoket, M8x1.25Px20L | No |
Compatibility List |
$2.00 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
700402 | 001251-F | L10 | Rail Lock, Fixing Washer, Side Rail | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701585 | 004616-00 | L10 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
702040 | 005070-00 | L10 | Washer, Flat, 6.5x14x1.0T, Black Zinc | No |
Compatibility List |
$2.00 / Each
|
|
|
702852 | 012801-00 | M02 | Elevation Motor, 110V | Yes |
Compatibility List |
$383.27 / Each
|
|
|
|
700693 | 001858-00 | M03 | Motor Control Board, AC | No |
Compatibility List |
$749.00 / Each
|
|
|
703354 | 013680-DI | M03 | Motor Control Board | Yes |
Compatibility List |
$389.00 / Each
|
|
|
700291 | 000877-B | M05 | Rubber Pad, Motor, Anti Shake | Yes |
Compatibility List |
$19.99 / Each
|
|
|
701561 | 004592-00 | M05 | Screw, Hex, 3/8 16UNCx45L/Tooth15L | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701454 | 004502-00 | M06 | Screw, Hex Socket, Round, 5/16 18UNCx16L, Ad | No |
Compatibility List |
$2.00 / Each
|
|
|
701908 | 004934-00 | M06 | Nut, Nylon, 3/8 | Yes |
Compatibility List |
$0.62 / Each
|
|
|
702073 | 005104-00 | M08 | Washer, Flat, 8.2x16.0x0.8T | No |
Compatibility List |
$2.00 / Each
|
|
|
731772 | 037938-A | M09 | Screw, Hex, SH, 5/16 18UNCX18L | No |
Compatibility List |
Out Of Stock |
|
|
714471 | 1000315168 | M13 | Lift Motor, 110V, 700lbs, 6/1HP, 77MM, 225MM | Yes |
Compatibility List |
$383.27 / Each
|
|
|
701294 | 004359-00 | M33 | Screw, Phillip, BH, M4x0.7Px10L, Gap | No |
Compatibility List |
$1.02 / Each
|
|
|
701637 | 004667-00 | M67 | Screw, Wagon, 3/8 16UNCx20L | No |
Compatibility List |
$1.79 / Each
|
|
|
701972 | 005010-00 | M69 | Spring Lock Washer 10.75x17.2x2.16T (New) | No |
Compatibility List |
$0.62 / Each
|
|
|
|
700932 | 002852-A | N01 | OVERLAY PLATFORM 9400HRT/9500HRT | No |
Compatibility List |
$91.23 / Each
|
|
|
|
707788 | 1000095395 | N01 | COVER CONSOLE UPPER | Yes |
Compatibility List |
$34.50 / Each
|
|
|
|
700978 | 003129-C | N05 | TOUCH PAD T9200 | No |
Compatibility List |
$36.48 / Each
|
|
|
|
703338 | 013609-BE | N06 | Upper Control Board | Yes |
Compatibility List |
$383.27 / Each
|
|
|
|
700950 | 002928-B | N07 | OVERLAY T92004 | No |
Compatibility List |
$91.23 / Each
|
|
|
701300 | 004364-00 | N11 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$0.96 / Each
|
|
|
700703 | 001961-D2 | N12 | Console Safety Reed Switch, 7/10 | Yes |
Compatibility List |
$18.67 / Each
|
|
|
700254 | 000785-00 | N14 | Water Bottle Holder | No |
Compatibility List |
$8.87 / Each
|
|
|
|
700258 | 000799-BA | N14 | Water Bottle Holder | No |
Compatibility List |
$14.38 / Each
|
|
|
|
701844 | 004860-AB | N51 | Screw, BH, M4X0.7X8L, Oversize | No |
Compatibility List |
$2.00 / Each
|
|
|
701081 | 003593-00 | NOT SHOWN | Motor Brush, 2.0 To 2.5, Cambridge | No |
Compatibility List |
$65.00 / Each
|
|
|
|
704608 | 024305-A | NOT SHOWN | HARDWARE KIT BLUE | No |
Compatibility List |
$25.90 / Each
|
|
|
702449 | 007489-00 | P01 | Fix Plate, Speed Sensor | Yes |
Compatibility List |
$7.72 / Each
|
|
|
1000573 | 003326-00 | P01 | Power Entry Switch On/Off | No |
Compatibility List |
$8.99 / Each
|
|
|
1034434 | 003326-00 | P01 | Power Entry On Off Switch EP212 | No |
Compatibility List |
$10.19 / Each
|
|
|
4K-UYTS-4IA5 | 003326-00 | P01 | Power Switch on Off (New) | Yes |
Compatibility List |
$29.99 / Each
|
|
|
701013 | 003326-00 | P03 | Power Switch, Large, RF 1004 | Yes |
Compatibility List |
$13.99 / Each
|
|
|
701016 | 003337-00 | P05 | Circuit Breaker, 15A/125V | Yes |
Compatibility List |
$28.73 / Each
|
|
|
700749 | 002130-00 | P10 | Power Cord, 110V/14AWG | Yes |
Compatibility List |
$60.22 / Each
|
|
|
700568 | 001675-00 | P12 | Bushing,, Strain Relief (SR 7R1 (110V)) | No |
Compatibility List |
$1.90 / Each
|
|
|
|
703468 | 014800-00 | P13 | Painting, Fix Plate, BL, TM19 | No |
Compatibility List |
$9.57 / Each
|
|
|
|
707809 | 1000095727 | P15 | BOLT BH M3X10 | No |
Compatibility List |
$0.49 / Each
|
|
|
700776 | 002254-D2 | P17 | Sensor Wire, 1250(OKI Magnet Reed Tube 2. | Yes |
Compatibility List |
$19.99 / Each
Out Of Stock |
|
|
700840 | 002500-B2 | P25 | Power Wire, Control Board, 14AWG, Black | Yes |
Compatibility List |
$3.43 / Each
|
|
|
|
700838 | 002499-B2 | P38 | Power Wire, Control Board, 14AWG, White | No |
Compatibility List |
$3.43 / Each
|
|
|
700092 | 000343-E | Q05 | COVER CONSOLE MAST RIGHT | Yes |
Compatibility List |
$12.99 / Each
|
|
|
700093 | 000344-E | Q06 | COVER CONSOLE MAST LEFT | No |
Compatibility List |
$9.57 / Each
|
|
|
|
703512 | 015075-A | Q07 | End Cap, Side Rail, Left | Yes |
Compatibility List |
$33.70 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
|
703513 | 015076-A | Q08 | End Cap, Side Rail, Right | Yes |
Compatibility List |
$31.20 / Each
|
|
|
701284 | 004351-00 | Q22 | Screw, Umbrella Coss, M3x0.5Px10L | No |
Compatibility List |
$2.00 / Each
|
|
|
986316 | 004616-00 | Q50 | Umbrella Cross Tapped Screw 4x12L (New) | No |
Compatibility List |
$12.00 / Each
|
|
|
701451 | 004496-00 | R04 | Screw, Hex Socket, Round, M10x1.5Px90L | Yes |
Compatibility List |
$11.80 / Each
|
|
|
701440 | 004483-00 | R08 | Screw, Round Hex Socket, M8x1.25Px25L | No |
Compatibility List |
$1.68 / Each
|
|
|
701044 | 003415-00 | R10 | Magnet, Front Roller, 10X3T | No |
Compatibility List |
$1.90 / Each
|
|
|
709100 | 1000109550 | R12 | Drive Belt, Poly V, 190 J8 | Yes |
Compatibility List |
$26.00 / Each
|
|
|
1002831 | 1000109550 | R12 | 1 | Belt Drive | No |
Compatibility List |
$34.99 / Each
|
|
1002833 | 1000109550 | R12 | Motor Drive Belt | No |
Compatibility List |
$9.99 / Each
|
|
|
1002332 | 1000109550 | R12 | Flexonic Pulley Drive Belt | Yes |
Compatibility List |
$26.00 / Each
|
|
|
710401 | 1000210087 | R13 | Running Belt, 512X2770X1.6 | Yes |
Compatibility List |
$401.52 / Each
|
|
|
1037353 | 1000210087 | R13 | Treadmill walking belt | No |
Compatibility List |
$161.99 / Each
|
|
|
1021368 | 1000210087 | R13 | Walking Running Belt Treadbelt (New) | Yes |
Compatibility List |
$328.99 / Each
|
|
|
701403 | 004457-00 | R15 | Screw, Round, Hex Socket, M5X0.8PX10L(BED) | No |
Compatibility List |
$1.79 / Each
|
|
|
701642 | 004676-00 | S04 | Bolt, Eye Hook, 1/4" 20UNCx45L | No |
Compatibility List |
$2.00 / Each
|
|
|
701902 | 004930-00 | U07 | Nut, Nylon, 1/4" 20UNC, Generator Axle | No |
Compatibility List |
$2.00 / Each
|
|
|
|
702313 | 005968-B | V04 | MODEL DECAL, VISION, BLACK/SILVER, AL, AL W/ | No |
Compatibility List |
$21.68 / Each
|
|
|
701308 | 004369-00 | Z02 | Screw, Phillip, BH, M5x0.8Px15L, BED | No |
Compatibility List |
$2.00 / Each
|
|
|
701375 | 004425-B | Z06 | Screw, Phillip, Sink, Tapped, 5x15L | No |
Compatibility List |
$3.88 / Each
|
|
|
704174 | 020423-A | Z16 | Washer, Lock, M10.2X19X2T | No |
Compatibility List |
$3.88 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
1000542 | 002130-00 | Power Cord | No |
Compatibility List |
$43.99 / Each
|
||
|
1000948 | 013680-DI | Lower Motor Controller Board | No |
Compatibility List |
$189.00 / Each
|
||
|
1001205 | 012801-00 | Incline Elevation Motor | No |
Compatibility List |
$54.99 / Each
|
||
|
013873 | 1000108441 | Rear Back Idler Roller (New) | No |
Compatibility List |
$150.99 / Each
|
||
|
971727 | 002500-B2 | Control Board Power Wire Harness Black (New) | No |
Compatibility List |
$15.99 / Each
|
||
|
971720 | 002499-B2 | Control Board Power Wire Harness White (New) | No |
Compatibility List |
$15.99 / Each
|
||
|
971749 | 003307-00 | Rate Chest Strap (New) | Yes |
Compatibility List |
$76.65 / Each
|
Catalog #: 704668
MPN: 024769-A
Elevation Rack D/C, NO REPL: Part will show as orderable until stock is depleted
$86.71 / each
Catalog #: 701750
MPN: 004774-00
Long Handrail Button HeadScrew, Umbrella Hex Socket, M8X135L(20L)
$10.99 / each
Catalog #: 704049
MPN: 020134-00
Counter Sunk Flat Head Screw, Hex Socket, M8X1.25X60L 20L, Partial
$4.65 / each
Catalog #: 700776
MPN: 002254-D2
Sensor Wire, 1250(OKI Magnet Reed Tube 2.
$19.99 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
