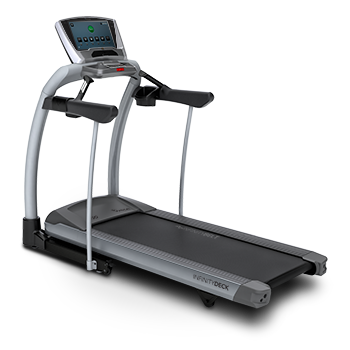

Vision Fitness - TF20-03 - N/A

Repair Parts for Vision Fitness TF20-03 TM432C

Brand: Vision Fitness

Category: Folding

Type: Folding Treadmill

Model Name: TF20-03

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Switch
  • Roller
  • Motor
  • Wires And Cables
  • Sensors
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700014 000021-B L05 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

3,8
B 700021 000037-CA B83 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
K 700023 000038-C K22 Wheel;Base Frame Stabilizer Yes Model Compatibility List $3.82 / Each

8,3
700152 000522-D K16 Leveler Yes Model Compatibility List $11.60 / Each

3
Q 700211 000682-A Q36 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
B 700242 000763-E B40 Elastomer;Black 90 No Model Compatibility List $16.04 / Each

4,5,6
M 700291 000877-B M07 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $2.18 / Each

10,12,13,14
B 700402 001251-F B39 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
P 700764 002212-A P23 Ground Wire; 650 (5.2 0TYPE END+8.30.3 0 TYPE END) No Model Compatibility List $1.90 / Each

9,4,5,6
701013 003326-00 P04 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
P 701016 003337-00 P05 Circuit Breaker;15A/125V Yes Model Compatibility List $28.73 / Each

4,5,6
M 701031 003378-00 M05 Ferrite Core No Model Compatibility List $13.10 / Each

1
R 701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
Q 701308 004369-00 Q19 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
P 701331 004384-00 P17 Screw;Phillip;BH;M5x0.8Px30L;Ni;Gap; No Model Compatibility List $2.00 / Each

2
P 701363 004415-00 P13 Screw;FH;M3X0.5PX10L;;PH;;ZN;; No Model Compatibility List $2.00 / Each

2
B 701375 004425-B B58 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

2
B 701432 004480-Z B54 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

2
R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
R 701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

2
M 701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
R 701481 004527-AC R08 Screw;Round;Hex Socket;M8x1.25Px35L No Model Compatibility List $1.79 / Each

2
Z 701506 004541-AC Z08 Screw;Hex Socket;Round;M8x1.25Px45L;Chromed No Model Compatibility List $3.64 / Each

7,2,12,13,14
B 701530 004562-00 B52 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
M 701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

2
N 701574 004608-00 N30 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

2
N 701577 004612-00 N26 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
N 701586 004617-00 N31 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
N 701590 004619-AB N28 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
Q 701591 004620-00 Q21 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
Z 701600 004624-00 Z13 Screw;Umbrella Cross Tapped;4x20L;Gap; No Model Compatibility List $2.00 / Each

2
G 701612 004631-00 G26 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

2
701699 004724-00 K20 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
K 701733 004758-AC K23 Screw;BH;M10X1.5PX50L;;HS;;ZN;; No Model Compatibility List $2.00 / Each

2
701770 004790-AB Z05 Screw;BH;M6X1.0PX20L;;HS;;CHM;; No Model Compatibility List $2.63 / Each

2
G 701798 004812-A G24 Screw;Hex Socket;BH;M6x1.0Px20L;Adhere No Model Compatibility List $2.00 / Each

2
Z 701842 004859-AC Z12 Screw;BH;M8X1.25PX20L;;HS;;CHM;; No Model Compatibility List $2.00 / Each

2
Q 701848 004865-00 Q18 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
M 701861 004883-00 M23 Nut;Hex;M6x1.0P No Model Compatibility List $2.00 / Each

2
P 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
B 701893 004925-00 B73 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
R 701897 004926-00 R05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
Z 701901 004929-00 Z11 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
M 701908 004934-00 M12 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
B 701939 004975-00 B55 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701961 005004-00 Z07 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

2
M 701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 701970 005009-AB Z10 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

2
B 701979 005015-AB B38 Washer;Spring;8.2X13.5X2.0T;BZN No Model Compatibility List $1.79 / Each

2
M 702005 005043-00 M09 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
R 702007 005044-00 R11 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702014 005048-AC Z09 Washer;Flat;8.2x15.0x1.2T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
M 702016 005051-00 M30 Washer;Flat;8x16x1.4T No Model Compatibility List $2.00 / Each

2
B 702030 005062-00 B78 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
R 702074 005106-00 R07 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
B 702090 005122-00 B74 Washer;Flat;6.5X19.0X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 702105 005134-00 B60 Washer;Flat;8.2x14.0x1.5T;BAN; No Model Compatibility List $2.00 / Each

2
M 702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
P 702145 005177-00 P18 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

2
B 702160 005196-00 B72 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Q 702217 005330-00 Q13 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
N 702258 005394-00 Not Shown Wrench;T-Type;8mm No Model Compatibility List $10.01 / Each

2
N 702262 005408-A Not Shown Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

2,10
N 702266 005421-00 Not Shown Wrench;L-Type;5mm No Model Compatibility List $9.28 / Each

2
702275 005438-00 K27 Spring;Foot Lock Latch;16x2.0x50Lx12N Yes Model Compatibility List $2.00 / Each

2,9,3
B 702555 008623-C B80 SCREW;;M6X1.0PX10.5L-D10X12.5L;;HS;;BZN; No Model Compatibility List $2.00 / Each

2
B 702556 008625-C B75 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

2,3,10
K 702561 008641-C K19 Bolt;M5x1.25Px12L-6L No Model Compatibility List $2.00 / Each

2
B 702787 009717-B B77 Sleeve;;;;22.2x1.0tx22L;;;;TM27 No Model Compatibility List $3.82 / Each

3
P 703919 019354-A P08 Connecting Cable;Breaker/Switch;Black;120mm No Model Compatibility List $9.57 / Each

4,5,6
P 703920 019370-A P26 Power Cord;14 Guage/15 Amp Yes Model Compatibility List $57.49 / Each

4,5,6
P 703931 019461-A P02 Control Board Power Wire No Model Compatibility List $1.90 / Each

7,4,5,6
P 703932 019462-A P03 Control Board Power Wire No Model Compatibility List $1.90 / Each

7,4,5,6
P 703938 019749-A P20 Power Socket;100,600,60(14AWG) Yes Model Compatibility List $9.57 / Each

4,5,6
703952 019968-A R03 Drive Belt;Poly-V;210-J8 Yes Model Compatibility List $60.22 / Each

15,10
K 704050 020135-00 K18 Screw;FH;M8X1.25PX45L-8L;;HS;;;;P-T No Model Compatibility List $2.00 / Each

2
704181 020439-00 Z06 Washer;Flat;6.4X14.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 704212 020484-00 Z02 Washer;Arc;8.4x17x1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
704225 020652-A Not Shown Wrench;Open-Type;#13; No Model Compatibility List $6.73 / Each

2
Q 704999 028633-A Q20 Screw;Phillip;BH;Tapped;4x15L;;Zn-BL No Model Compatibility List $1.79 / Each

2
M 705076 035692-00 M28 Screw;Hex;M6x1.0Px30L No Model Compatibility List $4.00 / Each

2
B 705323 040839-00 B81 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

2
N 705893 056437-00 N90 Absorptive Plate;Zinc;15x25 No Model Compatibility List $1.90 / Each

3
N 706130 059357-00 N30 Screw;RND;M5X0.8PX10L;;PH;;BZN;ROHS;SP No Model Compatibility List $1.85 / Each

2
G 706221 060313-A G18 Wire;Pulse CON;7700(SM-2Y+110;EP148-P06A No Model Compatibility List $9.57 / Each

4,5,6,12,13,14
B 706312 061162-AC B49 Screw;Hex Socket;Sink;M8x1.25Px40L No Model Compatibility List $4.00 / Each

2
706839 066054-00 M14 Screw;HH;M10x60L;-;HE;-;BED;-;G10.9; No Model Compatibility List $2.00 / Each

2
N 707653 1000094023 N70 Grounding Wire;250;4.0+6.0 No Model Compatibility List $3.82 / Each

4,5,6
708243 1000101465 M02 Incline Motor;AC Elevation;110V;80mm;225;JM14 Yes Model Compatibility List $249.13 / Each

4,5,6,10
P 708621 1000104256 P25 Screw;TRH;4x10L;SM;CST;WZN;FLT;F-T No Model Compatibility List $2.00 / Each

2
708857 1000106631 Q17 Screw;BH;?p4x12L;TC;PH;-;BZN;POT;-; No Model Compatibility List $1.85 / Each

2
K 708924 1000107338 K26 Screw;FH;M4x0.7Px40L-10L;MT;35K;BAN;P-T No Model Compatibility List $2.00 / Each

2
N 708980 1000107853 N73 Heart Rate Receiver;Polar Yes Model Compatibility List $153.27 / Each

12,13,14
709036 1000108457 AR2 Roller Set;Rear;TM105 Yes Model Compatibility List $191.62 / Each

8
K 709046 1000108690 K21 Wheel Lock No Model Compatibility List $12.71 / Each

8
A 709125 1000110127 AR1 Roller Set;F;W/O Texture;TM155 Yes Model Compatibility List $191.62 / Each

8
M 709254 1000111476 M03 Motor Control Board;110V Yes Model Compatibility List $648.70 / Each

7,10
709331 1000113141 M01 Drive Motor Set;Digital;2.75HP Yes Model Compatibility List $574.91 / Each

10
N 709423 1000114340 N66 Connect Wire;USB;150;XHS 2.5-6Yx2 Yes Model Compatibility List $3.82 / Each

4,5,6
N 709967 1000205281 N84 Wire;IPOD-PCB;300L;XHS-10Y Yes Model Compatibility List $12.17 / Each

4,5,6
N 709992 1000205707 N68 Ground Wire;Pulse;200L No Model Compatibility List $3.82 / Each

4,5,6,12,13,14
B 710309 1000208940 B85 Extrawork;Elastomer;Running Deck;Nai Ri Yes Model Compatibility List $27.35 / Each

3
N 711070 1000216278 Not Shown Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $3.82 / Each

3,4,5,6
B 711106 1000216685 B46 Support Plate;Cover;B;Painting;DM328 Yes Model Compatibility List $19.50 / Each

3,9
711265 1000219179 Not Shown Documentation Manual;TM Safety Direction No Model Compatibility List $11.91 / Each

9
N 711284 1000219554 N02 PLASTIC COVER;D;ABS;;CONSOLE;;TM437-1US; Yes Model Compatibility List $38.32 / Each

7,9
711285 1000219556 N04 RUBBER COVER;CONSOLE UPPER COVER;TM437-1 No Model Compatibility List $19.14 / Each

7,9
N 711287 1000219565 N07 PLASTIC BLOCK;;ABS;;SAFETY KEY;TM434 Yes Model Compatibility List $9.70 / Each

9
711289 1000219574 AB3 Folding Rack Set;Painting;BL;TM434-1US No Model Compatibility List $95.81 / Each

4,5,6
711290 1000219581 AG2 HANDLEBAR;R;FROTH;;;;TM434-1US;; No Model Compatibility List $34.48 / Each

11
711292 1000219586 AG4 Supt Tube S;R;SL;TM434-1US; No Model Compatibility List $72.80 / Each

3
711293 1000219589 AB2 ELEVATION RACK SET;FRAME;D;PAINTING;BL;T No Model Compatibility List $191.62 / Each

3,4,5,6,10
N 711296 1000219607 N43 SAFETY KEY SET;TM434-1US No Model Compatibility List $40.14 / Each

9
711297 1000219609 V02 LOGO LABEL;;;;;TM437-1US; No Model Compatibility List $9.57 / Each

1
711300 1000219631 AC1 CONSOLE MAST SET;;L;PAINTING;SL;TM434 No Model Compatibility List $249.13 / Each

7
711301 1000219634 AC2 CONSOLE MAST SET;CONSOLE MAST;R;PAINTING No Model Compatibility List $249.13 / Each

7
711303 1000219639 G12 GRIP;LU;ABS;BL;TM434-1US; No Model Compatibility List $10.63 / Each

11
711304 1000219640 G13 GRIP;LD;ABS;BL;TM434-1US;; No Model Compatibility List $7.07 / Each

11
711305 1000219641 G14 GAUGE;PULSE;L;SUS304;NO;TM434-1US; No Model Compatibility List $3.54 / Each

12,13,14
711307 1000219643 AG1 HANDLEBAR;L;FROTH;BL;;;TM434-1US;; No Model Compatibility List $168.64 / Each

11
711308 1000219649 AG3 Supt Tube Set;HANDLEBAR;L;SL;TM434-1US; No Model Compatibility List $72.80 / Each

3,11
711314 1000219800 Not Shown DOCUMENTATION;MANUAL;ENG;TM437-2KM; No Model Compatibility List $9.57 / Each

1
711317 1000219876 AB1 FRAME WELDING SET;FRAME;U;PAINTING;BL;TM No Model Compatibility List $778.99 / Each

3
711318 1000219879 B31 TM DECK;;608X1340X25.4T;;TM432-1US; No Model Compatibility List $287.46 / Each

3
711320 1000219892 Q14 BACK COVER;D;ABS;BL;;;TM432-1US; No Model Compatibility List $114.97 / Each

9,4,5,6
711330 1000220023 N61 OVERLAY;U;EN;;Classic;TM435; No Model Compatibility List $57.49 / Each

1
N 711331 1000220024 N62 OVERLAY;D;EN;Bronze;TM435 No Model Compatibility List $38.32 / Each

1
711332 1000220025 N63 KEYPAD;MEMBRANE;L;;Bronze;4KEY;TM435 No Model Compatibility List $19.14 / Each

9,12,13,14
711333 1000220026 N64 KEYPAD;MEMBRANE;R;CONSOLE;Bronze;12KEY;T No Model Compatibility List $38.32 / Each

7,9,12,13,14
N 711334 1000220028 N65 CONTROL BOARD;USB;;;HBPB;;;;180?X Yes Model Compatibility List $15.00 / Each

7
N 711699 1000222585 N69 CONTROL BOARD;SOO1125;-;HBPB;-;JIS;ConnP Yes Model Compatibility List $20.00 / Each

7
K 711884 1000223489 K25 LOCATION HOOK;BASE;L;PAINTING;MATTE TEXT No Model Compatibility List $28.73 / Each

3
711885 1000223492 Q12 END CAP;L;ABS;PANTONE 425C GRAY;TM434 No Model Compatibility List $9.57 / Each

9
711886 1000223493 Q11 END CAP;RIGHT,ABS;PANTONE 425C GRAY;;TM4 No Model Compatibility List $9.57 / Each

9
711887 1000223496 Not Shown DOCUMENTATION;MANUAL;MANIPULATE;;;TM434; No Model Compatibility List $9.57 / Each

1
N 711888 1000223509 N23 CONSOLE DOWN COVE;TM437-1US; Yes Model Compatibility List $19.14 / Each

7
N 711965 1000224518 N81 CONTROL BOARD;KEY;SOO1126;HBPB; Yes Model Compatibility List $8.40 / Each

7,9
N 711977 1000224654 N71 CONTROL BOARD;HEART RATE BOARD;NEW REPLA Yes Model Compatibility List $38.32 / Each

7,12,13,14
N 711978 1000224655 N80 WIRE;SAFE SWITCH;150L(XHS2.5-2P) Yes Model Compatibility List $23.87 / Each

4,5,6
N 711979 1000224657 N83 WIRE;PULSE CON;;;700L;SM-2AX2-XHS-11Y; Yes Model Compatibility List $14.77 / Each

4
711985 1000224753 B30 SUPPORT SEAT SET;TRANSFER WHEEL;B;PAINTI No Model Compatibility List $28.73 / Each

8,3,12,13,14
711986 1000224754 N05 Console Base;Painting;SL;TM423; No Model Compatibility List $316.19 / Each

7,3
711991 1000224764 Q10 PLASTIC COVER ;L;PAINTING;VISION MEDIUM No Model Compatibility List $24.91 / Each

9
711992 1000224765 Q09 PLASTIC COVER ;R;PAINTING;VISION MEDIUM No Model Compatibility List $24.91 / Each

9
712055 1000226151 G20 SILICA GEL;L;REMOTE BUTTONS;BL No Model Compatibility List $3.54 / Each

1
712056 1000226152 G21 SILICA GEL;R;REMOTE BUTTONS;BL No Model Compatibility List $3.54 / Each

1
712064 1000226255 AK1 BASE FRAME SET;PRINT;BLACK;TM432-1US No Model Compatibility List $443.61 / Each

3,4,5,6
N 712112 1000226797 N04 Stopper Board;Base;BL;HIPS,PH-88;TM423-1 Yes Model Compatibility List $19.14 / Each

3
N 712157 1000227054 N85 CONTROL BOARD;EUP BOARD;;;HDPD;;; Yes Model Compatibility List $11.00 / Each

7
712371 1000228599 Not Shown HARDWARE SET;-;TM432;-; No Model Compatibility List $60.22 / Each

1
712399 1000228713 N03 COVER;CONSOLE;U;PAINTING;CN/GY No Model Compatibility List $19.14 / Each

7,9
N 712446 1000228957 N06 READING RACK SET;U;VISION DARK SILVER PA Yes Model Compatibility List $38.32 / Each

4,5,6
712447 1000228958 N03 READING RACK SET ;D;VISION DARK SILVER P No Model Compatibility List $24.91 / Each

4,5,6
712584 1000229635 2 ARM REST SET ;SA;R;TM432-1US;SERVICE; No Model Compatibility List $344.94 / Each

3
712585 1000229636 5 USER FRAME SET;SA;TM432-1US;SERVICE; No Model Compatibility List $536.59 / Each

3
712586 1000229637 1 ARM REST SET ;SA;L;TM432-1US;SERVICE; No Model Compatibility List $344.94 / Each

3
A 712588 1000229641 AG6 GRIP SET ;PULSE ;SA;R;TM434-1US;SERVICE; Yes Model Compatibility List $38.32 / Each

11,12,13,14
B 712638 1000230001 B76 Snap Ring;External;S-10; No Model Compatibility List $1.79 / Each

2
712657 1000230079 3 GRIP SET ;SA;L;TM432-1US;SERVICE No Model Compatibility List $38.32 / Each

11
712658 1000230080 4 GRIP SET ;SA;R;TM432-1US;SERVICE No Model Compatibility List $38.32 / Each

11
Q 712847 1000231028 Q02 LOWER MOTOR COVER; D;PP;BL;TM434 No Model Compatibility List $28.73 / Each

9,10
712882 1000231202 Q15 COVER STOPPER D;PAINTING;TM434 No Model Compatibility List $7.07 / Each

9
712895 1000231298 Q22 POWER CORD PROTECTING COVER;PP;BL;;TM434 No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
N 713173 1000233534 Not Shown CLASSIC CONSOLE SET;SA;CN12;TM435-;;; Yes Model Compatibility List $1168.70 / Each

7
713235 1000300329 Q03 Console Mast Side Cover;Console Mast;R;p No Model Compatibility List $13.39 / Each

7,9
713236 1000300332 Q04 Console Mast Side Cover;Cover;L;painting No Model Compatibility List $13.39 / Each

7,9
713633 1000305959 Q00 Foam;singleside;1.5X30X250mm;;TM434-2KM No Model Compatibility List $1.90 / Each

1
713906 1000309507 B18 Air Stick;Slow-Drop;QDY800N;Gas-Oil;;; No Model Compatibility List $231.87 / Each

1
714418 1000314586 B71 PULLEY PLATE;;;painting;;;TM434; No Model Compatibility List $26.81 / Each

8,3
N 714863 1000318765 Not Shown Filter;Power;22A;;BF1101-22A-02;110V/250 Yes Model Compatibility List $78.55 / Each

4,5,6
715311 1000323591 N82 Console Wire;;UP1;;;;800;CKM254301-8P+MX No Model Compatibility List $38.32 / Each

7,4,5,6
715312 1000323592 P07 Console Wire;;Down;;;;2450mm;CKM:2543010 No Model Compatibility List $38.32 / Each

7,4,5,6
715332 1000324064 9 Console Wire Set;;;;;;2450+800mm;Molex c No Model Compatibility List $76.65 / Each

7,4,5,6
717269 1000343632 6 Motor set;Semi-Assy;;;;TM432-1US;;serve No Model Compatibility List $766.56 / Each

10
717318 1000343951 G15 Kettle Rack;;;TPE;BL/Black C;;TM434-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717383 1000344667 Q01 Motor Cover-Exreawork;Motor Cover;up;Scr No Model Compatibility List $95.81 / Each

9,10
717384 1000344670 Q05 Side Rail-Extrawork;;left;Screen print;; No Model Compatibility List $120.72 / Each

9
717385 1000344672 Q06 Side Rail-Extrawork;;right;Screen print; No Model Compatibility List $111.77 / Each

9
717386 1000344674 R02 Treadmill Belt;3058x495x1.6T;;Diamond Te No Model Compatibility List $249.13 / Each

15
717486 1000345441 7 Side Rail Set;Semi-Assy;left;;;TM432C-1U No Model Compatibility List $118.79 / Each

9
717487 1000345442 8 Side Rail Set;Semi-Assy;right;;;TM432C-1 No Model Compatibility List $118.79 / Each

9
721915 1000386487 10 Rack set;Semi-Assy;;;;TM434;; No Model Compatibility List $134.13 / Each

4,5,6
K 725263 103403 K28 Rear Carriage Roller; Nylon+30%G;TM369 Yes Model Compatibility List $15.29 / Each

2,8
Speed feedback system;Motor controller2. 726233 080869 Not Shown Speed feedback system;Motor controller2. No Model Compatibility List $28.99 / Each

7,8,4,5,6,10
Speed Sensor 726503 082406 M38 Speed Sensor Yes Model Compatibility List $31.10 / Each

1
726590 083164 Not Shown Wrench;Hex;L-Lype;;;#4x140L;;;; No Model Compatibility List $1.85 / Each

2
726748 084584 B51 Screw;BH;M8X1.25PX20L;;HS;;BAN;; No Model Compatibility List $1.79 / Each

2
Washer;FLT;10.5X18.0X1.5T;SPHC ;; 726808 085005 K24 Washer;FLT;10.5X18.0X1.5T;SPHC ;; No Model Compatibility List $2.00 / Each

2
727433 089165 B37 Clip Nut;Attached Plate;Elastomer;SPCC;1.6t;Zn Pl No Model Compatibility List $3.64 / Each

2,3,4,5,6
729099 Part of Console Set W94 Overlay;Touch panel;;;15.6#T:9PCT TF1-TP No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729784 ZMS4004832 Not Shown Medium Silver Touch-Up Paint No Model Compatibility List $47.89 / Each

1
729785 ZMS4004833 Not Shown Flat Black Touch-Up Paint No Model Compatibility List $50.18 / Each

4,5,6
729786 ZMS4004834 Not Shown Dark Grey Touch-Up Paint No Model Compatibility List $45.60 / Each

1
B 1020890 000763-E B40 1 Red Elastomer Version - Used No Model Compatibility List $7.79 / Each

3
A 1001152 1000108457 AR2 1 Rear Idler Roller Yes Model Compatibility List $159.99 / Each

26
R 1001154 019968-A R03 1 Poly V Drive Belt Yes Model Compatibility List $34.99 / Each

15,26
P 1001381 003326-00 P04 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
R 1002339 019968-A R03 1 Belt Drive Yes Model Compatibility List $49.99 / Each

23
M 1003099 1000113141 M01 1 Motor Drive Yes Model Compatibility List $499.00 / Each

28
M 1003695 1000111476 M03 1 Controller Motor Yes Model Compatibility List $499.00 / Each

48
B 1029909 004480-Z B54 Screw (Used) Yes Model Compatibility List $5.00 / Each

1
Speed Sensor 1009210 082406 0 1 Speed Sensor Yes Model Compatibility List $49.99 / Each

47
K 1003512 000522-D K16 Foot Leveler Yes Model Compatibility List $15.99 / Each

1
M 1003382 1000111476 M03 Lower Motor Controller Board Yes Model Compatibility List $169.00 / Each
48
P 1036808 019354-A P08 Power harness wire Yes Model Compatibility List $5.00 / Each

4,42
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
