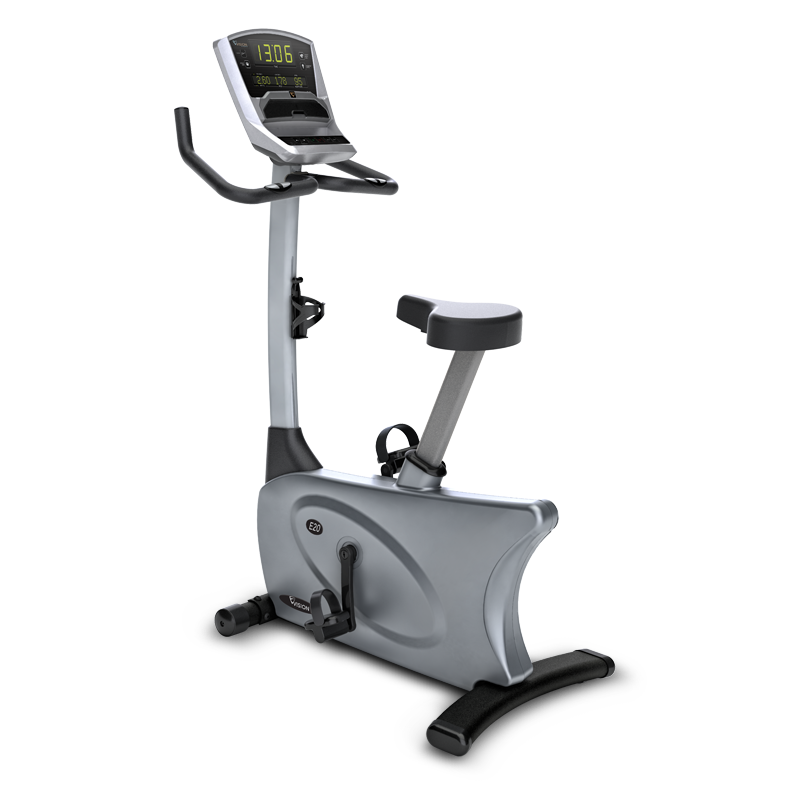

Repair Parts for Vision Fitness U20 CB157
| Brand | Vision Fitness |
|---|---|
| Type | Stationary Bikes |
| Category | Upright |
| Model Number | CB157 |
| Model Name | U20 |
| Version | 2014-2015 |
Model Numbers: CB157, EP587
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1025906 | 1000329341 | 1 | 1 | Vision Fitness Bike Elliptical U40 U20 X40 Touch Display Console | No |
Compatibility List |
$908.70 / Each
|
|
711945 | 1000224034 | 5 | WHEEL SET, SA, CB157 | No |
Compatibility List |
$95.81 / Each
|
|
|
|
711943 | 1000224025 | 6 | STABILIZER SET, SA, CB157 | No |
Compatibility List |
$95.81 / Each
|
|
|
|
712744 | 1000230490 | 6 | Cover set, Semi Assy, left, CB157 | No |
Compatibility List |
$76.65 / Each
|
|
|
|
712745 | 1000230491 | 10 | Cover set, Semi Assy, right, CB157 | No |
Compatibility List |
$76.65 / Each
|
|
|
|
705565 | 051236-00 | 11 | Semi Assy, Pressure pulley Set, CB120 1US | No |
Compatibility List |
$38.32 / Each
|
|
|
701931 | 004968-00 | 104 | Nut, Hex, Flange, 3/8 26UNF, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
706799 | 065640-A | 183 | Screw, Round Cross Tapped, M3X30L | Yes |
Compatibility List |
$2.00 / Each
|
|
|
|
707250 | 1000091605 | AC1 | MAST CONSOLE ASSEMBLY | No |
Compatibility List |
$370.84 / Each
|
|
|
|
725006 | 100888 | AD1 | SEAT POST ASSEMBLY | No |
Compatibility List |
$159.25 / Each
|
|
|
|
707251 | 1000091606 | AG1 | HANDLEBAR ASSEMBLY | No |
Compatibility List |
$284.83 / Each
|
|
|
712462 | 1000228989 | AT1 | PEDAL SET, NO LOGO | Yes |
Compatibility List |
$54.73 / Each
|
|
|
734267 | 1000444959 | B39 | RVN, A2 M8 BF | No |
Compatibility List |
$1.09 / Each
|
|
|
701893 | 004925-00 | B57 | Nut, Nylon, M6x1.0P, Zinc | Yes |
Compatibility List |
$1.54 / Each
|
|
|
707139 | 1000090447 | B61 | Washer, Split, 8.2X13.5X2.0T, 65MN, NKL | No |
Compatibility List |
$2.00 / Each
|
|
|
700255 | 000787-00 | C06 | Water Bottle Holder | Yes |
Compatibility List |
$15.59 / Each
|
|
|
700300 | 000894-00 | C06 | End Cap, Handlebar, 25.4x2.3t, Back | No |
Compatibility List |
$1.90 / Each
|
|
|
701937 | 004973-00 | C09 | Insert Nut, Brass, ALS7 580 3.3(0.5 3.3) | No |
Compatibility List |
$1.90 / Each
|
|
|
|
705320 | 040829-00 | C12 | Set Screw, M8x1.25x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
|
702783 | 009677-00 | D04 | Seat Pull Pin Assembly | No |
Compatibility List |
$9.10 / Each
|
|
|
|
706375 | 061533-B | D05 | SLEEVE SEAT POST | No |
Compatibility List |
$3.82 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
|
705277 | 040419-B | DAX | Inside ECB Controller, CB120, CB120 R01B | No |
Compatibility List |
$153.30 / Each
|
|
|
704073 | 020185-00 | E11 | Screw, Phillip, BH, Tapped, 4x10L | No |
Compatibility List |
$1.59 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
702236 | 005361-00 | E20 | C Clip, External, S 15 | No |
Compatibility List |
$3.88 / Each
|
|
|
|
713891 | 1000309310 | F04 | Cap, STABILIZER TUBE, right, ABS/PA757K, BL/ | No |
Compatibility List |
$9.57 / Each
|
|
|
701934 | 004972-00 | F05 | Insert Nut, Brass, ALS7 616 150(0.02 0.15) | No |
Compatibility List |
$1.90 / Each
|
|
|
|
713890 | 1000309309 | F05 | Cap, STABILIZER TUBE, left, ABS/PA757K, BL/B | No |
Compatibility List |
$9.57 / Each
|
|
|
700135 | 000491-B | F06 | Wing Nut, Leveler, W3/8 16UNC, BED BL SPC | No |
Compatibility List |
$2.47 / Each
|
|
|
700132 | 000485-00 | F07 | Leveler, Rubber, W3/8 16UNC | Yes |
Compatibility List |
$9.09 / Each
|
|
|
702831 | 011179-00 | F21 | Washer, Teflon, M12x30Px1T | No |
Compatibility List |
$4.00 / Each
|
|
|
|
707153 | 1000090511 | G10 | SCREW, BH, M8X1.25PX20L, HS, CRMO, G10.9, NKL | No |
Compatibility List |
$0.60 / Each
|
|
|
701627 | 004648-00 | G16 | Screw, Round, 3X10L, SM, PH, WZN, ROHS, POT | No |
Compatibility List |
$0.36 / Each
|
|
|
725598 | 073994 | H02 | Tension Cable, Steel Rope | No |
Compatibility List |
$9.31 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701583 | 004615-00 | J09 | Screw, Umbrella Cross Tapped, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
707527 | 1000093249 | J20 | Screw, BH, M8X1.25PX25L, HS, G8.8, NKL, BP | No |
Compatibility List |
$2.00 / Each
|
|
|
701008 | 003307-00 | KIT | Chest Strap, Polar, T34/T41 | No |
Compatibility List |
$76.99 / Each
|
|
|
|
705458 | 049248-00 | L04 | SCREW, BH, M6X1.0PX33L 15L, PH, P T | No |
Compatibility List |
$2.00 / Each
|
|
|
704203 | 020478-00 | L09 | Washer, Flat, 10.2x20.0x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
|
707154 | 1000090513 | L11 | WASHER ARC 8.2X18X1.5 CHM | No |
Compatibility List |
$2.00 / Each
|
|
|
|
711585 | 1000221942 | N02 | Console Cover, D, ABS, INJECT PANTONE425C, E | No |
Compatibility List |
$38.32 / Each
|
|
|
|
712321 | 1000228413 | N03 | Console Overlay, ABS, painting, gray silver | No |
Compatibility List |
$9.57 / Each
|
|
|
|
711285 | 1000219556 | N04 | RUBBER COVER, CONSOLE UPPER COVER, TM437 1 | No |
Compatibility List |
$19.14 / Each
|
|
|
|
711297 | 1000219609 | N05 | LOGO LABEL, TM437 1US | No |
Compatibility List |
$9.57 / Each
|
|
|
701351 | 004400-00 | N12 | Screw, Phillip, BH, M5x0.8Px6L, Black, Zn BL | No |
Compatibility List |
$1.79 / Each
|
|
|
|
701629 | 004650-00 | N12 | SCREW, RND, ?X3X6L, TC, PH, BAN, POT | No |
Compatibility List |
$1.85 / Each
|
|
|
716651 | 1000338448 | N14 | Fixing Bracket, NYLON 66, WHITE, 1202 KSS | No |
Compatibility List |
$2.47 / Each
|
|
|
|
705284 | 040596-B | N18 | Wire, Pulse CON, 110 female SM 2Y, 450, CB102 | No |
Compatibility List |
$3.82 / Each
|
|
|
|
707950 | 1000097223 | N20 / | Screw, BH, M5x0.8Px10L, CHM | No |
Compatibility List |
$0.60 / Each
|
|
|
701577 | 004612-00 | N28 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
|
711601 | 1000222186 | N64 | OVERLAY, MANIPULATE, GOLD PREMIER, EP263 | No |
Compatibility List |
$38.32 / Each
|
|
|
711334 | 1000220028 | N66 | CONTROL BOARD, USB, HBPB, 180?X | Yes |
Compatibility List |
$15.00 / Each
|
|
|
712110 | 1000226771 | N68 | WIRE, AUDIO SHORT CIRCUIT, 20mm, JST, XAP 05 | No |
Compatibility List |
$1.90 / Each
|
|
|
706286 | 060781-A | N69 | Ground Wire, Grip Pulse, 300mm | Yes |
Compatibility List |
$3.54 / Each
|
|
|
707653 | 1000094023 | N80 | Grounding Wire, 250, 4.0 6.0 | No |
Compatibility List |
$3.82 / Each
|
|
|
716603 | 1000337714 | N84 | Memory Card, TF card, Sandisk 4G, Class4 | No |
Compatibility List |
$57.49 / Each
|
|
|
711700 | 1000222587 | N85 | Pulse receiver set, I/O, Extra work, , , | No |
Compatibility List |
$95.81 / Each
|
|
|
|
712302 | 1000228319 | N85 | SPEAKER, BOXED, 2W/8?[, 150MM, JST:XAP 02V 1 | No |
Compatibility List |
$19.14 / Each
|
|
|
715896 | 1000329080 | N96 | WIFI Wireness module Set, BL LW05 5R, us | No |
Compatibility List |
$51.71 / Each
|
|
|
|
711140 | 1000217072 | N98 | SYNTHETIC LABEL, PATENT, WINDOWS 6.0 AC | No |
Compatibility List |
$35.46 / Each
|
|
|
708252 | 1000101533 | Not Shown | Power Wire, DC, 600mm | Yes |
Compatibility List |
$14.00 / Each
Out Of Stock |
|
|
|
711586 | 1000221945 | Not Shown | MANUAL SET, SA, OPERATING MANUAL, EN, EP261 | No |
Compatibility List |
$9.57 / Each
|
|
|
|
712871 | 1000231136 | Not Shown | HARDWARE SET, CB157 | No |
Compatibility List |
$37.15 / Each
|
|
|
|
715319 | 1000323658 | Not Shown | Console Wire, 150, SM 8A Molex:70107 | No |
Compatibility List |
$24.91 / Each
|
|
|
|
715320 | 1000323659 | Not Shown | Console Wire, 150, SM 8Y Molex:70066 | No |
Compatibility List |
$15.31 / Each
|
|
|
|
729784 | ZMS4004832 | Not Shown | Medium Silver Touch Up Paint | No |
Compatibility List |
$47.89 / Each
|
|
|
|
729785 | ZMS4004833 | Not Shown | Flat Black Touch Up Paint | No |
Compatibility List |
$50.18 / Each
|
|
|
|
729786 | ZMS4004834 | Not Shown | Dark Grey Touch Up Paint | No |
Compatibility List |
$45.60 / Each
|
|
|
705307 | 040690-A | P02 | Pulse Sensor Set, Single | Yes |
Compatibility List |
$38.32 / Each
|
|
|
|
712265 | 1000227993 | P02 | WIRE, CONSOLE, 1500MM(CKM254301 8P SM 8 | No |
Compatibility List |
$28.73 / Each
|
|
|
|
705517 | 049827-A | P03 | Bracket, Speed Sensor | No |
Compatibility List |
$1.90 / Each
|
|
|
710204 | 1000207458 | P09 | WIRE, SENSOR, 250M, OKI SENSOR CKM25430 | Yes |
Compatibility List |
$5.72 / Each
|
|
|
|
711587 | 1000221959 | P09 | WIRE, ECB MOTOR, 650MM, CKM254301 8P CKM | Yes |
Compatibility List |
$9.57 / Each
|
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|
728448 | 094924 | P13 | KSS HC 0R | No |
Compatibility List |
$3.88 / Each
|
|
|
714359 | 1000314036 | P20 | Adapter, UL, 100 240V/50 60Hz, 12V/2A, 2.75m cord, 2.1mm prong | No |
Compatibility List |
$72.98 / Each
|
|
|
713247 | 1000300436 | P24 | Control Board, Simulate Digital, DC, SOO112 | No |
Compatibility List |
$74.99 / Each
|
|
|
|
712904 | 1000231437 | P25 | PLASTIC BASE, , N66, BL | No |
Compatibility List |
$1.90 / Each
|
|
|
|
706732 | 065075-00 | P27 | SCREW, BH, M4X0.7PX20L, CT, PH, BAN | No |
Compatibility List |
$1.85 / Each
|
|
|
705020 | 029526-A | P33 | SCREW, BH, ?X3X19L, SM, PH, POT | No |
Compatibility List |
$1.85 / Each
|
|
|
|
706400 | 061791-Z | PAX | PEDAL AXLE ASSEMBLY | No |
Compatibility List |
$102.80 / Each
|
|
|
|
725007 | 100895 | Q01 | Cover, L, Panting, CB143 | No |
Compatibility List |
$76.65 / Each
|
|
|
|
725008 | 100896 | Q02 | Cover, R, Panting, CB143 | No |
Compatibility List |
$76.65 / Each
|
|
|
|
705366 | 048968-BX | Q03 | BOOT CONSOLE MAST | No |
Compatibility List |
$13.10 / Each
|
|
|
704273 | 022177-A | Q07 | Bracket, Side Cover, 2 Hole Plate | Yes |
Compatibility List |
$6.00 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701597 | 004621-00 | Q09 | Screw, Phillip, BH, Tapped, 4x15L, Gap | No |
Compatibility List |
$1.59 / Each
|
|
|
701613 | 004632-00 | Q09 | Screw, Phillip, BH, Tapped, 4x16L | No |
Compatibility List |
$2.00 / Each
|
|
|
707094 | 1000090311 | Q09 | SCREW BH 4x15L TAPPED NICKEL | No |
Compatibility List |
$2.00 / Each
|
|
|
700376 | 001161-C | Q19 | Plate, Power Socket | No |
Compatibility List |
$5.00 / Each
|
|
|
957398 | 005330-00 | Q52 | Gear Rower Retainer Clip (New) | Yes |
Compatibility List |
$11.99 / Each
|
|
|
701229 | 004203-A | R03 | Drive Belt, Poly V, 410 J5 | No |
Compatibility List |
$57.49 / Each
|
|
|
701923 | 004956-00 | R05 | Nut, Hex, M20X1.0P, SS41, BOX | No |
Compatibility List |
$9.99 / Each
|
|
|
701952 | 004988-00 | R05 | Key, Round, Dual End, 6x6x14L | No |
Compatibility List |
$1.90 / Each
|
|
|
710763 | 1000213379 | S09 | Resistance Motor | No |
Compatibility List |
$95.00 / Each
Out Of Stock |
|
|
|
701148 | 004055-00 | T02 | Crank, Single side, Left, L=170mm, SS41, Blac | No |
Compatibility List |
$7.28 / Each
|
|
|
709103 | 1000109595 | T04 | Crank Arm Cover, Round, Plastic, Black | No |
Compatibility List |
$3.82 / Each
|
|
|
725261 | 103326 | T07 | SCREW FHM8x1.0Px20 SERRATED | No |
Compatibility List |
$2.00 / Each
|
|
|
701042 | 003413-00 | T16 | Magnet, Crank Wheel, 15x7t | No |
Compatibility List |
$4.00 / Each
|
|
|
702194 | 005241-A | T25 | Washer, DSP, 8.0X18.0X0.9T | No |
Compatibility List |
$2.00 / Each
|
|
|
701602 | 004626-00 | T27 | Screw, Phillip, BH, Tapped, 4x10L, BED | No |
Compatibility List |
$3.88 / Each
|
|
|
701158 | 004075-A3 | U03 | Ball Bearing, 6202ZZ(BR6202ZZ) | No |
Compatibility List |
$9.57 / Each
|
|
|
702227 | 005352-00 | U04 | C Clip, Internal, R 35 | No |
Compatibility List |
$2.58 / Each
|
|
|
702240 | 005365-00 | U04 | C Clip, External, S 20 | No |
Compatibility List |
$1.02 / Each
|
|
|
702274 | 005437-00 | U08 | Spring, Tension Assembly, 16x2x65Lx25N | Yes |
Compatibility List |
$2.00 / Each
|
|
|
704180 | 020438-00 | U09 | Washer, Flat, 6.2x19x2.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
|
711944 | 1000224032 | V05 | MODEL LABEL, COVER, CB157 1US F | No |
Compatibility List |
$3.82 / Each
|
|
|
|
712151 | 1000226921 | V06 | LOGO LABEL, COVER, CB157 | No |
Compatibility List |
$9.57 / Each
|
|
|
|
706283 | 060739-AX | V09 | DECAL CRANK COVER | No |
Compatibility List |
$3.82 / Each
|
|
|
730905 | 1000229514 | W130 | PLASTIC SHEET, FPC, 30Mx10MM | No |
Compatibility List |
$154.50 / Each
|
|
|
701308 | 004369-00 | Z02 | Screw, Phillip, BH, M5x0.8Px15L, BED | No |
Compatibility List |
$2.00 / Each
|
|
|
704120 | 020283-00 | Z04 | Screw, Hex Socket, BH, M8x1.25Px70L 20L, Partial | No |
Compatibility List |
$3.88 / Each
|
|
|
701978 | 005015-00 | Z05 | Washer, Spring, SW8 8.2X13.5X2.0T | Yes |
Compatibility List |
$2.00 / Each
|
|
|
1037441 | 1000109595 | Crank arm cover | Yes |
Compatibility List |
$10.00 / Each
Out Of Stock |
||
|
971749 | 003307-00 | Rate Chest Strap (New) | Yes |
Compatibility List |
$76.65 / Each
|
||
|
1017370 | 000491-B | Stabilizer Leveling Foot Leveler (Used) | No |
Compatibility List |
$13.19 / Each
|
Catalog #: 1025906
MPN: 1000329341
Vision Fitness Bike Elliptical U40 U20 X40 Touch Display Console
$908.70 / each
Catalog #: 714359
MPN: 1000314036
Adapter, UL, 100 240V/50 60Hz, 12V/2A, 2.75m cord, 2.1mm prong
$72.98 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
