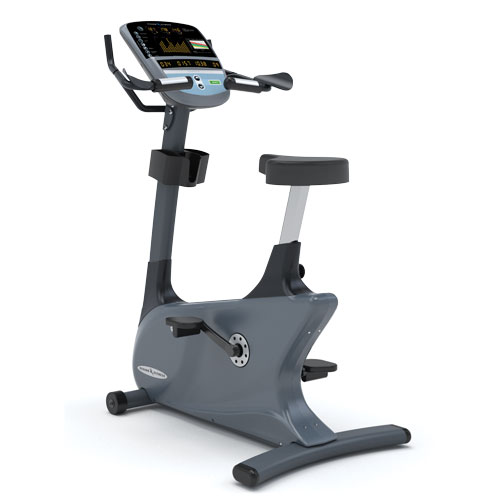

Vision Fitness - U70 - 2010

Repair Parts for Vision Fitness U70 CB68B

Brand: Vision Fitness

Category: Upright

Type: Stationary Bikes

Model Name: U70

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700025 000042-00 L03 Transport Wheel;;;Nylon;75;;;AC03 Yes Model Compatibility List $3.64 / Each

8,4,5,6
700055 000208-C Q03 Boot;Console Mast No Model Compatibility List $18.41 / Each

7
J 700132 000485-00 J06 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
J 700135 000491-B J05 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
1 700259 000802-AA 14 Water Bottle Holder Yes Model Compatibility List $22.78 / Each

1
700262 000808-B C11 Water Bottle No Model Compatibility List $9.88 / Each

1
700306 000924-F J09 End Cap;Rear Stabilizer No Model Compatibility List $9.57 / Each

9
D 700357 001126-C D70 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

9,12,13,14,11
D 700358 001127-C D57 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

9,12,13,14,11
700361 001131-D Q06 Cover;Crank;ABS;RB41 No Model Compatibility List $1.90 / Each

8,9
D 700574 001694-E D18 Seat Pad Yes Model Compatibility List $73.71 / Each

12,13,14
700705 001984-00 Not Shown BATTERY;9V ALKALINE;GP 1604A; No Model Compatibility List $18.23 / Each

1
700719 002024-E P01 Console Cable;1750L No Model Compatibility List $91.23 / Each

7,4,5,6
700887 002645-D P02 LCB Wire Set;100L;(3.96-5P WH+HL20P-03); Yes Model Compatibility List $3.64 / Each

4,5,6
P 701066 003556-D P03 Power Resistor;300W Yes Model Compatibility List $128.78 / Each

4,5,6
U 701162 004079-A3 U04 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

8
U 701165 004081-A2 U06 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
701195 004146-00 R20 Drive Belt;Poly-V;380-J6 No Model Compatibility List $54.73 / Each

15,10
701208 004164-00 R19 Drive Belt;Poly-V;460-J8 No Model Compatibility List $54.73 / Each

15,10
S 701265 004326-00 S14 Screw;Phillip;Round;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
N 701342 004388-00 N50 Screw;Oval;PH; M5X0.8PX12L(ZINC PLATING) No Model Compatibility List $1.79 / Each

2
S 701390 004447-AB S12 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
C 701401 004454-00 C13 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
U 701403 004457-00 U13 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
701527 004558-AA P52 Screw;SH;M5X0.8PX50L;;HS;;BZN;; No Model Compatibility List $1.66 / Each

2
Q 701586 004617-00 Q14 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
S 701644 004678-00 S02 Bolt;Eye Hook; 1/4"-20UNCX55L No Model Compatibility List $1.79 / Each

2
G 701667 004700-AB G11 Screw;Hex Socket;TH;M8X1.25PX15L;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
J 701719 004739-AB J13 Screw;BH;M8X1.25PX65L-20L;;HS;;;;BP;P-T No Model Compatibility List $1.79 / Each

2
J 701727 004750-00 J08 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
R 701811 004828-AA R17 Screw;Hex Socket;BH;M6x1.0Px16L;Adhere No Model Compatibility List $1.79 / Each

2
L 701841 004859-00 L06 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
S 701870 004892-00 S09 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
P 701891 004924-00 P53 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
D 701897 004926-00 D20 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
S 701907 004933-00 S06 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.79 / Each

2
S 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
J 701934 004972-00 J11 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
J 701939 004975-00 J07 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
C 701947 004983-A C33 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.79 / Each

2
T 701950 004986-00 T06 Key;Round;Dual-End;6x6x10L; No Model Compatibility List $1.79 / Each

9
701953 004989-Z R06 Key;Round;Dual-End;6X6X15L No Model Compatibility List $1.66 / Each

9
C 701960 005003-00 C14 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
J 701964 005005-00 J12 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
S 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
S 702050 005078-00 S11 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
P 702054 005082-00 P54 Washer;Flat;5.0x16.0x1.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
R 702067 005096-Z R18 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
L 702068 005097-00 L07 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
S 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
702188 005231-A L05 Washer;Wavy;16.2x28.7x1.5Tx1.5H No Model Compatibility List $1.79 / Each

2,4,5,6
T 702193 005239-00 T33 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
B 702217 005330-00 B41 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
702219 005334-B R04 Housing;Fix Bearing;SS41;Zn Plate;RB35; No Model Compatibility List $18.82 / Each

8,3
702220 005340-B R05 Housing;Slide Bearing;SS41;Zn Plate;RB35 No Model Compatibility List $15.05 / Each

8,3
R 702227 005352-00 R12 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

2
U 702230 005355-00 U05 C-Clip;Internal;R-55 Yes Model Compatibility List $3.64 / Each

2
R 702231 005356-00 R11 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

2
U 702240 005365-00 U07 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
R 702242 005367-00 R14 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
702358 006421-E V08 Decal;Crank Cover;T=0.3mm;RB41 No Model Compatibility List $3.64 / Each

7,8,9,3
S 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

2,3
Q 702483 007964-00 Q09 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
U 702516 008418-00 U14 Bracket;Spring Adjustment No Model Compatibility List $1.90 / Each

2,3,4,5,6
702568 008686-B L02 Axle;Transport Wheel No Model Compatibility List $16.09 / Each

8
T 702601 008914-B T05 Nut;Fixing;S46C;AN04 M20x1.0Px6t;BED; No Model Compatibility List $4.00 / Each

2
702847 012376-00X 11 Transport Wheel Set;Front;US;CB58 No Model Compatibility List $49.76 / Each

8
T 703448 014721-A T16 Pedal Set;Both Sides; threading 9/16 Yes Model Compatibility List $60.22 / Each

8,9
N 703837 018591-CR Not Shown Battery Connecting Plate;9 Volt;150(XAP-02V-1+9V B No Model Compatibility List $9.10 / Each

3
Q 704289 022259-A Q10 Screw;TRH;4X6L;SM;PH;;BZN;;FLT No Model Compatibility List $2.00 / Each

2
D 705003 028999-BA D17 Seat Sleeve No Model Compatibility List $10.63 / Each

3,12,13,14
J 705700 055204-A J10 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
705764 056077-BA AD1 Seat Post No Model Compatibility List $133.85 / Each

12,13,14
706656 064235-A V14 Decal;Side Cover; VF No Model Compatibility List $18.77 / Each

7,9,3
T 706753 065247-A TP03 TV Exchange Connector;;F HDR Into F HSG 9 No Model Compatibility List $9.41 / Each

4,5,6
T 706754 065248-A TP04 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

4,5,6
706834 066032-A D21 Washer;Flat;8.2X19.0X2.5T;;BZN; No Model Compatibility List $9.10 / Each

2
T 706838 066044-A T32 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
C 706976 067765-AA C24 Screw; BH SUNK M4X0.7X8 No Model Compatibility List $1.79 / Each

2
P 706978 067774-A P11 Power Cord;FH33.3x8.25x16.4(FH0900B);TM95 No Model Compatibility List $8.42 / Each

4,5,6
706997 068164-AA Q04 Seat Post Boot No Model Compatibility List $28.05 / Each

12,13,14
T 709103 1000109595 T10 Crank Arm Cover;Round;Plastic;Black No Model Compatibility List $3.82 / Each

8,9,3,4,5,6
710728 1000212844 8 PULLEY SET;U60; No Model Compatibility List $249.13 / Each

8
711943 1000224025 4 STABILIZER SET;SA;;CB157;;; No Model Compatibility List $95.81 / Each

1
715361 1000324409 AD3 Adjustment Pin Assembly;Semi-Assy;;M16;; No Model Compatibility List $26.08 / Each

3,12,13,14
715532 1000325796 T07 Nut;Hex Flange;M10x1.25Px7T;SS41;Black A No Model Compatibility List $1.79 / Each

2,4,5,6
726175 080617 C41 TV Bracket Console Mast Cover No Model Compatibility List $3.35 / Each

7,2,9,3,4,5,6
726435 081795 TP02 TV Power Wire;1550L;SCD-026CCS+TKP H6 No Model Compatibility List $16.12 / Each

4,5,6
726493 082339 - TV Bracket; Upright No Model Compatibility List $342.94 / Each

2,3,4,5,6
726541 082662 D22 Foam Strips;140X25X1.0T(SINGLE) No Model Compatibility List $1.79 / Each

1
Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL 726738 084533 G21 Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL No Model Compatibility List $1.79 / Each

2
Cover;Console Mast;Right;Outside 727311 088493 Q11 Cover;Console Mast;Right;Outside No Model Compatibility List $132.00 / Each

7,9
727462 089466 T03 Crank;Left;SS41;BED;S14.8;CB59B-T03; No Model Compatibility List $51.48 / Each

8
727463 089467 T04 Crank;Right;SS41;BED;S14.8;CB59B-T04; No Model Compatibility List $51.48 / Each

8
Pulse Sensor Set 727558 0000089923 7 Pulse Sensor Set No Model Compatibility List $39.99 / Each

12,13,14
727810 091140 1 Console Mast Set;US;U70; No Model Compatibility List $261.40 / Each

7
727812 091155 10 Console Set;H001S001;6R;US;U70; No Model Compatibility List $1.30 / Each

7
727814 091161 5 Side Cover Set;Right;US;U70; D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $217.93 / Each

9
727815 091162 6 Side Cover Set;Left;US;U70; No Model Compatibility List $215.54 / Each

9
727816 091164 7 Pulley Axle Set Set;US;U70; No Model Compatibility List $368.34 / Each

8
727817 091171 - Assembly Manual;E3700HRT9;US;CB68B No Model Compatibility List $8.42 / Each

7,3,12,13,14
727818 091172 Not Shown Owners Manual No Model Compatibility List $13.29 / Each

1
727819 091176 - Hardware;With Tools;E3700HRT9;US;CB68B No Model Compatibility List $34.19 / Each

7,12,13,14
728060 092950 P07 Connecting Wire;Pulse Sensor;1000L(2.54-2P-V+11 No Model Compatibility List $11.02 / Each

4,5,6,12,13,14
728275 093925 V04 Model Sticker;0.5mm;U70; No Model Compatibility List $9.57 / Each

1
Heart Rate Wire;1000;P2-I25002+J1730BS-2 728386 094482 P08 Heart Rate Wire;1000;P2-I25002+J1730BS-2 Yes Model Compatibility List $19.99 / Each

4,5,6,12,13,14
728394 094529 Q21 E-Port End Cap;6.2x6L;M-6A-N2A; No Model Compatibility List $1.66 / Each

9
728401 094554 12 ECB / Generator Set;US;U70; No Model Compatibility List $547.53 / Each

8
728402 094555 13 Lower Control Board Set;US;U70; No Model Compatibility List $591.47 / Each

7
728577 095381 AU1 Idler Set;KM;U70;CB68B-AU3 No Model Compatibility List $136.86 / Each

8
728588 095430 U27 Washer;FLT;9.3X23.0X2.0T;;BZN; No Model Compatibility List $1.66 / Each

2
Bike Pedal Set 9/16 1000135 1000228989 0 1 Bike Pedal Set 9/16" Yes Model Compatibility List $77.99 / Each

1
