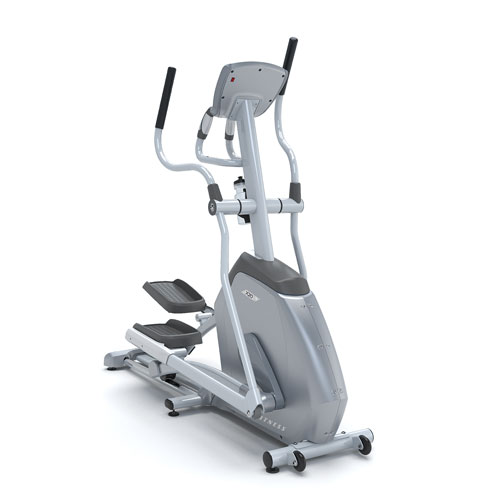

Repair Parts for Vision Fitness X20 EP240
| Brand | Vision Fitness |
|---|---|
| Type | Elliptical |
| Category | Traditional |
| Model Number | EP240 |
| Model Name | X20 |
| Version | 2010 |
Model Numbers: EP240, CRB138
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
710253 | 1000207981 | - | Manual, Assembly, EP240 | No |
Compatibility List |
$10.24 / Each
|
|
|
710521 | 1000210808 | - | Plug and washer kit | No |
Compatibility List |
$4.73 / Each
|
|
|
1001766 | 1000231159 | 0 | 1 | Adapter DC | No |
Compatibility List |
$81.99 / Each
|
|
1006814 | 011173-00 | 0 | 1 | Black Hex Nut M25x1.5 | No |
Compatibility List |
$9.99 / Each
|
|
|
709266 | 1000111636 | 1 | Console Mast Set, EP240 | No |
Compatibility List |
$589.89 / Each
|
|
|
|
709243 | 1000111420 | 2 | Guide Rail Set, EP240 | No |
Compatibility List |
$400.58 / Each
|
|
|
|
709244 | 1000111423 | 3 | Pedal Arm Set, Left, EP240 | No |
Compatibility List |
$462.98 / Each
|
|
|
|
709245 | 1000111425 | 4 | Pedal Arm Set, Right, EP240 | No |
Compatibility List |
$462.98 / Each
|
|
|
|
709267 | 1000111638 | 5 | Upper DA Handle Bar Set, Left, U, EP240 | No |
Compatibility List |
$158.03 / Each
|
|
|
|
709268 | 1000111639 | 6 | Upper DA Handle Bar Set, Right, U, EP240 | No |
Compatibility List |
$158.03 / Each
|
|
|
|
709249 | 1000111430 | 7 | Lower Handlebar Set, Left | No |
Compatibility List |
$226.93 / Each
|
|
|
|
709239 | 1000111416 | 8 | Lower Handlebar Set, Right | No |
Compatibility List |
$226.93 / Each
|
|
|
|
709251 | 1000111441 | 13 | Front Stabilizer Only | No |
Compatibility List |
$176.93 / Each
|
|
|
709253 | 1000111448 | 15 | Drive Axle Set, EP241 | Yes |
Compatibility List |
$84.99 / Each
|
|
|
710070 | 1000206628 | 16 | Resistance Brake Flywheel, 10.5KG | No |
Compatibility List |
$360.20 / Each
|
|
|
|
700262 | 000808-B | 80 | Water Bottle | No |
Compatibility List |
$9.88 / Each
|
|
|
708182 | 1000100946 | AJ1 | Crank Set | Yes |
Compatibility List |
$191.62 / Each
|
|
|
|
709241 | 1000111418 | AN1 | HR Grip / Pulse Sensor Set, EP241 | No |
Compatibility List |
$38.32 / Each
|
|
|
|
709228 | 1000111352 | AQ01 | Side Cover,Right | No |
Compatibility List |
$166.89 / Each
|
|
|
|
709229 | 1000111353 | AQ02 | Side Cover,Left | No |
Compatibility List |
$166.89 / Each
|
|
|
|
709161 | 1000110560 | B16 | Screw, SH, MT, HS, G12.9, ZNC, BP | No |
Compatibility List |
$2.00 / Each
|
|
|
702028 | 005060-00 | B24 | Washer, Flat, 12.0X23.0X2.5T | Yes |
Compatibility List |
$6.00 / Each
|
|
|
701994 | 005033-00 | B55 | Washer, Flat, 8.6x26.0x2.0T | No |
Compatibility List |
$1.79 / Each
|
|
|
700255 | 000787-00 | C06 | Water Bottle Holder | Yes |
Compatibility List |
$15.59 / Each
|
|
|
701309 | 004369-AD | C08 | Screw, BH, M5X0.8PX15L, PH, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
725869 | 077441 | C10 | Sticker, Warning, Console set, 38x54, EP197 | No |
Compatibility List |
$1.77 / Each
|
|
|
|
708073 | 1000098892 | C23 | Sensor Wire, Pulse, 850(110Female SM 2Y) | No |
Compatibility List |
$34.16 / Each
|
|
|
|
709054 | 1000108776 | C24 | Screw, RND, M3x0.5Px32L, PH, 8.8, CHM, F T | No |
Compatibility List |
$1.85 / Each
|
|
|
|
709056 | 1000108778 | C28 | Washer, Flat, ?8.5x?20.0x1.0t, NKL | No |
Compatibility List |
$2.00 / Each
|
|
|
701681 | 004714-AB | D08 | Screw, Hex Socket, BH, M6x1.0Px15L, Zinc | Yes |
Compatibility List |
$7.00 / Each
|
|
|
720052 | 1000368347 | D08 | Accent Plate Set, Semi Assy, EP595 1US | Yes |
Compatibility List |
$70.25 / Each
|
|
|
|
708075 | 1000098949 | D13 | Rear Stabilizer Cover, Panting, silver, EP240 | No |
Compatibility List |
$44.30 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
702107 | 005136-A | E09 | Washer, Flat, 8.5x20.0x1.0T | Yes |
Compatibility List |
$1.59 / Each
|
|
|
725507 | 072210 | E10 | Screw, Hex Socket, BH, M8x1.25Px15L | No |
Compatibility List |
$1.59 / Each
|
|
|
704073 | 020185-00 | E11 | Screw, Phillip, BH, Tapped, 4x10L | No |
Compatibility List |
$1.59 / Each
|
|
|
710722 | 1000212646 | E11 | MOVING WHEEL SET, , S EP534, | No |
Compatibility List |
$189.00 / Each
|
|
|
1004409 | 1000212646 | E11 | 1 | Moving Wheel Set S EP534 | No |
Compatibility List |
$189.00 / Each
|
|
702005 | 005043-00 | E12 | Washer, Flat, 8.2x20x1.5T, Black Zinc | Yes |
Compatibility List |
$5.00 / Each
|
|
|
712062 | 1000226201 | E13 | SCREW, SH, M10x1.5Px45L 16L, MT, G10.9, CRMO | Yes |
Compatibility List |
$12.99 / Each
|
|
|
725508 | 072211 | E14 | Screw, Hex Socket, BH, M8x1.25Px20L | No |
Compatibility List |
$1.59 / Each
|
|
|
712370 | 1000228586 | E16 | NUT, NLK, M10x1.5P, G10.0, BAN | No |
Compatibility List |
$1.54 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
708160 | 1000100846 | E18 | End Cap, Pedal Arm | No |
Compatibility List |
$2.47 / Each
|
|
|
|
708553 | 1000103340 | E21 | Front Link Arm Cover, Left Upper, Painting, EP240 | No |
Compatibility List |
$9.57 / Each
|
|
|
|
708554 | 1000103341 | E22 | Front Link Arm Cover, Left Lower, Pedal Arm, Painting, EP240 | No |
Compatibility List |
$9.57 / Each
|
|
|
708555 | 1000103342 | E24 | Roller Cover, Right, Painting, EP240 | No |
Compatibility List |
$11.93 / Each
|
|
|
|
708748 | 1000105271 | E25 | Upper Front Cover, Link Arm, Right | No |
Compatibility List |
$9.57 / Each
|
|
|
|
708749 | 1000105273 | E26 | Lower Front Cover, Link Arm, Right | No |
Compatibility List |
$9.57 / Each
|
|
|
712111 | 1000226784 | E30 | SHIM, CRANK SLEEVE, , SPHC, , EP558 | No |
Compatibility List |
$3.82 / Each
|
|
|
706705 | 064736-AA | F14 | End Cap, Guide Rail, PP, BL, EP136 B26B | Yes |
Compatibility List |
$8.97 / Each
|
|
|
700323 | 000960-AA | G09 | End Cap, Upper Vertical Handlebar | Yes |
Compatibility List |
$3.89 / Each
|
|
|
701827 | 004847-AB | G10 | Set Screw, M10X1.5PX12L | Yes |
Compatibility List |
$6.99 / Each
|
|
|
|
708543 | 1000103286 | G10 | Swivel Axle Cover, Arm Rest, EP240 | No |
Compatibility List |
$10.09 / Each
|
|
|
708419 | 1000102774 | G11 | Screw, Settle, M4x0.7Px8L | No |
Compatibility List |
$3.88 / Each
|
|
|
709105 | 1000109696 | G12 | Pivot Tube Cover, Hand Arm, Nylon 30%, EP240 | Yes |
Compatibility List |
$3.82 / Each
|
|
|
702018 | 005053-00 | G18 | Washer, Flat, 8.2x27.0x2.0T | Yes |
Compatibility List |
$6.00 / Each
|
|
|
702163 | 005200-A | G19 | Washer, Teflon, 18.2X30.0X1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
708076 | 1000098969 | G20 | Pivot Tube Insert, POM, Pantone425CTR??EP2 | No |
Compatibility List |
$9.57 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
708433 | 1000102806 | H05 | Swivel Axle, Link Arm | No |
Compatibility List |
$18.99 / Each
Out Of Stock |
|
|
709152 | 1000110505 | H06 | Screw, Anti slippery, TRHW, M5x0.8Px12L | No |
Compatibility List |
$2.00 / Each
|
|
|
713201 | 1000300189 | H07 | Bearing, Dry, , , Sheng Ge Ban | No |
Compatibility List |
$6.68 / Each
|
|
|
708508 | 1000103023 | H09 | End Cap, Pedal Arm | Yes |
Compatibility List |
$6.49 / Each
|
|
|
700390 | 001193-00 | H13 | End Cap, Seat Pad, 20x40x1.6t, RB06 | No |
Compatibility List |
$1.51 / Each
|
|
|
707094 | 1000090311 | H14 | SCREW BH 4x15L TAPPED NICKEL | No |
Compatibility List |
$2.00 / Each
|
|
|
701008 | 003307-00 | KIT | Chest Strap, Polar, T34/T41 | No |
Compatibility List |
$76.99 / Each
|
|
|
725742 | 075513 | KIT | Crank Puller, 30mm | No |
Compatibility List |
$57.49 / Each
|
|
|
726413 | 0000081709 | L01 | Transport Wheel, Nylon | Yes |
Compatibility List |
$17.24 / Each
|
|
|
707117 | 1000090362 | L04 | Screw, BH, M8X1.25PX45L, HS, CRMO, G10.9, NKL | No |
Compatibility List |
$3.69 / Each
|
|
|
|
707118 | 1000090363 | L05 | Nut, NLK, M8X1.25P, NKL | No |
Compatibility List |
$2.00 / Each
|
|
|
|
707119 | 1000090364 | L06 | Washer, Flat, 8.2X18.0X1.0T, SPHC, NKL | No |
Compatibility List |
$1.85 / Each
|
|
|
707361 | 1000092318 | L08 | Front Leveler | No |
Compatibility List |
$12.43 / Each
|
|
|
|
708090 | 1000099323 | L09 | End Cap, Front Stabilizer | Yes |
Compatibility List |
$9.57 / Each
|
|
|
709092 | 1000109370 | M02 | Steel Resistance Cable Rope, ECB, 160L, L1 L2=65 | Yes |
Compatibility List |
$16.89 / Each
|
|
|
|
707950 | 1000097223 | N20 / | Screw, BH, M5x0.8Px10L, CHM | No |
Compatibility List |
$0.60 / Each
|
|
|
706546 | 063261-AA | N50 | Fix Implemen, HW 8Aa | No |
Compatibility List |
$1.77 / Each
|
|
|
728852 | 098038 | N70 | JUMPER WIRE | Yes |
Compatibility List |
$5.75 / Each
|
|
|
|
707540 | 1000093315 | NOT SHOWN | CTL Board, AV&USB | No |
Compatibility List |
$35.44 / Each
|
|
|
|
709802 | 1000203355 | NOT SHOWN | Premier Console Set Serial Number EP249 | No |
Compatibility List |
$1.30 / Each
|
|
|
710395 | 1000210076 | NOT SHOWN | Deluxe Console Set Serial Number RB144 D/C, NO REPL: Part will show as orderable until stock is depleted | No |
Compatibility List |
$699.00 / Each
|
|
|
|
725244 | 103241 | NOT SHOWN | MANUAL OWNER BIKE/ELLIPTICAL | No |
Compatibility List |
$11.96 / Each
|
|
|
708764 | 1000105513 | P01 | Console Cable Wire, 1000 XHS 10Y (300 450 100) | Yes |
Compatibility List |
$76.65 / Each
|
|
|
|
708763 | 1000105512 | P02 | Speed Sensor Wire, 150mm(OKI CWB:SM 2Y) | No |
Compatibility List |
$9.57 / Each
|
|
|
728841 | 097930 | P05 | Power Jack | No |
Compatibility List |
$16.51 / Each
|
|
|
701848 | 004865-00 | P07 | Screw, Self Tapping, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
712874 | 1000231159 | P12 | ADAPTER, US, 100 240V/50 60HZ, 12V/2A, 2.0M | No |
Compatibility List |
$80.29 / Each
|
|
|
701858 | 004880-00 | P20 | Nut, Zero Switch Cable, M3x0.5Px3H | No |
Compatibility List |
$2.00 / Each
|
|
|
700357 | 001126-C | P25 | End Cap, Pulse Grips, Inner | No |
Compatibility List |
$1.90 / Each
|
|
|
|
709117 | 1000109871 | Q03 | Console Mast Lower Cover, Rear, Painting, EP240 | No |
Compatibility List |
$10.92 / Each
|
|
|
709106 | 1000109697 | Q04 | Console Mast Lower Cover, Front, Painting, EP240 | No |
Compatibility List |
$54.86 / Each
|
|
|
704273 | 022177-A | Q07 | Bracket, Side Cover, 2 Hole Plate | Yes |
Compatibility List |
$6.00 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
|
708544 | 1000103293 | Q08 | Rear Side Cover, Painting, G/S, EP240 | No |
Compatibility List |
$25.74 / Each
|
|
|
701597 | 004621-00 | Q09 | Screw, Phillip, BH, Tapped, 4x15L, Gap | No |
Compatibility List |
$1.59 / Each
|
|
|
|
708556 | 1000103343 | Q10 | Pedal Arm Cover, Left, Painting, EP240 | No |
Compatibility List |
$10.92 / Each
|
|
|
|
708557 | 1000103344 | Q11 | Pedal Arm Cover, Right, Painting, EP240 | No |
Compatibility List |
$10.92 / Each
|
|
|
710015 | 1000205925 | Q12 | Crank Cover, Left, Panting, silver, ABS, EP240 | No |
Compatibility List |
$44.28 / Each
|
|
|
708077 | 1000098998 | Q14 | Crank Round Cover, Panting, silver, EP240 | Yes |
Compatibility List |
$3.82 / Each
|
|
|
702092 | 005125-00 | R02 | Washer, Flat, 10.2x20x1.0T | No |
Compatibility List |
$1.54 / Each
|
|
|
702829 | 011173-00 | R03 | Nut, Hex, M25x1.5P, Black | No |
Compatibility List |
$6.48 / Each
|
|
|
701952 | 004988-00 | R05 | Key, Round, Dual End, 6x6x14L | No |
Compatibility List |
$1.90 / Each
|
|
|
710064 | 1000206552 | R06 | Drive Belt, Poly V, 490 J10 | Yes |
Compatibility List |
$57.49 / Each
|
|
|
1002360 | 1000206552 | R06 | 1 | Belt Drive 10 ribs | No |
Compatibility List |
$31.99 / Each
|
|
701643 | 004677-00 | R07 | Bolt, Eye Hook, 1/4" 20UNCX50L(25L), ZN BL | No |
Compatibility List |
$10.01 / Each
|
|
|
701874 | 004901-00 | R08 | Nut, Hex, M12x1.75P, Zn BL | Yes |
Compatibility List |
$9.99 / Each
|
|
|
701932 | 004969-A | R10 | Nut, Hxf, M14X1.5PX10L, BZN, G10 | No |
Compatibility List |
$4.60 / Each
|
|
|
706236 | 060370-A | R10 | Washer, Spring, 14.2x24x1.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
705485 | 049287-00 | R17 | Washer, Flat, 12.5x20.0x2.0t | No |
Compatibility List |
$2.00 / Each
|
|
|
709201 | 1000110978 | R18 | Nut, HXF, levogyrate, M14x1.5Px10L, G10, NKL, Reverse Threaded | No |
Compatibility List |
$2.00 / Each
|
|
|
702512 | 008394-00 | S05 | Fix Plate, Eye Bolt, SPC, 1.3t, AB01 | No |
Compatibility List |
$6.00 / Each
|
|
|
701904 | 004931-00 | S06 | Nut, Locking, Nylon, 1/4" 20UNC | Yes |
Compatibility List |
$1.59 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
701042 | 003413-00 | T16 | Magnet, Crank Wheel, 15x7t | No |
Compatibility List |
$4.00 / Each
|
|
|
702240 | 005365-00 | U04 | C Clip, External, S 20 | No |
Compatibility List |
$1.02 / Each
|
|
|
|
709115 | 1000109865 | V01 | Model Sticker, Left, EP240 | No |
Compatibility List |
$3.82 / Each
|
|
|
|
709116 | 1000109866 | V02 | Model, Sticker, Right, EP240 | No |
Compatibility List |
$3.82 / Each
|
|
|
706142 | 059542-AX | V05 | Sticker, Warning | No |
Compatibility List |
$1.77 / Each
|
|
|
|
709142 | 1000110435 | V12 | Round Sticker, 30, G/S, EP240 | No |
Compatibility List |
$1.90 / Each
|
|
|
702404 | 006644-BX | V16 | Sticker, Instructon, R | No |
Compatibility List |
$1.90 / Each
|
|
|
707527 | 1000093249 | Z01 | Screw, BH, M8X1.25PX25L, HS, G8.8, NKL, BP | No |
Compatibility List |
$2.00 / Each
|
|
|
|
707122 | 1000090367 | Z02 | Washer, Arc, 8.4X17.0X1.0T, NKL | No |
Compatibility List |
$1.85 / Each
|
|
|
702074 | 005106-00 | Z03 | Washer, Flat, 10.2x20.0x1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701984 | 005020-AB | Z08 | Washer, SPL, 10.2X18.4X2.5T, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
709211 | 1000111159 | Z10 | Washer, Wavy, 17.2x22.5x0.5T, 65Mn | No |
Compatibility List |
$1.59 / Each
|
|
|
|
701966 | 005005-ZAB | Z13 | Washer, Spring, 8.2x15.4x2.0t, Yellow Ni | No |
Compatibility List |
$2.00 / Each
|
|
|
|
702165 | 005202-A | Z15 | Washer, Teflon, 16.2X28.7X1.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
726975 | 086331 | Z15 | Washer, Wavy, 17.2X22.5X0.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
703965 | 020014-00 | Z17 | Screw, Phillip, BH, M4x0.7Px15L, Ni, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
702178 | 005220-00 | Z20 | Washer, Wavy, 20.7x29.1x.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
|
709057 | 1000108779 | Z20 | Screw, BH, M8x1.25Px70L 12L, HS, 8.8, NKL, BP | No |
Compatibility List |
$4.00 / Each
|
|
|
|
709058 | 1000108781 | Z23 | Nut, Nylon, M8x1.25P, NKL | No |
Compatibility List |
$2.00 / Each
|
|
|
704068 | 020179-00 | Z24 | Screw, Phillip, BH, Tapped, 4x12L, Flat End | No |
Compatibility List |
$1.59 / Each
|
|
|
|
707107 | 1000090329 | Z25 | Screw, Hex, BH, M8X1.25X20 CHM | No |
Compatibility List |
$2.00 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
709135 | 1000110274 | Z32 | Washer, Flat, 20.2x27.2x1.5T, SPHC, BAN | No |
Compatibility List |
$1.59 / Each
|
|
|
911968 | 004620-00 | Self Tapping Screw 4X12L (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
971749 | 003307-00 | Rate Chest Strap (New) | Yes |
Compatibility List |
$76.65 / Each
|
Catalog #: 708554
MPN: 1000103341
Front Link Arm Cover, Left Lower, Pedal Arm, Painting, EP240
$9.57 / each
Catalog #: 709201
MPN: 1000110978
Nut, HXF, levogyrate, M14x1.5Px10L, G10, NKL, Reverse Threaded
$2.00 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
