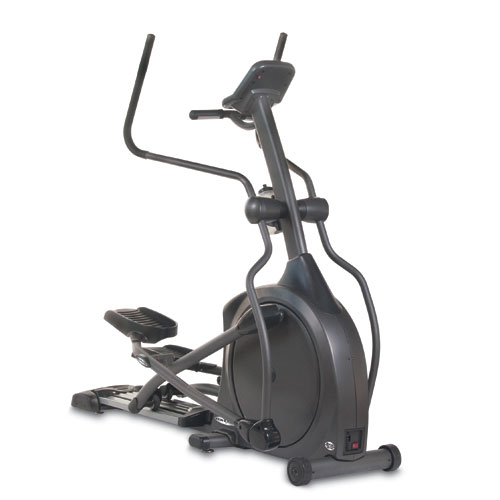

Vision Fitness - X6150 - 2007

Repair Parts for Vision Fitness X6150 EP172

Brand: Vision Fitness

Category: Traditional

Type: Elliptical

Model Name: X6150

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Switch
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L02 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
700152 000522-D B40 Leveler Yes Model Compatibility List $11.60 / Each

3
C 700255 000787-00 C15 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
700262 000808-B C14 Water Bottle No Model Compatibility List $9.88 / Each

1
P 700357 001126-C P08 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

9,12,13,14,11
N 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

9,12,13,14,11
Z 700410 001278-B Z16 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
P 700750 002137-E P18 Power Cord;3000;3000;16AWG No Model Compatibility List $54.73 / Each

4,5,6
N 701008 003307-00 NOT SHOWN Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

1
701013 003326-00 P14 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
R 701042 003413-00 R21 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
R 701119 003903-A R05 PULLEY POLY V No Model Compatibility List $51.53 / Each

8
R 701154 004072-A2 R32 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
E 701159 004077-A2 E20 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
R 701160 004078-A2 R24 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
F 701165 004081-A2 F18 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
R 701222 004191-A R17 Drive Belt;Poly-V;390-J10 Yes Model Compatibility List $57.49 / Each

15,10
P 701275 004339-00 P04 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
E 701300 004364-00 E19 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
J 701312 004370-00 J05 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

2
701319 004374-ZAC B28 Screw;BH;M5X0.8X10 No Model Compatibility List $2.00 / Each

2
Z 701338 004387-AC Z19 Screw;BH;M5X0.8PX10L;;PH;;BOX;; No Model Compatibility List $2.00 / Each

2
C 701358 004409-00 C16 Screw;Phillip;BH;M5x0.8Px20L No Model Compatibility List $2.00 / Each

2
F 701386 004442-00 F19 Screw;Hex Socket;M4X0.7PX10L No Model Compatibility List $2.00 / Each

2
E 701430 004479-00 E17 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

2
Z 701505 004539-AD Z11 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 701583 004615-00 F24 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
H 701585 004616-00 H16 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

2
B 701597 004621-00 B29 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
Z 701703 004725-AB Z17 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
L 701731 004757-00 L04 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
Z 701841 004859-00 Z03 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
P 701848 004865-00 P10 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
P 701858 004880-00 P05 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
R 701869 004891-00 R36 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

2
R 701870 004892-00 R37 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
H 701874 004901-00 H15 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

2
Z 701897 004926-00 Z13 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R28 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
M 701908 004934-00 M04 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
B 701934 004972-00 B41 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
C 701937 004973-00 C13 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
Z 701939 004975-00 Z25 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
701959 005002-00 M09 Washer;Split;4.1x7.6x1.0T No Model Compatibility List $2.00 / Each

2
Z 701964 005005-00 Z21 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 701997 005035-00 Z09 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

2
G 702004 005042-00 G13 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
E 702015 005049-00 E26 Washer;Flat;8.2x18.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702037 005067-00 R30 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
R 702045 005074-00 R26 Washer;Flat;6.5x19x2.0T No Model Compatibility List $1.85 / Each

2
Z 702050 005078-00 Z18 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 702063 005091-00 M11 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

2
L 702071 005103-00 L03 Washer;Flat;5/16'X30.0X1.5T;;BAN; No Model Compatibility List $2.00 / Each

2
Z 702076 005109-00 Z14 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702136 005165-00 Z20 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
L 702180 005222-00 L12 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
H 702185 005228-00 H17 Washer;Wavy;25.5x34.0x2.0T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
B 702217 005330-00 B38 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
R 702236 005361-00 R31 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
R 702241 005366-00 R19 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
C 702242 005367-00 C17 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
B 702502 008196-B B39 Connecting Plate;Side Cover No Model Compatibility List $1.90 / Each

9,3
Z 702634 009092-B Z15 Sleeve;Pin;Ball Joint Yes Model Compatibility List $7.10 / Each

3,12,13,14
Z 703978 020045-00 Z06 Screw;Phillip;Sink;M5x0.8Px12L;;Zn-BL No Model Compatibility List $2.00 / Each

2
B 704041 020127-A B83 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
704086 020208-00 M08 Screw;Round;4X12L;TC;PH;;;;POT No Model Compatibility List $1.56 / Each

2
H 704201 020475-A H18 Washer;Flat;8.2x38x2.0T No Model Compatibility List $2.00 / Each

2
Q 705394 049051-AA Q32 End Cap;Stabilizer Yes Model Compatibility List $12.17 / Each

9
P 705899 056451-A P03 Grip Pulse Wire;Upper Handlebar No Model Compatibility List $3.54 / Each

4,5,6,12,13,14,11
R 706235 060369-A R06 Nut;Hex;M14X1.5PX8L No Model Compatibility List $0.96 / Each

2
R 706236 060370-A R22 Washer;Spring;14.2x24x1.0T No Model Compatibility List $2.00 / Each

2
706446 062373-AA Q25 COVER END LEFT No Model Compatibility List $8.87 / Each

9
706447 062374-AA Q26 COVER END RIGHT D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $9.57 / Each

9
706448 062375-AA Q18 CAP PEDAL ARM RIGHT No Model Compatibility List $9.57 / Each

8,9,3
706449 062376-AA Q19 CAP PEDAL ARM LEFT No Model Compatibility List $9.57 / Each

8,9,3
706450 062378-AA Q23 CAP GUIDE RAIL FRONT No Model Compatibility List $14.38 / Each

9
706453 062384-AA Q13 COVER CRANK No Model Compatibility List $13.10 / Each

8,9
Q 706454 062389-AA Q21 Pedal Pad;Left Yes Model Compatibility List $54.73 / Each

8,9,12,13,14
Q 706455 062390-AA Q22 Pedal Pad;Right Yes Model Compatibility List $54.73 / Each

8,9,12,13,14
706456 062395-A Q10 PEDAL LEFT No Model Compatibility List $41.31 / Each

8,9
706457 062396-A Q11 PEDAL RIGHT No Model Compatibility List $44.62 / Each

8,9
706458 062407-AX V04 DECAL MODEL X6150HRT No Model Compatibility List $16.41 / Each

7,3,12,13,14
706459 062411-AX NOT SHOWN MANUAL ASSEMBLY X6150HRT/X6250HRT No Model Compatibility List $3.54 / Each

7,3,12,13,14
706461 062421-AX NOT SHOWN MANUAL OWNERS X6150HRT/X6250HRT No Model Compatibility List $14.38 / Each

7,12,13,14
706463 062488-AX AN1 CONSOLE ASSEMBLY No Model Compatibility List $574.91 / Each

7,3
706464 062496-A NOT SHOWN HARDWARE KIT ORANGE No Model Compatibility List $1.85 / Each

1
706465 062497-A NOT SHOWN HARDWARE KIT BLUE No Model Compatibility List $15.63 / Each

1
706466 062498-A NOT SHOWN HARDWARE KIT GREEN No Model Compatibility List $29.77 / Each

1
706467 062517-AAX Q02 COVER SIDE LEFT No Model Compatibility List $108.50 / Each

9
706468 062518-AAX Q17 DISC No Model Compatibility List $83.93 / Each

1
P 706549 063270-A P13 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

4,5,6
706620 063864-AA Q34 COVER RAIL GUIDE No Model Compatibility List $22.54 / Each

9
706621 063865-AA Q30 CAP HANDLEBAR LOWER RIGHT No Model Compatibility List $9.57 / Each

9,11
706622 063866-AA Q31 CAP HANDLEBAR LOWER LEFT No Model Compatibility List $9.57 / Each

9,11
706623 063867-AA Q29 COVER LINK ARM No Model Compatibility List $3.54 / Each

9,3
J 706624 063869-AA J06 CAP DISK D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $3.82 / Each

9
P 706707 064795-A P12 Power Socket; 16AWG No Model Compatibility List $9.57 / Each

4,5,6
706708 064842-AA Q37 SLEEVE INNER HANDLEBAR No Model Compatibility List $3.54 / Each

3,11
706709 064843-AA Q35 END CAP HANDLEBAR No Model Compatibility List $9.57 / Each

9,11
706710 064844-AA Q36 SLEEVE OUTER HANDLEBAR No Model Compatibility List $9.57 / Each

3,11
706876 066514-A M10 Spacer;20mm OD x 11.1 ID x 39.6 Lg No Model Compatibility List $3.69 / Each

2,3,4,5,6
706980 067811-A NOT SHOWN HARDWARE KIT PINK No Model Compatibility List $11.39 / Each

12,13,14
E 707151 1000090498 E27 Screw;Phillip;BH;;M8x1.25Px40L;8.8 No Model Compatibility List $2.00 / Each

2
Q 707715 1000094431 Q04 BRACKET FRONT No Model Compatibility List $5.07 / Each

2,3,4,5,6
707803 1000095688 H10 Bearing;Rod End;Link Arm;M12X1.75 No Model Compatibility List $36.11 / Each

8,9,3
E 725256 103296 E22 Bushing No Model Compatibility List $9.57 / Each

8
E 725258 103298 E23 Bushing;Pivot Block;Pedal Arm No Model Compatibility List $11.96 / Each

8,9,3
725286 069215 G10 FOAM HANDLEBAR No Model Compatibility List $7.12 / Each

11
Incline Control Board 725310 069666 P10 Incline Control Board No Model Compatibility List $365.01 / Each

7,10
725320 069898 Z22 SCREW HEX M8X1.25X60 PARTIAL No Model Compatibility List $2.00 / Each

2
725343 070240 F17 PIN PULL 2X20 No Model Compatibility List $1.77 / Each

12,13,14
725345 070268 P06 WIRE CONSOLE 8PIN No Model Compatibility List $31.85 / Each

7,4,5,6,12,13,14
725346 070269 NOT SHOWN Cable connecting elevation motor to MCB No Model Compatibility List $25.25 / Each

4,5,6,10
Wire;Sensor;;(2.54-3P+OKIx 725347 070270 P09 Wire;Sensor;;(2.54-3P+OKIx Yes Model Compatibility List $13.81 / Each

4,5,6
725350 070322 V14 DECAL LINK ARM No Model Compatibility List $8.87 / Each

7,3
725626 074296 G11 BEARING HOUSING ASSEMBLY No Model Compatibility List $116.79 / Each

8,3
725627 074298 AS1 ECB ASSEMBLY No Model Compatibility List $172.46 / Each

3
725628 074299 AG2 HANDLEBAR ASSEMBLY LEFT No Model Compatibility List $107.43 / Each

3,11
725629 074300 AG1 HANDLEBAR ASSEMBLY RIGHT No Model Compatibility List $107.43 / Each

3,11
725630 074302 AH1 LINK ARM ASSEMBLY RIGHT No Model Compatibility List $483.18 / Each

3
725631 074305 AE3 CRANK PIN ASSEMBLY No Model Compatibility List $76.65 / Each

8,3,12,13,14
725632 074306 PAX PEDAL AXLE ASSEMBLY No Model Compatibility List $172.82 / Each

8,9,3
725633 074308 E15 ROLLER ASSEMBLY No Model Compatibility List $57.49 / Each

8,3
725644 074367 DAX Flywheel No Model Compatibility List $211.12 / Each

8
Crank Puller;30mm 725742 075513 KIT Crank Puller;30mm No Model Compatibility List $57.49 / Each

8

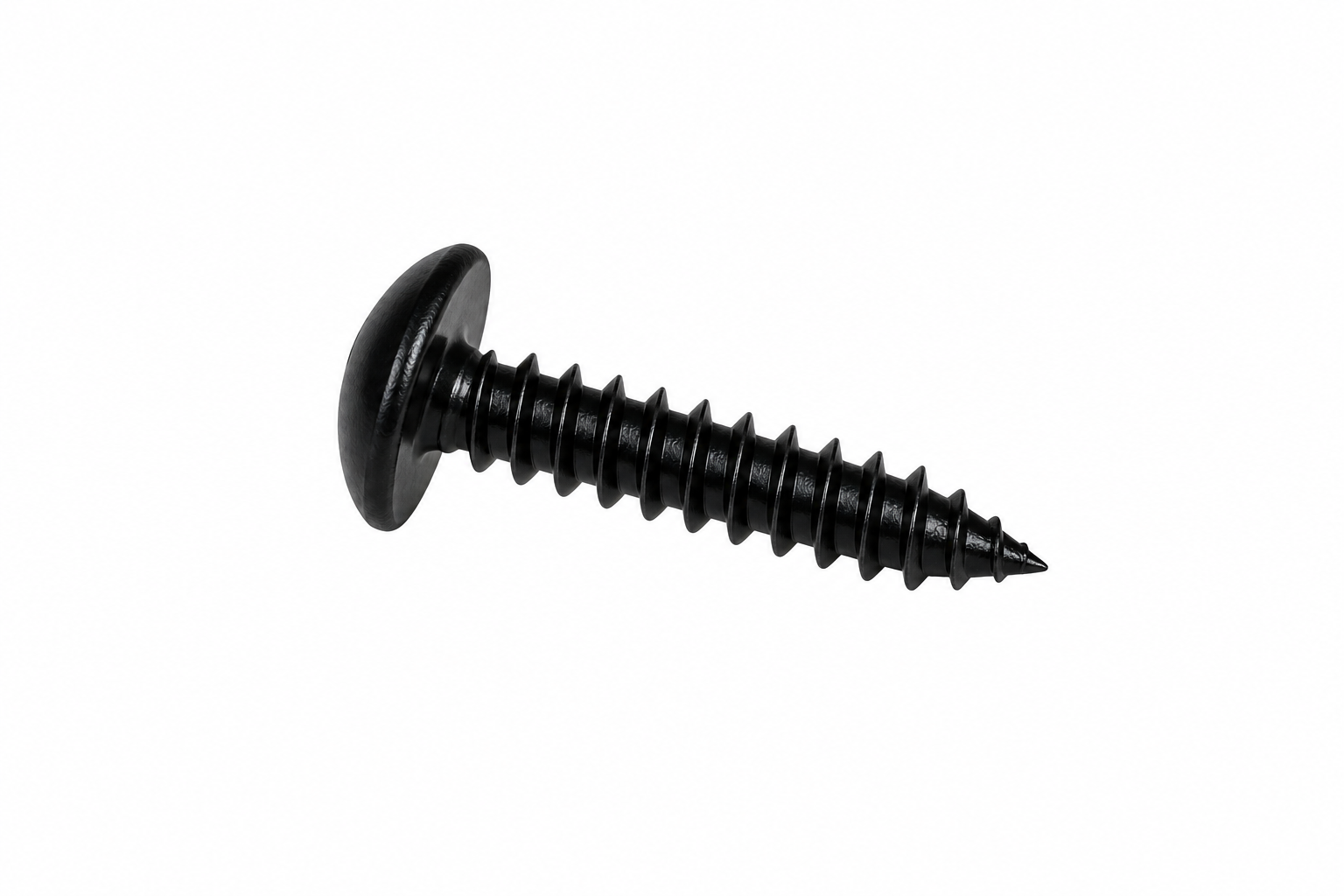

Screw;Phillip;Umbrella;Tapped;;#p4x20L;BL 725844 076953 Q06 Screw;Phillip;Umbrella;Tapped;;#p4x20L;BL No Model Compatibility List $2.00 / Each

2
726046 079501 F14 HOUSING BEARING ASSEMBLY No Model Compatibility List $52.39 / Each

8,3
Sleeve;SS41;20.2x25L;Zn Plate;FC16; 726213 080723 S08 Sleeve;SS41;20.2x25L;Zn Plate;FC16; No Model Compatibility List $19.94 / Each

3
Pulse Sensor Set 726839 0000085532 51 Pulse Sensor Set Yes Model Compatibility List $45.34 / Each

4,12
Bushing;Pivot Block Set 727576 090075 E20 Bushing;Pivot Block Set Yes Model Compatibility List $8.50 / Each

8
P 1001381 003326-00 P14 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
