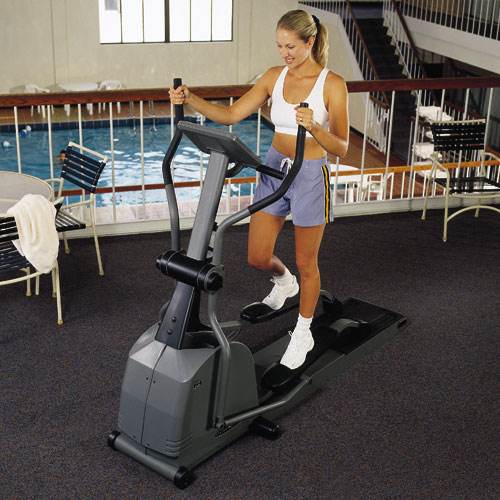

Vision Fitness - X6600HRC-DA - 1998-2000

Repair Parts for Vision Fitness X6600HRC-DA XXXXEP09

Brand: Vision Fitness

Category: Traditional

Type: Elliptical

Model Name: X6600HRC-DA

Version: 1998-2000

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Cover/trim
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L03 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
700076 000294-B - Cover;Pedal Arm;Right No Model Compatibility List $3.07 / Each

8,9,3
700085 000318-Z E17 COVER PEDAL ARM RIGHT REAR; No Model Compatibility List $3.64 / Each

8,9,3
700086 000319-Z E18 COVER PEDAL ARM LEFT REAR; No Model Compatibility List $3.64 / Each

8,9,3
Z 700132 000485-00 Z05 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
H 700464 001428-00 H09 Roller Cover Insert; No Model Compatibility List $3.35 / Each

8,9
700475 001458-00 E15 TOE BOX TOP/POP PIN; No Model Compatibility List $12.71 / Each

12,13,14
700709 001993-F P03 WIRE HARNESS; No Model Compatibility List $67.57 / Each

4,5,6

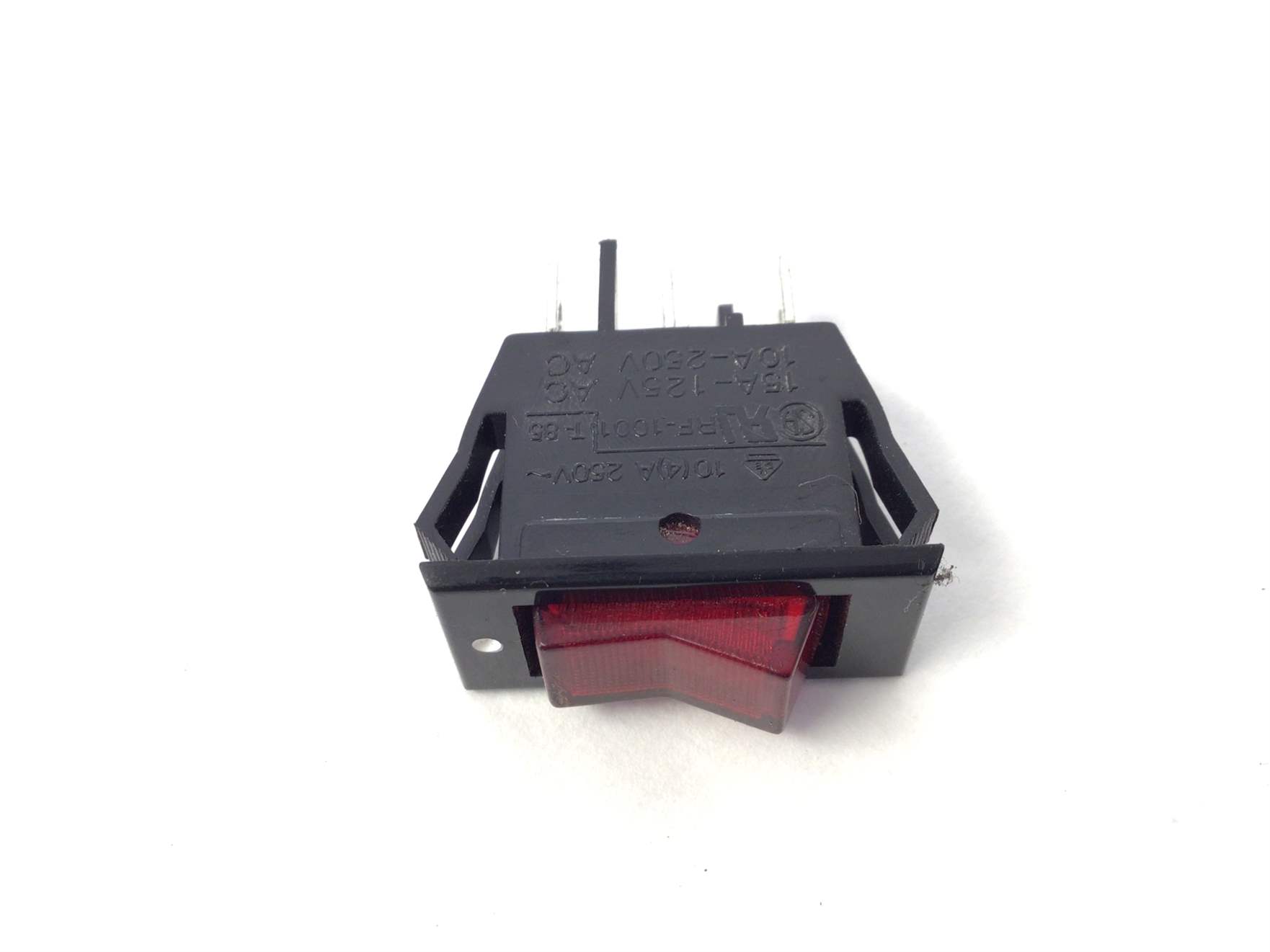

- 701014 003327-00 - Power Switch;Lighted;12V;600 - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $27.35 / Each

4,5,6
- 701042 003413-00 - Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701056 003516-Z P21 Speed Sensor Wire;140mm Yes Model Compatibility List $9.88 / Each

4,5,6
R 701123 003918-A R15 BELT DRIVE TIMING; 1025-5M Yes Model Compatibility List $54.73 / Each

15,10
E 701154 004072-A2 E12 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
R 701158 004075-A3 R22 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
R 701225 004197-00 R14 Drive Belt;Poly-V;320-J3 Yes Model Compatibility List $54.73 / Each

15
701306 004366-Z H19 Screw;BH;M5X8 No Model Compatibility List $1.79 / Each

2
701315 004371-Z R29 Bolt;BH;M5X25 No Model Compatibility List $1.66 / Each

2
Z 701316 004372-00 Z11 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
R 701401 004454-00 R29 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
M 701449 004493-00 M06 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

2
L 701841 004859-00 L04 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
U 701891 004924-00 U05 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
H 701897 004926-00 H11 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
701928 004965-00 R26 Nut;Hex;Flange;M14x1.5P;Zinc No Model Compatibility List $0.88 / Each

2
M 701964 005005-00 M08 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
701987 005025-00 R38 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
G 702004 005042-00 G24 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
H 702007 005044-00 H12 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
E 702008 005045-00 E14 Washer;Flat;8.2x22x3.0T No Model Compatibility List $2.00 / Each

2
L 702019 005054-00 L06 Washer;Flat;16.2X28.7X1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
R 702060 005087-00 R33 Washer;Flat;5.5x24.0x2.0t No Model Compatibility List $2.00 / Each

2
L 702068 005097-00 L05 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
702178 005220-00 G25 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702217 005330-00 Z07 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
R 702226 005351-00 R32 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

4,5,6
G 702227 005352-00 G21 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

2
E 702236 005361-00 E20 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
R 702240 005365-00 R30 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
Q 702483 007964-00 Q10 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702511 008393-00 P22 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
702599 008889-E R01 DRIVE AXLE; No Model Compatibility List $79.51 / Each

8,10
G 702605 008967-C G14 Bushing;Sleeve;Inner No Model Compatibility List $3.64 / Each

8,3
702608 008977-C L01 Axle Wheel Front No Model Compatibility List $15.44 / Each

8
702875 013061-Z R13 DRIVE AXLE ASSEMBLY; D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $294.03 / Each

8,3,10
A 703436 014658-00 AS1 ECB Brake Assembly Z3260121 Yes Model Compatibility List $172.46 / Each

3,8
704141 020323-00 C12 Set Screw;M6x1.0Px25L No Model Compatibility List $0.34 / Each

2
R 704150 020340-00 R27 SCREW;BH;M5X0.8PX15L;;PH;;BZN;; No Model Compatibility List $3.64 / Each

2
704272 022172-D M02 BRACKET GENERATOR; No Model Compatibility List $20.88 / Each

2,8,3,4,5,6
704360 023448-Z M01 Generator No Model Compatibility List $0.00 / Each
Out Of Stock 		8
704361 023466-ZL AE4 PEDAL ARM RIGHT; CHARCOAL No Model Compatibility List $481.96 / Each

8,9,3
704362 023467-Z R10 PEDAL AXLE ASSEMBLY; No Model Compatibility List $158.89 / Each

8,9,3
E 707151 1000090498 E16 Screw;Phillip;BH;;M8x1.25Px40L;8.8 No Model Compatibility List $2.00 / Each

2
707640 1000093965 Z12 Screw;SH;M8X1.25PX70L-20L;;HS;G12.9;;;BP No Model Compatibility List $3.64 / Each

2
Power Adaptor; 120V/50HZ 12V/1A 726269 081149 P10 Power Adaptor; 120V/50HZ 12V/1A Yes Model Compatibility List $80.29 / Each
Out Of Stock 		4,5,6
Controller Refurbished 1015117-R 001925-D # 1 Controller Refurbished Yes Model Compatibility List $167.70 / Each

7
18V AC Generator 8 Ohm 5W (Used Only) 1015119 023090-Z # 1 18V AC Generator 8 Ohm 5W (Used Only) Yes Model Compatibility List $206.70 / Each

8
Battery Wire, Charging (Used) 1015107 MRB-EP-WR 1 1 Battery Wire, Charging (Used) Yes Model Compatibility List $25.99 / Each

4
New Old Stock - Display Console - Elliptical - Upright - Recumbent Bike 1020562 003264-AA 0 1 New Old Stock - Display Console - Elliptical - Upright - Recumbent Bike Yes Model Compatibility List $518.70 / Each

7
Console Display (Used) 1025630 003264-AA 0 1 Console Display (Used) Yes Model Compatibility List $258.70 / Each
Out Of Stock 		1
Generator (Used) 1025641 023090-Z 0 1 Generator (Used) Yes Model Compatibility List $193.70 / Each

1
Cover Pedal Rubber (Used) 1027626 001444-Z E10 Cover Pedal Rubber (Used) No Model Compatibility List $13.00 / Each
Out Of Stock 		18
