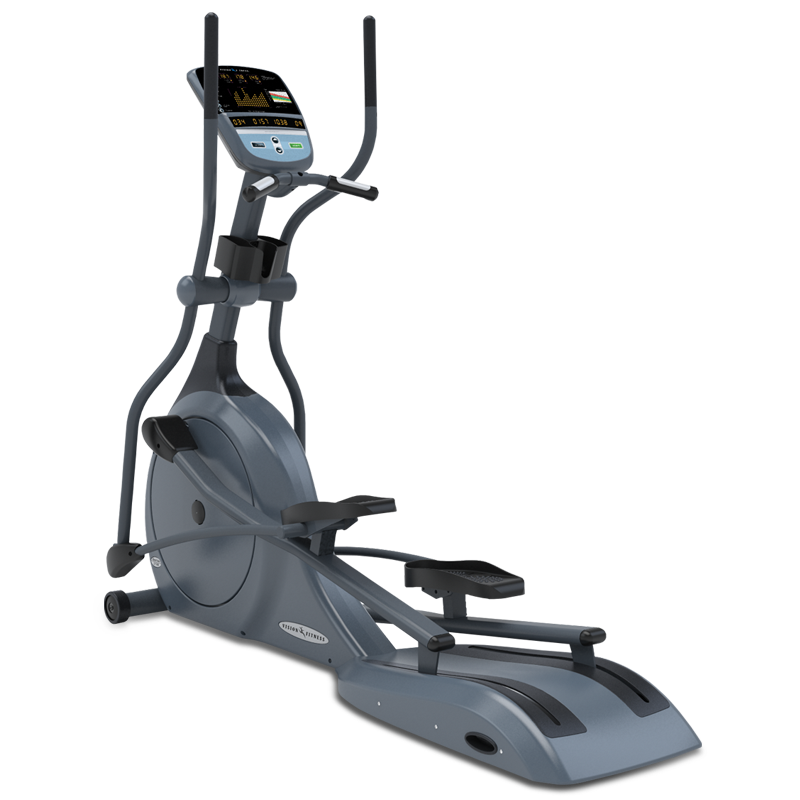

Vision Fitness - X70 - 2010

Repair Parts for Vision Fitness X70 EP303

Brand: Vision Fitness

Category: Traditional

Type: Elliptical

Model Name: X70

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Consoles
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700052 000205-C Q04 Boot;Console Mast Yes Model Compatibility List $25.77 / Each

7
700053 000206-B Q11 Cover;Rotating Axle;Right Yes Model Compatibility List $8.71 / Each

8,9
700054 000207-B Q12 Cover;Rotating Axle;Left Yes Model Compatibility List $9.41 / Each

8,9
700079 000300-B Q17 End Cap;Link Arm;Inner Yes Model Compatibility List $9.10 / Each
Out Of Stock 		9,3
700080 000301-B Q18 End Cap;Link Arm;Outer No Model Compatibility List $9.10 / Each
Out Of Stock 		9,3
B 700143 000512-DB B36 Leveler;Foot Pad;No Swivel;CB32 Yes Model Compatibility List $12.99 / Each

3,9,12,13,14
700149 000518-F Q21 Foot Pad Rubber;Front;;BL;;EP34 No Model Compatibility List $14.51 / Each

9,3,12,13,14
Q 700150 000519-F Q22 Pad;Footplate;Back Yes Model Compatibility List $15.29 / Each

9,3,4,5,6,12,13,14
4 700259 000802-AA 43 Water Bottle Holder Yes Model Compatibility List $22.78 / Each

1
700262 000808-B C21 Water Bottle No Model Compatibility List $9.88 / Each

1
L 700353 001114-00 L02 Sleeve;Wheel Axle No Model Compatibility List $3.82 / Each

8,3
N 700357 001126-C N24 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

9,12,13,14,11
N 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

9,12,13,14,11
700437 001382-D Q07 Roller Cover Rubber Pad;Right;PVC;BL;EP35 Yes Model Compatibility List $29.43 / Each

8,9,12,13,14
700439 001383-D Q08 Roller Cover Rubber Pad;Left;PVC;BL;EP35 No Model Compatibility List $29.43 / Each

8,9,12,13,14
J 700453 001408-E J05 End Cap;Crank Disc;Round Yes Model Compatibility List $6.24 / Each

8,9
700465 001429-B Q19 Handle Cover;Rear Roller No Model Compatibility List $3.64 / Each

8,9,11
Q 700471 001449-H Q10 Pedal Yes Model Compatibility List $28.73 / Each

8,9
700489 001501-C E12 Brush;Nylon;EP09 Yes Model Compatibility List $3.64 / Each

1
P 700718 002023-E P02 Wire Harness Yes Model Compatibility List $72.98 / Each

4,5,6
P 700790 002319-C P05 Pulse Grip Wire Yes Model Compatibility List $9.10 / Each

4,5
700887 002645-D P03 LCB Wire Set;100L;(3.96-5P WH+HL20P-03); Yes Model Compatibility List $3.64 / Each

4,5,6
G 701160 004078-A2 G14 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
H 701191 004134-00 H12 Bearing;Lower Link Arm End;PHS 16(M16x2) PHS 16(M16X2) Yes Model Compatibility List $63.73 / Each

8,9,3
R 701209 004165-00 R09 Drive Belt;Poly-V;490-J8 Yes Model Compatibility List $54.73 / Each

15,10
S 701307 004368-00 S12 Screw;Phillip;BH;M5x0.8Px20L; No Model Compatibility List $1.79 / Each

2
J 701308 004369-00 J07 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
F 701324 004376-00 F02 Screw;BH;M5X0.8PX8L;CT;PH;;BZN;; No Model Compatibility List $1.79 / Each

2
Z 701332 004385-00 Z31 Screw;BH;M5X0.8PX12L;;PH;;BAN;; Yes Model Compatibility List $1.79 / Each

2
N 701342 004388-00 N50 Screw;Oval;PH; M5X0.8PX12L(ZINC PLATING) No Model Compatibility List $1.79 / Each

2
701343 004389-00 Q23 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
S 701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
C 701401 004454-00 C13 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
B 701406 004460-00 B44 Screw;Round;Hex Socket;M6X1.0PX20L No Model Compatibility List $1.66 / Each

2
Z 701435 004482-00 Z33 Screw;Round;Hex Socket;SH;M8X1.25PX20L No Model Compatibility List $1.79 / Each

2
Z 701447 004489-00 Z22 Screw;Hex Socket;Round;M8x1.25Px25L No Model Compatibility List $1.79 / Each

2
Z 701477 004524-AC Z10 Screw;SH;M10X1.5PX70L;;HS;;BZN;; Yes Model Compatibility List $1.79 / Each

2
E 701514 004549-AB E22 Screw;SH;M10X1.5PX55L;;HS;;;; No Model Compatibility List $3.64 / Each

2
Z 701519 004551-ZA Z11 Screw;SH;M8X1.25PX80L-20L ;;HS;;;;P-T Yes Model Compatibility List $7.20 / Each

2
C 701591 004620-00 C11 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
B 701613 004632-00 B34 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
Z 701729 004754-00 Z21 Screw;Hex Socket;BH;M8x1.25Px20L;BED No Model Compatibility List $1.79 / Each

2
L 701731 004757-00 L07 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
Z 701736 004760-00 Z34 Screw;BH;M10X1.5PX50L-20L;;HS;;;;BP;P-T No Model Compatibility List $1.79 / Each

2
E 701841 004859-00 E14 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
H 701885 004911-00 H11 Nut;Hex;M16x2.0Px7.0L;Zn Pl Yes Model Compatibility List $5.99 / Each

2
S 701907 004933-00 S51 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.79 / Each

2
Z 701912 004941-00 Z35 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
R 701924 004957-00 R14 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $3.64 / Each

2
R 701930 004967-AB R15 Nut;Hex;Flange;M16x1.5P;Carburizing Yes Model Compatibility List $1.79 / Each

2
S 701931 004968-00 S17 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
B 701941 004976-00 B45 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
R 701951 004987-00 R40 Key;Round;Dual End;6X6X12L No Model Compatibility List $1.66 / Each

9
R 701955 004991-00 R16 Key;Round;Dual-End;6X6X20L No Model Compatibility List $2.37 / Each

9
C 701960 005003-00 C14 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
S 701978 005015-00 S19 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
J 701987 005025-00 J53 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
E 702008 005045-00 E34 Washer;Flat;8.2x22x3.0T No Model Compatibility List $2.00 / Each

2
S 702037 005067-00 S14 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
B 702042 005072-00 B50 Washer;Flat;6.5x13.0x1.5T;Black Zinc No Model Compatibility List $1.66 / Each

2,4,5,6
Z 702050 005078-00 Z32 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
E 702053 005081-00 E33 Washer;Flat;5.2x18.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 702070 005102-00 S54 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
L 702071 005103-00 L04 Washer;Flat;5/16'X30.0X1.5T;;BAN; No Model Compatibility List $2.00 / Each

2
702081 005115-00 E32 Washer;Flat;15.2x20.0x1.0T No Model Compatibility List $1.66 / Each

2
S 702087 005119-00 S20 Washer;Flat;8.2x16.0x1.5T No Model Compatibility List $2.00 / Each

2
L 702180 005222-00 L08 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702186 005229-00 Z20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
R 702196 005245-A R26 Washer;Lock;16.2x31.5x1.5T No Model Compatibility List $1.79 / Each

2
B 702217 005330-00 B33 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
E 702236 005361-00 E18 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
R 702241 005366-00 R17 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
J 702289 005487-D J06 Spring;Compress Yes Model Compatibility List $9.10 / Each

2
702364 006540-A V08 Decal;Arm Rest;20MM;Red Word/White Base; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
V 702365 006541-A V09 DECAL;HANDLEBAR;RIGHT;RED WORD/WHITE BAS No Model Compatibility List $1.66 / Each

7,3,11
B 702483 007964-00 B41 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702492 008045-C R44 Ring;Center Tube;;SS41;;;;;EP06 No Model Compatibility List $8.42 / Each

3
702499 008147-A R12 Ring;Transmission;;SS42;1.6T;;;EP35 No Model Compatibility List $1.66 / Each

1
702501 008184-B S02 Generator / ECB Mounting Base;;SPC;10.0T;;;EP67 No Model Compatibility List $115.47 / Each

2,8,3
N 702589 008864-A N66 Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) No Model Compatibility List $1.79 / Each

2
N 702591 008866-A N67 Screw;Special;Round;4.0x1.34Px12L(Hi-Lo No Model Compatibility List $1.66 / Each

2
702595 008876-A R45 Ring;Axle;;EP35 No Model Compatibility List $1.66 / Each

8
R 702602 008915-B R43 Nut;Hex;S45C;ZN;; No Model Compatibility List $8.42 / Each

2
702608 008977-C L01 Axle Wheel Front No Model Compatibility List $15.44 / Each

8
702621 009041-B R41 Center Axle Sleeve A No Model Compatibility List $57.59 / Each

8,3
702622 009042-B R42 Sleeve;Center Tube;B;SS41;;;;;EP35 No Model Compatibility List $44.30 / Each

3
702631 009080-A Z30 Bushing;10.0X20.0X13.5L LINK ARM No Model Compatibility List $3.64 / Each

8,3
G 702767 009589-A G18 End Cap;Handlebar;Steel No Model Compatibility List $1.79 / Each

9,11
Q 703589 015604-AA Q20 Swivel Axle End Cap Yes Model Compatibility List $45.99 / Each

8,9
706654 064225-AX V15 Decal;Vision Fitness No Model Compatibility List $47.37 / Each

7,3
706729 065019-A B40 Bolt;Eye Hook;1/4"-20UNC;;Zn-BL No Model Compatibility List $3.35 / Each

2
P 706978 067774-A P11 Power Cord;FH33.3x8.25x16.4(FH0900B);TM95 No Model Compatibility List $8.42 / Each

4,5,6
2 718315 1000350493 28 Idler Set;;;Integrated;EP304; Yes Model Compatibility List $54.73 / Each

8
Pulse Sensor Set 726839 0000085532 51 Pulse Sensor Set Yes Model Compatibility List $45.34 / Each

4,12
726937 086124 E29 Tube Cap;;;PP;;40x80x2.0t;TM91B; No Model Compatibility List $6.37 / Each

9,3
726986 086513 B58 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $0.44 / Each

2
Drive Belt;Poly-V;420-J12;CARLISLE;;RUBBER;NET 726988 0000086520 R08 Drive Belt;Poly-V;420-J12;CARLISLE;;RUBBER;NET No Model Compatibility List $54.73 / Each

10,15
Cover;Console Mast;Right;Outside 727311 088493 Q11 Cover;Console Mast;Right;Outside No Model Compatibility List $132.00 / Each

7,9
Console Set;H001S001;ES;X70;US;EP303 727800 0000091057 11 Console Set;H001S001;ES;X70;US;EP303 Yes Model Compatibility List $1428.70 / Each

7
727977 092323 77 Screw;Hex Socket;Round;M8x1.25Px20L;;Zn- No Model Compatibility List $1.66 / Each

2
728169 093378 38 Nut;Nylon;M6x1.0P;;Zn-BL No Model Compatibility List $1.66 / Each

2
728171 093381 E44 Washer;Flat;10.2x25.0x1.5t;;Zn-BL No Model Compatibility List $1.79 / Each

2
728207 093645 1 Console Mast Set;X70;US;EP303 No Model Compatibility List $986.02 / Each

7
728208 093650 2 Pedal Arm Set;Right;X70;US;EP303 No Model Compatibility List $694.30 / Each

8,9,3
728209 093655 3 Pedal Arm Set;Left;X70;US;EP303 No Model Compatibility List $694.30 / Each

8,9,3
728210 093660 4 DA Handlebar Set;Right;X70;US;EP303 No Model Compatibility List $316.65 / Each

11
728211 093661 Not Shown HARDWARE KIT;3;X70;US;EP303 No Model Compatibility List $22.80 / Each

1
728212 093662 5 DA Handlebar Set;Left;X70;US;EP303 No Model Compatibility List $310.00 / Each

11
728213 093664 6 Link Arm Set;Right;X70;US;EP303 No Model Compatibility List $594.98 / Each
Out Of Stock 		3
728214 093665 7 Link Arm Set;Left;X70;US;EP303 No Model Compatibility List $594.13 / Each

3
728215 093666 Not Shown HARDWARE KIT;4;X70;US;EP303 / BLACK STICKER No Model Compatibility List $3.64 / Each

4,5,6
728216 093667 23 Pedal Arm Connection Plate Set;X70;US;EP303 No Model Compatibility List $14.25 / Each

8,9,3
728217 0000093670 8 Crank Frame Set;X70;US;EP303 Yes Model Compatibility List $366.73 / Each

3,8
728218 093674 9 Round Disk Set;X70;US;EP303 No Model Compatibility List $164.11 / Each

1
728219 093675 10 Crank Sleeve / Pivot Block Set;X70;US;EP303 No Model Compatibility List $72.98 / Each

8,3
728220 093676 E26 Spacer;Linkage;SS41;20x33.5L No Model Compatibility List $8.42 / Each

2,3,4,5,6
728221 093679 12 Side Cover Set;Right;FRAME;R;X70;US;EP303 No Model Compatibility List $223.11 / Each

9,3
728222 093680 13 Side Cover Set;Left;FRAME;L;X70;US;EP303 No Model Compatibility List $245.57 / Each

9,3
728223 093681 14 Rear Roller Cover Set;FRAME;X70;US;EP303 No Model Compatibility List $381.00 / Each

8,9,3
728224 0000093682 15 Crank Sleeve Cover;Right;X70;US;EP303 Yes Model Compatibility List $12.95 / Each

3,8,9
728225 0000093683 16 Crank Sleeve Cover;Left;X70;US;EP303 Yes Model Compatibility List $13.70 / Each

3,8,9
728226 0000093685 17 Drive Axle Set;X70;US;EP303 Yes Model Compatibility List $377.57 / Each

8,10
728227 093688 18 Pulley Axle Set;X70;US;EP303 No Model Compatibility List $201.08 / Each

8
728229 0000093692 19 Generator / ECB Set;X70;US;EP303 Yes Model Compatibility List $602.29 / Each

8
728230 0000093693 20 Lower Control Board Set;X70;US;EP303 Yes Model Compatibility List $638.79 / Each

7
728231 093702 Not Shown MANUAL ASSEMBLY;ENG;X70;US;EP303 No Model Compatibility List $8.42 / Each

3
728232 093703 Not Shown MANUAL;MANIPULATE;ENGLISH;X70;US;EP303 No Model Compatibility List $10.22 / Each

1
728260 093854 E25 Spacer;SS41;X70;US;EP303 No Model Compatibility List $8.42 / Each

2,3,4,5,6
728273 093919 V01 Model Decal;X70;US;EP303 No Model Compatibility List $8.42 / Each

7,3
728348 094141 Not Shown HARDWARE KIT;5;X70;US;EP303 No Model Compatibility List $3.64 / Each

1
728358 094296 E23 Nut;HX;M10X1.5P No Model Compatibility List $1.79 / Each

2
728385 0000094481 P06 HR Wire;X70;US;EP303 Yes Model Compatibility List $9.10 / Each

4,5,6,7,12,13,14
728405 0000094579 42 Rotational Sleeve Set;X70;US;EP303 Yes Model Compatibility List $143.78 / Each

3
728427 0000094769 24 Guide Rail Set;X70;US;EP303 Yes Model Compatibility List $336.34 / Each

9
728428 094772 21 Front Stabilizer Set;X70;US;EP303 No Model Compatibility List $71.94 / Each

1
728429 0000094773 22 Power Resistor Set;X70;US;EP303 Yes Model Compatibility List $17.34 / Each

4,5,6
Transport Wheel Set;MX-E1x;EP95 728613 0000095636 AL3 Transport Wheel Set;MX-E1x;EP95 Yes Model Compatibility List $10.61 / Each

8
728691 096003 54 Roller Set;Ramp Lift Assembly Set No Model Compatibility List $91.23 / Each

8,3,4,5,6,10
R 1003253 004165-00 R09 1 Belt Drive 8 Ribbed Yes Model Compatibility List $32.99 / Each

23
Grip, HR, 1 Inch (Used) 1034541 0000092185 0 1 Grip, HR, 1 Inch (Used) No Model Compatibility List $25.00 / Each

1,11
Console Back Cover P77B-N56 (Used) 1034529 X70-CBC 0 1 Console Back Cover P77B-N56 (Used) No Model Compatibility List $19.99 / Each

51
Socket Cap Shoulder Screw Bolt (Used) 1034545 X70-SCSSB 0 1 Socket Cap Shoulder Screw Bolt (Used) No Model Compatibility List $5.99 / Each

2
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
