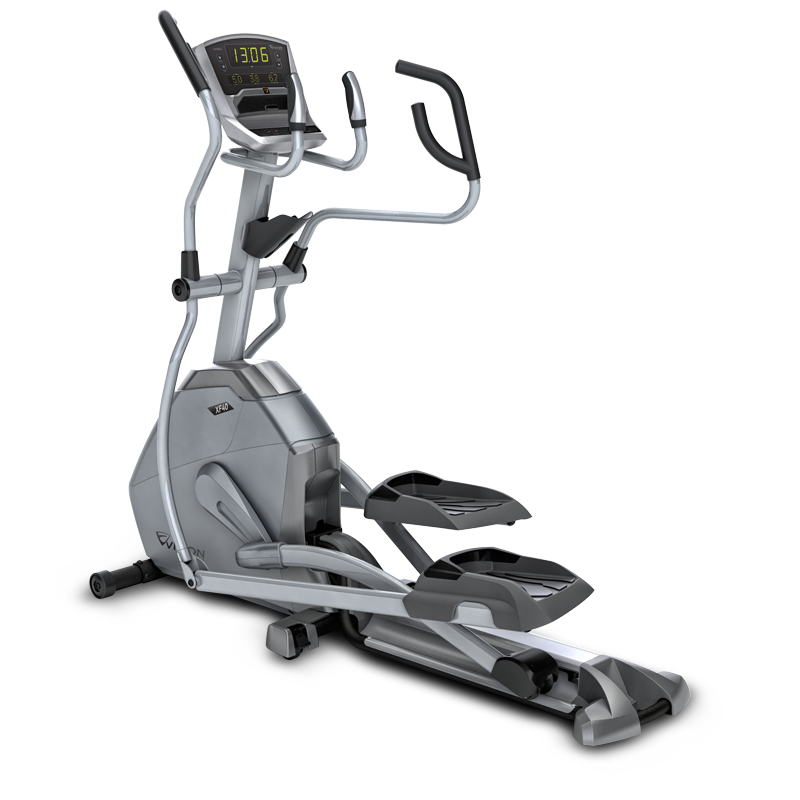

Vision Fitness - XF40 - EP257 - 2012

Repair Parts for Vision Fitness XF40 EP257

Brand	Vision Fitness
Type	Elliptical
Category	Folding
Model Number	EP257
Model Name	XF40
Version	2012

Model Numbers: EP257

17451.0-console.pdf|17451.1-base.pdf Diagram 2

Replacement Parts (53 parts found)

Catalog #	MPN	List Key	Part Description	Used	Compat.	New Price
701628	004649-00	164	Screw, Phillip, Round, 3x6L, Black, Gap, Zn	No	Compatibility List	$1.66 / Each	2,4,5,6
976932	004926-00	C53	Nylon Lock Nut M8x1.25P (New)	No	Compatibility List	$12.99 / Each
704073	020185-00	E11	Screw, Phillip, BH, Tapped, 4x10L	No	Compatibility List	$1.59 / Each
701008	003307-00	KIT	Chest Strap, Polar, T34/T41	No	Compatibility List	$76.99 / Each
711953	1000224243	N01	CONSOLE COVER, CONSOLE, U, PAINTING, gray si	No	Compatibility List	$44.36 / Each	7,9
711954	1000224244	N01	CONSOLE COVER, CONSOLE, U, PAINTING, gray si	No	Compatibility List	$47.89 / Each	7,9
711955	1000224245	N01	CONSOLE COVER, CONSOLE, U, PAINTING, gray si	No	Compatibility List	$35.46 / Each	7,9
711585	1000221942	N02	Console Cover, D, ABS, INJECT PANTONE425C, E	No	Compatibility List	$38.32 / Each	7,9
712321	1000228413	N03	Console Overlay, ABS, painting, gray silver	No	Compatibility List	$9.57 / Each	7
711285	1000219556	N04	RUBBER COVER, CONSOLE UPPER COVER, TM437 1	No	Compatibility List	$19.14 / Each	7,9
711297	1000219609	N05	LOGO LABEL, TM437 1US	No	Compatibility List	$9.57 / Each	1
707094	1000090311	N08	SCREW BH 4x15L TAPPED NICKEL	No	Compatibility List	$2.00 / Each
707950	1000097223	N10	Screw, BH, M5x0.8Px10L, CHM	No	Compatibility List	$0.60 / Each	2
728770	097076	N10	Earphone Jack, ABS, PA757S	No	Compatibility List	$1.90 / Each
701351	004400-00	N12	Screw, Phillip, BH, M5x0.8Px6L, Black, Zn BL	No	Compatibility List	$1.79 / Each	2,4,5,6
701629	004650-00	N12	SCREW, RND, ?X3X6L, TC, PH, BAN, POT	No	Compatibility List	$1.85 / Each	2
711889	1000223510	N14	IPAD COVER, TM437	No	Compatibility List	$1.90 / Each	9,12,13,14
711603	1000222199	N16	MO, SD BLOCK, 8G Scan Disk	No	Compatibility List	$88.71 / Each	1
701606	004627-AB	N21	Screw, Phillip, BH, Tapped, 5x12L, BED, Gap	No	Compatibility List	$2.00 / Each
711592	1000221965	N60	UCB, BRONZE, BK, HAPA, S201	No	Compatibility List	$479.10 / Each	1
711588	1000221961	N61	OVERLAY, U, ENGLISH, BRONZE, EP261 1US	No	Compatibility List	$38.32 / Each	1
711599	1000222184	N61	OVERLAY, MANIPULATE, U, SILVER DELUXE, EP26	No	Compatibility List	$38.32 / Each	1
711600	1000222185	N61	OVERLAY, MANIPULATE, U, EN, GOLD PREMIER, EP	No	Compatibility List	$35.46 / Each	1
711337	1000220061	N62	CONTROL BOARD, RF, HBPB,	No	Compatibility List	$47.89 / Each	7
711589	1000221962	N62	KEYPAD, MEMBRANE, L, CONSOLE, BRONZE	No	Compatibility List	$19.14 / Each	7,9,12,13,14
711602	1000222188	N62	KEYPAD, MEMBRANE, 1, CONSOLE, EP262 1US	No	Compatibility List	$38.32 / Each	7,9,12,13,14
708258	1000101657	N63	Console Cable, Upper, 200mm(CKM254301 8P SM 8Y)	Yes	Compatibility List	$14.54 / Each	7,4,5,6
711590	1000221963	N63	KEYPAD, MEMBRANE, R, CONSOLE, BRONZE	No	Compatibility List	$19.14 / Each	7,9,12,13,14
711591	1000221964	N64	OVERLAY, D, ENGLISH, BRONZE	No	Compatibility List	$57.49 / Each	1
711601	1000222186	N64	OVERLAY, MANIPULATE, GOLD PREMIER, EP263	No	Compatibility List	$38.32 / Each	1
712083	1000226566	N65	CONTROL BOARD SET, EUP BOARD, ..., ...	No	Compatibility List	$19.14 / Each	7
706286	060781-A	N69	Ground Wire, Grip Pulse, 300mm	Yes	Compatibility List	$3.54 / Each	4,5,6,12,13,14,11
711334	1000220028	N70	CONTROL BOARD, USB, HBPB, 180?X	Yes	Compatibility List	$15.00 / Each	7
707653	1000094023	N71	Grounding Wire, 250, 4.0 6.0	No	Compatibility List	$3.82 / Each
711607	1000222205	N71	WIRE, IPOD, 700L, JST:PAP 10V S	No	Compatibility List	$35.46 / Each	4,5,6
711606	1000222204	N73	WIRE, EAROHONE, 300MM(JST:XAP 5V 1 XHS 4Y)	No	Compatibility List	$8.87 / Each	4,5,6
712039	1000225725	N75	WATERPROOF, RUBBER SEAL, 232.4X143.1, 10 IN	No	Compatibility List	$2.00 / Each	1
712038	1000225724	N76	WATERPROOF, RUBBER SEAL, 164.8X101, 7 INCH	No	Compatibility List	$1.85 / Each	1
712110	1000226771	N78	WIRE, AUDIO SHORT CIRCUIT, 20mm, JST, XAP 05	No	Compatibility List	$1.90 / Each	4,5,6
709127	1000110178	N80	Inside Receiver Set, 200L(XHS 3Y 94032401	No	Compatibility List	$95.81 / Each	1
711971	1000224562	N80	CONTROL BOARD, EARPHONE, SOO1124, HAPA,	No	Compatibility List	$9.57 / Each	7
711861	1000223379	N83	Wire, Console GND, ?X6x2, 300mm	No	Compatibility List	$1.77 / Each	7,4,5,6
712302	1000228319	N85	SPEAKER, BOXED, 2W/8?[, 150MM, JST:XAP 02V 1	No	Compatibility List	$19.14 / Each	1
711700	1000222587	N88	Pulse receiver set, I/O, Extra work, , ,	No	Compatibility List	$95.81 / Each	12,13,14
711604	1000222201	N100	HEART RATE RECEIVER, , SECOND REPLACE, H1	No	Compatibility List	$47.89 / Each	4,5,6,12,13,14
711980	1000224659	N100	CONTROL BOARD, HEART RATE BOARD, H101	No	Compatibility List	$47.89 / Each	7,12,13,14
712873	1000231152	N100	CONTROL BOARD, RF HR, HBPB	No	Compatibility List	$95.81 / Each	7,12,13,14
711583	1000221907	Not Shown	MANUAL SET, SA, OPERATING MANUAL, EP262	No	Compatibility List	$9.57 / Each	1
711586	1000221945	Not Shown	MANUAL SET, SA, OPERATING MANUAL, EN, EP261	No	Compatibility List	$9.57 / Each	1
715809	1000328465	Not Shown	Console set, Semi Assy, English/Germany	No	Compatibility List	$599.00 / Each	7
957398	005330-00	Q52	Gear Rower Retainer Clip (New)	Yes	Compatibility List	$11.99 / Each
701095	003722-00	R52	Screw, BH, M3X0.5PX6L, PH, WZN, ROHS, SP	No	Compatibility List	$1.66 / Each	2
971749	003307-00		Rate Chest Strap (New)	Yes	Compatibility List	$76.65 / Each
