Weider - 8520

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
163791 102757 24 1/4" X 2" SCREW No Model Compatibility List $1.33 / Each

2
123665 103045 7 3/8" X 2.5" BOLT No Model Compatibility List $1.68 / Each

2
124541 103053 22 5/16" X 2.5" SCREW No Model Compatibility List $0.92 / Each

2
100886 103087 53 CABLE CLIP No Model Compatibility List $15.20 / Each

2,4,5,6
163789 103758 18 1/4" X 1/2" RND HD SCREW No Model Compatibility List $0.41 / Each
Out Of Stock
2
117166 103805 30 FOAM PAD, 3" X 5 1/2" No Model Compatibility List $14.78 / Each

12,13,14
118655 104049 16 3/8" X 3.5" BOLT No Model Compatibility List $1.63 / Each

2
123652 104881 10 1/4" WASHER No Model Compatibility List $0.14 / Each

2
106732 106465 71 3/8" X 3 3/4" SCREW No Model Compatibility List $2.01 / Each

2
104631 108778 69 BRACKET RETAINER No Model Compatibility List $0.88 / Each

2,3,4,5,6
106618 110375 35 3/8" X 3 1/4" PATCH BOLT No Model Compatibility List $3.50 / Each

2
165669 112302 43 1/4" X 2.5" SCREW No Model Compatibility List $1.51 / Each

2
102151 113666 44 1 3/4" SQUARE INNER CAP No Model Compatibility List $1.23 / Each

9
124649 113744 11 5/16" X 2 3/4" BOLT No Model Compatibility List $1.24 / Each
Out Of Stock
2
121905 113814 14 MOTOR BOLT No Model Compatibility List $0.74 / Each

2
104529 115177 39 HANDLE No Model Compatibility List $40.40 / Each

11
100814 115366 34 TRANSPORT HANDLE ENDCAP No Model Compatibility List $0.55 / Each

9,4,5,6,11
117160 115644 19 WEIGHT BUMPER No Model Compatibility List $0.99 / Each

3
121626 116868 52 CHAIN FOR PULY BKT, 12"L No Model Compatibility List $11.89 / Each

1
116815 120294 25 WEIGHT No Model Compatibility List $43.82 / Each

3
104626 120733 49 25MM ROUND INNER CAP No Model Compatibility List $1.63 / Each

9
104806 120737 68 5/16" X 5" SCREW No Model Compatibility List $4.58 / Each
Out Of Stock
2
114759 120808 70 CURL BAR CAP No Model Compatibility List $1.20 / Each

9
012082 101287 012082 3 5/16" NYLON LOCK NUT Yes Model Compatibility List $0.22 / Each

2
012090 102840 012090 2 1/4" NUT No Model Compatibility List $1.54 / Each

2
101294 012108 21 3/8" NYLON LOCKNUT No Model Compatibility List $0.33 / Each

2
165680 122686 60 5/16" X 6" BOLT No Model Compatibility List $4.44 / Each
Out Of Stock
2
102192 122691 64 WEIGHT TUBE CAP No Model Compatibility List $2.32 / Each

9,3
124669 125919 76 TOP WEIGHT No Model Compatibility List $68.75 / Each

3
167275 126801 56 REAR UPRIGHT No Model Compatibility List $79.33 / Each

3
121632 126808 75 ANKLE STRAP SPACER No Model Compatibility List $0.86 / Each

2,3,4,5,6
164509 126867 37 SEAT PLATE No Model Compatibility List $9.40 / Each

12,13,14
168337 132714 # USER'S MANUAL No Model Compatibility List $7.90 / Each

1
114110 132819 66 CABLE TRAP BKT, 3.5"PULY No Model Compatibility List $3.40 / Each

4,5,6
104003 013293 72 5/16" X 2" BUTTON BOLT Yes Model Compatibility List $1.01 / Each

2
013300 100149 013300 65 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
123655 013330 38 1/4" X 2.5" CARRIAGE BOLT No Model Compatibility List $1.11 / Each

2
133945 103373 133945 33 3/8" HEX LOCK NUT Yes Model Compatibility List $0.34 / Each

2
120663 013580 12 3/8" BOLT No Model Compatibility List $1.50 / Each

2
111703 014087 9 UPRT MOUNTING WASHER No Model Compatibility List $0.43 / Each

2
100478 014105 8 IDLER PULLEY WASHER No Model Compatibility List $0.21 / Each

2,8
121618 145861 61 1/2" X 3/4" BUSHING No Model Compatibility List $18.13 / Each

8
168336 147269 # CN-HARDWARE ID UPDATE No Model Compatibility List $0.00 / Each
Out Of Stock
1
165698 151456 59 3/8" X 8" BOLT No Model Compatibility List $8.90 / Each

2
163845 152594 # WALL CHART No Model Compatibility List $65.15 / Each

1

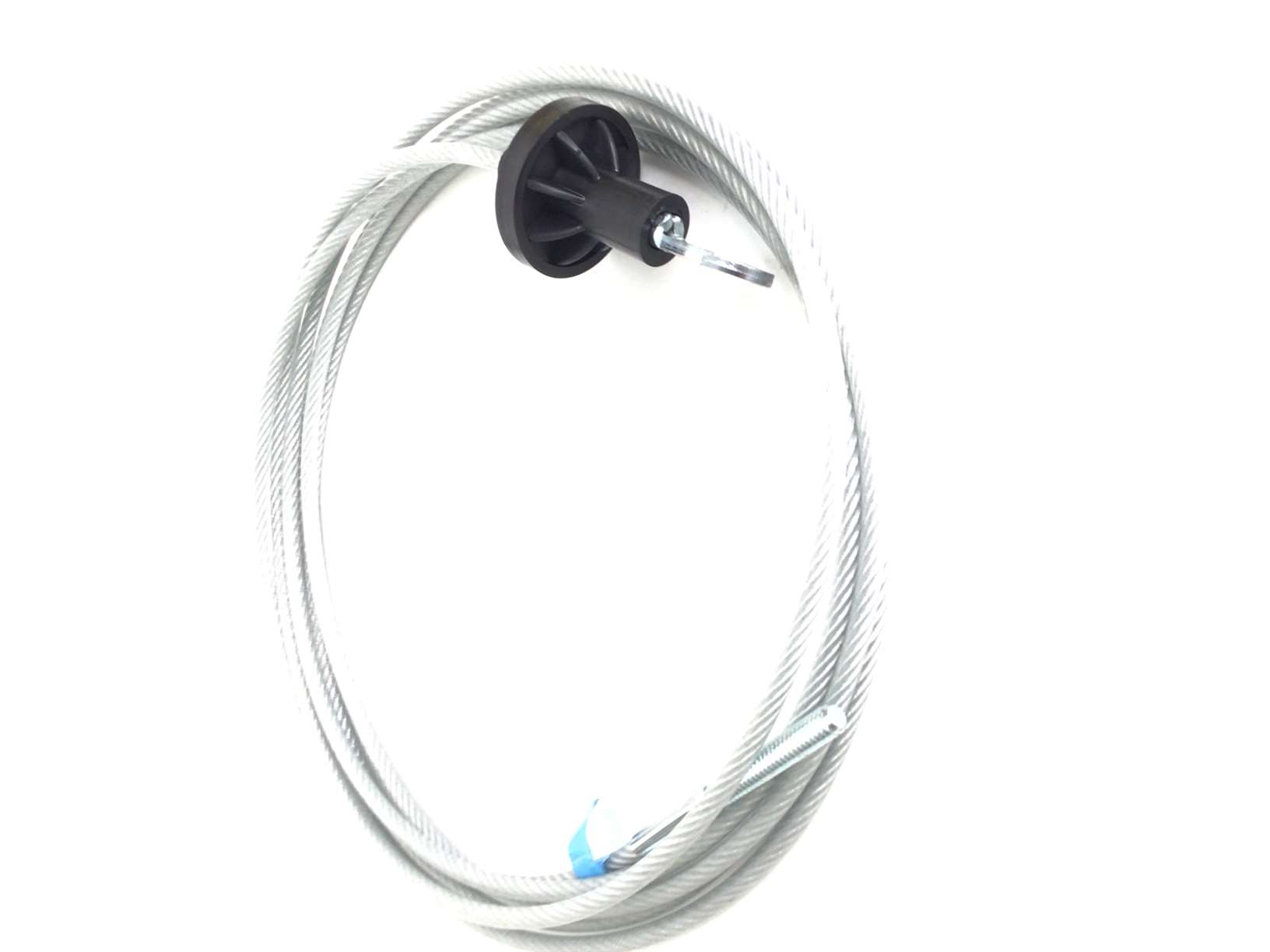

168318 179048 23 LONG CABLE, 142" No Model Compatibility List $113.65 / Each

4,5,6
168335 179052 58 SHORT CABLE, 116.5" No Model Compatibility List $117.67 / Each

4,5,6
116904 193926 26 WEIGHT PIN No Model Compatibility List $19.61 / Each

3,12,13,14
123654 204031 6 V-PULLEY No Model Compatibility List $40.46 / Each

8
104632 230475 15 SMALL PULLEY No Model Compatibility List $71.96 / Each

8
120720 1018671 120720 117 1 2" Square Internal Endcap Used Yes Model Compatibility List $5.49 / Each

9
View Drawing
