Weider - PRO 3550

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
123705 100291 . 5/16" X 2.5" CARR BOLT No Model Compatibility List $8.22 / Each

2
103833 101902 103833 . POST CAP No Model Compatibility List $4.69 / Each

9,12,13,14
104838 100396 104838 . LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
106879 110794 106879 . 3/8" X 3" BOLT No Model Compatibility List $2.94 / Each

2
121630 108674 . 3/8" X 2.5" CARRIAGE BOLT No Model Compatibility List $1.32 / Each

2
121616 111633 115 SMALL ADJUSTMENT KNOB No Model Compatibility List $60.71 / Each

1
114771 112001 . 3/8" X 3" HEX BOLT No Model Compatibility List $1.65 / Each

2
104470 112560 36 GRIP No Model Compatibility List $2.24 / Each

11
120235 114009 . 3/8" X 2.75" BOLT No Model Compatibility List $1.68 / Each

2
104529 115177 . HANDLE No Model Compatibility List $40.40 / Each

11
117544 106302 117544 . 40MM X 50MM INT ENDCAP No Model Compatibility List $3.12 / Each

4,5,6,9
106115 118471 . 3/8" X 3.75" BOLT No Model Compatibility List $2.40 / Each

2
123693 119377 . 5/16" X 2.75" BOLT No Model Compatibility List $1.19 / Each

2
119425 100031 119425 . 3/8" HEX JAM NUT No Model Compatibility List $1.65 / Each

2
122035 120354 . WHEEL BOLT No Model Compatibility List $1.89 / Each
Out Of Stock
2,8
101661 012056 . 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

2
119560 120694 . WHEEL FRAME ENDCAP No Model Compatibility List $3.01 / Each

8,9,3,4,5,6
104626 120733 . 25MM ROUND INNER CAP No Model Compatibility List $1.63 / Each

9
012149 100136 012149 . 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
012179 100462 012179 . U-NUT No Model Compatibility List $4.42 / Each

2
122691 102192 122691 . WEIGHT TUBE CAP No Model Compatibility List $2.32 / Each

9,3
117938 124614 . REAR PLATFORM BOLT No Model Compatibility List $2.55 / Each

2
118978 127948 . UPRIGHT BOLT No Model Compatibility List $1.10 / Each

2,3
128457 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2
103160 128643 . BELT GUIDE BOLT No Model Compatibility List $0.28 / Each

2,15
013300 100149 013300 . #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
117633 013399 . FRAME PIVOT BOLT No Model Compatibility List $1.65 / Each

2,8,3
013556 100125 013556 . 5/16" X 3/4" SCREW No Model Compatibility List $1.14 / Each

2
100339 013581 . IDLER ARM BOLT No Model Compatibility List $1.36 / Each

2,8,3
013601 106107 013601 . 3/8" X 2" BOLT Yes Model Compatibility List $6.95 / Each

2
014073 100472 014073 . 5/16" WASHER Yes Model Compatibility List $1.25 / Each

2
014129 102826 014129 . 1/4" WASHER No Model Compatibility List $1.10 / Each

2
014132 100263 014132 . IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
102195 147592 . CHAIN 16" No Model Compatibility List $17.29 / Each

1
117200 148601 # GENERAL WARNING DECAL No Model Compatibility List $2.27 / Each

7,3
149217 108456 149217 . 2X3 Inch Rectangular Endcap Yes Model Compatibility List $10.79 / Each

4,5,6,9
150508 102058 150508 . MOUNT SCREW No Model Compatibility List $1.52 / Each

2
163845 152594 . WALL CHART No Model Compatibility List $65.15 / Each

1
167811 157535 . BUTTERFLY CABLE No Model Compatibility List $17.68 / Each

4,5,6
114732 157721 68 SMALL CABLE TRAP No Model Compatibility List $6.72 / Each

4,5,6
102196 158847 102 LONG CABLE TRAP No Model Compatibility List $2.39 / Each
Out Of Stock
4,5,6
160327 102193 160327 . 2 Yes Model Compatibility List $9.46 / Each

9
123699 160987 . 5/16" X 3.75" BOLT No Model Compatibility List $2.42 / Each

2
100602 166909 # PAD FRAME WARNING DECAL No Model Compatibility List $1.84 / Each

7,3,12,13,14
018007 101927 018007 40 WHEEL BEARING Yes Model Compatibility List $11.55 / Each

8
166862 182516 . 3/8" X 2" EYEBOLT No Model Compatibility List $19.28 / Each

2
166498 184973 . M8 X 20MM SHOULDER BOLT No Model Compatibility List $1.36 / Each

2
167682 186089 . BUMPER No Model Compatibility List $7.85 / Each

1
104582 186133 . LARGE PULLEY No Model Compatibility List $71.16 / Each

8
167676 186414 25 LEFT BUTTERFLY ARM No Model Compatibility List $74.90 / Each

3
167677 186416 26 RIGHT BUTTERFLY ARM No Model Compatibility List $74.45 / Each

3
167678 186605 27 PRESS HANDLE No Model Compatibility List $33.00 / Each

11
167690 186660 . PLASTIC WASHER No Model Compatibility List $2.35 / Each

2,9
167688 186670 . LOCKING PIN No Model Compatibility List $13.73 / Each

12,13,14
164916 186672 . SMALL BASE ENDCAP No Model Compatibility List $24.49 / Each

9,3,4,5,6
167804 186674 . KNEE PAD CAP No Model Compatibility List $1.92 / Each

9,12,13,14
167689 186675 . BUTTERFLY CAP No Model Compatibility List $1.43 / Each

9
167789 186806 19 KNEE PAD No Model Compatibility List $21.55 / Each

12,13,14
117225 186965 54 LONG PAD No Model Compatibility List $31.94 / Each
Out Of Stock
12,13,14
167790 187142 23 PAD TUBE No Model Compatibility List $20.27 / Each

3,12,13,14
167783 187474 . 1/2" WASHER No Model Compatibility List $1.03 / Each

2
117215 187480 28 LONG HANDGRIP No Model Compatibility List $16.97 / Each

11
167792 188753 35 SQUAT BACKREST No Model Compatibility List $44.03 / Each

4,5,6,12,13,14
167794 188760 46 VKR BACKREST No Model Compatibility List $64.38 / Each

4,5,6,12,13,14
167786 188776 8 SEAT FRAME No Model Compatibility List $59.60 / Each

3,12,13,14
167793 188808 37 SQUAT BRACKET No Model Compatibility List $76.50 / Each

2,3,4,5,6
167787 188831 9 SEAT UPRIGHT No Model Compatibility List $102.88 / Each

3,12,13,14
167805 188833 . PIN W/TETHER No Model Compatibility List $11.42 / Each

12,13,14
167795 188840 47 BUTTERFLY FRAME No Model Compatibility List $121.85 / Each

3
167802 188848 76 CURL FRAME KNOB No Model Compatibility List $11.52 / Each

3
167785 188863 7 BUTTERFLY TOP FRAME No Model Compatibility List $107.62 / Each

3
167784 188873 2 SHORT BASE No Model Compatibility List $64.59 / Each

3
167791 188942 31 RIGHT VKR ARM No Model Compatibility List $78.72 / Each

3
131876 189173 80 ROW BAR No Model Compatibility List $49.05 / Each

1
167698 190754 . 3/4" X 1.5" INT ENDCAP No Model Compatibility List $0.58 / Each

9,4,5,6
167800 190825 . VKR HIGH CABLE No Model Compatibility List $31.95 / Each

4,5,6
167798 190828 . VKR LOW CABLE No Model Compatibility List $60.64 / Each

4,5,6
167799 190829 . SQUAT CABLE No Model Compatibility List $56.63 / Each

4,5,6
167803 190830 . LAT CABLE No Model Compatibility List $30.54 / Each

4,5,6
114475 191115 121 LARGE CABLE TRAP No Model Compatibility List $6.57 / Each

4,5,6
167796 191136 52 SHORT FRAME PLATE No Model Compatibility List $7.39 / Each

3
167808 191148 # WEIDER PRO 3550 DECAL No Model Compatibility List $4.74 / Each

7,3
167813 191151 # LOW PULLEY DECAL No Model Compatibility List $4.88 / Each

7,8,3
167814 191152 # VKR DECAL No Model Compatibility List $4.24 / Each

7,3
167809 191153 . WEIGHT PLATE # DECAL No Model Compatibility List $1.99 / Each

7,3
167815 191342 # SQUAT DECAL No Model Compatibility List $3.20 / Each

7,3
117234 191422 84 200MM HANDGRIP No Model Compatibility List $60.38 / Each

11
167816 191500 . USER'S MANUAL No Model Compatibility List $10.15 / Each

1

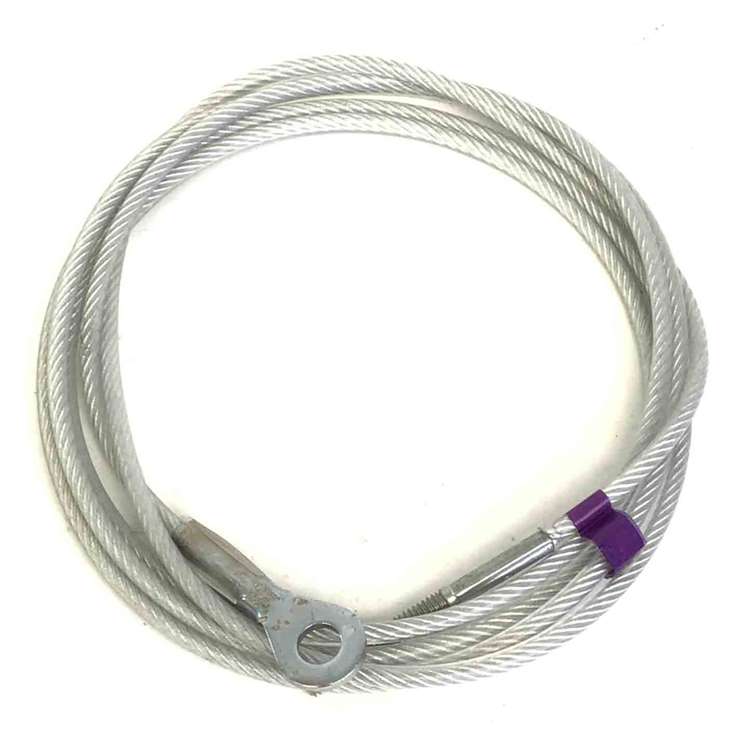

167812 191529 . LEG LEVER CABLE No Model Compatibility List $31.91 / Each

3,4,5,6
167788 192428 12 CURL FRAME No Model Compatibility List $50.41 / Each

3
102183 192665 . WEIGHT BUMPER No Model Compatibility List $17.36 / Each
Out Of Stock
3
167687 193332 70 PIVOT BRACKET No Model Compatibility List $9.14 / Each

2,8,3,4,5,6
116904 193926 . WEIGHT PIN No Model Compatibility List $19.61 / Each

3,12,13,14
167681 194532 71 SUPPORT PLATE No Model Compatibility List $8.57 / Each

3
123654 204031 . V-PULLEY No Model Compatibility List $40.46 / Each

8
116859 214060 . 13MM SPACER No Model Compatibility List $4.31 / Each

2,3,4,5,6
104632 230475 . SMALL PULLEY No Model Compatibility List $71.96 / Each

8
106631 304557 . 1/2" NUT No Model Compatibility List $1.20 / Each

2
120720 1018671 120720 117 1 2" Square Internal Endcap Used Yes Model Compatibility List $5.49 / Each

9
View Drawing
