Weider - PRO 9725

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
123705 100291 1 5/16" X 2.5" CARR BOLT No Model Compatibility List $8.22 / Each

2
100427 100139 100427 84 5/16" NUT Yes Model Compatibility List $1.56 / Each

2
102073 124108 102073 72 Hex Bolt 5/16-18X1.75 No Model Compatibility List $3.99 / Each

2
102372 101664 102372 8 5/16" WASHER No Model Compatibility List $0.21 / Each

2
100886 103087 53 CABLE CLIP No Model Compatibility List $15.20 / Each

2,4,5,6
117166 103805 30 FOAM PAD, 3" X 5 1/2" No Model Compatibility List $14.78 / Each

12,13,14
103833 101902 103833 32 POST CAP No Model Compatibility List $4.69 / Each

9,12,13,14
104631 108778 69 BRACKET RETAINER No Model Compatibility List $0.88 / Each

2,3,4,5,6
102151 113666 44 1 3/4" SQUARE INNER CAP No Model Compatibility List $1.23 / Each

9
104529 115177 39 HANDLE No Model Compatibility List $40.40 / Each

11
100814 115366 34 TRANSPORT HANDLE ENDCAP No Model Compatibility List $0.55 / Each

9,4,5,6,11
117160 115644 19 WEIGHT BUMPER No Model Compatibility List $0.99 / Each

3
121626 116868 52 CHAIN FOR PULY BKT, 12"L No Model Compatibility List $11.89 / Each

1
106115 118471 71 3/8" X 3.75" BOLT No Model Compatibility List $2.40 / Each

2
117170 119192 40 SEAT KNOB No Model Compatibility List $3.96 / Each
Out Of Stock
12,13,14
123693 119377 11 5/16" X 2.75" BOLT No Model Compatibility List $1.19 / Each

2
110001 120003 16 3/8" X 2" WHEEL BOLT No Model Compatibility List $1.95 / Each

2,8
116815 120294 25 WEIGHT No Model Compatibility List $43.82 / Each

3
122035 120354 85 WHEEL BOLT No Model Compatibility List $1.89 / Each
Out Of Stock
2,8
101661 012056 3 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

2
106584 120696 65 FRAME CROSSBAR ENDCAP No Model Compatibility List $3.33 / Each

9,3,4,5,6
104626 120733 49 25MM ROUND INNER CAP No Model Compatibility List $1.63 / Each

9
114759 120808 70 CURL BAR CAP No Model Compatibility List $1.20 / Each

9
117636 121421 33 PULSE BAR BOLT No Model Compatibility List $1.36 / Each

2,12,13,14
121628 121422 38 1/4" X 2.5" CARRIAGE BOLT No Model Compatibility List $3.33 / Each
Out Of Stock
2
012149 100136 012149 21 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
124661 121567 . 1/4" X 2 1/4" CARR BOLT No Model Compatibility List $1.14 / Each
Out Of Stock
2
102192 122691 64 WEIGHT TUBE CAP No Model Compatibility List $2.32 / Each

9,3
124657 122925 43 1/4" X 2 1/2" BOLT No Model Compatibility List $1.11 / Each

2
123385 123764 123385 14 MOTOR BOLT CARRIAGE SCREW Yes Model Compatibility List $4.98 / Each

2
124669 125919 76 TOP WEIGHT No Model Compatibility List $68.75 / Each

3
121632 126808 75 ANKLE STRAP SPACER No Model Compatibility List $0.86 / Each

2,3,4,5,6
118978 127948 22 UPRIGHT BOLT No Model Compatibility List $1.10 / Each

2,3
124668 128297 68 5/16" X 5" BOLT No Model Compatibility List $2.08 / Each

2
106103 128815 18 1/4" X 3/4" SCREW No Model Compatibility List $0.42 / Each

2
164900 129051 35 5/16" EYEBOLT No Model Compatibility List $2.92 / Each

2
116234 013141 89 M5 X 16MM SCREW No Model Compatibility List $0.13 / Each

2
167448 132800 20 PULLEY BRACKET No Model Compatibility List $17.02 / Each
Out Of Stock
2,8,3,4,5,6
168431 132809 47 LEFT ARM No Model Compatibility List $113.23 / Each

3
168435 132815 81 I-PLATE No Model Compatibility List $13.77 / Each

1
114110 132819 66 CABLE TRAP BKT, 3.5"PULY No Model Compatibility List $3.40 / Each

4,5,6
168433 132821 58 SHORT CABLE No Model Compatibility List $25.83 / Each

4,5,6
168432 132822 56 REAR UPRIGHT No Model Compatibility List $171.01 / Each

3
168434 132884 79 SQUAT ARM No Model Compatibility List $89.06 / Each

3
117633 013399 87 FRAME PIVOT BOLT No Model Compatibility List $1.65 / Each

2,8,3
100339 013581 7 IDLER ARM BOLT No Model Compatibility List $1.36 / Each

2,8,3
013601 106107 013601 12 3/8" X 2" BOLT Yes Model Compatibility List $6.95 / Each

2
014073 100472 014073 . 5/16" WASHER Yes Model Compatibility List $1.25 / Each

2
100561 014086 9 M10 WASHER No Model Compatibility List $0.36 / Each

2
168476 140887 # USER'S MANUAL No Model Compatibility List $9.02 / Each

1
014129 102826 014129 10 1/4" WASHER No Model Compatibility List $1.10 / Each

2
014149 100449 014149 . 5/16" STAR WASHER No Model Compatibility List $0.20 / Each

2
121618 145861 61 1/2" X 3/4" BUSHING No Model Compatibility List $18.13 / Each

8
166878 146422 82 1/4" X 2" MACHINE SCREW No Model Compatibility List $6.01 / Each

2,4,5,6
163845 152594 # WALL CHART No Model Compatibility List $65.15 / Each

1

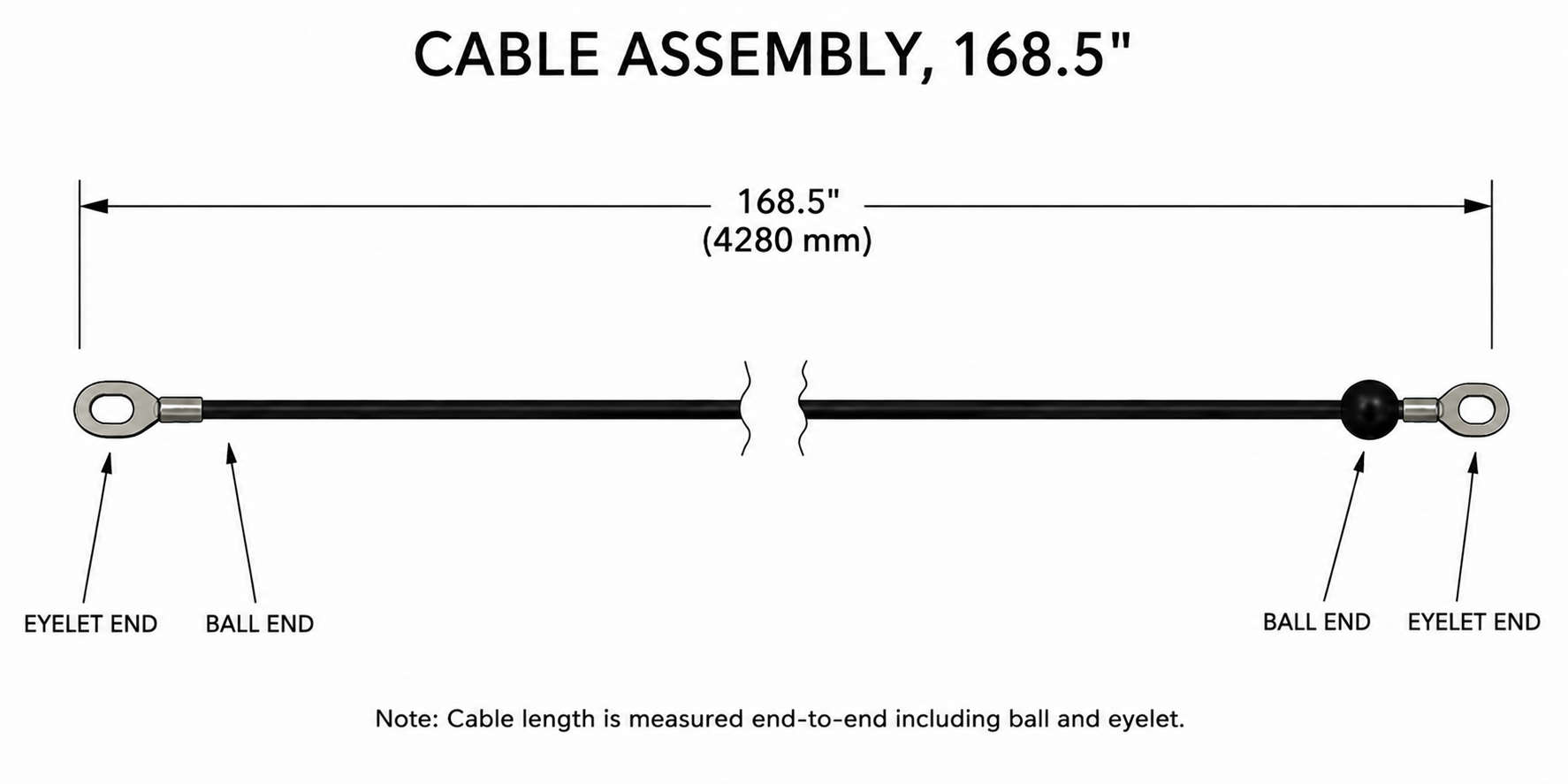

168440 175752 86 LONG CABLE, LOW No Model Compatibility List $92.50 / Each

4,5,6
168439 179055 23 MEDIUM CABLE, TOP No Model Compatibility List $71.15 / Each
Out Of Stock
4,5,6
116904 193926 26 WEIGHT PIN No Model Compatibility List $19.61 / Each

3,12,13,14
123654 204031 6 V-PULLEY No Model Compatibility List $40.46 / Each

8
104632 230475 15 SMALL PULLEY No Model Compatibility List $71.96 / Each

8
103047 040061 83 HANDRAIL CAP No Model Compatibility List $2.22 / Each
Out Of Stock
9,3
120720 1018671 120720 117 1 2" Square Internal Endcap Used Yes Model Compatibility List $5.49 / Each

9
View Drawing
