Weider - PRO 9735

Repair Parts for Weider PRO 9735 831.159390

Brand: Weider

Category: Home Gyms

Type: Strength Systems

Model Name: PRO 9735

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Frame Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
123705 100291 . 5/16" X 2.5" CARR BOLT No Model Compatibility List $8.22 / Each

2
5/16 100139 100427 . 5/16" NUT Yes Model Compatibility List $0.46 / Each

2,40
Hex Bolt 5/16-18X1.75 124108 102073 . Hex Bolt 5/16-18X1.75 No Model Compatibility List $3.99 / Each

2
5/16 101664 102372 . 5/16" WASHER No Model Compatibility List $0.21 / Each

2
100886 103087 . CABLE CLIP No Model Compatibility List $15.20 / Each

2,4,5,6,1
FOAM PAD, 3 117166 208378 29 FOAM PAD, 3" X 5 1/2" No Model Compatibility List $28.28 / Each

3,12
104631 108778 . BRACKET RETAINER No Model Compatibility List $0.88 / Each

2,3,4,5,6
123701 110426 . BUTTERFLY CABLE No Model Compatibility List $83.89 / Each

4,5,6
1 3/4 102151 113666 . 1 3/4" SQUARE INNER CAP Yes Model Compatibility List $1.23 / Each

9
104529 115177 . HANDLE No Model Compatibility List $40.40 / Each

11
100814 115366 . TRANSPORT HANDLE ENDCAP No Model Compatibility List $0.55 / Each

9,4,5,6,11
121626 116868 . CHAIN FOR PULY BKT, 12"L No Model Compatibility List $11.89 / Each

1
114215 118475 . 25MM ROUND INNER CAP No Model Compatibility List $1.40 / Each

9
123693 119377 . 5/16" X 2.75" BOLT No Model Compatibility List $1.19 / Each

2
3/8 100031 119425 . 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
110001 120003 . 3/8" X 2" WHEEL BOLT No Model Compatibility List $1.95 / Each

2,8
116815 120294 90 WEIGHT No Model Compatibility List $43.82 / Each

3
122035 120354 . WHEEL BOLT No Model Compatibility List $1.89 / Each
Out Of Stock 		2,8
5/16 101661 012056 . 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

2
104626 120733 . 25MM ROUND INNER CAP No Model Compatibility List $1.63 / Each

9
124695 120758 . 3/8" X 4" CARRIAGE BOLT No Model Compatibility List $6.42 / Each

2
114759 120808 . CURL BAR CAP No Model Compatibility List $1.20 / Each

9
121628 121422 . 1/4" X 2.5" CARRIAGE BOLT No Model Compatibility List $3.33 / Each
Out Of Stock 		2
3/8 100136 012149 . 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2

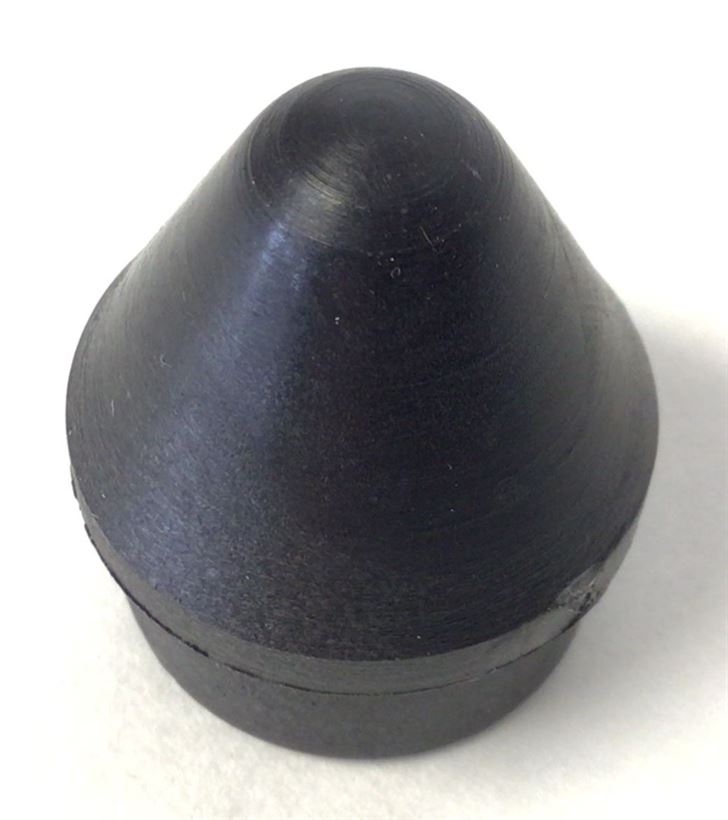

WEIGHT TUBE CAP 102192 122691 . WEIGHT TUBE CAP No Model Compatibility List $2.32 / Each

9,3
124657 122925 . 1/4" X 2 1/2" BOLT No Model Compatibility List $1.11 / Each

2
124535 123211 . CBL #4, STD/BOLT, 148.75" No Model Compatibility List $135.40 / Each
Out Of Stock 		2
124669 125919 24 TOP WEIGHT No Model Compatibility List $68.75 / Each

3
121632 126808 . ANKLE STRAP SPACER No Model Compatibility List $0.86 / Each

2,3,4,5,6
118978 127948 . UPRIGHT BOLT No Model Compatibility List $1.10 / Each

2,3
106103 128815 . 1/4" X 3/4" SCREW No Model Compatibility List $0.42 / Each

2
121619 131826 . 1/4" X 5/8" BOLT No Model Compatibility List $0.63 / Each

2
118522 013430 . CONSOLE SCREW No Model Compatibility List $3.00 / Each

7,2
100339 013581 . IDLER ARM BOLT No Model Compatibility List $1.36 / Each

2,8,3
3/8 106107 013601 . 3/8" X 2" BOLT Yes Model Compatibility List $6.95 / Each

2
100561 014086 . M10 WASHER No Model Compatibility List $0.36 / Each

2
1/4 102826 014129 . 1/4" WASHER No Model Compatibility List $1.10 / Each

2
168484 142668 . HIGH CABLE No Model Compatibility List $106.09 / Each

4,5,6
168485 142669 . PRESS CABLE No Model Compatibility List $123.36 / Each

4,5,6
168481 142671 1 AB UPRIGHT No Model Compatibility List $136.06 / Each

3
168482 142719 16 REAR SEAT FRAME No Model Compatibility List $101.44 / Each

3,12,13,14
168388 142726 31 I-PLATE No Model Compatibility List $13.45 / Each

1
168486 143512 98 SUPPORT PLATE No Model Compatibility List $4.76 / Each

3
121613 144609 . BUMPER No Model Compatibility List $7.29 / Each

1

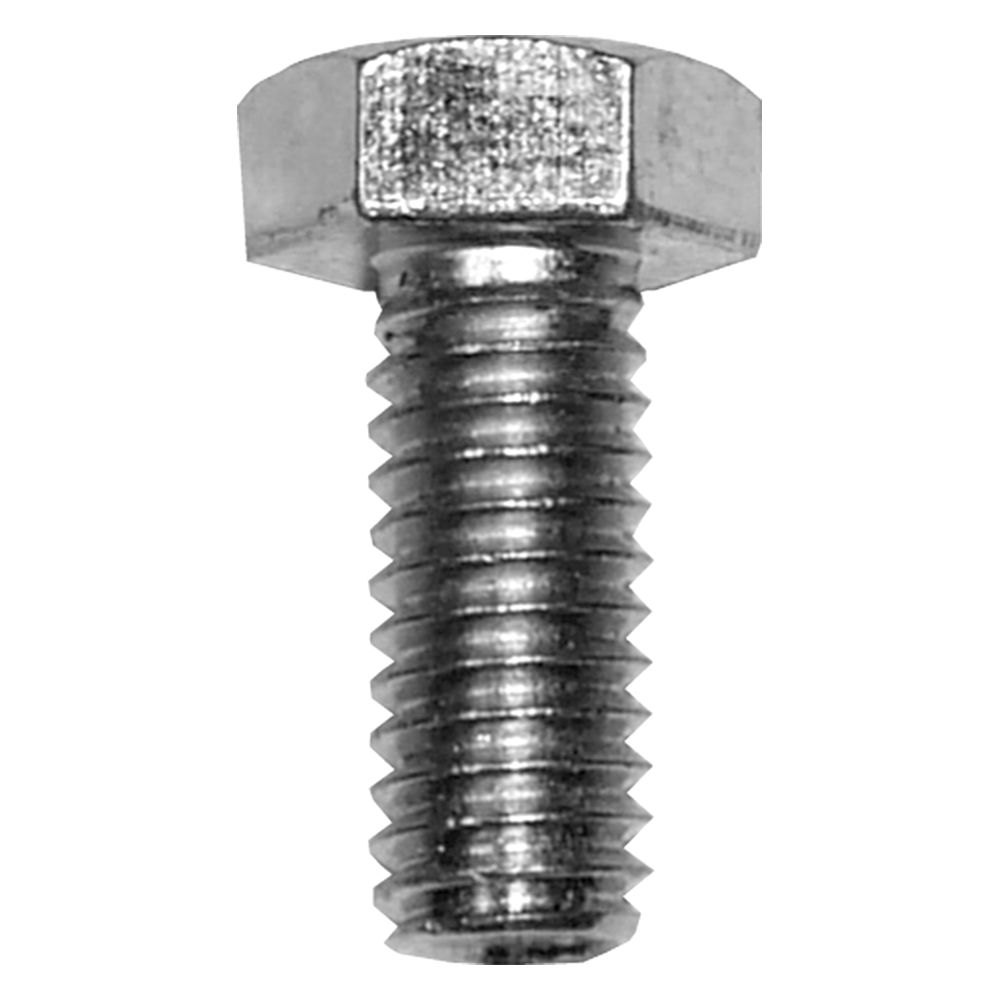

3/8 106108 145006 . 3/8" X 1" BOLT No Model Compatibility List $1.94 / Each

2
1/2 121618 145861 69 1/2" X 3/4" BUSHING Yes Model Compatibility List $18.13 / Each

8
169282 146323 . USER'S MANUAL No Model Compatibility List $13.07 / Each

1
168489 146426 . 5/16" X 6" BOLT No Model Compatibility List $6.86 / Each
Out Of Stock 		2
100264 146427 . 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
MOUNT SCREW 102058 150508 . MOUNT SCREW No Model Compatibility List $1.52 / Each

2
163845 152594 . WALL CHART No Model Compatibility List $65.15 / Each

1
121621 169610 75 LEG LEVER BUSHING No Model Compatibility List $9.45 / Each

8,3
123697 173573 . PULLEY COVER No Model Compatibility List $6.51 / Each
Out Of Stock 		8,9
WEIGHT BUMPER 102183 192665 . WEIGHT BUMPER Yes Model Compatibility List $17.36 / Each
Out Of Stock 		3
WEIGHT PIN 116904 193926 . WEIGHT PIN No Model Compatibility List $19.61 / Each

3,12,13,14
167017 202061 . LOCK PIN No Model Compatibility List $17.93 / Each
Out Of Stock 		12,13,14
123654 204031 . V-PULLEY No Model Compatibility List $40.46 / Each

8
104632 230475 . SMALL PULLEY No Model Compatibility List $71.96 / Each

8
View Drawing
