Weider - SPEED WT

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
013300 100149 013300 7 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
141510 100894 141510 # 38MM X 76MM INNER CAP Yes Model Compatibility List $5.31 / Each

9
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1

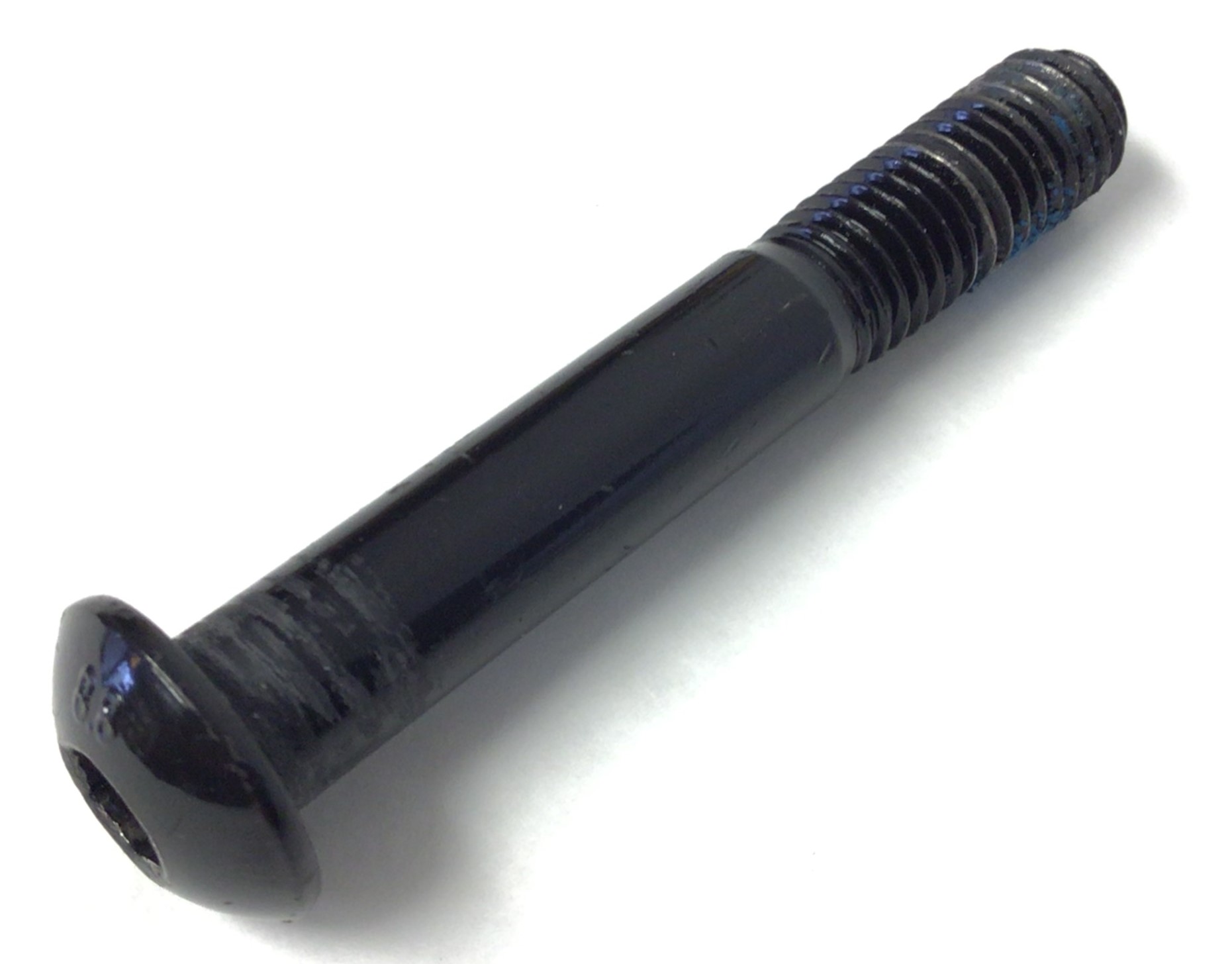

232248 100000 232248 6 M10 X 65MM Button Head Screw No Model Compatibility List $16.40 / Each

2
100600 253230 # BASE WARNING DECAL No Model Compatibility List $6.35 / Each

7,3
109183 273032 5 SMALL LEVELING FOOT No Model Compatibility List $12.53 / Each

9
168645 308241 10 2.5-POUND WEIGHT PLATE No Model Compatibility List $88.45 / Each

3
168646 308242 11 5-POUND WEIGHT PLATE No Model Compatibility List $104.32 / Each

3
168647 308243 12 10-POUND WEIGHT PLATE No Model Compatibility List $131.43 / Each

3
168669 309162 # USER'S MANUAL No Model Compatibility List $9.22 / Each

1
168666 309207 8 HANDLE No Model Compatibility List $419.25 / Each

11
168651 309381 # DECAL, WARNING SAFETY No Model Compatibility List $4.80 / Each

7,9,3
168667 309450 14A LEFT HANDLE COVER No Model Compatibility List $31.21 / Each

9,11
168648 309451 13 HANDLE CAP No Model Compatibility List $81.91 / Each

9,11
138943 312577 4 BASE CAP No Model Compatibility List $50.70 / Each

9,3
168668 319362 14B RIGHT HANDLE COVER No Model Compatibility List $31.21 / Each

9,11
045021 100541 045021 # 6MM ALLEN WRENCH No Model Compatibility List $5.28 / Each

2
View Drawing
