Weslo - PURSUIT 510 CS

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100128 116059 100128 28 ADJUSTMENT BRACKET No Model Compatibility List $2.29 / Each

2,3,4,5,6
116611 102356 25 FLYWHEEL BEARING No Model Compatibility List $81.02 / Each

8
113842 100081 113842 38 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
124683 012012 29 CRANK NUT No Model Compatibility List $7.89 / Each

2,8
012142 101429 012142 32 M6 LOCKNUT No Model Compatibility List $1.98 / Each

2
115977 128548 . M8 X 16MM BUTTON SCREW No Model Compatibility List $2.28 / Each

2
131090 100079 131090 22 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6
113832 133757 68 M6 X 35MM BOLT No Model Compatibility List $3.33 / Each

2
116432 134537 60 M6 X 38MM BUTTON SCREW No Model Compatibility List $4.44 / Each

2
013585 101801 013585 65 M5 X 6MM SCREW Yes Model Compatibility List $1.65 / Each

2
014061 101800 014061 23 M10 WASHER No Model Compatibility List $1.51 / Each

2
014174 100665 014174 . M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

2
116237 142050 31 EYE BOLT No Model Compatibility List $5.81 / Each

2
144520 102054 144520 67 M5 NUT No Model Compatibility List $1.77 / Each

2
144528 100689 144528 64 #8 X 9MM SCREW Yes Model Compatibility List $0.23 / Each

2
144985 100668 144985 6 M4 X 16MM SCREW No Model Compatibility List $1.32 / Each

2
148710 100540 148710 . M10 LOCKNUT No Model Compatibility List $2.67 / Each

2
102047 153770 59 M8 X 40MM BUTTON SCREW No Model Compatibility List $10.57 / Each

2
154848 101799 154848 41 M4 X 52MM SCREW No Model Compatibility List $1.23 / Each

2
163342 120720 163342 7 HANDLEBAR ENDCAP Yes Model Compatibility List $5.69 / Each

4,5,6,9,11
112496 164086 . M10 X 65MM BOLT No Model Compatibility List $10.13 / Each

2
177035 101781 177035 40 FLYWHEEL BEARING No Model Compatibility List $63.94 / Each

8
173291 185665 18 RIGHT SIDESHIELD No Model Compatibility List $111.42 / Each

3
173290 185668 17 LEFT SIDESHIELD No Model Compatibility List $111.42 / Each

3
185674 152377 185674 4 STABILIZER ENDCAP Yes Model Compatibility List $14.86 / Each

9
172654 185843 2 REAR STABILIZER No Model Compatibility List $19.23 / Each

1

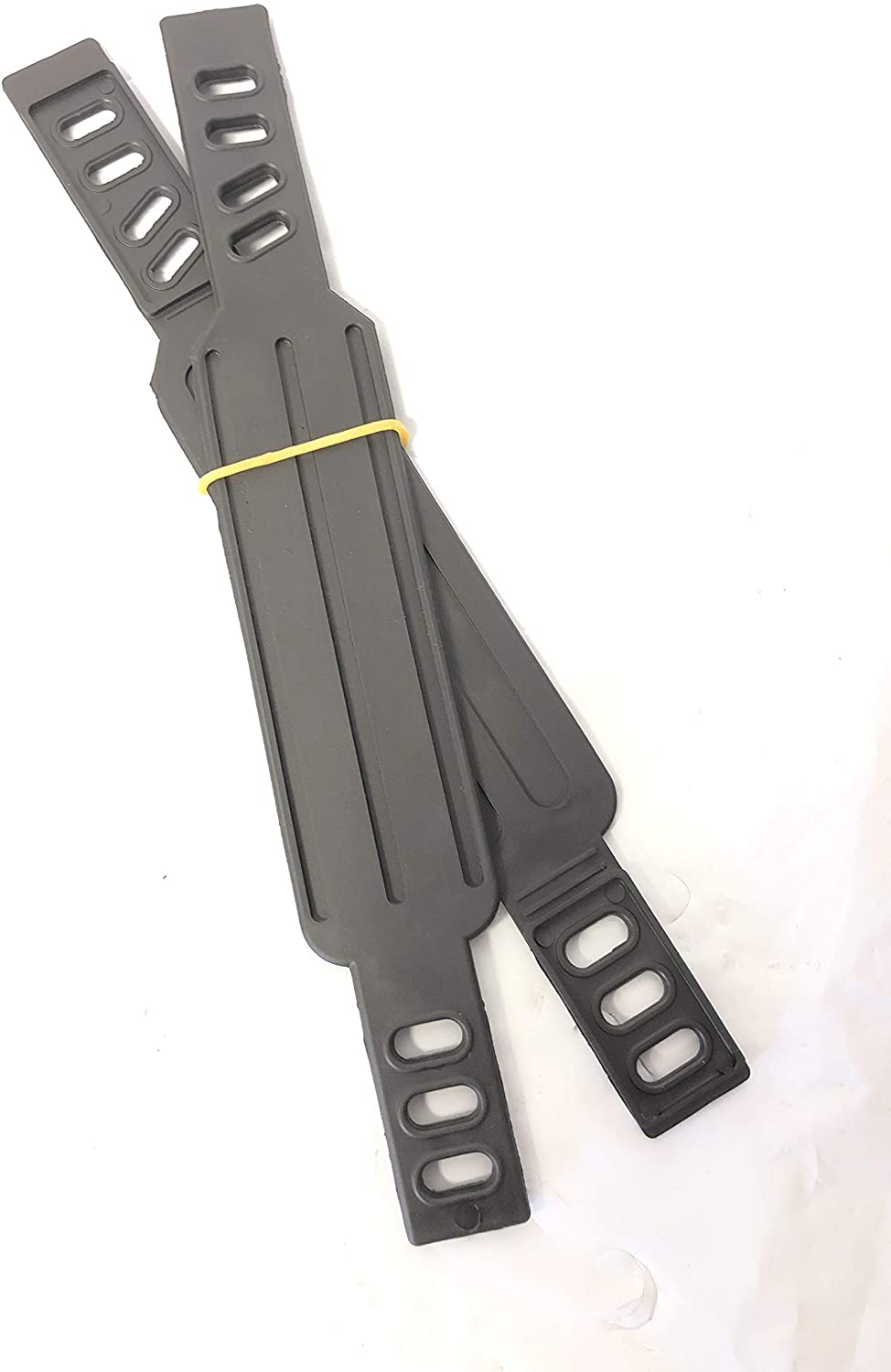

186101 173230 186101 58 PEDAL STRAP No Model Compatibility List $13.19 / Each

8,9
171478 186114 27 RESISTANCE KNOB/CABLE No Model Compatibility List $6.42 / Each

4,5,6,10
173289 186231 15 HANDLEBAR No Model Compatibility List $36.01 / Each

11
173287 186232 5 SEAT FRAME No Model Compatibility List $93.32 / Each

3,12,13,14
173294 186233 53 RIGHT SEAT BRACKET No Model Compatibility List $28.68 / Each

2,3,4,5,6,12,13,14
173293 186234 52 LEFT SEAT BRACKET No Model Compatibility List $28.68 / Each

2,3,4,5,6,12,13,14
173288 186235 13 UPRIGHT No Model Compatibility List $40.33 / Each

3
173283 186237 51 INNER FRAME BUSHING No Model Compatibility List $2.46 / Each

8,3
173281 186238 20 SEAT FRAME BUSHING No Model Compatibility List $4.88 / Each

8,3,12,13,14
173274 186246 8 FOAM GRIP No Model Compatibility List $14.26 / Each
Out Of Stock
11
186247 173285 186247 54 BACKREST Yes Model Compatibility List $74.61 / Each

4,5,6,12,13,14
186248 173276 186248 12 SEAT BOTTOM Yes Model Compatibility List $191.66 / Each

12,13,14

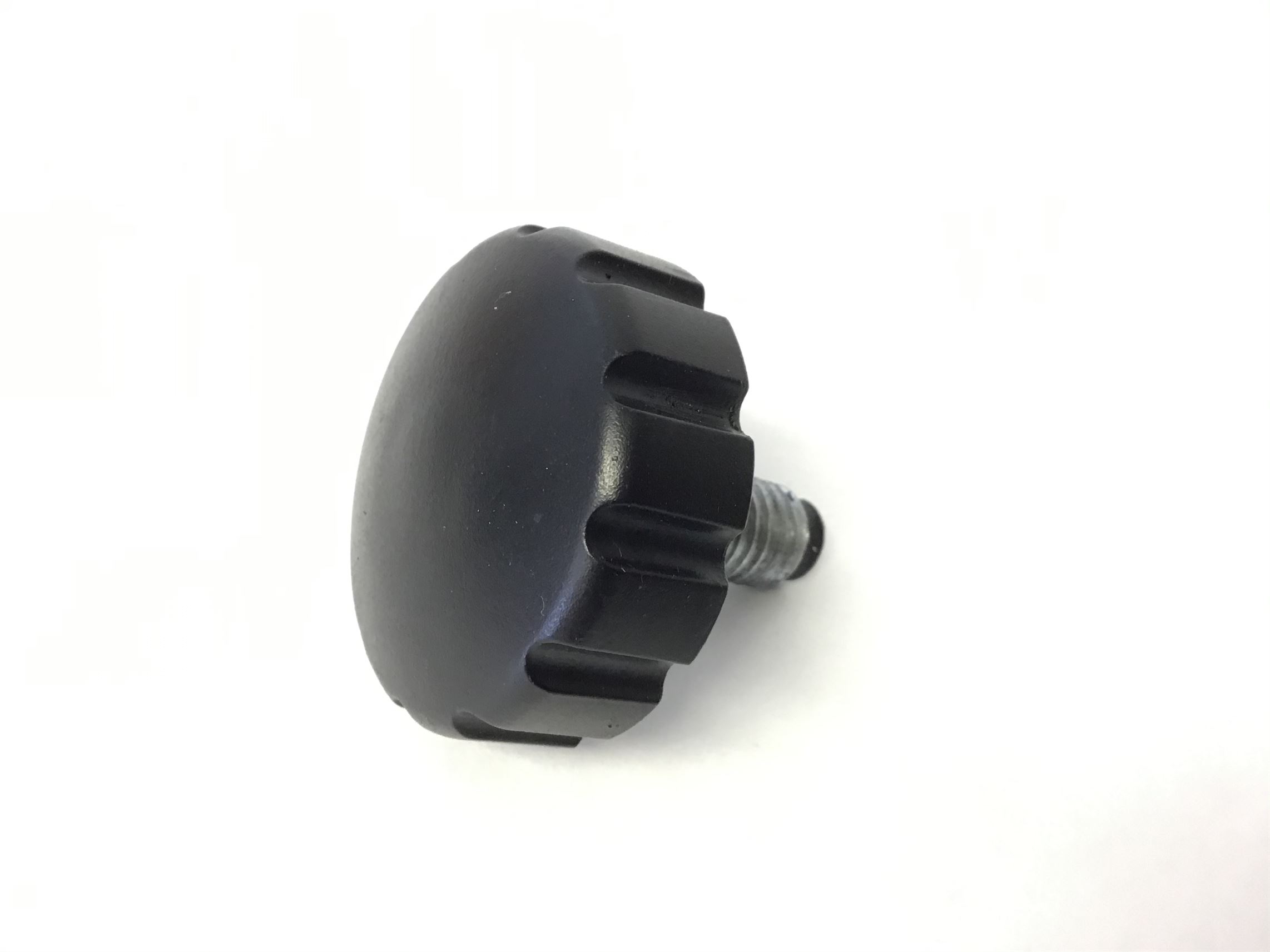

186252 173275 186252 9 ADJUSTMENT KNOB 1/2-13 Yes Model Compatibility List $18.36 / Each
Out Of Stock
1
186253 109966 186253 55 CONSOLE FRAME CAP Yes Model Compatibility List $5.84 / Each

3,7,9
173292 186254 50 SEAT HANDLE No Model Compatibility List $14.67 / Each

12,13,14,11
186255 173280 186255 19 RESISTANCE KNOB ASSEMBLY Yes Model Compatibility List $61.46 / Each
Out Of Stock
10
189293 102093 189293 35 DRIVE BELT, 35 Yes Model Compatibility List $99.51 / Each

15
162317 189478 66 BUMPER No Model Compatibility List $0.77 / Each

1
190261 110335 190261 43 REED SWITCH/WIRE Yes Model Compatibility List $23.31 / Each

4,5
153628 192837 62 M6 X 30MM SCREW No Model Compatibility List $0.77 / Each

2
193201 114113 193201 56 30MM X 60MM INT ENDCAP Yes Model Compatibility List $4.59 / Each

4,5,6,9
119698 193202 57 M8 X 125MM BOLT No Model Compatibility List $12.29 / Each

2
128995 195051 46 RESISTANCE CABLE No Model Compatibility List $5.94 / Each
Out Of Stock
4,5,6,10
195562 100586 195562 49 M4 X 16MM SCREW Yes Model Compatibility List $1.44 / Each

2
204173 173225 204173 36 C-MAGNET BRACKET Yes Model Compatibility List $28.67 / Each

8
116425 204389 39 FLYWHEEL AXLE No Model Compatibility List $4.63 / Each

8
175370 204405 # USER'S MANUAL No Model Compatibility List $6.23 / Each

1
160807 206222 48 RETURN SPRING No Model Compatibility List $3.34 / Each

2
208495 116318 208495 21 CRANK/PULLEY No Model Compatibility List $146.81 / Each

8
114443 214679 3 M8 X 20MM SCREW No Model Compatibility List $2.55 / Each

2
295560 115067 295560 44 CRANK BEARING SET Yes Model Compatibility List $54.00 / Each

8
385957 124538 385957 24 LEFT PEDAL Yes Model Compatibility List $31.10 / Each

8,9
385958 124539 385958 26 RIGHT PEDAL Yes Model Compatibility List $31.10 / Each

8,9
045008 100604 045008 . 5MM ALLEN WRENCH No Model Compatibility List $3.85 / Each

2
045021 100541 045021 # 6MM ALLEN WRENCH No Model Compatibility List $5.28 / Each

2
163342a 1015739 163342a 40 2 Upper Handlebar End Cap (used) No Model Compatibility List $7.69 / Each
Out Of Stock
9
204171 1015735 204171 # 1 FLYWHEEL 7.854" Diameter (Used) Yes Model Compatibility List $108.90 / Each
Out Of Stock
8
204172 1015736 204172 11 1 C- Magnet Brake (Used) Yes Model Compatibility List $54.99 / Each

8
223743 1015741 223743 46 1 Resistance Cable (Used) Yes Model Compatibility List $21.99 / Each

5
014033 1020703 014033 0 1 M6 Flat Washer (Used) Yes Model Compatibility List $2.02 / Each

1
