AC SRL AC induction motor E490695 EOS 71C6 (Used)

Description

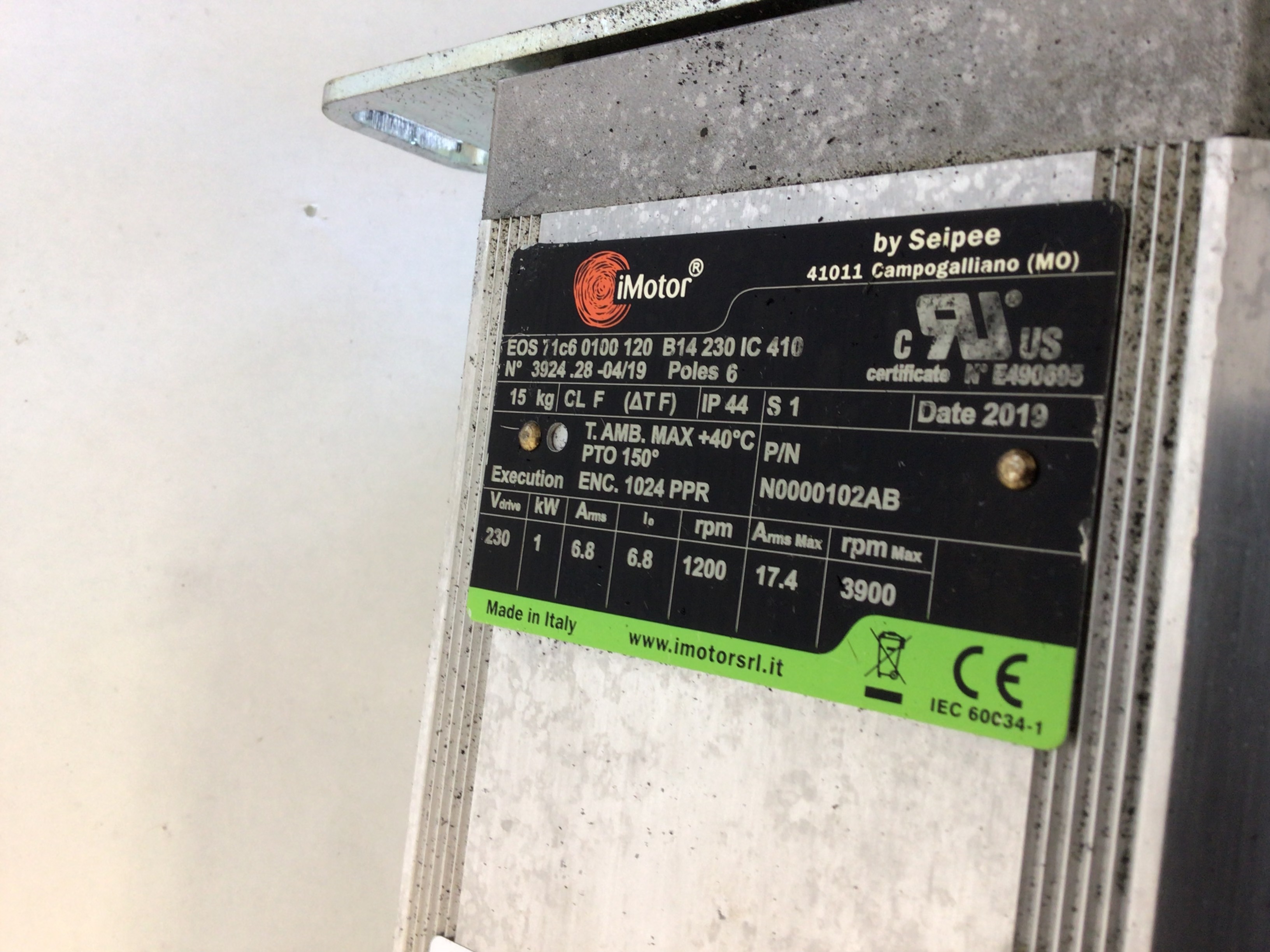

Motor Identification

• Motor Series / Frame: EOS 71C6
• Mount: B14 Face Mount
• Frame Size: 71
• Serial Number: 3924.28-04/19
• Part Number (P/N): N0000102AB

Mechanical Specifications

• Mounting: B14 Face Mount
• Number of Poles: 6
• Weight: 15 kg (33.1 lbs)
• Insulation Class: F
• Protection Rating: IP44
• Duty Cycle: S1 (Continuous Duty)

Electrical Specifications

• Rated Power: 1.0 kW (≈1.34 HP)
• Rated Current: 6.8 A
• No-Load Current (Io): 6.8 A
• Maximum Current: 17.4 A

Speed

• Rated Speed: 1200 RPM
• Maximum Speed: 3900 RPM

Encoder

• Encoder Resolution: 1024 PPR (Pulses Per Revolution)

This indicates the motor is equipped with an integrated incremental encoder for precise speed and position feedback, making it suitable for closed-loop inverter/servo-like control.

Environmental Ratings

• Maximum Ambient Temperature: +40°C (104°F)
• PTO Temperature: 150°C

Likely Application

Based on the integrated 1024 PPR encoder, B14 face mount, and 1200 RPM rating, this is not a standard off-the-shelf induction motor. It is a vector-duty AC motor designed for use with a Variable Frequency Drive (VFD) in commercial fitness equipment.

Motors like this are commonly found in:

• Commercial treadmills
• Incline trainers
• Medical treadmills
• Other fitness equipment requiring precise speed feedback
