Life Fitness - Club Series (CSX)

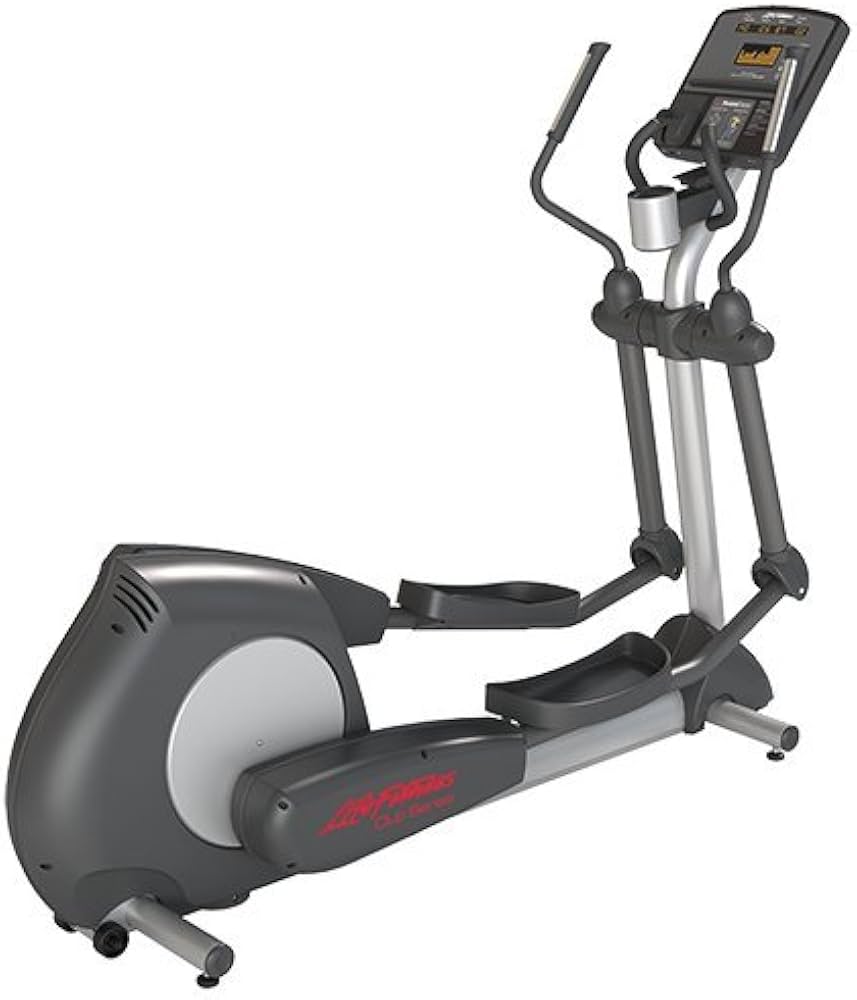

Repair Parts for Life Fitness Club Series (CSX) CSX-0000-01

Brand: Life Fitness

Category: Consumer Equipment

Type: Elliptical

Model Name: Club Series (CSX)

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
0017-00003-0704 500009 0017-00003-0704 MISC-003 Line Cord 10A 125 V Yes Model Compatibility List $31.36 / Each

4,5,6
0017-00008-0198 500098 0017-00008-0198 - Paint: Stealth Grey; .6OZ. Bottle B No Model Compatibility List $34.36 / Each

1
0017-00008-0199 500099 0017-00008-0199 - Paint: Stealth Grey; 4.5OZ. Can No Model Compatibility List $59.25 / Each

1
0017-00008-0204 500100 0017-00008-0204 MISC-004 Paint Spray Can - Arctic Silver No Model Compatibility List $64.18 / Each

1
0017-00008-0205 500101 0017-00008-0205 MISC-005 5 oz Bottle - Arctic Silver No Model Compatibility List $45.37 / Each

1
0017-00008-0206 500102 0017-00008-0206 MISC-006 .33oz Pen - Arctic Silver No Model Compatibility List $48.80 / Each

1
0017-00009-0841 500126 0017-00009-0841 DS-005 Alternator Yes Model Compatibility List $285.85 / Each

1,8
0017-00009-0895 500133 0017-00009-0895 DS-002 Alternator Brush Kit Yes Model Compatibility List $83.62 / Each

1
0017-00009-1084 500172 0017-00009-1084 - Wave Spring No Model Compatibility List $8.80 / Each

2,4,5,6
0017-00009-1143 500176 0017-00009-1143 - Clip No Model Compatibility List $1.57 / Each

2
0017-00041-0053 500210 0017-00041-0053 DS-050 Viton O-ring No Model Compatibility List $1.57 / Each

1
0017-00042-0674 500220 0017-00042-0674 FS-042 Front Transport Wheel Yes Model Compatibility List $6.56 / Each

8
0017-00042-1066 500277 0017-00042-1066 FS-041 Push-on cap No Model Compatibility List $3.81 / Each

9
0017-00042-1078 500284 0017-00042-1078 HR-006 Hardware: Bushing No Model Compatibility List $1.57 / Each

8
0017-00042-1147 500297 0017-00042-1147 A31 Hardware: Nylon Grommet No Model Compatibility List $1.57 / Each

2
0017-00100-0152 500325 0017-00100-0152 DS-036 Hardware: Retaining Ring 1" No Model Compatibility List $1.57 / Each

1
0017-00101-0314 500348 0017-00101-0314 DS-024 Hardware: Screw 0.1875" No Model Compatibility List $1.57 / Each

2
0017-00101-0333 500349 0017-00101-0333 DM-007 Hardware: Screw 0.3125" No Model Compatibility List $1.57 / Each

2
0017-00101-0964 500369 0017-00101-0964 DS-007 Hardware: Alternator Pivot Bolt 4.5" Yes Model Compatibility List $3.20 / Each

2,8
0017-00101-0986 500373 0017-00101-0986 DS-088 Hardware: Bolt 0.75" No Model Compatibility List $1.57 / Each

2
0017-00101-1242 500402 0017-00101-1242 CN-018 Hardware: Phillips Pan Screw 0.75" No Model Compatibility List $1.57 / Each

2
0017-00101-1282 500410 0017-00101-1282 SM-011 Hardware: TORX Screw 0.375" No Model Compatibility List $1.57 / Each

2
0017-00101-1551 500467 0017-00101-1551 DS-030 Hardware: Hex Bolt 1.25" No Model Compatibility List $1.57 / Each

2
0017-00101-1606 500475 0017-00101-1606 DS-019 Hardware: Hex Bolt 2.5" No Model Compatibility List $1.57 / Each

2
0017-00101-1635 500495 0017-00101-1635 FS-028 Hardware: Serrated Flange Hex Bolt 1 Yes Model Compatibility List $3.81 / Each

2
0017-00101-1645 500499 0017-00101-1645 DS-039 Hardware: Bolt Yes Model Compatibility List $1.57 / Each

2
0017-00101-1646 500500 0017-00101-1646 DS-048 Hardware: Bolt 4.25" No Model Compatibility List $3.20 / Each

2
0017-00101-1650 500502 0017-00101-1650 MS-002 Hardware: Phillips Pan Screw 0.375" No Model Compatibility List $1.40 / Each

2
0017-00101-1651 500503 0017-00101-1651 DS-013 Hardware: Intermediate Pulley Bolt 5.5" No Model Compatibility List $3.20 / Each

2,8
0017-00103-0019 500744 0017-00103-0019 DS-035 Hardware: Locking Nut 1/4" ID No Model Compatibility List $1.57 / Each

2
0017-00103-0025 500745 0017-00103-0025 LS-020 Hardware: Locking Nut 3/8" ID No Model Compatibility List $1.57 / Each

2
500752 0017-00103-0117 DS-007 Hardware: Locking Nut 1/2" ID No Model Compatibility List $1.40 / Each

2
0017-00103-0137 500756 0017-00103-0137 DS-052 Hardware: Locking Nut 3/8" ID No Model Compatibility List $1.57 / Each

2
0017-00103-0188 500762 0017-00103-0188 DS-009 Hardware: Flange Lock Nut 3/8" ID No Model Compatibility List $1.57 / Each

2
0017-00103-0286 500787 0017-00103-0286 - Hardware: Locking Nut No Model Compatibility List $1.57 / Each

2
0017-00104-0044 500819 0017-00104-0044 DS-004 Hardware: Washer 0.75" OD Yes Model Compatibility List $3.40 / Each

2
0017-00104-0144 500827 0017-00104-0144 DS-049 Hardware: Washer 0.625" OD No Model Compatibility List $1.57 / Each

2
0017-00104-0164 500830 0017-00104-0164 DS-011 Hardware: Washer 0.75" OD No Model Compatibility List $1.57 / Each

2
0017-00104-0192 500834 0017-00104-0192 LF-002 Hardware: Flat Washer 0.813" OD No Model Compatibility List $1.57 / Each

2
0017-00104-0417 500877 0017-00104-0417 - Hardware: Flat Washer Yes Model Compatibility List $1.57 / Each

2
0017-00104-0450 500880 0017-00104-0450 HR-007 Hardware: Flat Washer 0.67" OD No Model Compatibility List $1.57 / Each

2
0017-00104-0454 500881 0017-00104-0454 DS-058 Hardware: Flat Washer 1.62" OD No Model Compatibility List $3.20 / Each

2
0K14-01384-0000 501254 0K14-01384-0000 LF-020 Plug No Model Compatibility List $1.57 / Each

1
0K36-01059-0002 501409 0K36-01059-0002 - Insulator Receiver Tube No Model Compatibility List $1.57 / Each

3
0K53-01122-0000 501724 0K53-01122-0000 DS-016 Square Key Yes Model Compatibility List $1.57 / Each

9
0K53-01181-0000 501725 0K53-01181-0000 DS-031 Hardware: Pillow Block Bearing No Model Compatibility List $64.18 / Each

1
0K53-01447-0000 501727 0K53-01447-0000 DS-012 Belt: Poly-V; 32 Yes Model Compatibility List $32.89 / Each

15
502035 0K61-01027-0000 DS-006 Flywheel: 6.75" D No Model Compatibility List $31.40 / Each

8
0K61-01076-0000 502039 0K61-01076-0000 DS-051 Pedal Lever Clevis Shaft Yes Model Compatibility List $16.40 / Each

8,9,3
0K61-01259-0000 502044 0K61-01259-0000 DS-056 Shaft Split Collar No Model Compatibility List $16.40 / Each

1
0K61-01260-0001 502046 0K61-01260-0001 - Collar: Shaft; Crankarm B Yes Model Compatibility List $6.73 / Each

8,3
0K61-01283-0001 502059 0K61-01283-0001 - Cap Yes Model Compatibility List $7.17 / Each

9
0K61-01284-0304 502063 0K61-01284-0304 LS-010 Stabilizer Cap Yes Model Compatibility List $9.72 / Each

9
0K61-01300-0000 502068 0K61-01300-0000 LF-009 Wheel Shaft Yes Model Compatibility List $9.92 / Each

8
0K61-01356-0000 502080 0K61-01356-0000 DS-049 Hardware: Beveled Washer No Model Compatibility List $1.57 / Each

2
0K61-01360-0002 502082 0K61-01360-0002 DS-029 Crankshaft w/plate No Model Compatibility List $126.81 / Each

8
0K61-01382-0001 502086 0K61-01382-0001 - Overlay: Console; Upper; X9I; English; S/C-D No Model Compatibility List $0.00 / Each
Out Of Stock 		7
0K61-01384-0011 502088 0K61-01384-0011 - OVERLAY: LOWER; X9I No Model Compatibility List $11.11 / Each

1
0K61-01410-0300 502091 0K61-01410-0300 - Rocker Seal No Model Compatibility List $2.56 / Each

1
0K61-02302-0001 502092 0K61-02302-0001 DS-027 Crankshaft Plate No Model Compatibility List $8.15 / Each

8
0K61-02400-0001 502094 0K61-02400-0001 DS-006 Intermediate Bracket No Model Compatibility List $128.45 / Each

2,3,4,5,6
0K61-02409-0000 502095 0K61-02409-0000 DS-028 Poly-V Crank Pulley No Model Compatibility List $83.97 / Each

8
0K61-02601-0000 502096 0K61-02601-0000 DS-005 Alternator Strap with Insert No Model Compatibility List $13.10 / Each

1
0K61-03004-0000 502097 0K61-03004-0000 DS-022 Arm Extension Yes Model Compatibility List $32.48 / Each

3
0K61-03100-0002 502100 0K61-03100-0002 - Crank Cover No Model Compatibility List $44.41 / Each

8,9
0K61-04042-0002 502103 0K61-04042-0002 - Shaft: Stroke-Link B No Model Compatibility List $3.20 / Each

1
0K61-04114-0000 502104 0K61-04114-0000 DS-038 Roller Retainer Plate Yes Model Compatibility List $16.40 / Each

8
0K61-04115-0002 502105 0K61-04115-0002 SC-008 Adhesive Tape No Model Compatibility List $1.57 / Each

1
0K61-06121-0008 502125 0K61-06121-0008 LF-004 Extrusion Cover Yes Model Compatibility List $62.26 / Each

9
0K61-06200-0004 502129 0K61-06200-0004 - Cover: Front; Left; S/C-E No Model Compatibility List $93.20 / Each

9
0K61-06210-0004 502131 0K61-06210-0004 - Cover: Front; Right; E No Model Compatibility List $93.20 / Each

9
0K61-06300-0004 502142 0K61-06300-0004 - Inside Cover Left Yes Model Compatibility List $134.40 / Each

9
0K61-06320-0004 502147 0K61-06320-0004 - Inside Cover Right No Model Compatibility List $100.99 / Each

9
0K61-06340-0003 502152 0K61-06340-0003 - Front Rocker Arm Cover Yes Model Compatibility List $22.60 / Each

3,9
0K61-06341-0003 502156 0K61-06341-0003 - Front Rocker Arm Cover Yes Model Compatibility List $14.57 / Each

9,3
0K61-06350-0003 502160 0K61-06350-0003 - Front Deadshaft Cover Yes Model Compatibility List $45.08 / Each

9
0K61-06351-0003 502164 0K61-06351-0003 - Rear Deadshaft Cover Yes Model Compatibility List $34.34 / Each

9
0K62-01136-0002 502220 0K62-01136-0002 UF-009 Bullhorn Grip 11.75" No Model Compatibility List $8.15 / Each

11
0K63-01029-0001 502254 0K63-01029-0001 - Battery Door No Model Compatibility List $4.98 / Each

1
118E-00001-0133 504177 118E-00001-0133 - Switch Membrane No Model Compatibility List $42.76 / Each

4,5,6
118E-00001-0267 504187 118E-00001-0267 - Power Supply: External; 9V; 3 AMP No Model Compatibility List $70.93 / Each

4,5,6
A084-92219-A007 511559 A084-92219-A007 - Programmable Console Printed Circuit Board Assembly: Mfg; Multi; X9I BM No Model Compatibility List $558.88 / Each
Out Of Stock 		7
AK36-00021-0003 512709 AK36-00021-0003 - Cable Assembly Yes Model Compatibility List $19.76 / Each

4,5,6
AK61-00035-0000 513615 AK61-00035-0000 FS-064 Leg Leveler Yes Model Compatibility List $32.56 / Each

1
AK61-00051-0000 513621 AK61-00051-0000 CBL-016 Bullhorn HR cables Yes Model Compatibility List $22.99 / Each

4,5,6,12,13,14
AK61-00052-0002 513624 AK61-00052-0002 CBL-009 Lifepulse Sensor Cable Yes Model Compatibility List $55.96 / Each

4,5,6,12,13,14
AK61-00061-0000 513630 AK61-00061-0000 DS-011 Intermediate Pulley Assembly Yes Model Compatibility List $0.00 / Each
8
AK61-00062-0001 513632 AK61-00062-0001 - Clevis Cover Yes Model Compatibility List $15.57 / Each

9
AK61-00094-0003 513644 AK61-00094-0003 - Rocker Arm No Model Compatibility List $252.04 / Each

3
AK61-00127-0001 513678 AK61-00127-0001 - Resistor-Bracket Assembly: Mfg. S/C-C No Model Compatibility List $149.65 / Each

2,3,4,5,6
AK61-00131-0000 513679 AK61-00131-0000 - Cable-Assembly: Power-Control; X9 D No Model Compatibility List $42.76 / Each

7,4,5,6
AK61-00138-0000 513682 AK61-00138-0000 - Cable-Assembly: Console; X9L C Yes Model Compatibility List $42.76 / Each

7,4,5,6
AK61-00146-0000 513684 AK61-00146-0000 - Power-Control Printed Circuit Board-Bracket Assemb No Model Compatibility List $162.94 / Each

7,2,3,4,5,6
AK61-00157-0004 513693 AK61-00157-0004 - Crankshaft-Assembly: Club Series; Mfg No Model Compatibility List $264.03 / Each

8
AK61-00172-0001 513694 AK61-00172-0001 - Pedal Assembly: Right No Model Compatibility List $323.38 / Each
Out Of Stock 		8,9
AK61-00172-0002 513695 AK61-00172-0002 - Pedal Assembly: Left No Model Compatibility List $323.38 / Each

8,9
AK61-00176-0001 513698 AK61-00176-0001 - Link Cover with Decal: Right No Model Compatibility List $137.61 / Each

7,9,3
AK61-00176-0002 513699 AK61-00176-0002 - Link Cover with Decal: Left No Model Compatibility List $140.37 / Each

7,9,3
AK61-00178-0001 513704 AK61-00178-0001 - Upper Arm Assembly: Right Yes Model Compatibility List $325.58 / Each

3
AK61-00178-0002 513705 AK61-00178-0002 - Upper Arm Assembly: Left Yes Model Compatibility List $325.58 / Each

3
AK61-00193-0012 513713 AK61-00193-0012 - Console-Assembly: CSX-05; English/Metric S/C-D No Model Compatibility List $0.00 / Each
Out Of Stock 		7
AK61-00195-0011 513715 AK61-00195-0011 - Bezel/Switch with Overlay Assembly: Club Series; E No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
AK61-00197-0000 513716 AK61-00197-0000 - Hardware-Bag Assembly: Mfg; X9I-04 BM No Model Compatibility List $163.09 / Each

1
AK61-00199-0003 513719 AK61-00199-0003 - Link-Cover Assembly: Mfg; Right C No Model Compatibility List $253.55 / Each

9
AK61-00199-0004 513720 AK61-00199-0004 - Link-Cover Assembly: Mfg; Left. C No Model Compatibility List $253.55 / Each

9
AK61-00250-0001 513742 AK61-00250-0001 DS-004 Alternator w/Flywheel Yes Model Compatibility List $294.93 / Each

8
AK61-00500-0015 513770 AK61-00500-0015 - Console Support Assembly Yes Model Compatibility List $220.93 / Each

3,7
AK62-00186-0000 513819 AK62-00186-0000 DS-034 Magnet-Standoff Assembly No Model Compatibility List $12.66 / Each

2,8
AK63-00075-0001 513959 AK63-00075-0001 - Bezel/Switch Assembly No Model Compatibility List $161.46 / Each

4,5,6
AK63-00121-0001 513991 AK63-00121-0001 - Console Case Assembly Yes Model Compatibility List $92.72 / Each

7
GK20-00002-0005 515908 GK20-00002-0005 - Heart Rate Electrode Kit Yes Model Compatibility List $89.49 / Each

3,12,13,14
GK61-00002-0004 515974 GK61-00002-0004 - Kit: Serv; Tie-Rod BM No Model Compatibility List $53.67 / Each

2,3
GK61-00002-0007 515977 GK61-00002-0007 - Kit: Serv; Crank-Arm BM No Model Compatibility List $94.96 / Each

8,3
GK61-00002-0011 515979 GK61-00002-0011 - Wheel and Cap Kit No Model Compatibility List $29.57 / Each

8,9
GK61-00002-0026 515987 GK61-00002-0026 DS-025 Roller Yes Model Compatibility List $83.23 / Each

8
GK61-00002-0046 515995 GK61-00002-0046 Kit: Serv; Clevis Joint BM No Model Compatibility List $96.86 / Each

1
GK61-00002-0054 515996 GK61-00002-0054 - Pedal Kit No Model Compatibility List $87.25 / Each

8,9
GK61-00002-0056 515998 GK61-00002-0056 DS-010 KIT: CROSS TRAINER BELT AND PULLEY No Model Compatibility List $129.85 / Each

8,15
GK63-00002-0062 516034 GK63-00002-0062 - Accessory Tray Kit Yes Model Compatibility List $89.14 / Each
4,5,6
SK40-00045-0001 519116 SK40-00045-0001 - Polar HR Kit Wire Harness Yes Model Compatibility List $66.27 / Each

12,13,14
0K61-02701-0000 LF520J10 0K61-02701-0000 1 Main Drive Belt 52 Inch Yes Model Compatibility List $44.79 / Each

15
0K61-02701-0000 000145 0K61-02701-0000 1 Drive Belt - Used Yes Model Compatibility List $22.39 / Each
15
AK58-033-00 1014408 AK58-033-00 # 1 Polar Heart Rate Wire - Receiver Wire Harness (Used) Yes Model Compatibility List $27.99 / Each
Out Of Stock 		4
0K53-01184-000 0K53-01184-000 0K53-01184-000 16 Rib Main Drive Belt 52" No Model Compatibility List $55.99 / Each
Out Of Stock 		15
AK61-00214-0008 1024146 AK61-00214-0008 0 1 Cover Link (Used) No Model Compatibility List $51.28 / Each

1
118E-00001-0267 1010804 118E-00001-0267 0 1 Power Supply Cord AC Adapter No Model Compatibility List $85.99 / Each

1
